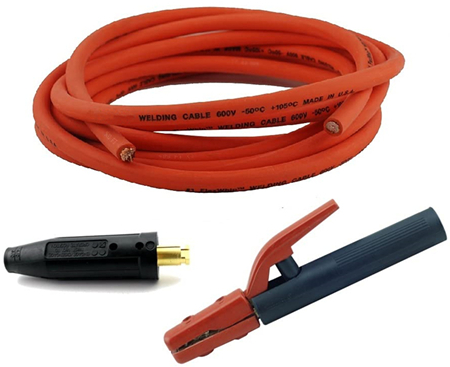

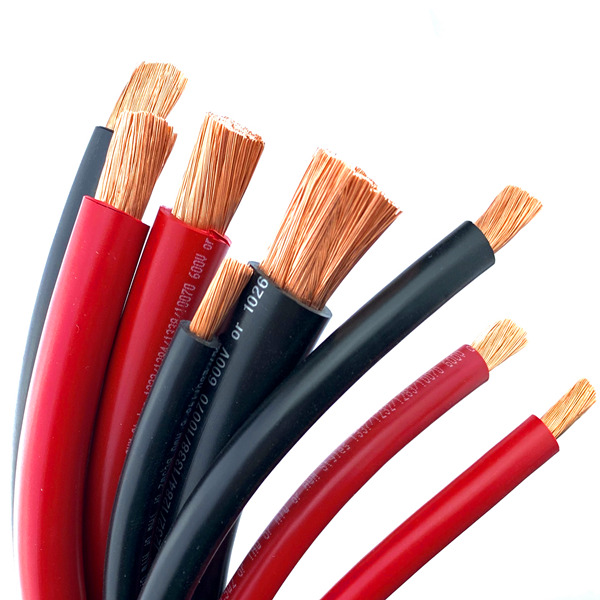

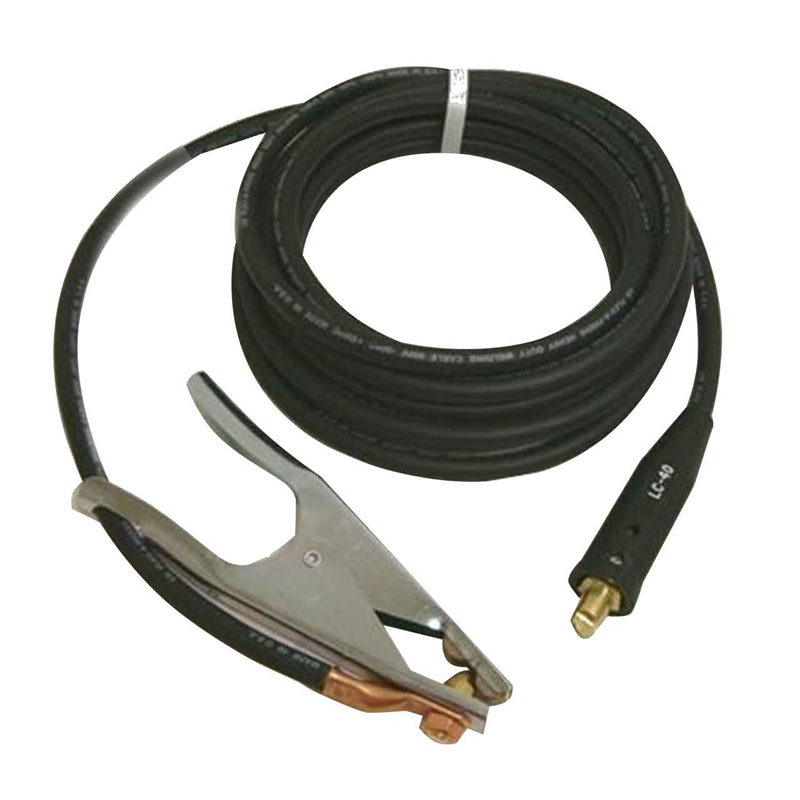

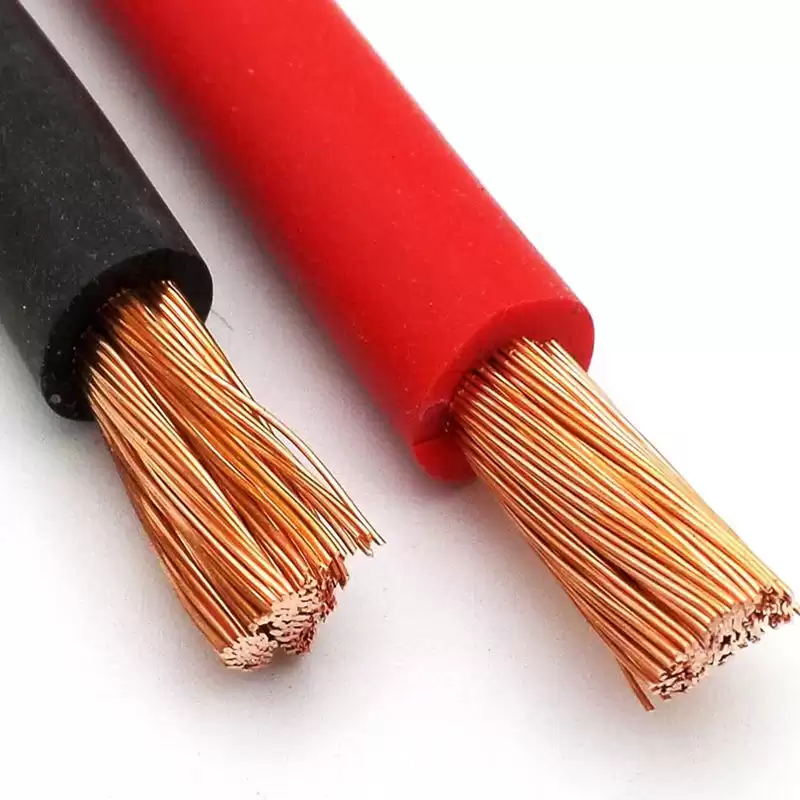

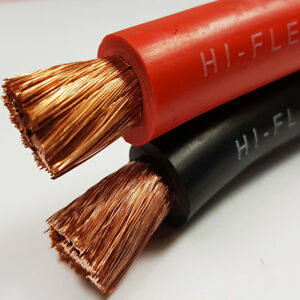

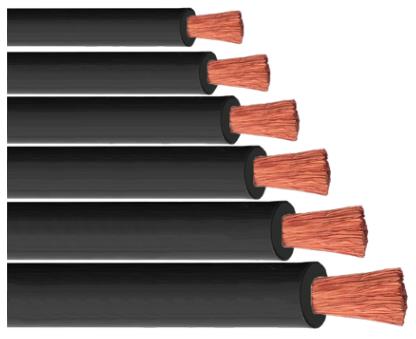

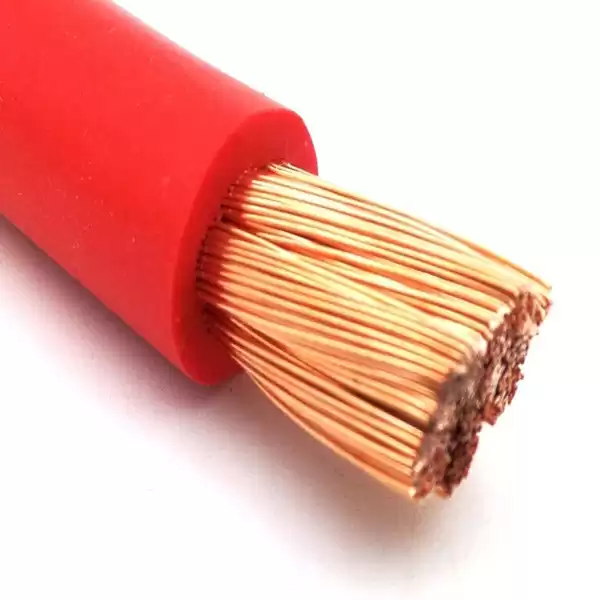

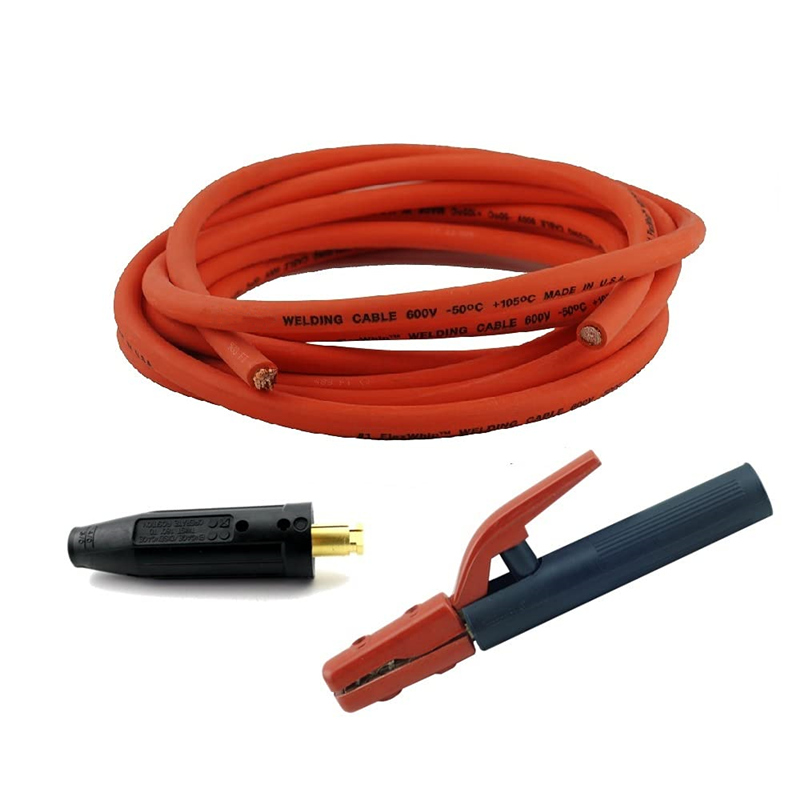

Wear-Resistant & Heat-Resistant Flexible Welding Cable
PRODUCTS NAME
Wear-Resistant & Heat-Resistant Flexible Welding Cable.
PRODUCTS KEYWORDS
welding cable, wear resistant cable, heat resistant cable, H01N2-D, EN 50525-2-81, flexible cable, copper wire, electrical wire, electric cable, wire and cables.
PRODUCTS APPLICATION
Wear-Resistant & Heat-Resistant Flexible Welding Cable, these cables are used as a connection to welding robots in the automotive industry, shipyards and for manually/automatically operated lines and spot welding. These cables are ideal for use as an interconnecting battery cable or in battery storage systems. The robust cable structure makes them resistant to low and high temperatures, ozone and radiation, oils, acids, fats and petrols.
PRODUCTS STRUCTURE
Wear-Resistant & Heat-Resistant Flexible Welding Cable, the structure as below:
---Conductor Material
Plain annealed copper wire, stranded, Class 5, or Class 6.
---Insulation Material
Rubber compound, or flexible PVC (polyvinyl chloride).
---Sheath Material
Non-Sheath.
---Core Number
Single core, 1C, 1 core.
PRODUCTS DIMENSIONS
|
Description of Cable
|
Products Main Technical Sheet
|
|
Products Name
|
Wear-Resistant & Heat-Resistant Flexible Welding Cable.
|
|
Cross-section Size
|
1/0 AWG, 53.49mm2.
|
|
Conductor Material
|
Plain annealed copper wires, stranded, Class 5, or Class 6.
|
|
Conductor Structure
|
975/30 inch, mm.
|
|
Conductor Diameter
|
8.25mm.
|
|
Insulation Material
|
EPDM rubber, or flexible PVC (Polyvinyl Chloride).
|
|
Insulation Thickness
|
0.08 inch, or 1.8 mm.
|
|
Insulation Colour
|
Black, red, orange, or others.
|
|
Sheath Material
|
Non-sheath.
|
|
Core Number
|
Single core, 1 core, 1C.
|
|
Out Diameter
|
0.56 inch, or 14.2 mm.
|
|
Voltage Rate
|
600V, or 450/750V (U0/U).
|
|
About Net Weight
|
0.425 lbs per ft, or 641 kg/km.
|
|
Production Standard
|
EN 50525-2-81, HD 22.6, VDE 0282-6,
BS 638 Part 4 Flame Retardant according to IEC/EN 60332-1-2 .
|
|
Max. Ampacity
at 40 ℃ in air
|
285A.
|
