Feature:
• Excellent structure

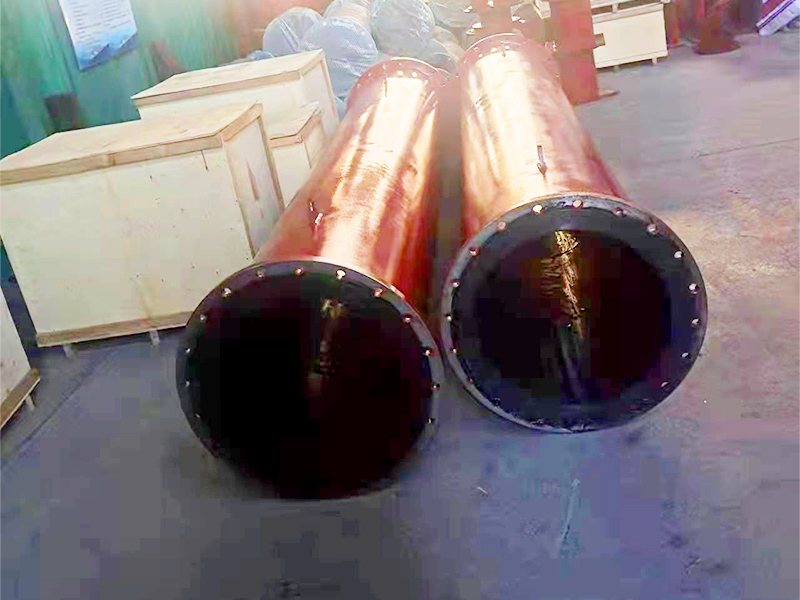

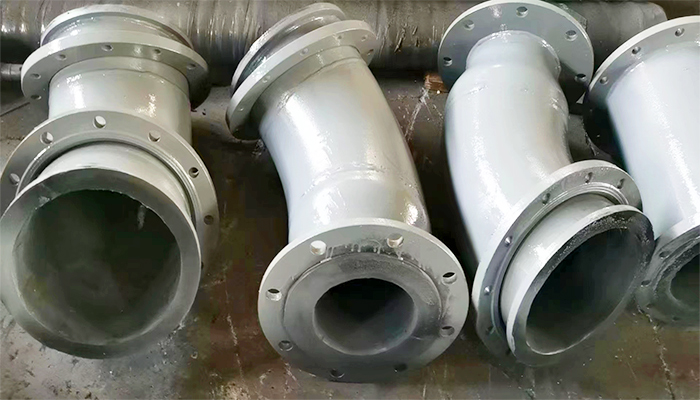

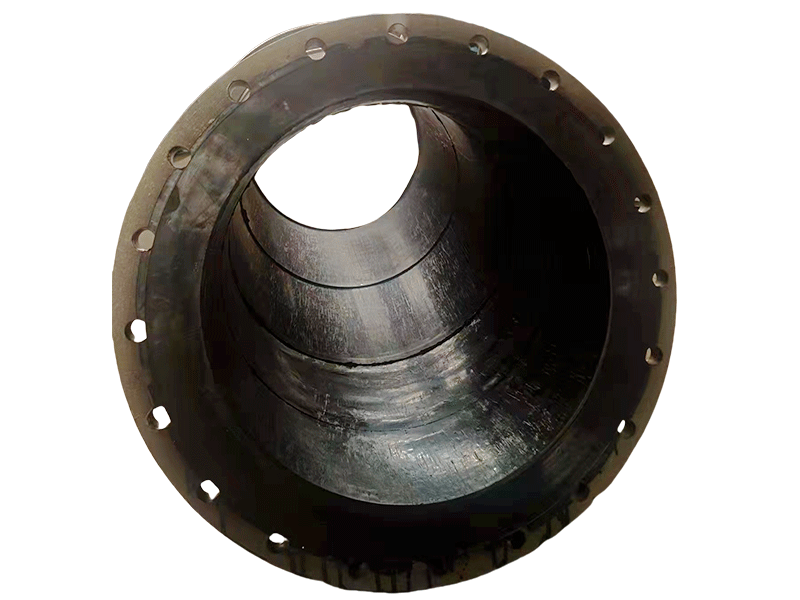

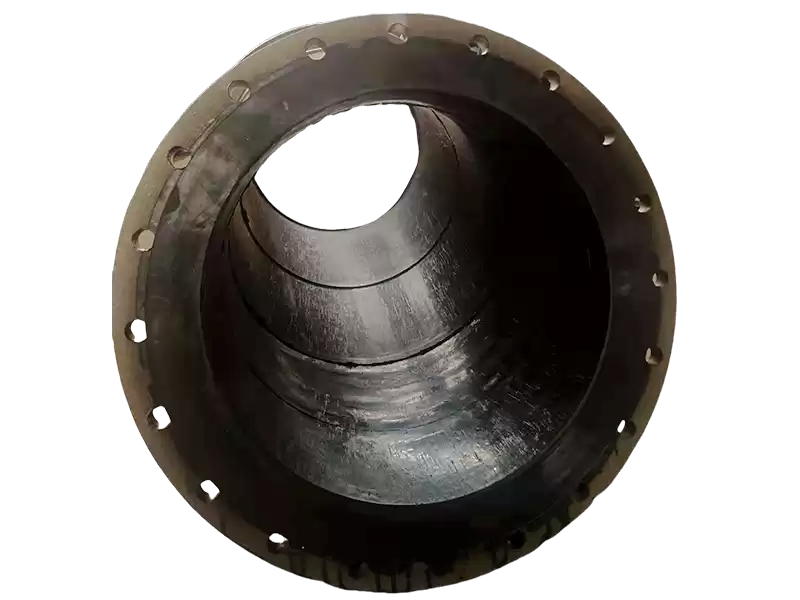

The steel pipe and rubber layer of steel rubber composite pipe are bonded into a whole by using high-performance adhesive or after vulcanisation treatment. Overcome the shortcomings of steel pipe pressure resistance but not wear-resistant, rubber wear-resistant but not pressure-resistant, at the same time with the common advantages of steel pipe and wear-resistant rubber, the comprehensive cost-effective excellent.
• Good abrasion resistance and longer life
The test results of wear resistant rubber lined pipe abrasion value are generally within the range of 0.03~0.20 cm3/1.61km, which is about 3-5 times of plastic. Its abrasion resistance is 4-6 times higher than steel pipe.
• High elasticity and high impact resistance
The rubber elastomer has low density (1.2g/cm3), light weight, good vibration absorption and excellent mechanical impact resistance. The vulcanised rubber lining pipe is even better.
• Excellent corrosion resistance
The rubber elastomer can withstand all kinds of acid, alkali, salt and seawater corrosion.
• Energy saving
The rubber lined pipe has good lubrication and low running resistance, which can save running costs. The absolute fine roughness of the inner wall of the pipe is only Ra0.02668, its self-lubrication and non-adhesion performance is good, the running resistance is about 20% smaller than the ordinary steel pipe, which can save a lot of electricity costs.
• Long service life
The wear resistant rubber lined pipe for industry has superior anti-aging performance, and its service life can be up to less than 15 years (theoretical value, which may deviate due to different actual working conditions) under normal use pressure and normal temperature.
Applications:
widely used in metallurgy, power generation, mining, petroleum, coal, cement and other industries. It is used in concentrate and tailings conveying system of mines, backfilling of mines, dredging of rivers and harbours, ash conveying pipelines of coal-fired power plants, flue gas desulphurisation, acid, alkali and salt conveying pipelines of chemical systems.
Customised Service:
• Rubber liner optional
The rubber compounds suitable for a variety of applications are available, including natural rubber, CR rubber, SBR rubber and more. Rubber lined pipe is one of the effective and more economical solutions to wear and corrosion problems. The right choice of rubber lining will allow your fluid system to flow safely and efficiently, while providing high value and cost savings for you and your stakeholders. We can determine the correct rubber lining to use based on the chemical composition of your conveying medium.
• Reliable quality
We produce high performance rubber lined pipe using a vulcanisation process.
• Cost-effective
Produced with specialised equipment, reliable quality, mature and stable process formula.
• Full technical support
Engineers assist throughout the process to select the most suitable rubber lining for the medium being conveyed.
• OEM available
Specialised lined pipe manufacturing plant to fully satisfy customers' needs.
• Product test reports
Strict quality testing to ensure the reliability of the pipe application.
Common specifications:
OD450-720mm (other sizes can be customised according to customer requirements).
We produce the wear resistant rubber lined pipe with stable quality and high cost performance, if you are looking for it, please feel free to contact us.
