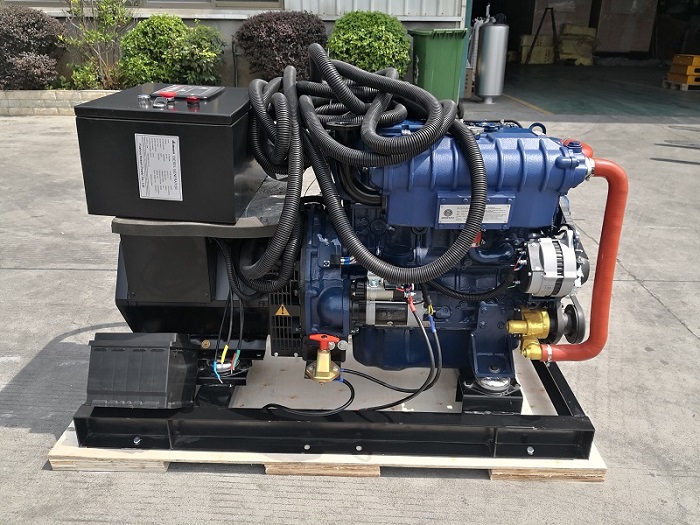

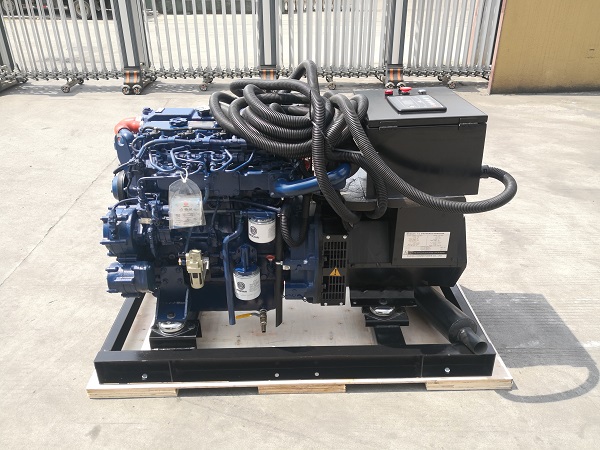

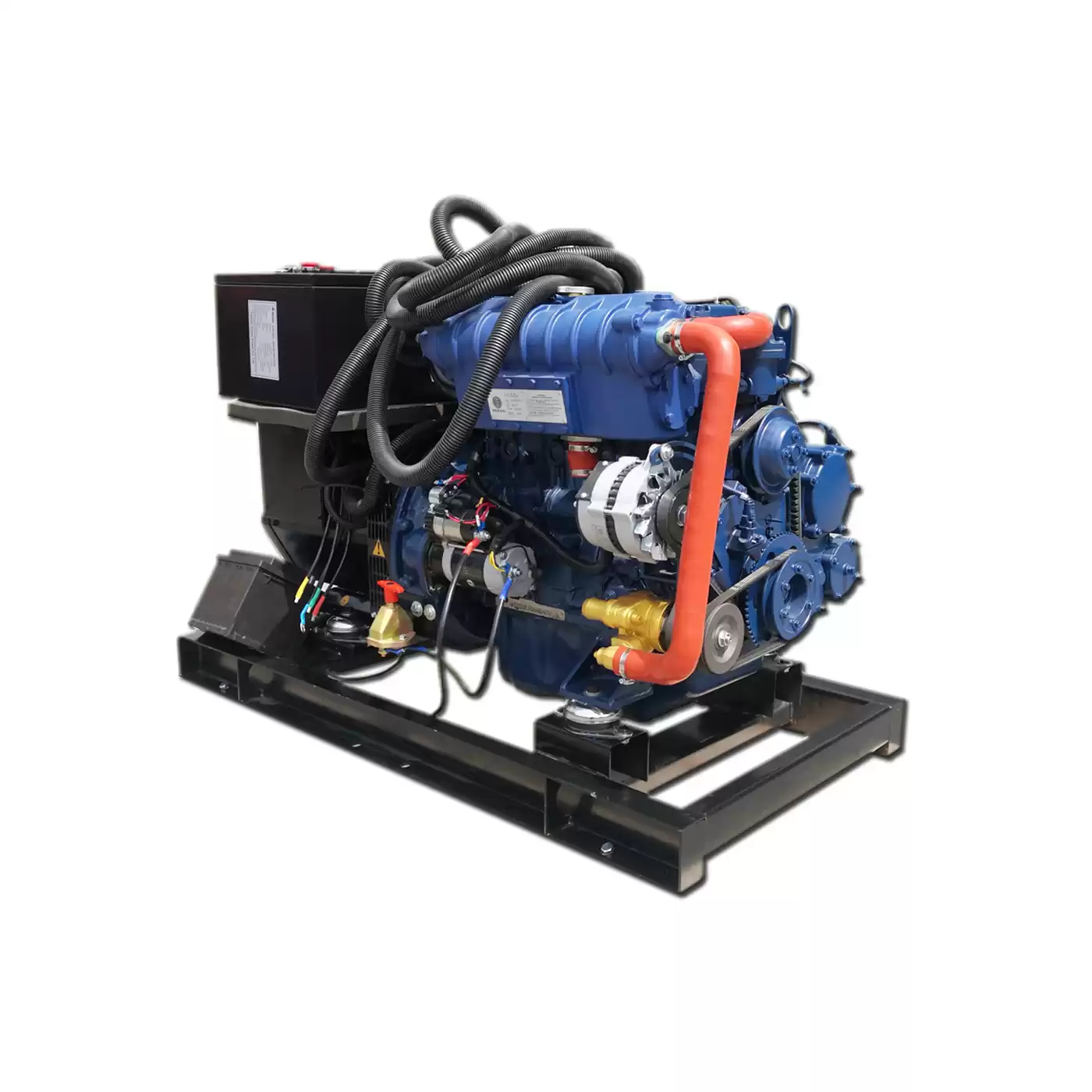

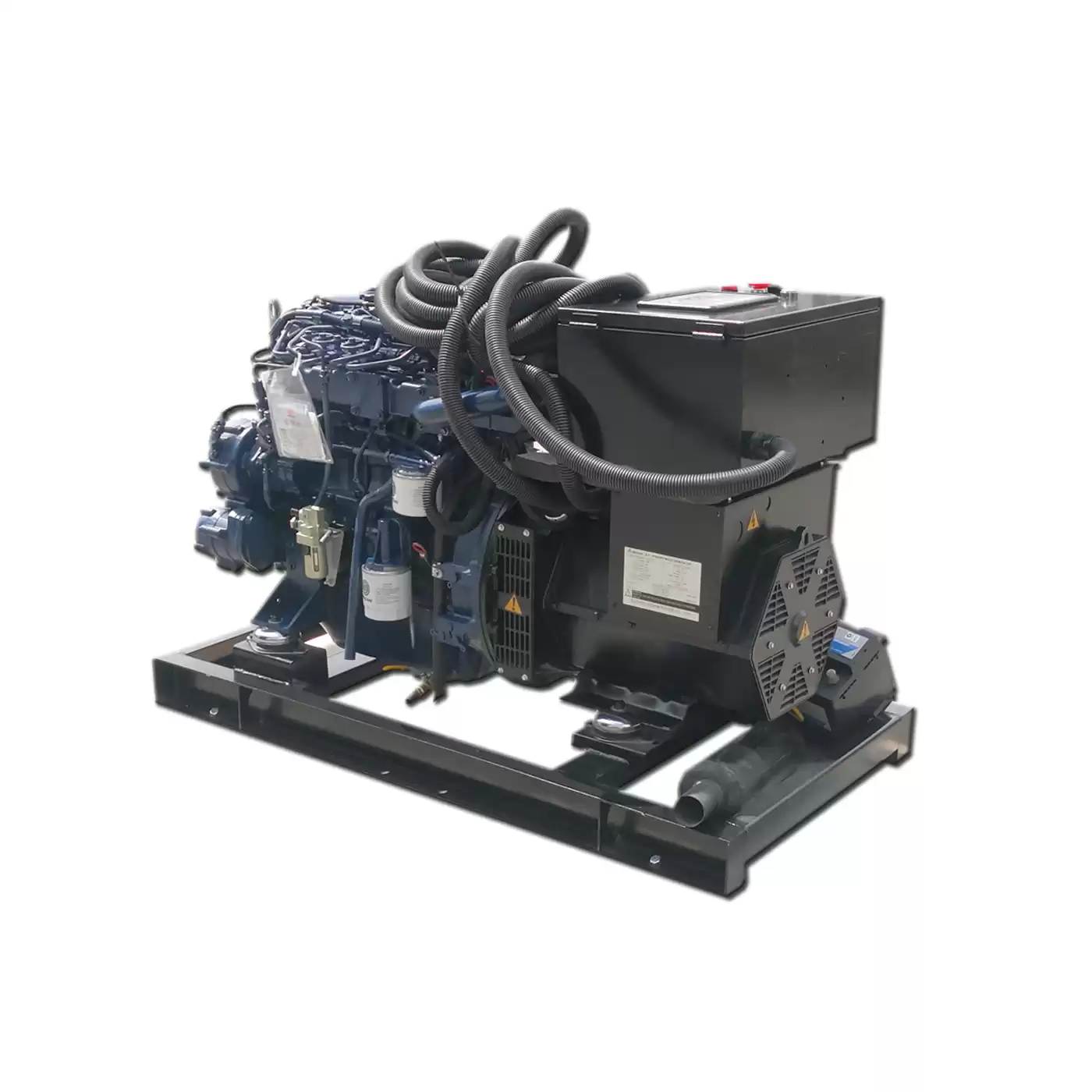

Weichai Marine Generator 20kW

Standard Features



1. With brand new Weichai engine WP3.2CD28E310, ECM governor

2. 12 volt DC start/charging

3. Low fuel consumption, minimum fuel consumption 196g/kW.h

4. Meet with the emission requirement of IMO II

5. 1200hours overhaul period

6. Automatic engine shut down for low oil & high coolant temperature.

7. Heavy-duty steel mounting frame.

8. Single bearing marine standard alternator



Optional Equipment



1. Remote start / stop panel / 20ft extension harness

2. Electric fuel pump

3. Wet exhaust manifold

4. Wet turbocharger

5. Circuit breaker



Model Standby Power  Prime Power Engine Model Dimension (Open Type) Weight Datasheet
kVA kW kVA kW LXWXH(MM) KG
A-WC20M - - 20 16 WP2.3CD25E200 1240*700*1115 467 Download
A-WC25M - - 25 20 WP2.3CD25E200 1314*700*1165 480 Download
A-WC30M - - 30 25 WP2.3CD33E200 1500*1080*1180 1130 Download
A-WC38M - - 38 30 WP2.3CD40E200 1510*1080*1180 1150 Download
A-WC63M - - 63 50 WP4.1CD66E200 1695*1250*1180 1250 Download
A-WC80M - - 80 64 WP4.1CD83E200 1695*1250*1210 1350 Download
A-WC94M - - 94 75 WP4CD100E200 1695*1250*1210 1350 Download
A-WC125M - - 125 100 WP6CD132E200 2125*1250*1170 1640 Download
A-WC150M - - 150 120 WP6CD152E200 2180*1250*1170 1650 Download
A-WC188M - - 188 150 WP10CD200E200 2520*1250*1530 1950 Download
A-WC225M - - 225 180 WP10CD238E200 2520*1250*1550 1980 Download
A-WC250M - - 250 200 WP10CD264E200 2620*1250*1620 2100 Download
A-WC313M - - 313 250 WP12CD317E200 2650*1250*1660 2180 Download
A-WC375M - - 375 300 WP13CD385E200 2650*1250*1660 2300 Download
A-WC400M - - 400 320 WP13CD385E200 2650*1250*1660 2300 Download
