Weight Checker

1. High speed, high sensitivity, high stability dynamic weight checking

2. Accurate and efficient rejector system

3. Professional human-machine interface design

4. User-friendly features

Facebook Twitter Pinterest LinkedIn 分享

Description

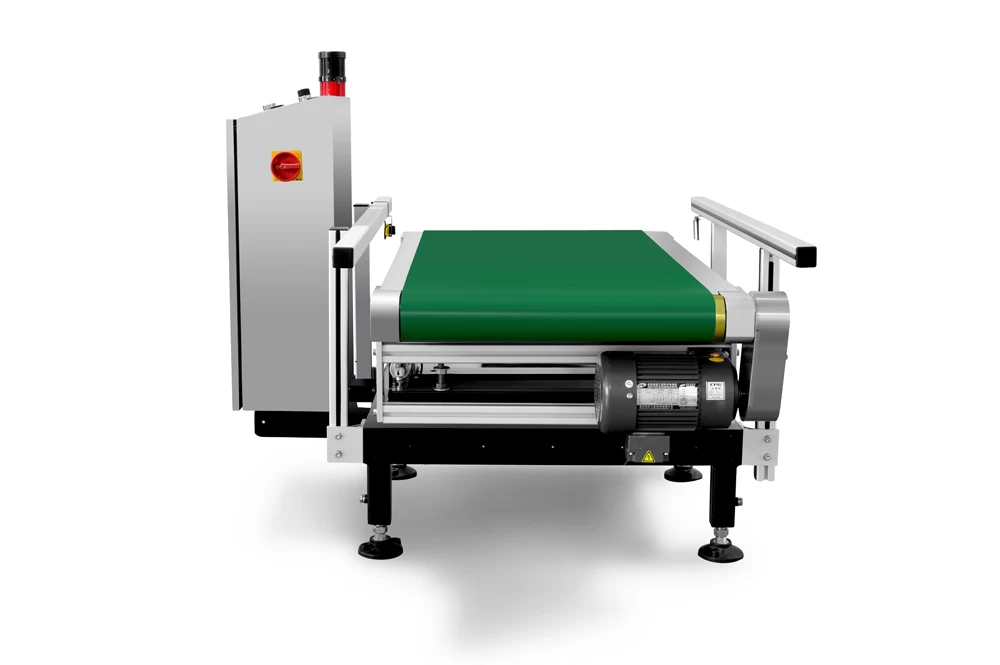

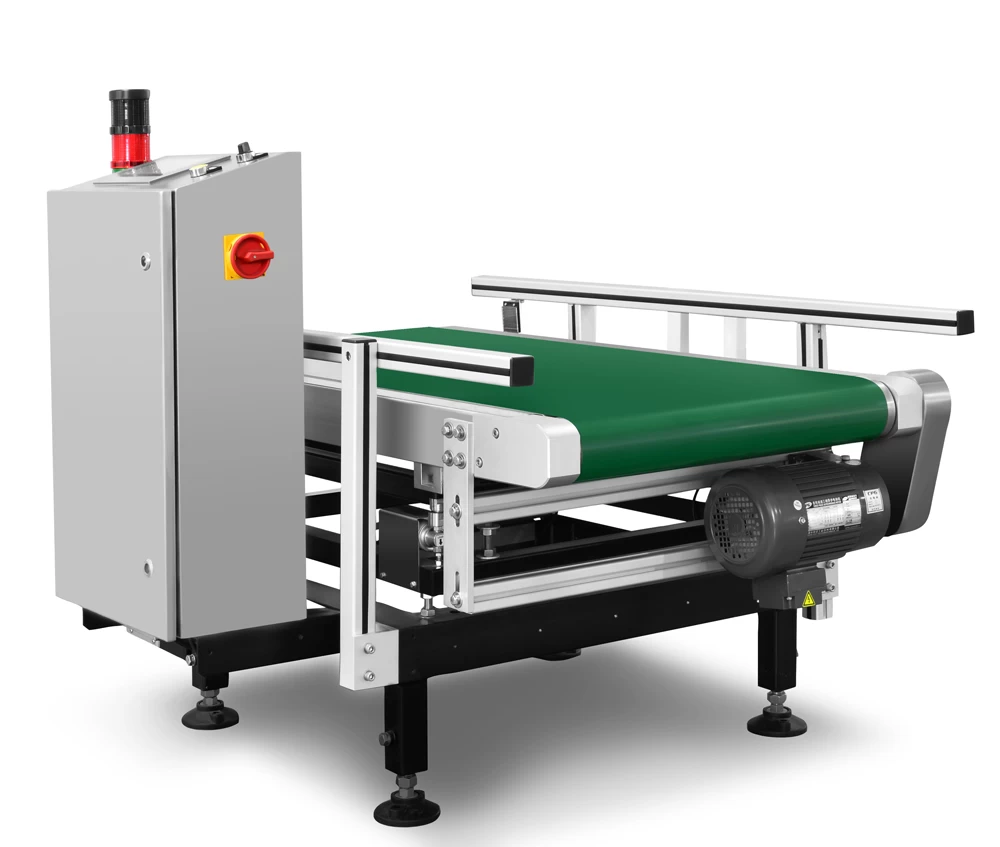

Weight Checker

Top-level craft, professional mechanical design

Good environmental adaptability and stability

Brief user parameter setting

Introduction:

Model	HP-600
Detecting Range	1~50kg
Scale Interval	5g
Accuracy	±5g
Detecting Speed(Max speed)	50pcs/min
Belt Speed	60m/min
The weighed product size	Width	590mm
	Length	1000mm
WeigherPlatform size	Width	600mm
	Length	1200mm
Operation Screen	7-inch Touch LCD Screen
Product Storage Quantity	100 kinds
Segments Number of Sorting	2 or 3
Rejecter	Optional
Power Supply	220V (Optional)
Degree of Protection	IP30
Body Material	Stainless Steel (SUS304)

NO.	Part	Brand	Material
1	Motor	Chengbang Motor	Aluminium alloy (shell)
2	Square Roller	60x60mm	Cast Steel Galvanization
3	Bearing Block	LK	cast iron
4	Cylinder	Airtac	Aluminium alloy cylinder
5	Electromagnetic Valve	Airtac	/
6	Outrigger	80x40mm	Carbon Steel Spraying
7	Beam	Thickness:8mm	Carbon Steel Spraying
8	Guardrail	Thickness:1.5mm	Stainless Steel
