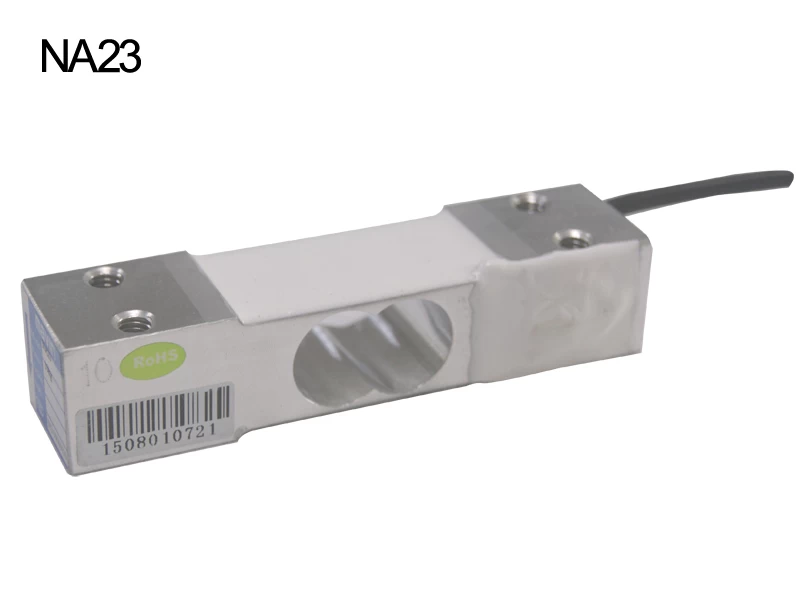

Weight scale load cell sensor NA23

NA23 is a low profile weight scale load cell with aluminum construction and surface anodized, suitable for a wide range of retail scales. This single point load cell scale sensor is available in the capacities: 10, 20,40kg.



  • Rated Output2.0mV/V
  • Dimension100*24*22mm
  • MaterialAluminum Alloy
  • Capacities10-40kg
  • Protection ClassPI65

Low Profile Load Cell NA23

NA23 is a low profile weight scale load cell with aluminum construction and surface anodized, suitable for a wide range of retail scales. This single point load cell scale sensor is available in the capacities: 10, 20,40kg.


Key Features

Calibrated to national standards

Aluminum alloy construction

Compact Design

Easy to install


Usage & Applications

price computing scales
counting scales
weighing scales
retail scales

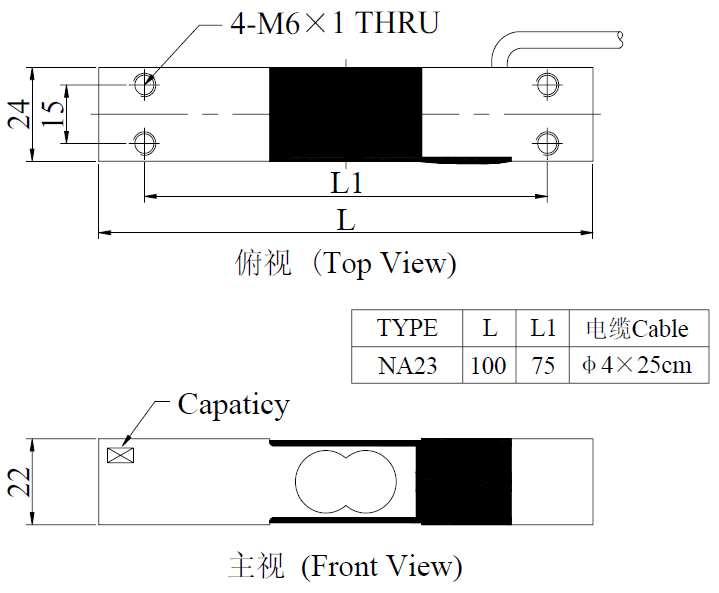

Dimensionmavin load cell NA23


NA23 Specification

Rated Capacities

1020303540kg

Rated Output

2.0 mV/V±10%

Zero Balance

±0.0200 mV/V

Non-linearity

0.02 %R.O.

Hysteresis

0.02 %R.O.

Repeatability

0.02 %R.O.

30mins Creep

0.02 %R.O.

30mins Return

0.02 %R.O.

Safe Overload

150 %R.O.

Ultimate Overload

200 %R.O.

Temperature Effect On Output

0.005 %R.O./

Temperature Effect On Zero

0.005 %R.O./

Input Impedance

400±15 Ω

Output Impedance

350±5 Ω

Insulation Impedance

≥5000 MΩ/(50VDC)

Recommended Excitation

5~12 VDC

Maximum Excitation

15 VDC

OperatingTemperatureRange

-20~60

Construction

Aluminum Alloy

Protection Class

IP65

Cable

φ4×0.35m

Recommended Platform Size

300×300 mm

Mode of Connection

RedEXC+,BlackEXC-,GreenSIG+,WhiteSIG-
