Why choose our welded mesh machine?

1. Professional manufacturer in resistance welding industry in China with more than 10 years' experience.

2.Original design, no copy, special size can be customized.

3. Factory directly sell, competitive price.

4. Integrate many years' experience in manufacturing welded mesh machine, provide high efficiency,high precision automatic welded mesh production line. We are flexible and capable manufacturer,we can design and develop different  welding machine for different use according to different requirements.

5. 12 months warranty, 100% guarantee testing before delivery.

6. Turn key project,on line technical support. Our professional team is always willing to be your technical consultant.

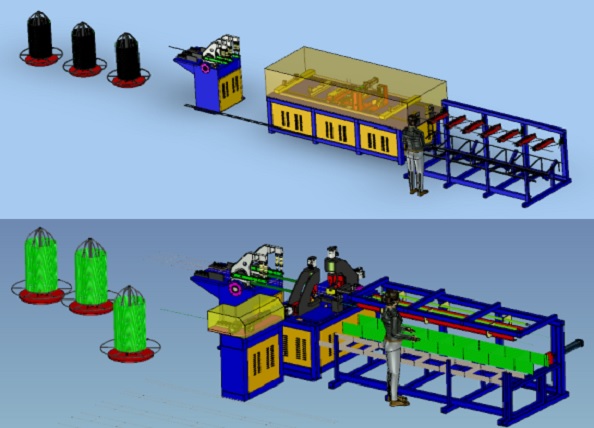

Welded mesh machine used in making 3D panels

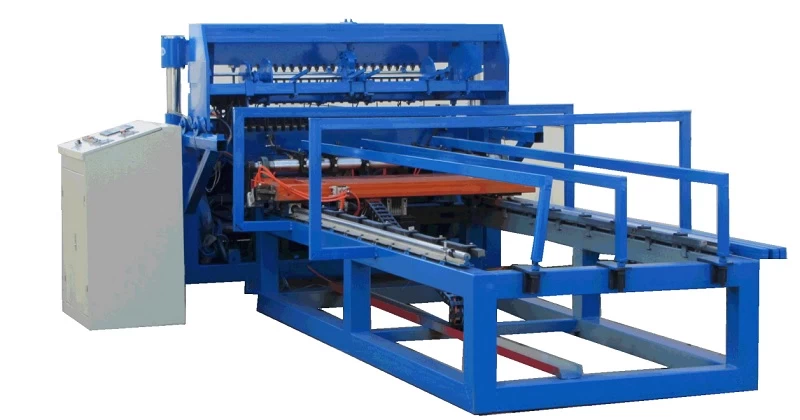

Welded mesh machine Technical data

Power

3+N-50-60Hz    380/220V±10%≥260kVA

Welding control Phase

2phase

Welding point number

25pcs

Welding controling capacity

260kVA

Welding transformer qty

4sets

Welding dia

Φ2.0—Φ3.0

Welding width

1200mm

Welding length

3000mm

Diagonal wire tolerance

+/-2mm

Welding speed

40-60times/min

Warp wire distance

50~200mm, can be adjustable

Weft wire distance

Any space can be adjustable

Overall Dimension

(LXWXH)

6.0m×2.60m×1.76m

Weight

2600kg

Wire requirement

The steel wire that meets  Q195F or  S08A of GB/T 700-88 Carbon

structure or the carbon percentage less this standard, T.S. ≥250-392N/mm2,Elongation 10-20%.


The above specifications are as standard sizes, special order can be made according to customer’s requirement.

Can you supply which types welded mesh machines?

As a professional welded mesh manufacturer in resistance welding industry, we manufacturer and supply

3D panel mesh welding machine

welded wire mesh panel machine

brick force mesh welding machine

pipe oil mesh welding machine

pipe oil mesh machine

anti-climb mesh welding machine

anti climb mesh welding machine

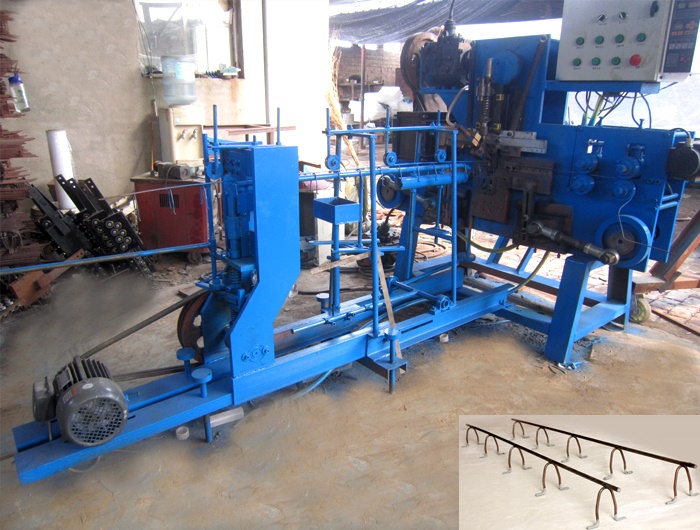

rebar spacer making machine  steel reinforcing bar chair making machine

reinforcing bar chair making mahcine

Steel bar welding machine

 steel bar mesh production line

steel bar welding machine

Welded wire mesh is used in which field?

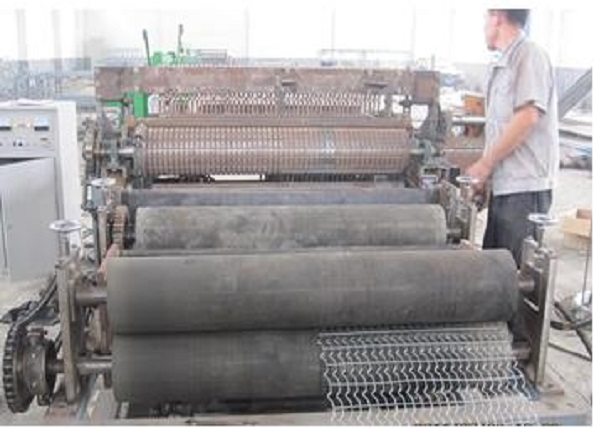

EVG 3D panels

Concrete reinforcement

Wire mesh fence

Pipe Oil mesh

Brick reinforcing mesh

Platform

Welded mesh cage (chicken, dogs, farms etc)

Racks

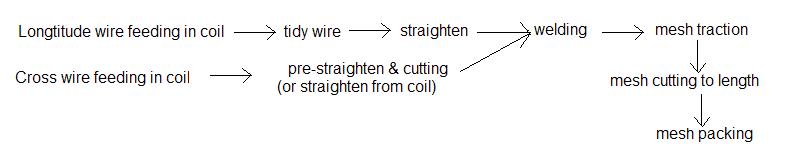

Full welded wire mesh production line include which parts?

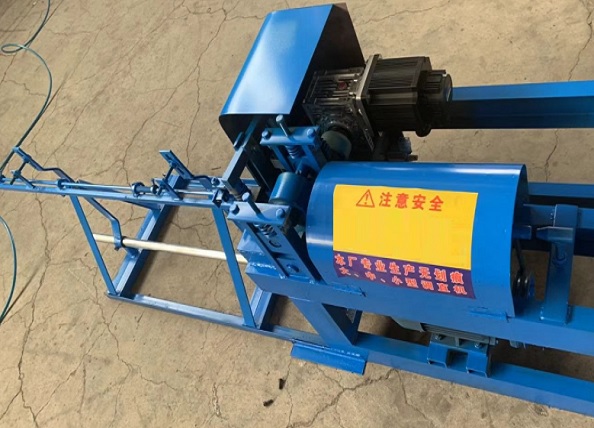

Wire straighten & cutting machine -----for manufacture straighten steel wire

wire straighten and cutting machine

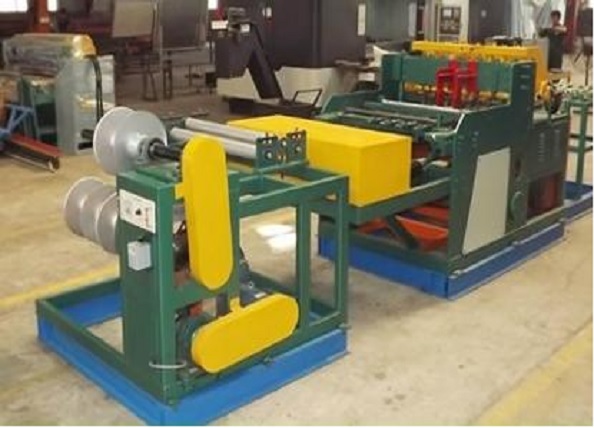

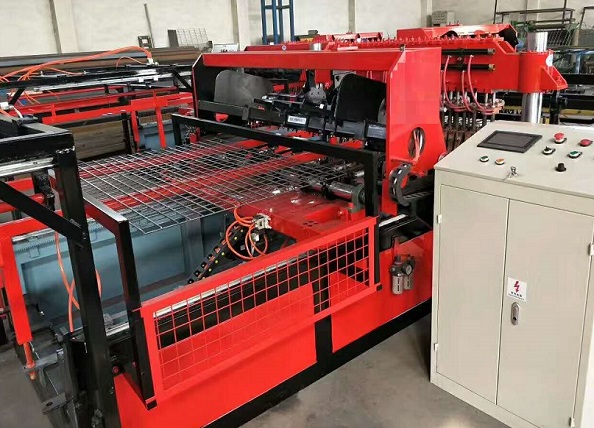

Welded mesh welding machine---for manufacture welded mesh panels and welded mesh rolls,if welded mesh rolls, that should add roller device.

welded wire mesh machine

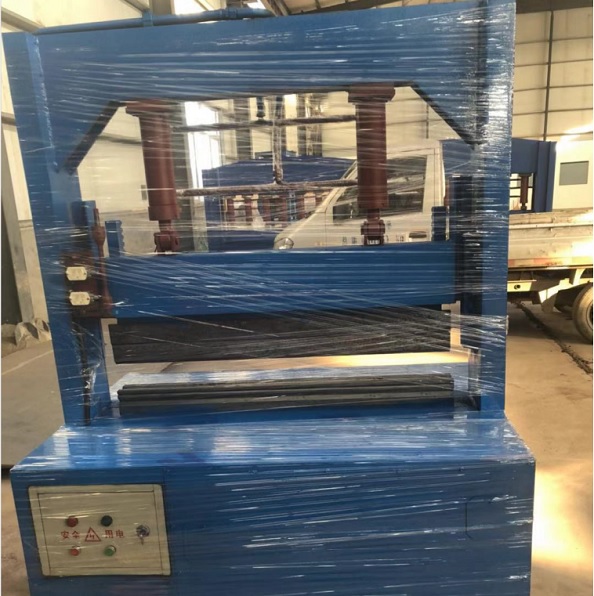

Automatic welded wire mesh cutting machine---for cutting the welded mesh to the set length

Welded wire mesh bender---- for manufacture “U” “L” “SEMICIRCLE” “V” type shape mesh

welded wire mesh bender

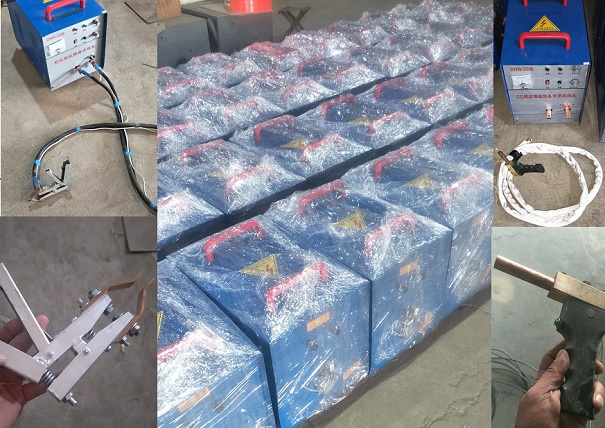

Portable spot welder-----for repair the failure welded point.



Portable spot welder parameters

Model No.

Welding wire dia(mm)

Cable supplier

Ground wire

05

0.5--3mm

50mm2 *2.5m

1.5m

10

0.5--4mm

100mm2*2.5m

1.5m

16

1-5mm

100mm2*2.5m

1.5m

25

1-6mm

150mm2*3m

1.5m

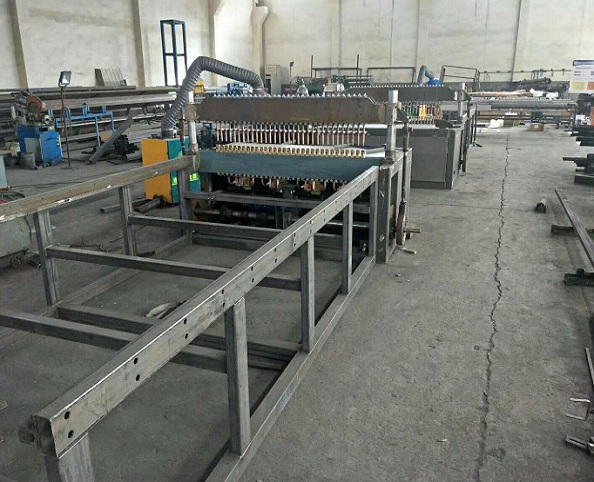

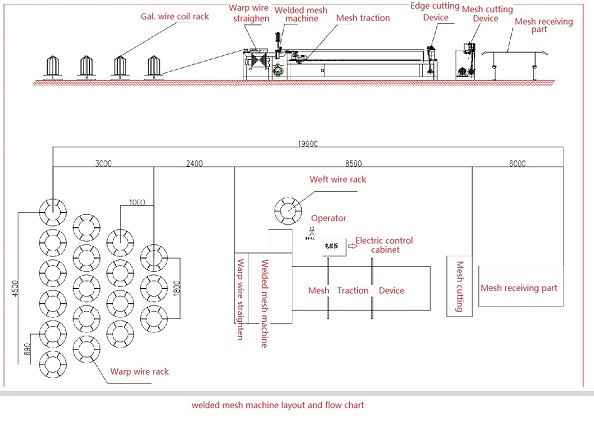

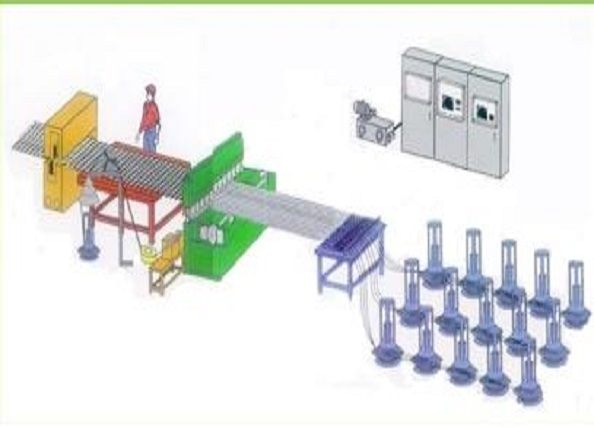

welded wire mesh workshop layout drawing sample


More details about welded mesh machine






About 3D wire mesh panel, and 3D mesh panel machine, pls refer the following link:

3D panel production line, pls refer http://www.hbhscn.com/3d-panel-production-line_p39.html
3D panel, pls refer http://www.hbhscn.com/3d-panel_p41.html
3D panel fence, pls refer http://www.hbhscn.com/3d-panel-fence_p43.html
3D panel house, pls refer http://www.hbhscn.com/3d-panel-house_p45.html
Zig zag type 3D panels, pls refer http://www.hbhscn.com/zig-zag-type-eps-3d-panels_p44.html
Vertical type 3D panel machine, pls refer http://www.hbhscn.com/vertical-3d-panel-machine_p54.html
Horizontal type 3D panel machine , pls refer http://www.hbhscn.com/horizontal-3d-panel-machine_p55.html
Raw material and tools about 3D panel house, pls refer http://www.hbhscn.com/raw-material-tools-used-in-3d-panel-building_p58.html
