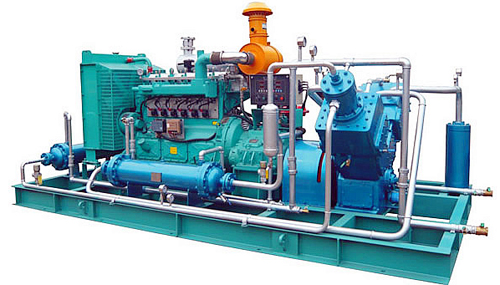

Wellhead gas recovery - light hydrocarbon recovery system
Product usage and features：
During the development of oil and gas fields, most of the associated gas resources extracted are discharged directly or by combustion, resulting in huge waste of resources and environmental pollution. The marginal oil well associated gas has been drained for a long time without supporting facilities, which results in the waste of oil and gas resources and environmental pollution. The air release and casing gas in oil field must be recycled and have high economic value.
According to the needs of customers, our company has developed a complete set of equipment for well gas recovery and utilization. Can be pressurized and cooled after recovery of light oil, CNG can also be recycled, after pressurized trailer transport, can provide gas source for gas lift, discharge into the external pipeline or as a commercial gas sales filling station.
Product overview:
1.Equipment indicators advanced, safe and reliable, automatic control and other characteristics.
2.With stable exhaust pressure, large flow regulation range, strong adaptability and other advantages.
3,.Reliable operation, easy maintenance, flexible load adjustment.
Parameter：
|
Num
|
Model
|
Displacement（Nm3/h）
|
Operating pressure（Mpa）
|
Exhaust pressure（Mpa）
|
Electric power
（kw）
|
Overall dimension
（mm）
|
|
1
|
ZW-0.38/ 0.2-20
|
22
|
0.02
|
2
|
7.5
|
1500*1100*1300
|
|
2
|
ZW-0.4 /(1-2)-15
|
50
|
0.1-0.2
|
1.5
|
7.5
|
1500*1100*1300
|
|
3
|
ZW-0.33/2-25
|
50
|
0.2
|
2.5
|
11
|
1500*1100*1300
|
|
4
|
ZW-0.64/（1-2）-20
|
80
|
0.1-0.2
|
2
|
15
|
1500*1200*1300
|
|
5
|
ZW-0.54 /2-25
|
83
|
0.2
|
2.5
|
15
|
1500*1200*1300
|
|
6
|
ZW-0.8/1-20
|
80
|
0.1
|
2
|
15
|
1600*1200*1300
|
|
7
|
ZW-0.8/(1-1.5)-20
|
90
|
0.1-0.15
|
2
|
18.5
|
1700*1200*1300
|
|
8
|
ZW-1.5/(0.05-0.1)-25
|
85
|
0.005-0.01
|
2.5
|
18.5
|
1700*1200*1300
|
|
9
|
ZW-0.25/(4-10)-200
|
100
|
0.4-1.0
|
20
|
30
|
2500*1800*1600
|
|
10
|
ZW-1.34/ (1-3)-25
|
204
|
0.1-0.3
|
2.5
|
37
|
2000*1600*1200
|
|
11
|
DW-0.86/(5-20)-30
|
600
|
0.5-2
|
3
|
37
|
2000*1600*1200
|
|
12
|
DW-3.3/(0.05-0.1)-25
|
180
|
0.005-0.01
|
2.5
|
37
|
2000*1600*1200
|
|
13
|
DW-2.05/(5-9)-20
|
625
|
0.5-0.9
|
2
|
55
|
2200*1600*1200
|
|
14
|
VW-4.0/(1-3)-25
|
600
|
0.1-0.3
|
2.5
|
90
|
2400*1800*1500
|
|
15
|
VW-5.0/(1-3)-25
|
720
|
0.1-0.3
|
2.5
|
110
|
3400*2200*1300
|
|
16
|
DW-6.0/(1-3)-25
|
840
|
0.1-0.3
|
2.5
|
132
|
4200*2200*1500
|
|
17
|
VW-6.7/2-25
|
1020
|
0.2
|
2.5
|
160
|
4500*2800*1500
|
|
18
|
DW-7.7/(1-3)-25
|
1200
|
0.1-0.3
|
2.5
|
160
|
4500*2800*1500
|
|
19
|
DW-3.7/10-(36-38)
|
2100
|
1
|
3.6-3.8
|
160
|
4500*2800*1500
|
|
20
|
DW-6.71 /5-30
|
2040
|
0.5
|
3
|
200
|
5500*3000*1600
|
Dear customers, please provide detailed technical data, we provide you with the correct compressor selection program
|
Compression medium
|
Required delivery
(Nm3/h)
|
Inlet pressure
(Mpa)
|
Outlet pressure
(Mpa)
|
Inlet temperature
(℃)
|
Outlet temperature
(℃)
|
Other
|
