About product:

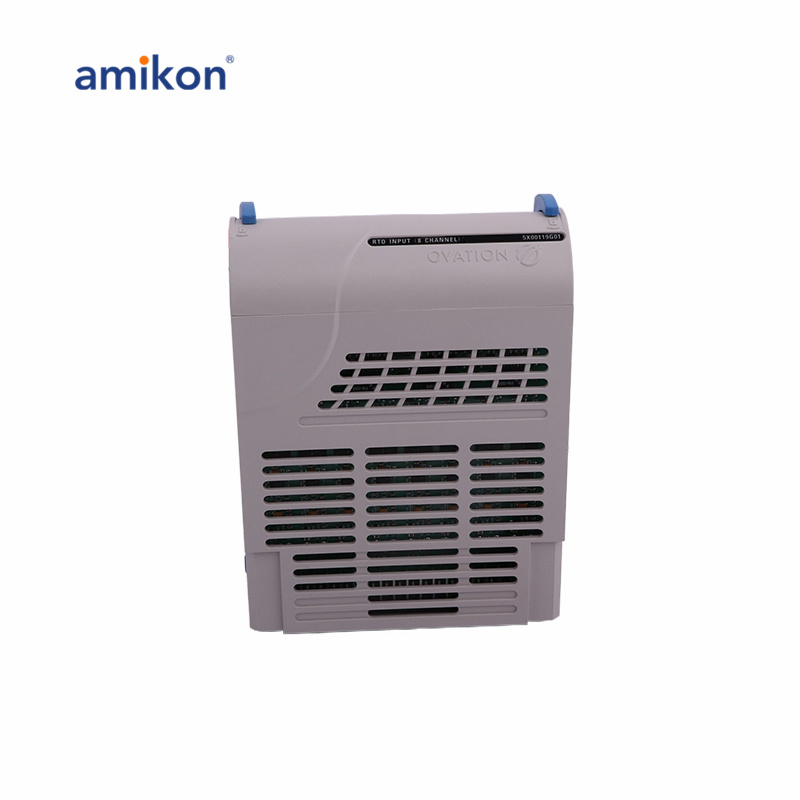

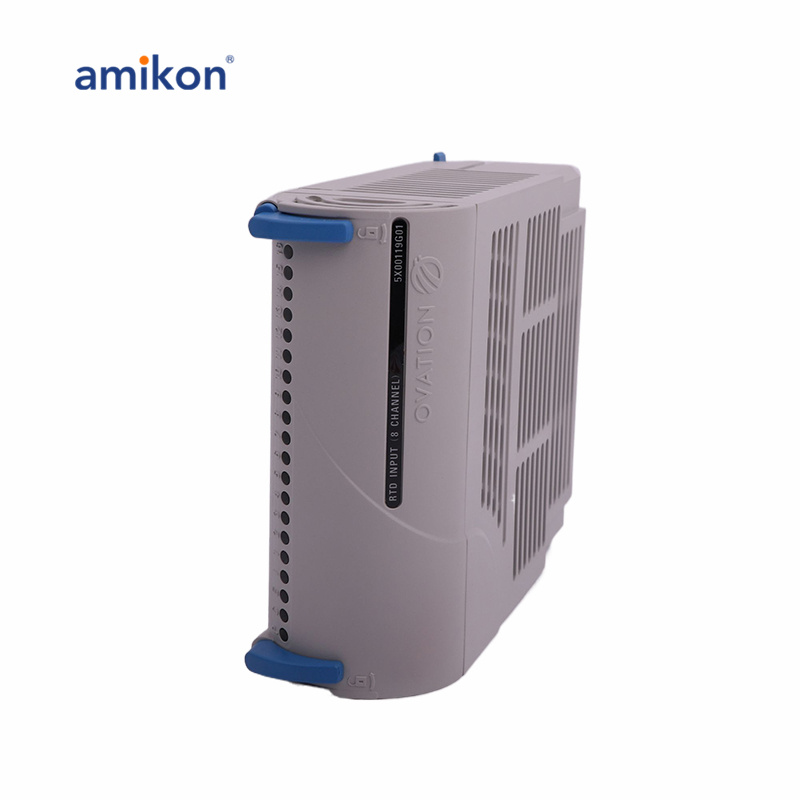

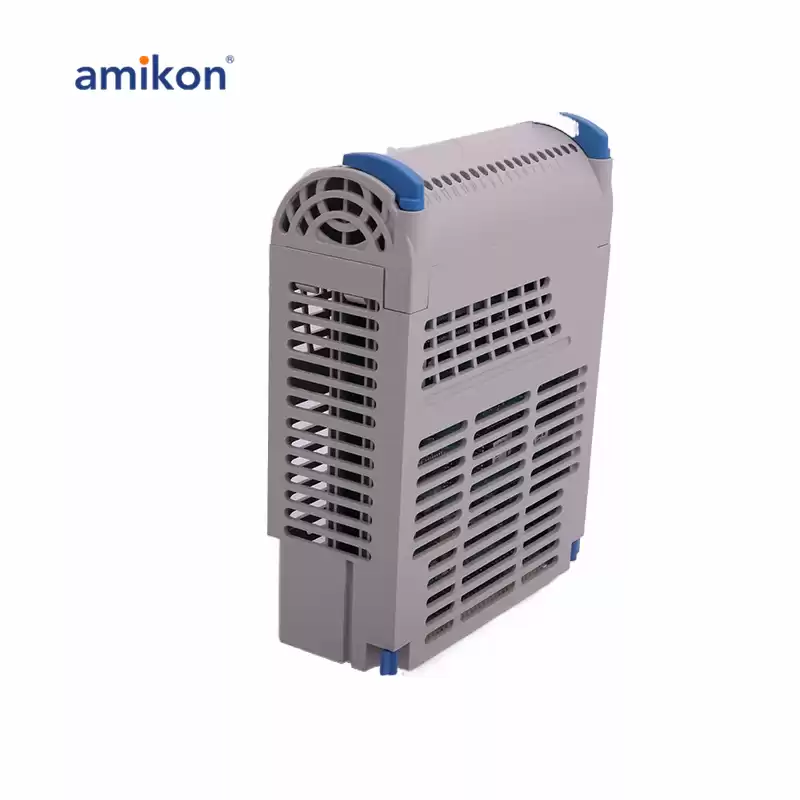

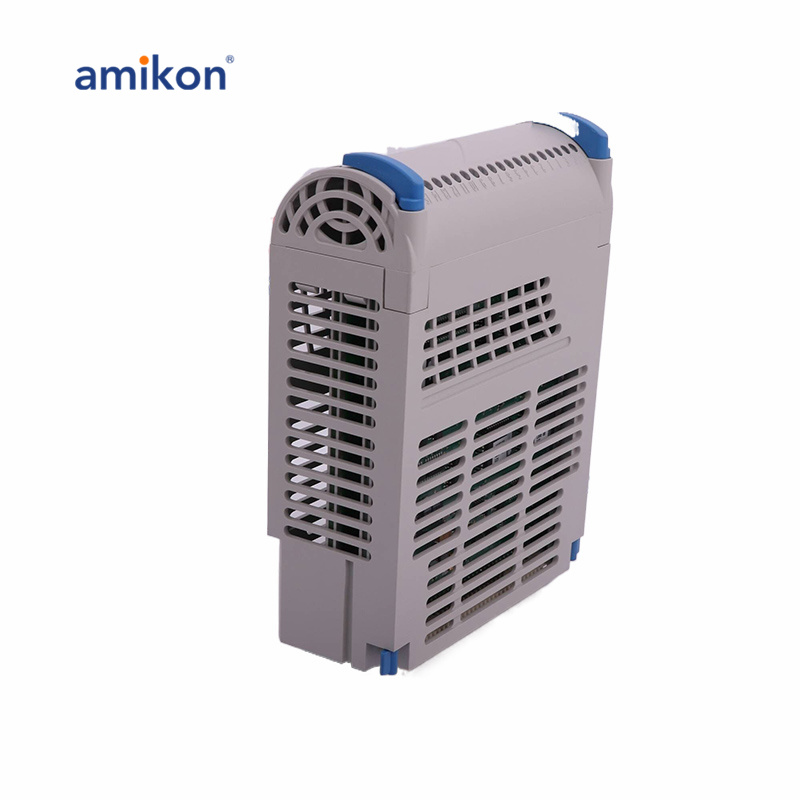

The 5X00119G01 is an 8-channel RTD Input Module designed for converting inputs from Resistance Temperature Detectors (RTDs) to digital data. This module consists of two components: an Electronics Module and a Personality Module. The Electronics Module includes a logic printed circuit board (LIA) and a field terminal device printed circuit board (FTD), while the Personality Module contains a single printed circuit board (PTD).
The 5X00119G01 module is compatible only with the 5X00121G01 Personality Module, which converts inputs across all RTD ranges. Note that the 5X00119G01 is not applicable for CE Mark certified systems.
Once the RTD inputs are converted, the digitized data is transmitted to the Controller for further processing. This configuration is used to accurately measure and monitor temperature in various industrial and control applications.
FAQ:
1. What is the 5X00119G01 RTD Input Module used for?
The 5X00119G01 module is used to convert inputs from Resistance Temperature Detectors (RTDs) into digital data, which is then transmitted to the controller for processing. It supports temperature measurement in industrial applications.
2. What does the 5X00119G01 module consist of?
The module consists of two parts:
Electronics Module: Contains a logic printed circuit board (LIA) and a field terminal device printed circuit board (FTD).
Personality Module: Contains a single printed circuit board (PTD) for configuring the module.
3. What is the function of the 5X00121G01 Personality Module?
The 5X00121G01 Personality Module is designed to convert RTD inputs across all ranges. It is used in conjunction with the 5X00119G01 Electronics Module and is required for proper operation.
|
