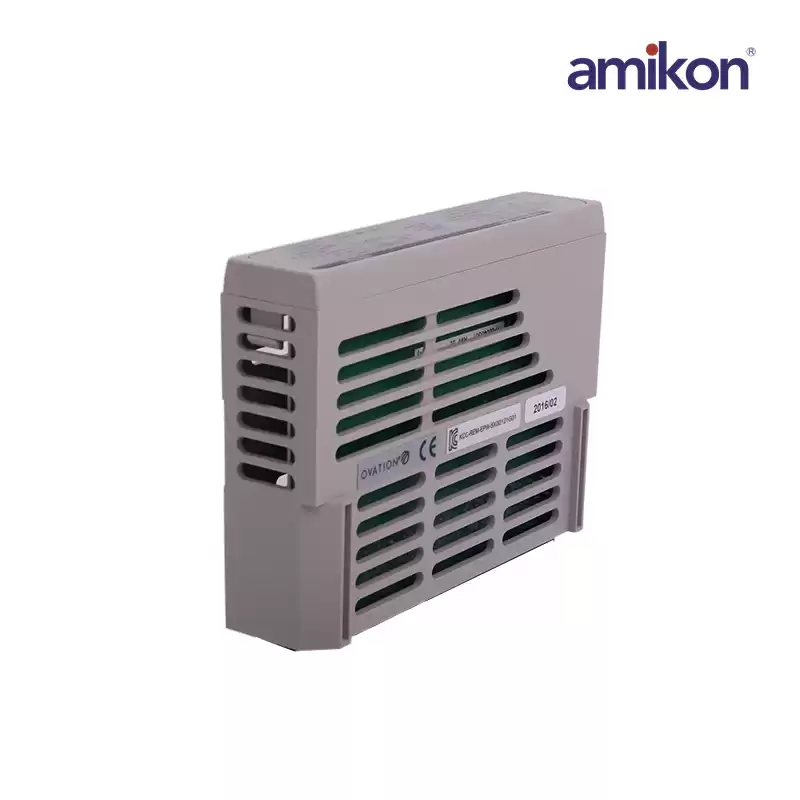

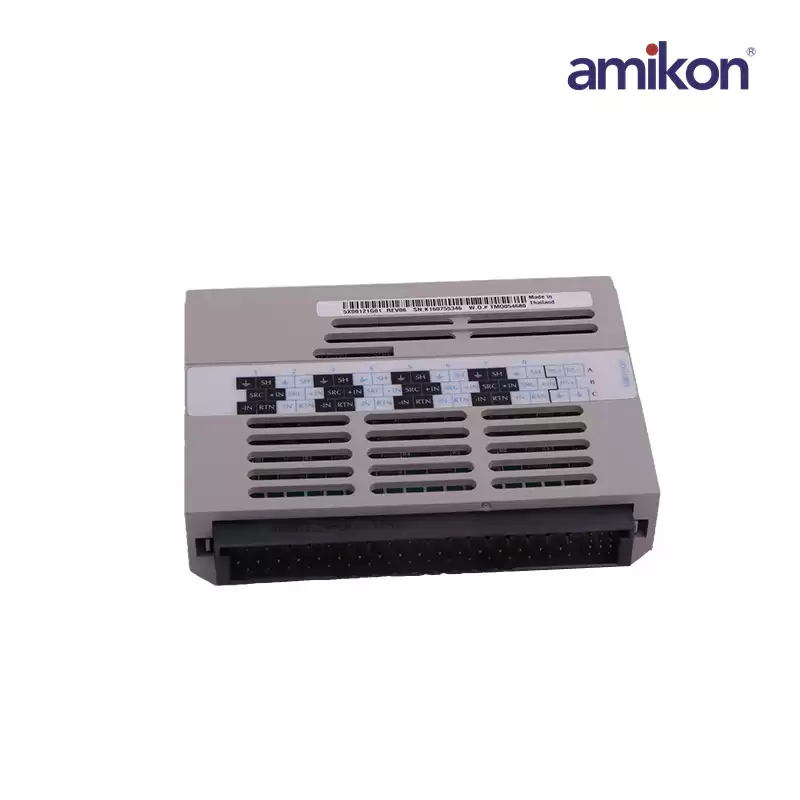

WESTINGHOUSE 5X00121G01 8Channel RTD Input

Manufacturer：WESTINGHOUSE

Part Number：5X00121G01

Operating temperature range：0℃to 60℃ (32 Fto 140F)

Dimensions: 12x3x9.5cm

Weight:     0.1KG

Product Origin: Germany

describe

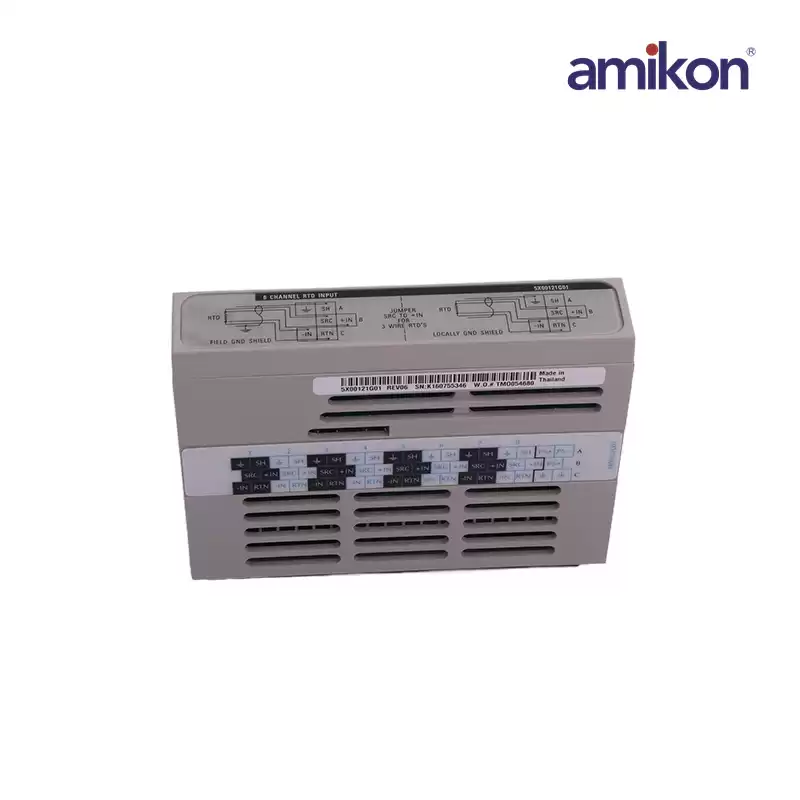

The 5X00119G01 is a RTD Input 8 Channel Module. Each Personality module has a simplified wiring diagram label on its side, which appears above the terminal block. This diagram indicates how the wiring from the field is to be connected to the terminal block in the base unit. The following table lists and defines the abbreviations used in this diagram.

5X00119G01 converts inputs for all ranges and is compatible only with Personality module 5X00121G01 (not applicable for CE Mark certified systems).The Eight (8) channel RTD module is used to convert inputs from Resistance Temperature Detectors (RTDs) to digital data. The digitized data is transmitted to the Controller.5X00121G01 converts inputs for all ranges and is compatible only with Electronics module 5x00119G01 (not applicable for CE Mark certified systems).
