About product:

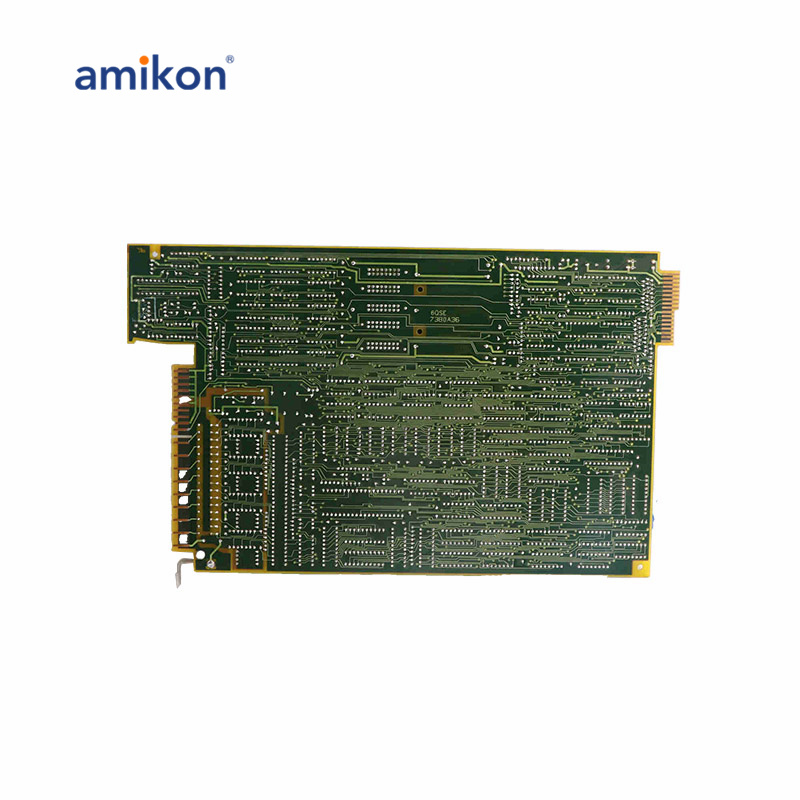

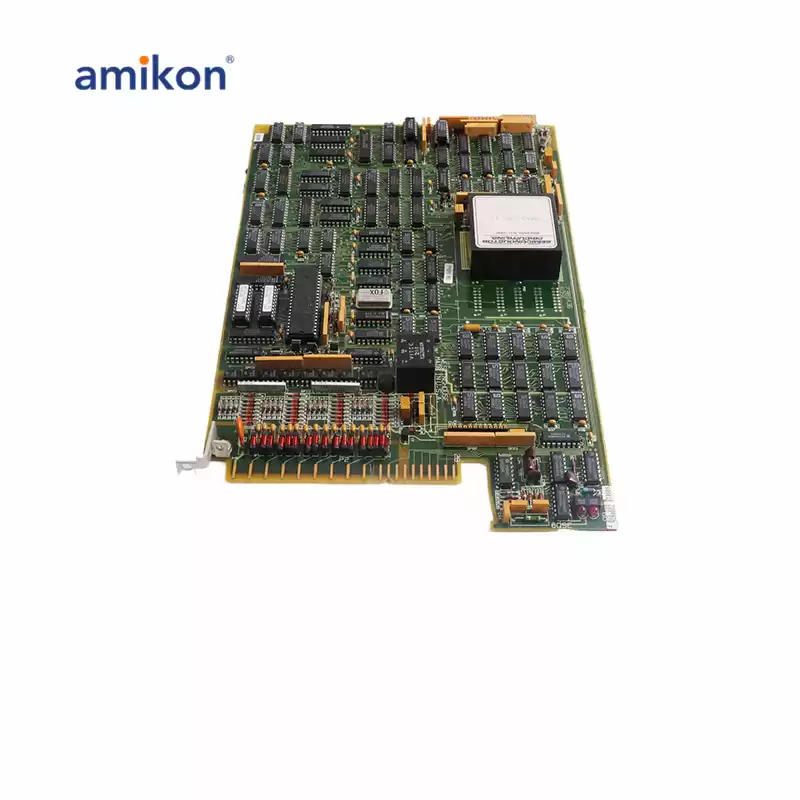

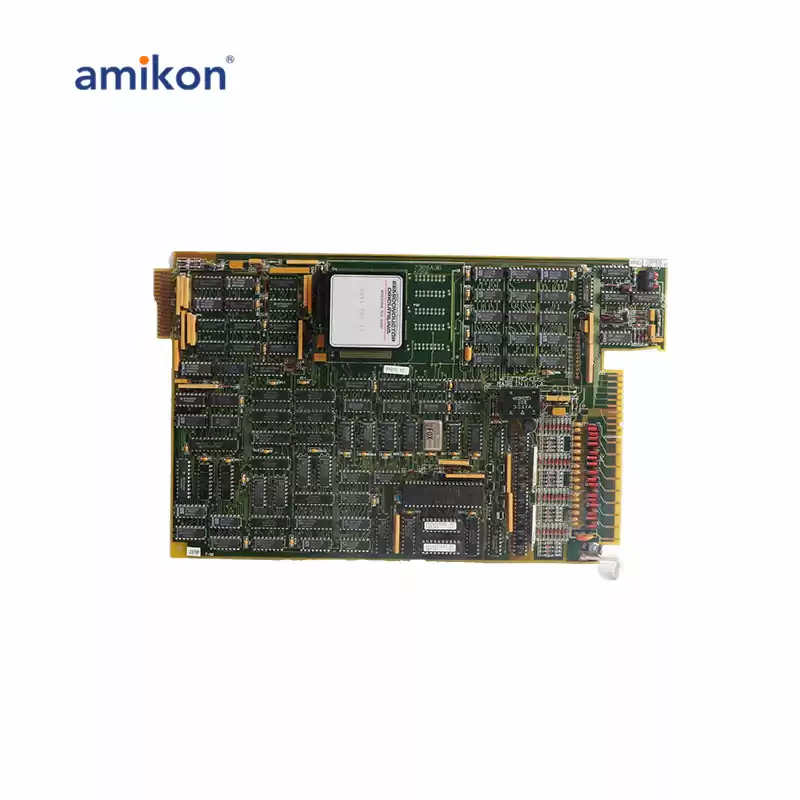

The 7380A36G01 is a PCB Circuit Board Module designed for Discrete Input/Output (DI/O) applications. It features eight DI/O channels, with each channel capable of functioning in both input and output capacities. The field terminals for each DI/O are I/O and GND.
For Discrete Inputs, the module accepts signals ranging from 0 to 16 VDC. The Discrete Outputs utilize open-drain FETs with a maximum working voltage of 16 VDC and a minimum load of 100 mA. Note that the DI/O channels are not isolated.
Additionally, the module serves as a Sequence of Events Recorder Card and supports a current range of 7-21 mA. This module is commonly used in industrial control systems where both input and output functionalities are needed for discrete signals.
Manufacturers:
Westinghouse
Estimated Shipping Size:
Dimensions: 13.3" x 1.0" x 8.0"
(33.7 cm x 2.5 cm x 20.3 cm)
Weight: 1 lbs 3.2 oz (0.5kg )
Tariff Code: 8538907080
FAQ:
1. What is the current range supported by the module?
The module supports a current range of 7-21 mA.
2. What type of signals can be processed by the module?
The module is designed for Discrete Input and Output signals, typically used for digital on/off control or switching applications in industrial automation.
3. What type of events can the module record?
The module functions as a Sequence of Events Recorder Card, capturing and logging events for troubleshooting and system monitoring.
|
