Westinghouse WH1-2FF Power supply module

Contact me to get the best price!!!

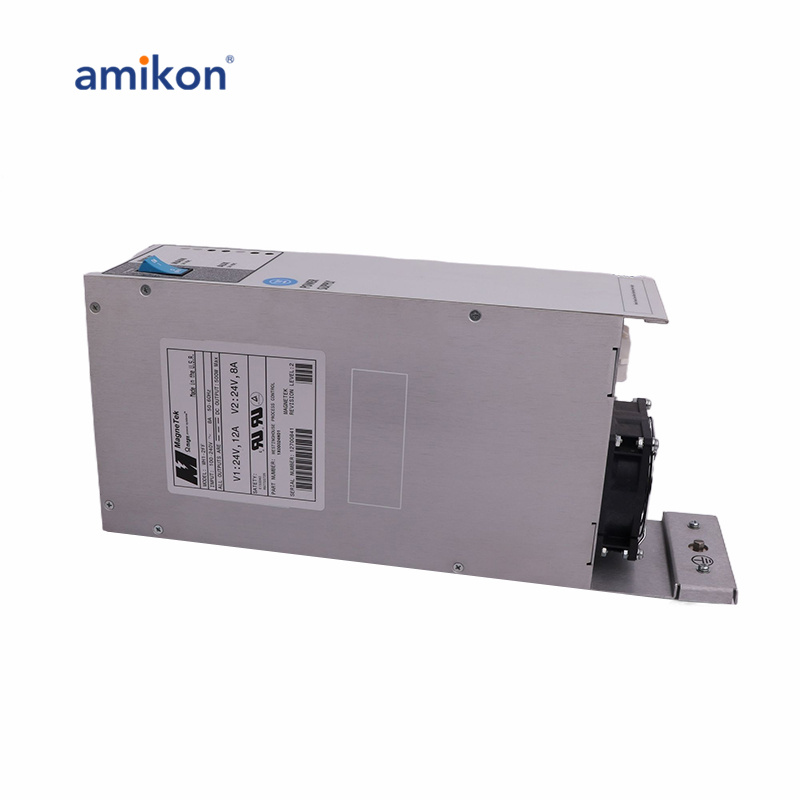

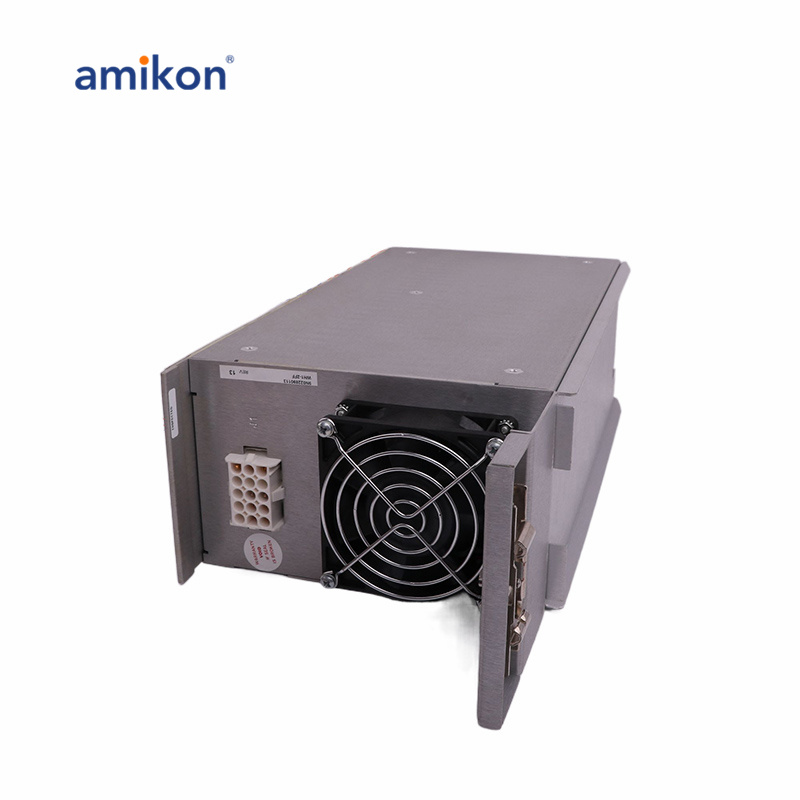

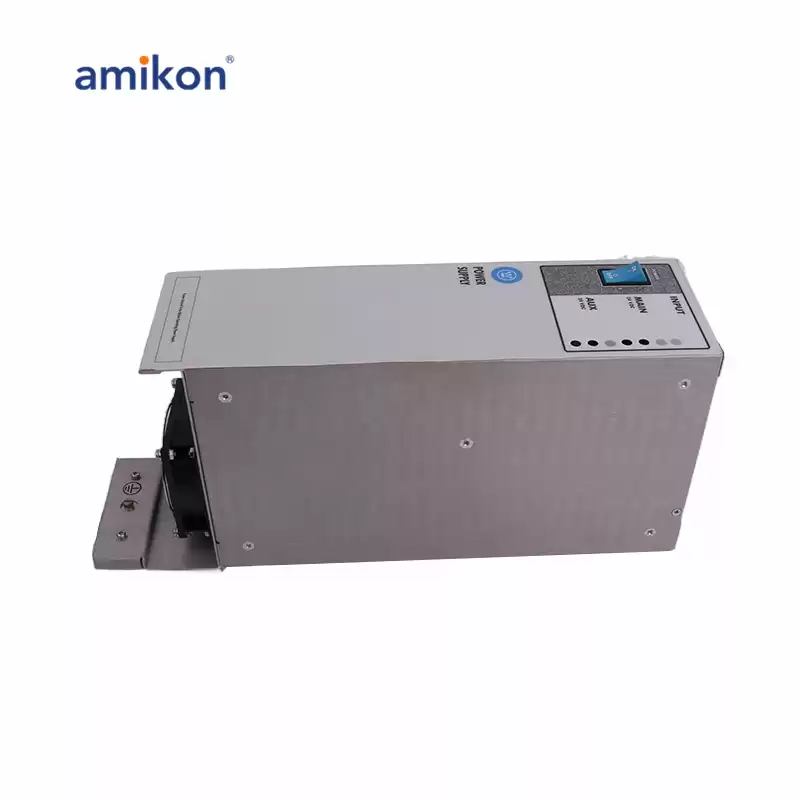

The 1X00024H01 WH1-2FF is an Ovation Power Supply Module that integrates both main and auxiliary power supplies into a single module. This design simplifies system configuration by supplying power to the Controller, I/O modules, and field items.

According to the WH1-2FF Data Sheet, the auxiliary power supply is dedicated to powering field devices such as analog input current loops and relay coils. The auxiliary output is equipped with an isolation diode in series with the internal power supply to ensure proper voltage isolation.

The module provides a 300 Watt, 24V output with a current of 5.5 mA and can handle 48V AC/DC from channel to logic. It is designed for operation in environments with humidity ranging from 0 to 95%, ensuring reliability across a wide range of conditions.

Manufacturers：
Emerson
Estimated Shipping Size：
-Dimensions: 4.0" x 16.0" x 7.0"
-(10.2 cm x 40.6 cm x 17.8 cm)
-Weight: 7 lbs 12.0 oz (3.5kg )
Tariff Code: 8504409540

FAQ:
1. Can the main and auxiliary power supply be used independently?
While the main and auxiliary power supplies are combined into one module, they are designed to power different components in the system. The auxiliary supply specifically powers the field items, while the main supply powers the Controller and I/O modules.

2. Is the module suitable for use in high-temperature environments?
The module’s operational limits should be checked based on the temperature range of your system. For most applications, conformal coating versions are available to help protect against harsh conditions.

3. How is the power supply module installed?
The 1X00024H01 WH1-2FF is installed as part of the Ovation system. It can be easily integrated into the system’s power configuration, allowing for reliable power distribution to controllers and field devices.
