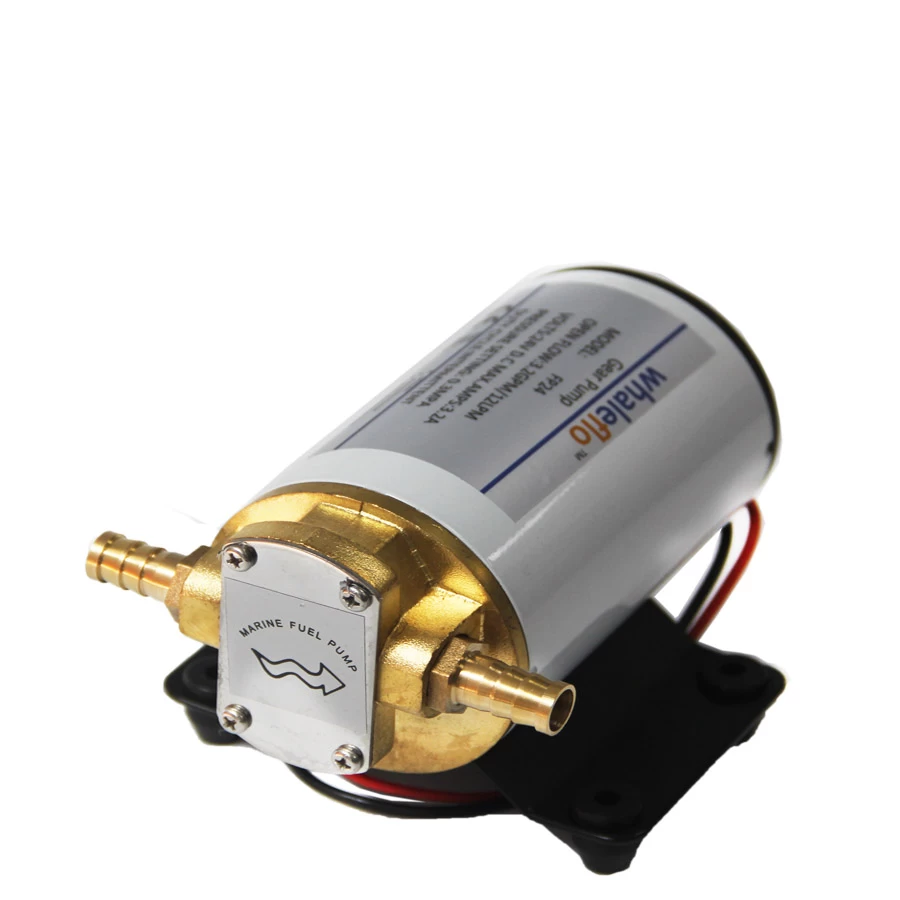

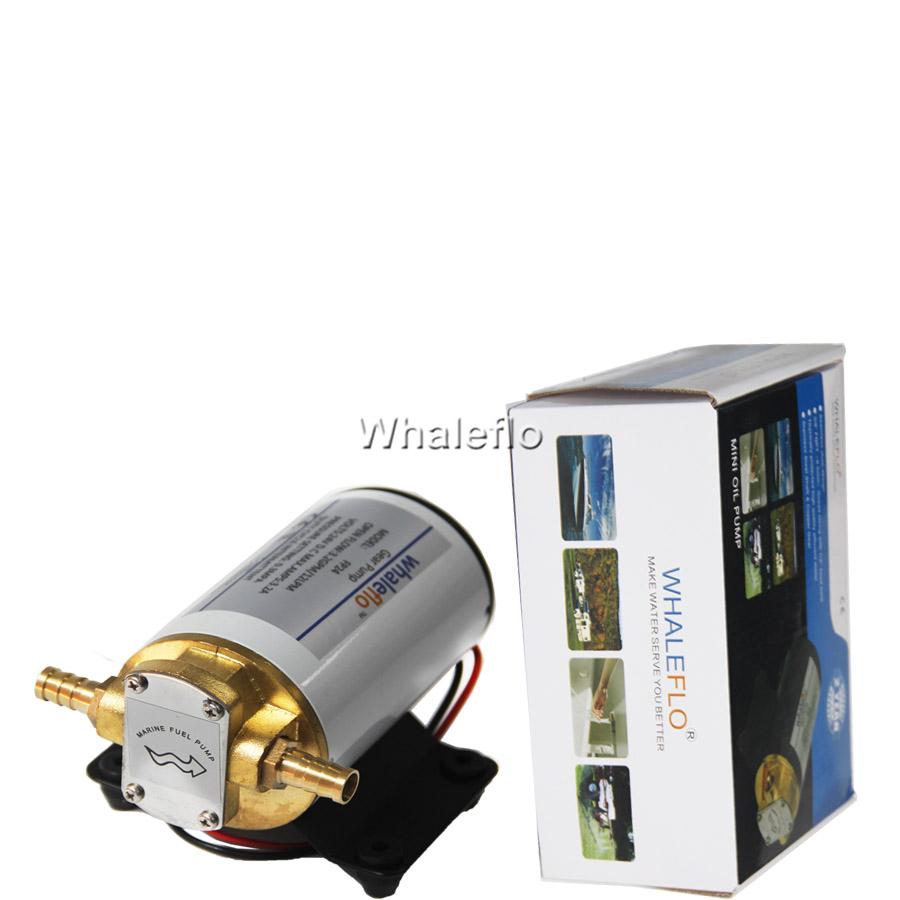

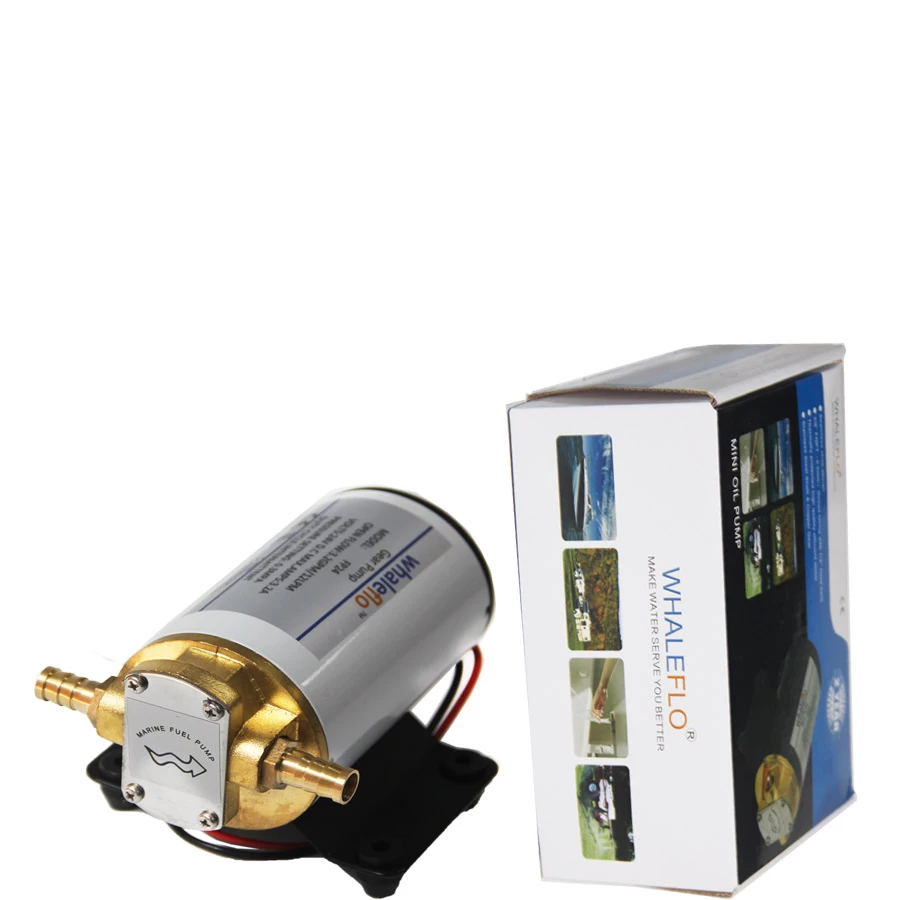

Whaleflo 12V DC lubricating gear scavenge pump for oil transfter

12V lubricating gear pump for oil transfer



 Whaleflo 12V DC lubricating gear scavenge pump for oil transfter

Pump technical data

12V lubricating gear pump

3.2GPH (12LPM)bilge pump with 2 year warranty

3/8'' female,1/2'' barbed fitting

12V & 24V with 5 feet head

DO NOT RUN DRY

Working intermittent

Pump Advantage

Self-priming ability with corrosion resistance mounts pump body.

Stainless deal basing on fluoroelastomer lip seal motor

All bronze shaft





Whaleflo 12V gear pump application


marine application, caravans/RV, automotive, car, tuning, boat oil transfer, yacht, draining of engine sumps and agriculture applications, Designed for continous use,Shipboard systems,Power transmissions systems,Conveyor systems,Generator systems,compressors,CNC machinery,Forming machinery,Lubricant Cooling Systems,Differential Transmission Oil Cooler

Remark Detail,

Allowed liquids,

Fresh Water,Salt Water,Engine Oil (max temperature 90°C)

Lubricants,and Non-corrosive Viscous Liquids,Max,Viscousity 85 cst,Diesel Fuel


NOT Allowed liquids

PETROL (GASOLINE),FLAMMABLE LIQUIDS with PM < 55°C,FOODSTUFF LIQUIDS,CORROSIVE CHEMICAL,SOLVENTS

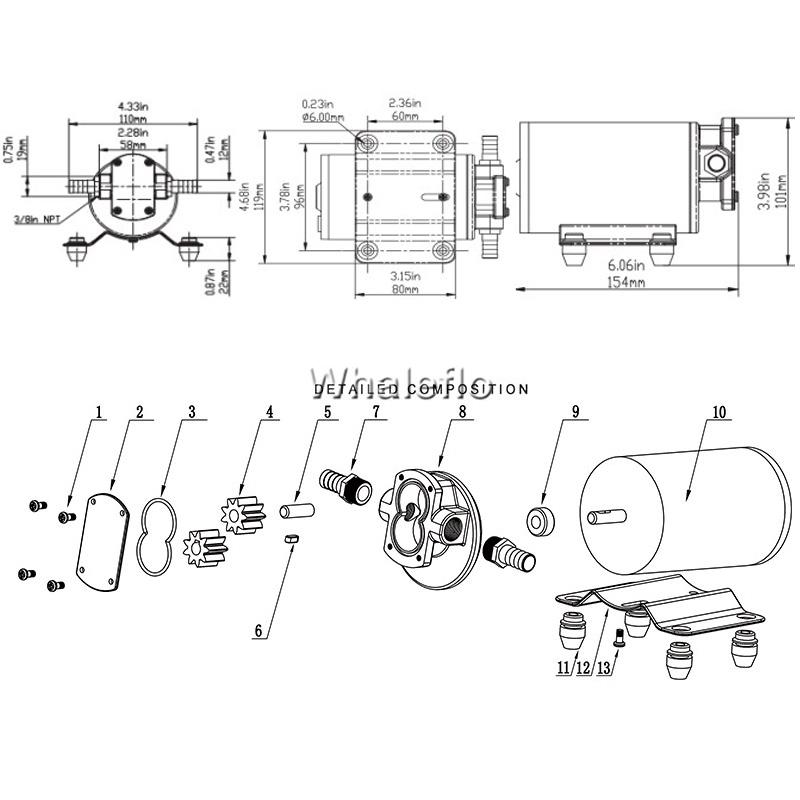

Technical data & drawing

Model Volt Flow rate  Max Lift  Amps(A) Max Draw(A) Packing size(mm) N.W/G.W(kgs)
FP-12 12Vdc 14LPM  3M 6A 10A 215*135*110 2.48/2.68
FP-24 24Vdc 14PLM 3M 4A 6A 215*135*110 2.45/2.68
Whalelfo gear pump


Key Description Quantity
1

Screw 1

1
2

Gear Cover

1
3

seal

1
4

Gear

2
5

Gear Fixed Shaft

1
6

Gear Retainer

1
7

Quick Attach

2
8

Pump Head

1
9

Oil Seal

1
10

Motor

1
11

Motor Base

1
12

Rubber Foot

4
13

Screw 2

2

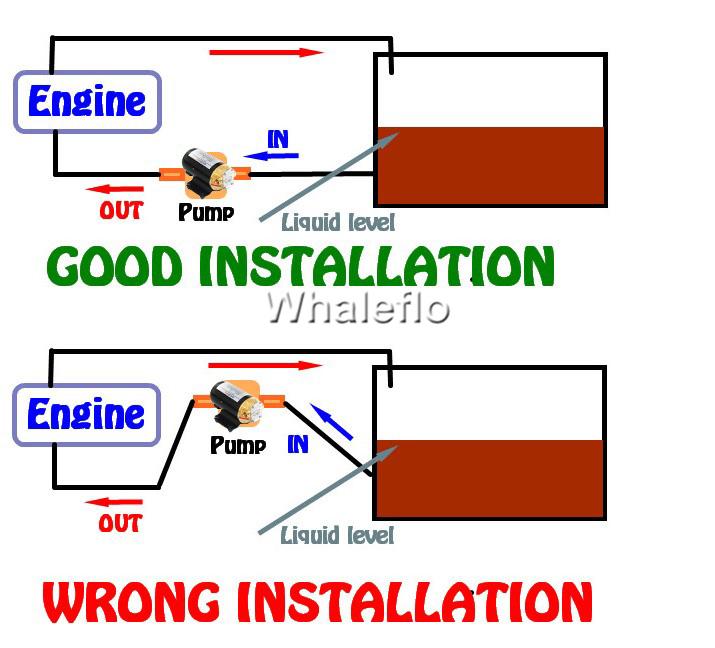

12V Gear Pump working
Whalelfo gear pump working
