Whaleflo 24V 3700GPH Portable Marine Boat Bilge Pump

3700GPH high flow boat bilge pump for equipment with lower cost



Whaleflo 3700GPH Protable Marine Boat Bilge Pump

3700GPH bilge pump

3700GPH (14060LPH)bilge pump with 2 year warranty

1-1/2’’(40mm)hose barb discharge outlet.

12V & 24V with 6 foot Wire leads

Stainless steel shaft

anti-rust and corrosion performance

submersible completely

Motor allow cleaning and impeller area can be removal

Easy to clean snap lock strainer

Water cooled motor for long life and  ignition protected avoid burn-out

Run dry is available

Ideal float switch for bilge pump is available

Silent and vibrationless operation

Exclusive moisture tight seals

Impact Resistant ABS housing



Whalelfo bilge pump 3000GPH details

Whaleflo bilge pump application

Worldwide boat builder used,Marine grade blocked wiring,Agriculture sprayer , irrigation,swimming pool, cleaning field,aquarium,Bilge water emissions from ship,Sea breeding ornamental,Fresh water treatment, waste water treatment,Water cycle treatment.

Whaleflo Pump Specification

Model:WELBP1-G3700-01,Model:WELBP1-G3700-01

HEAD: 8m , Volt:12v/24v , Amps:14A/7A

Wire:100CM( 6 foot),Outlet hose:40mm

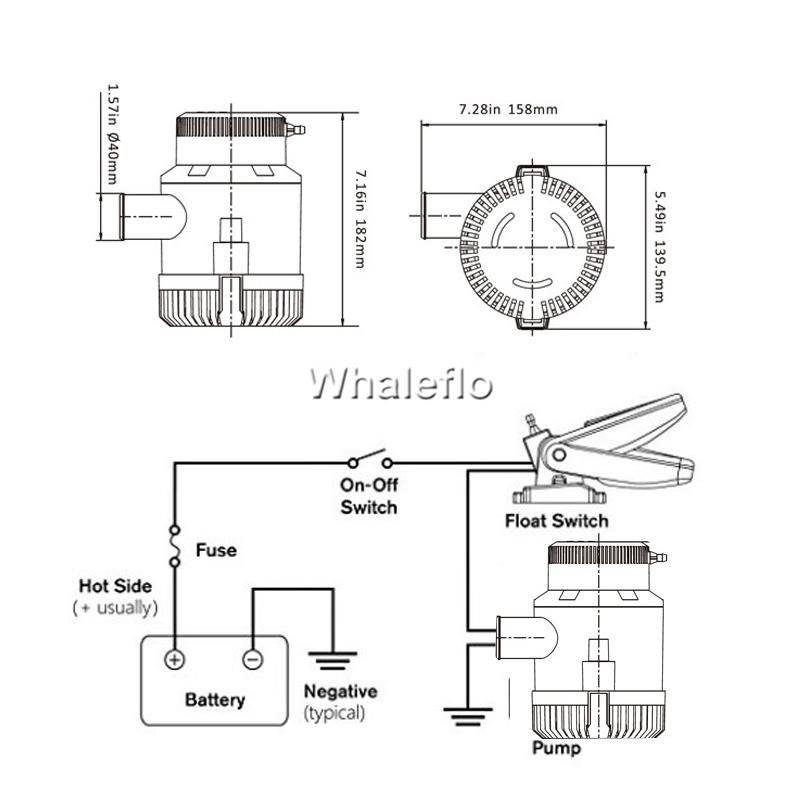

Technical data & drawing

Model Volt Flow rate Head Current  Wire Outlet Dia
WELBP1-G-3700-01 12 3700GPH 8M 16A 100cm 40mm/1-1/2''
WELBP2-G-3700-01 24 3700GPH 8M 10A 100cm 40mm/1-1/2''

Whaleflo 3000GPH boat bilge pump

Whaleflo 3000GPH bilge pump

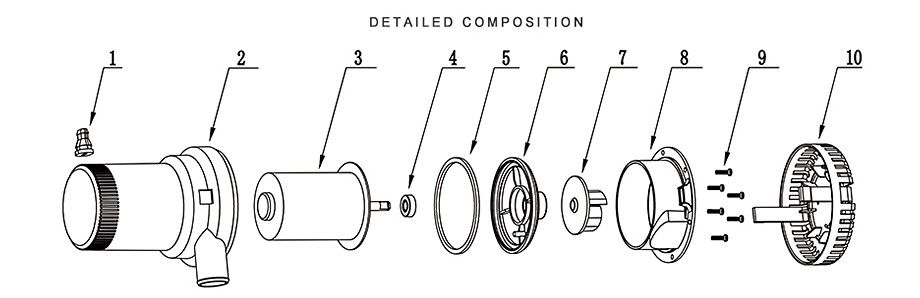

Key
Description
Quantity
1

Wire Buckle

1
2

Pump Housing

1
3

Motor

1
4

Seal Base

1
5

Seal

1
Key Description Quantity
6 Motor Bracket 1
7

Impeller

1
8

Pump Cover

1
9

Tapping Screw

6
10

Strainer

1
