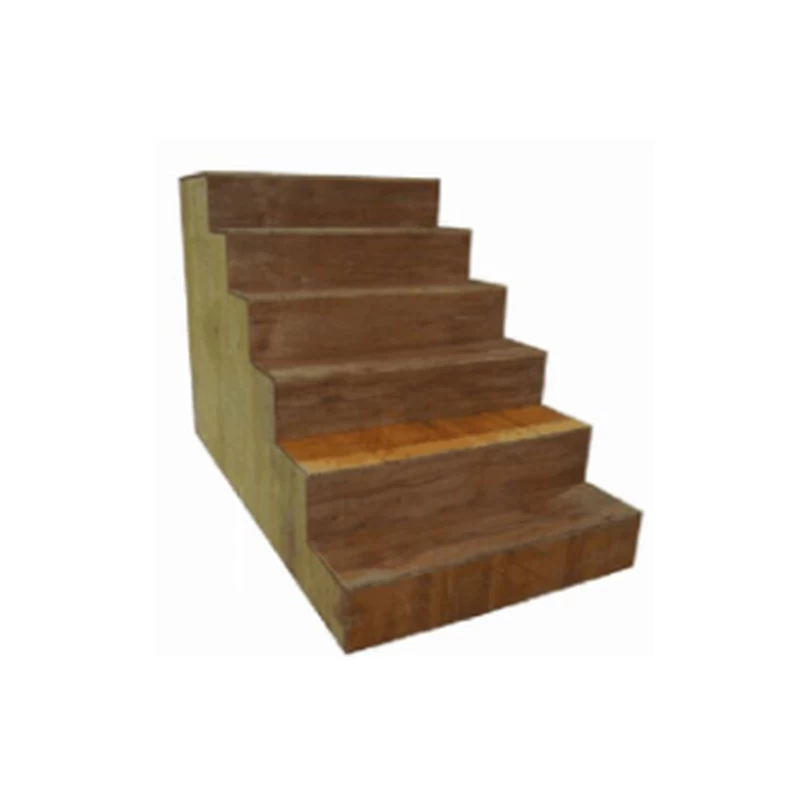

Wheeled Toys Tumble Test Steps GT-M91
Product Introduction
Application:
This instrument is mainly used to tumble test for Wheeled toys weighing more than 3 lb (1.4 kg) but not more than 10 lb (4.5 kg).
Standards:
ASTM F963 section 8.7.3
|

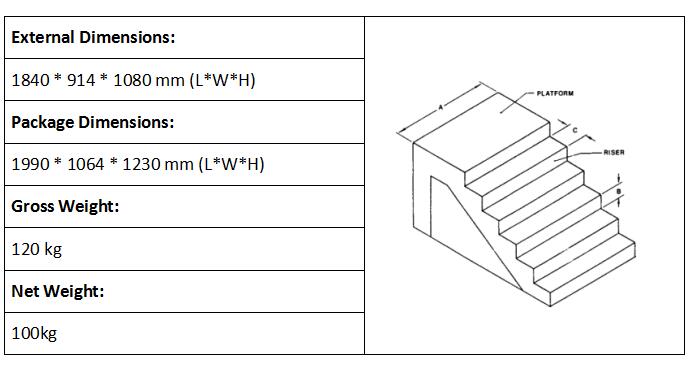

Dimensions
Feature
|
1. The toy, including accessories, where applicable, shall be caused to fall down the steps two times in each of four attitudes，tumbling forwardly end-over-end and tumbling rearwardly end-over-end from each side.
2. The toy shall be pushed slowly over the edge of the top step in the appropriate attitude and released as soon as it begins to fall of its own weight.
3. The test shall be considered complete for an attitude even if the toy does not reach the bottom of the flight of steps.
|

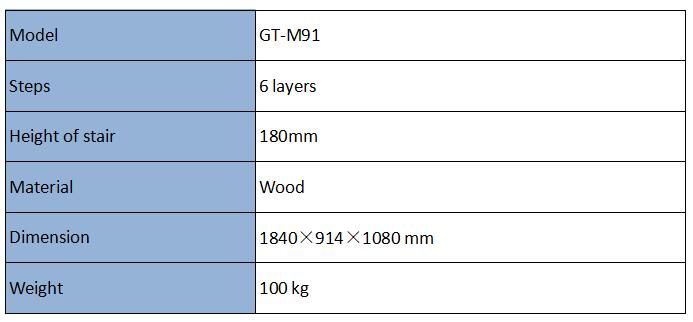

Key Specifications
