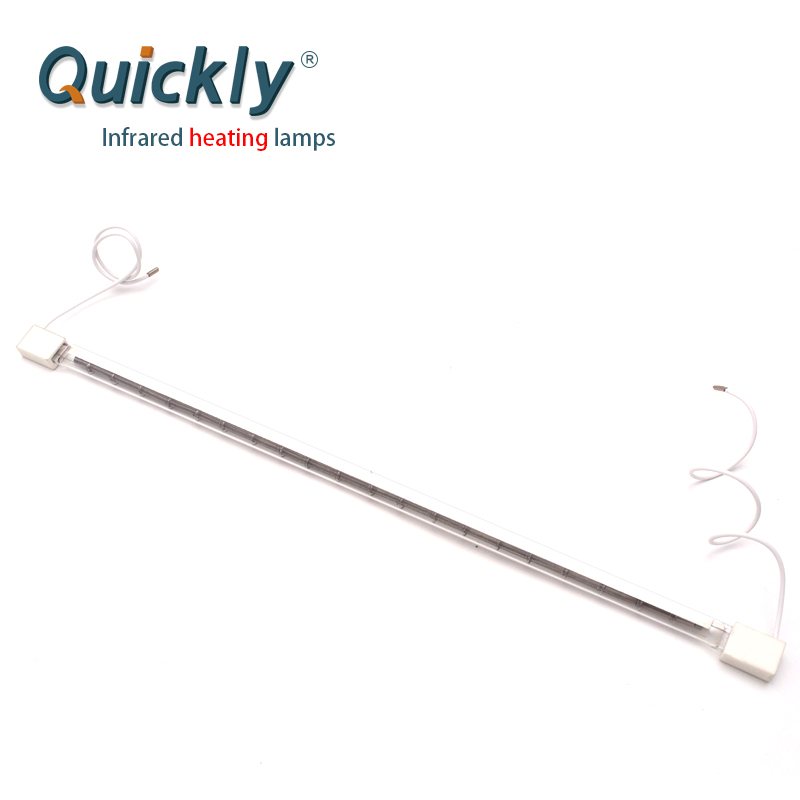

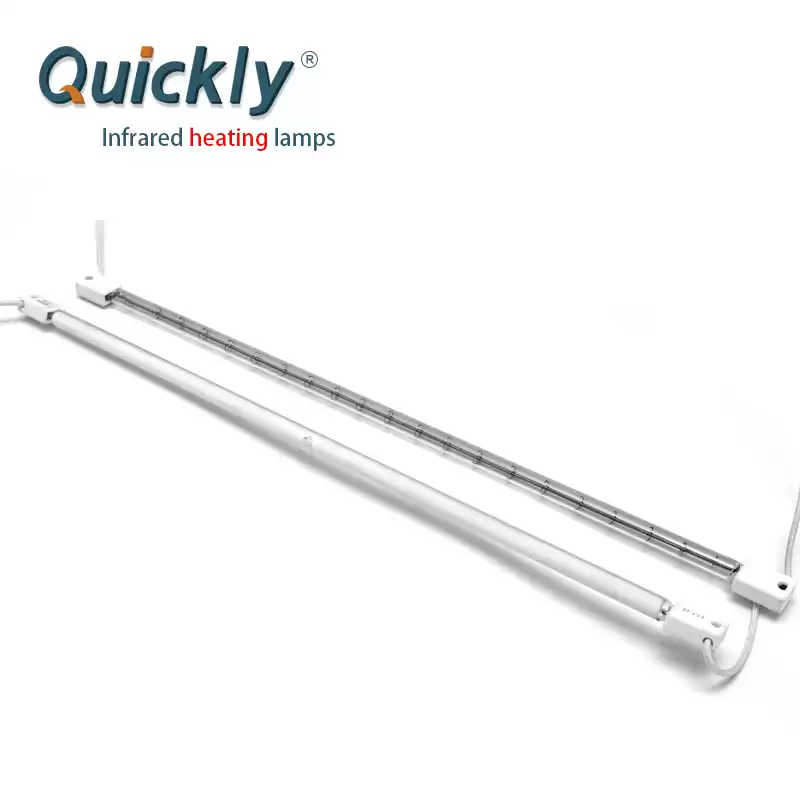

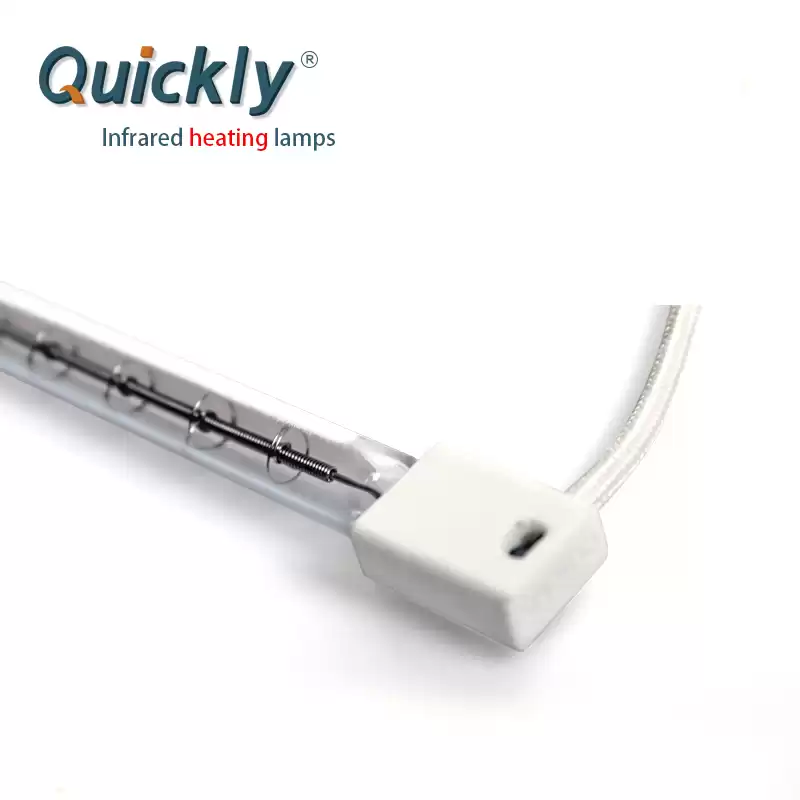

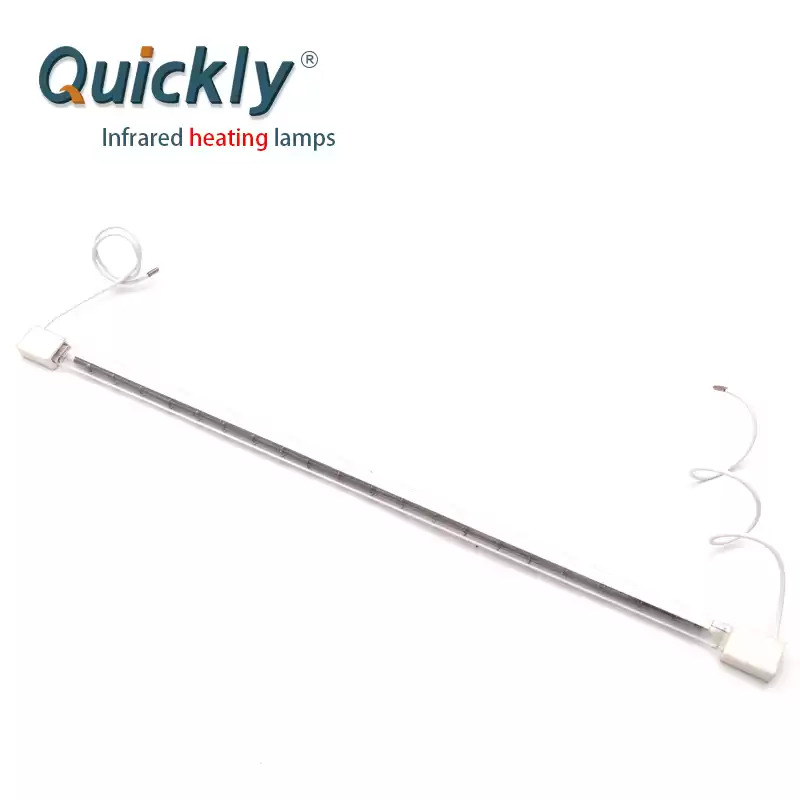

White Coating Infrared Tubular Heater Lamps for PET Blowing

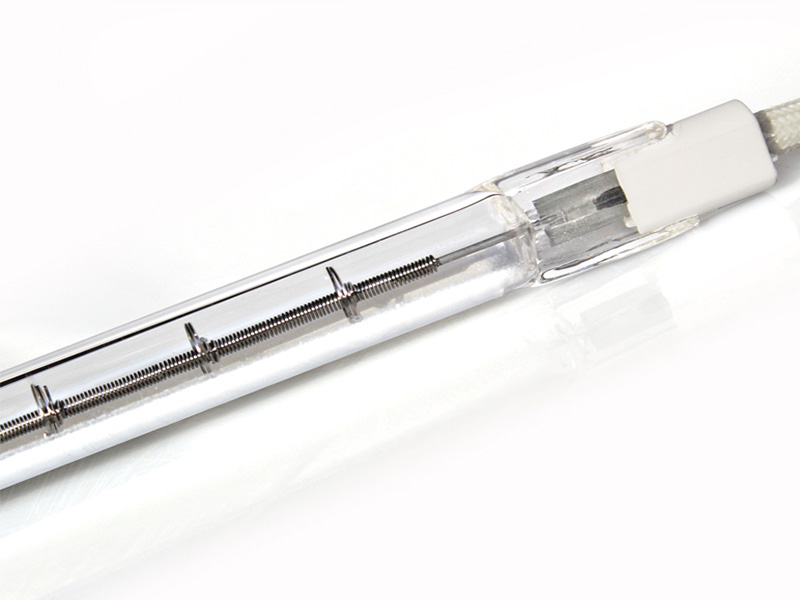

Description Of single tube short wave IR heating lamps

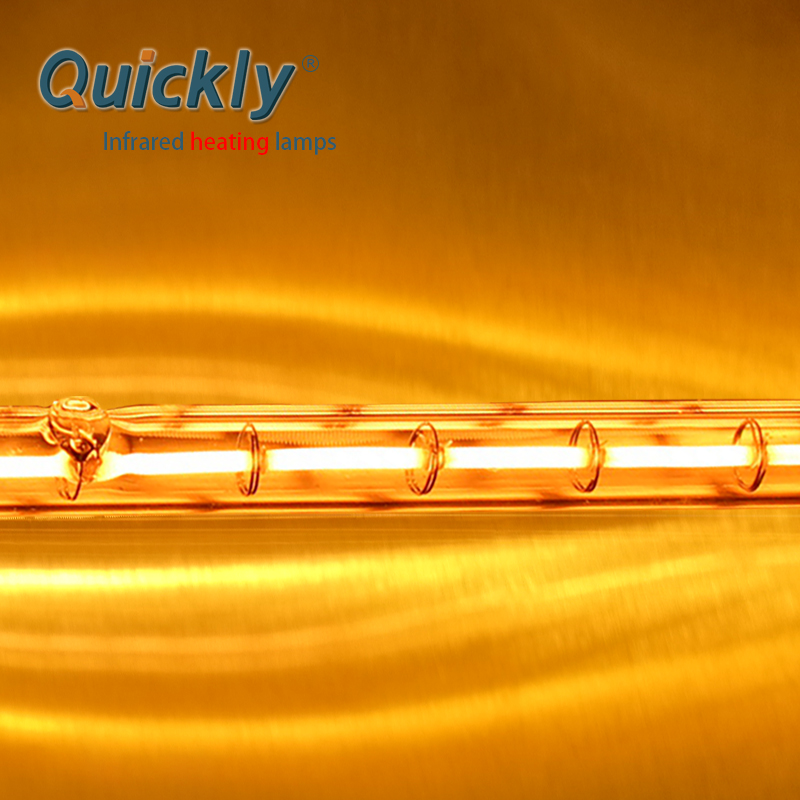

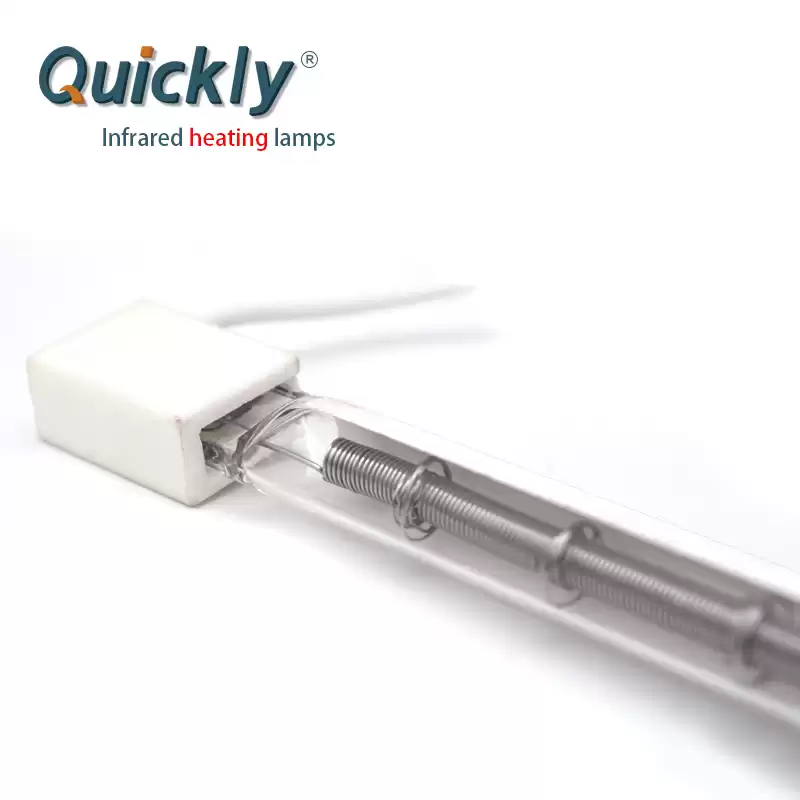

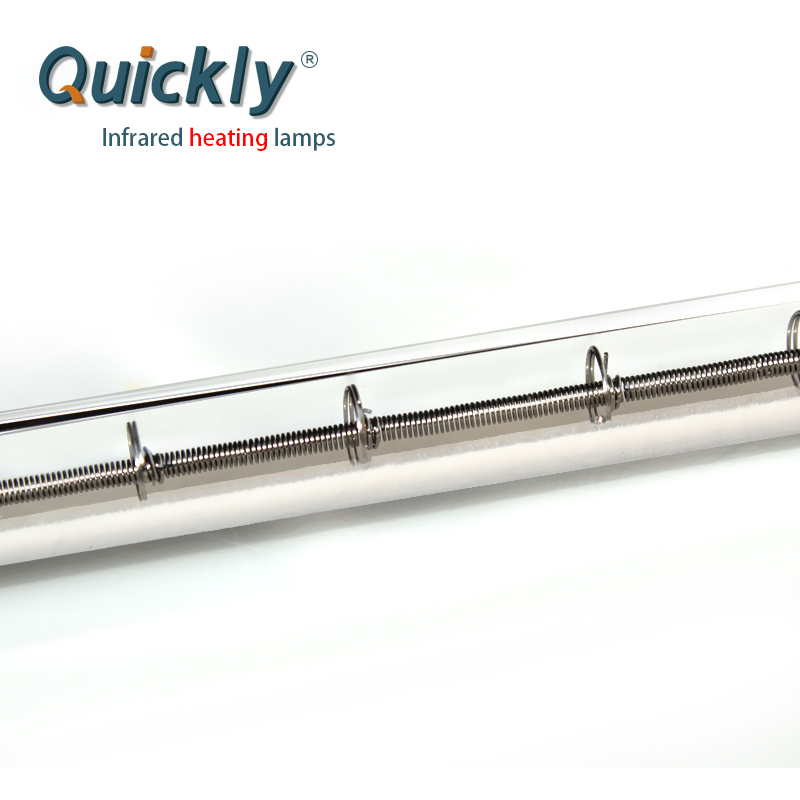

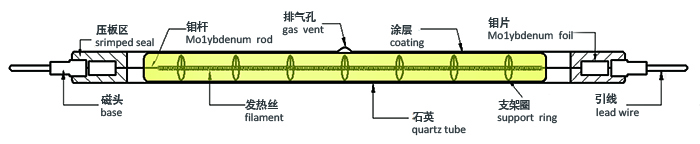

Short wave quartz infrared heaters are used in various industrial applications. It contains tungsten filament, helically wound, encased in quartz envelope. Tungsten as resistive element is capable of generating temperature in excess of 2750℃. Its response time is very rapid in 1 second it emits over 90% of IR energy. It is by products free & pollution free. Heat focus is very accurate due to compact and narrow diameter of IR tubes. Short wave IR heating element has maximum heating rate of 150w/cm.
Quick details
| Parameters |
single tube infrared heater lamps |
| Tube Diameter(mm) |
10 |
10.5 |
11 |
12 |
13 |
13.5 |
15 |
18 |
| Overall Length(mm) |
80-1700 |
80-1700 |
80-1700 |
80-1700 |
80-1700 |
80-2100 |
80-2500 |
80-3000 |
| Tube Thickness(mm) |
1.3 |
1.3 |
1.3 |
1.3-1.5 |
1.5 |
1.5-1.75 |
1.8 |
2.0 |
| Heated Length(mm) |
30-1650 |
30-1650 |
30-1650 |
30-1650 |
30-1650 |
30-2050 |
30-2450 |
30-2950 |
| Max Power(w/cm) |
100 |
100 |
100 |
100 |
100 |
100 |
120 |
150 |
Application
PET preform heating in Stretch blow moulding machines
Powder coating curing
Resins Hardening, Rubber coating drying
Adhesives - End polymerization
Food - Pasteurization / Sterilization
Paper Industry - Humidity Control
Industrial Drying - Paint , Varnishes , Dyeing
Semi Conductor Industries - Heating of wafers
Printing - Printing ink drying in screen and offset machines
Plastic welding
Drying of Water-Repellent Coating on Fabric
Textile Embossing and Laminating
In the production of PET bottle, preform heating is a significant processing, Rsuch a preheating process, which can meet the requests of the blowing and stretching.
The short-wave radiation emitted by the infrared lamp is easily absorbed by the PET preform. Some of the radiation passes through the preform and is reflected back onto the preform by a reflector located behind the preform. This way the heat loss is kept to a minimum. Ceramic white reflector will be applied becauase its high temperature resistance.

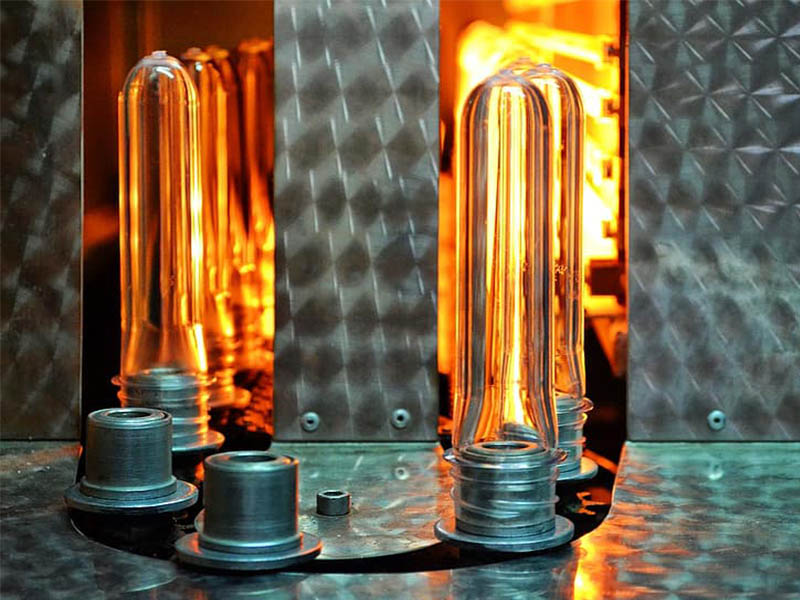

The preforms are held on two rails and move through a tunnel where a number of shortwave infrared emitters are installed. The tunnel will have a number of heating zones depending on the wall thickness of the preforms and blowing capacity (number of bottles per minute). As the preforms move through the tunnel, they are rotated so that the entire preform gets uniformly heated.
In each heating zone cooling fans are installed to ensure that the IR lamps and the reflectors do not overheat. It is important to keep the ends of the lamps cool otherwise the connecting leads can get damaged.
After exiting the IR tunnel, preforms move to a blowing station and are finally blown into the shape of a bottle.
We can offer your lamps for most of the pet blow moulding machines.
| Brand |
Volt（V) |
Watt (W) |
OAL (mm) |
HL （mm) |
Tube (mm) |
Reflector |
Warranty |
Posiation |
| Sidel |
230 |
1100 |
225 |
150 |
10 |
white |
5000 |
horizontal |
| Sidel |
230 |
1500 |
626 |
560 |
10 |
white |
5000 |
horizontal |
| Sidel |
400 |
2500 |
380 |
320 |
10 |
white |
5000 |
horizontal |
| Sidel |
400 |
3000 |
380 |
320 |
10 |
white |
5000 |
horizontal |
| Sidel |
240 |
500 |
216 |
150 |
10 |
white |
5000 |
horizontal |
| Sidel |
440 |
1000 |
354 |
280 |
10 |
2 sides white |
5000 |
horizontal |
| Krones |
144 |
1200 |
222 |
157 |
10 |
white |
5000 |
horizontal |
| Krones |
144 |
1600 |
222 |
157 |
10 |
white |
5000 |
horizontal |
| Krones |
400 |
2500 |
354 |
285 |
10 |
white |
5000 |
horizontal |
| Krones |
400 |
3000 |
354 |
285 |
10 |
white |
5000 |
horizontal |
| Sipa |
235 |
2000 |
353 |
285 |
10 |
white |
5000 |
horizontal |
| Sipa |
230 |
2000 |
650 |
505 |
10 |
white |
5000 |
horizontal |
| Sipa |
235 |
30000 |
353 |
280 |
10 |
white |
5000 |
horizontal |
| Sipa |
235 |
3000 |
787.5 |
705 |
10 |
white |
5000 |
horizontal |
| KHS |
144 |
1600 |
225 |
155 |
10 |
white |
5000 |
horizontal |
| KHS |
235 |
2500 |
353 |
285 |
10 |
white |
5000 |
horizontal |
| KHS |
240 |
2000 |
353 |
270 |
10 |
white |
5000 |
horizontal |
| KOSME |
400 |
1000 |
352 |
283 |
10 |
white |
5000 |
horizontal |
| KOSME |
400 |
2000 |
352 |
283 |
10 |
white |
5000 |
horizontal |
| ASB |
220 |
1500 |
440 |
355 |
10 |
white |
5000 |
horizontal |
| ASB |
220 |
2000 |
275 |
210 |
10 |
white |
5000 |
horizontal |
We also provide clips for SK15 end base.
FAQ
1. how to place the order?
Let us know your required lamp specifications including lamp type,diameter, length, power, voltage,reflector...then we send you the
quotation,after payment,production will be started, after finished, they will be shipped to your side.
2. What is the payment term?
prepayment 100% advance via wire transfer, Paypal, Western Union

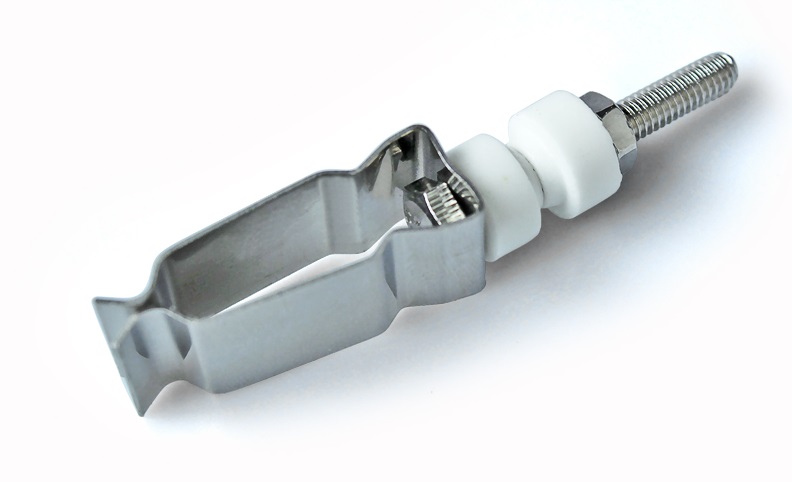

3. could you supply clamps for lamp installing ?
Yes, we will provide mounting clamps for clients, and the corresponding clamps quantity with purchased lamps are supplied freely bu us.
4. Have an unusual design?
Send us a drawing, sketch, or sample and we'll be happy to quote it.
We specialize in small runs and custom designs, but can be highly competitive on large orders as well.
5. How does your factory do quality control
" quality is priority", we always and keep paying more attention to QC from the material purchasing to the lamps' packing. Our product have gained CE, ROHS, ISO9001.
