Description

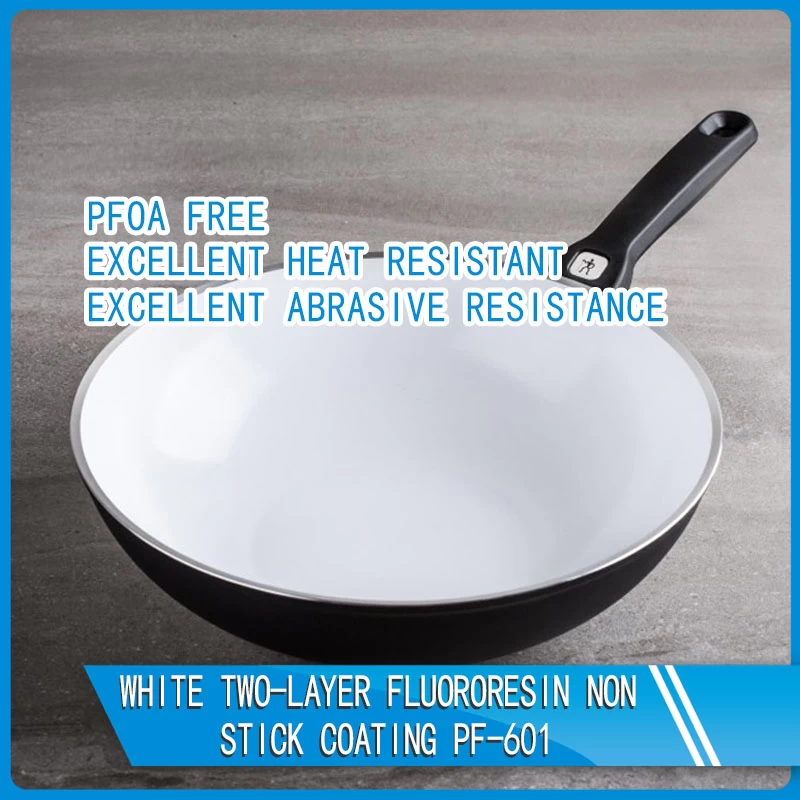

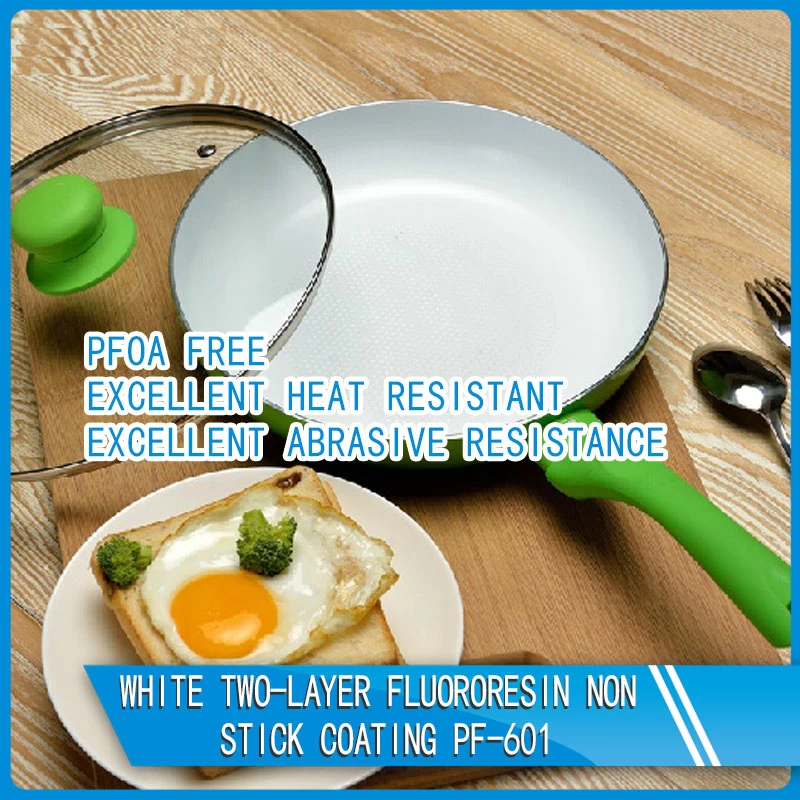

White two-layer fluororesin non stick coating PF-601 is white two-layer fluororesin non stick coating. Superior initial non stick property, easy to clean. It’s ideal for internal coating and external coating of frying pan, stock pot, baking tray, electric fry pan and inner pot of electric cooker etc.
Type
Water based fluororesin
Key features
-PFOA free
-Excellent heat resistant
-Excellent chemical resistance and abrasive resistance
-Excellent and lasting non-stick performance, easy to clean
Typical properties
Appearance: White liquid (Primer and top)
Solid content (%): 40±1 (Primer)
44±1 (Top)
Viscosity (cp): 600~1000 Primer
400~800 Top
Density (g/ml): 1.28 Primer/1.30 Top
Ph: 8-11(Primer and top)
Color of the film surface: White with metallic(Flat and smooth)
Curing temperature (℃): 380-420
Gloss (60° glossimeter): 15-25
Film thickness (μm): 20-30
Non-stick performance: >10 cycles (Fry eggs at 170±10℃)
Corrosion resistance: No blister (Boling 10% salt water for 24 hours)
Abrasion resistance 3KG/21cm2: >3000 cycles
Hardness (ZHONGHUA pencil): >H
Application
-Aluminum fry pan, wok, soup pot, electric roasting pan, baker, etc.
Storage and Handling
-Available in 20 kg/ barrel or 30 kg/ barrel
-Store products in tightly closed original containers at 5-40℃
-Shelf life: 9 months from delivery date
-According to non-dangerous goods transport
Non-stick Coating Type
↓ ↓ ↓ Please click product model for more informations
|
Model
|
Layer
|
Thickness
|
Curing temperature
|
Non stick property
|
Anti-corrosion
|
Abrasion resistant
|
|
Water based fluororesin non-stick coating
|
|
PF-600
|
2
|
25-40
|
380-400
|
A A A A A
|
A A A A
|
A A A
|
|
PF-601
|
2
|
25-35
|
380-400
|
A A A A
|
A A A A
|
A A A
|
|
PF-602
|
2
|
25-40
|
380-400
|
A A A A A
|
A A A A
|
A A A
|
|
PF-610
|
3
|
20-35
|
380-420
|
A A A A A
|
A A A A A
|
A A A
|
|
PF-611
|
3
|
20-35
|
380-420
|
A A A A A
|
A A A A A
|
A A A
|
|
PF-612
|
3
|
20-35
|
380-420
|
A A A A A
|
A A A A A
|
A A A
|
|
Water based ceramic non-stick coating
|
|
C-104
|
1
|
30-45
|
280-300
|
A A A A A
|
A A A A
|
A A A A A
|
|
C-105
|
1
|
30-45
|
280-300
|
A A A A A
|
A A A A
|
A A A A A
|
|
C-106
|
2
|
34-50
|
280-300
|
A A A A A
|
A A A A
|
A A A A A
|
|
C-107
|
1
|
12-20
|
250-280
|
A A A A A
|
A A A A
|
A A A A A
|
|
C-108
|
2
|
34-50
|
280-300
|
A A A A A
|
A A A A
|
A A A A A
|
|
C-109
|
2
|
34-50
|
280-300
|
A A A A A
|
A A A A
|
A A A A A
|
|
Silicone resin non-stick coating
|
|
S-200
|
1
|
15-20
|
280-300
|
A A A A
|
A A A A A
|
A A A A
|
|
S-201
|
1
|
15-20
|
280-300
|
A A A A
|
A A A A A
|
A A A A A
|
|
S-202
|
1
|
15-20
|
280-300
|
A A A A
|
A A A A A
|
A A A A
|
