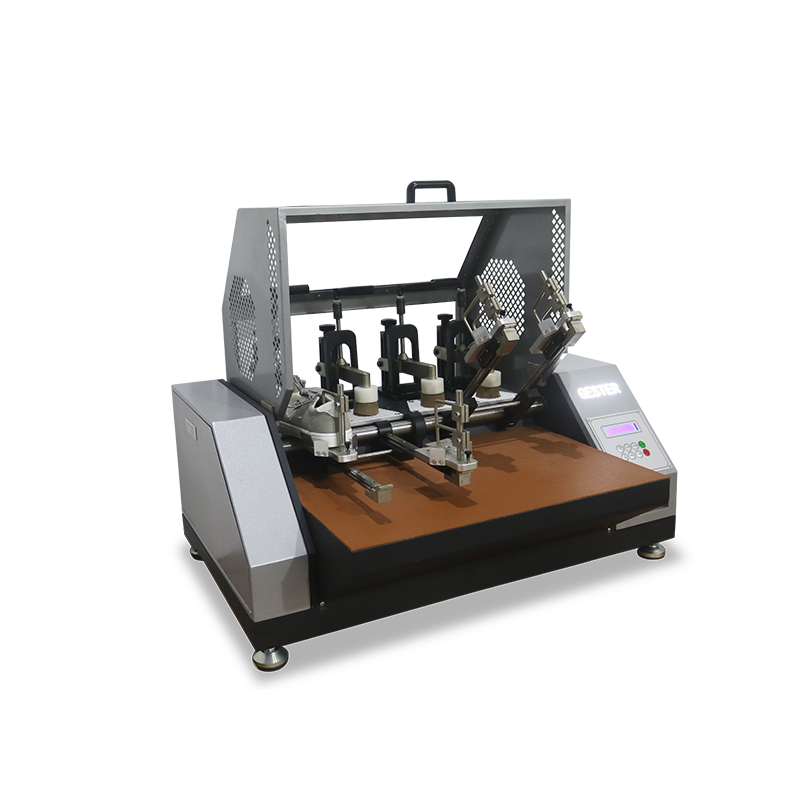

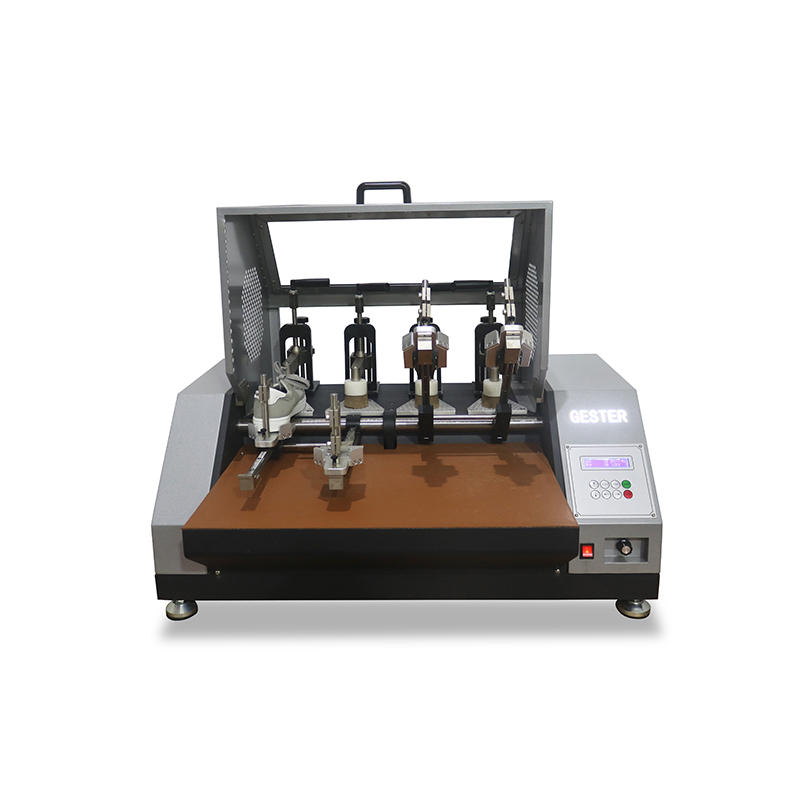

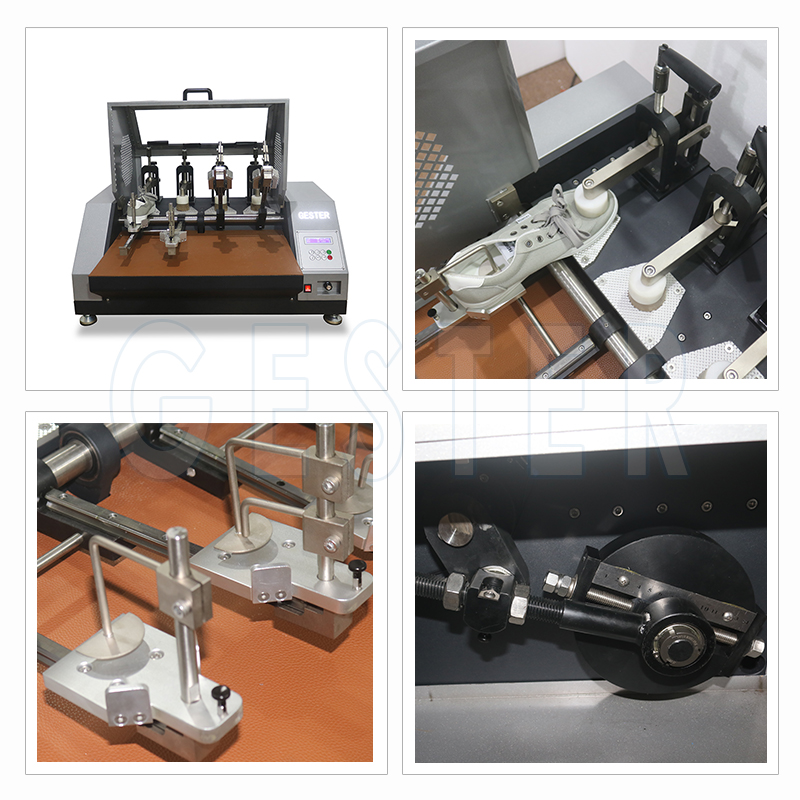

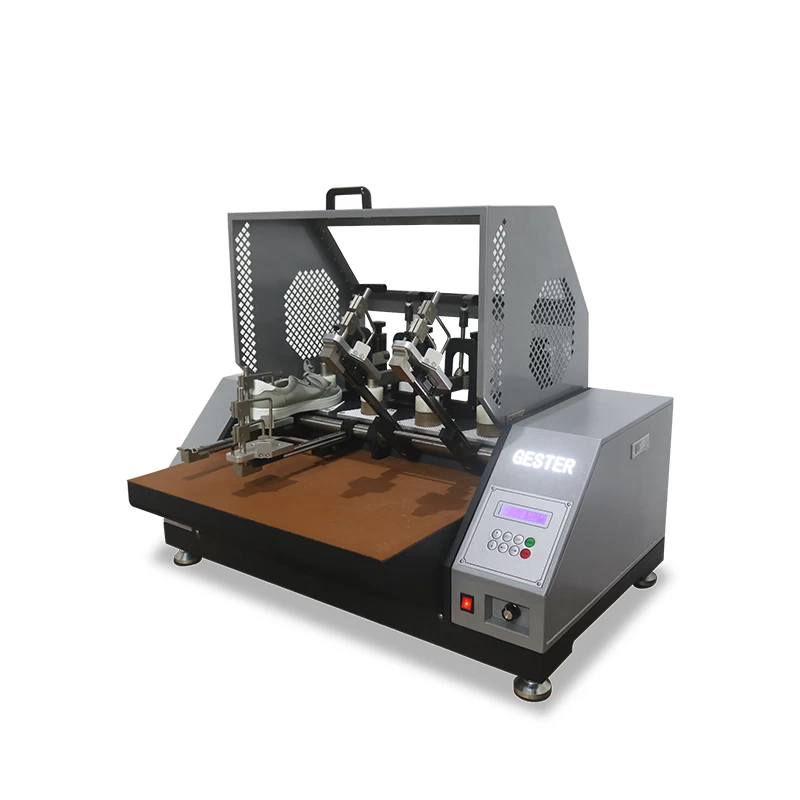

Whole Shoes Flexing Tester GT-KA01-2
Product Introduction
|
Application:
The whole shoes flexing tester is used to test finished shoes, like sports shoes, casual shoes, work shoes etc. And determine its flexibility resistance or indicating the cracks of shoe or shoe sole through reciprocating flexing movements under the specified angle and frequency.
Standards:
SATRA TM92
|

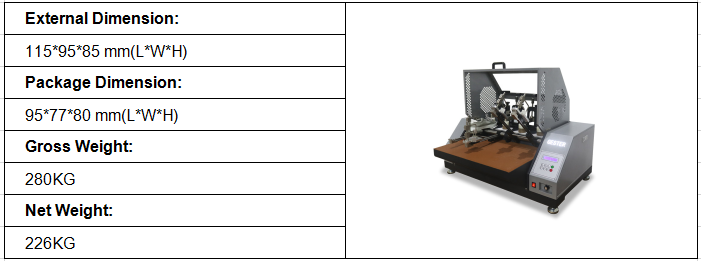

Dimensions
Feature
1. Equipped with acrylic protective cover, which make sure safe operation and low noise.

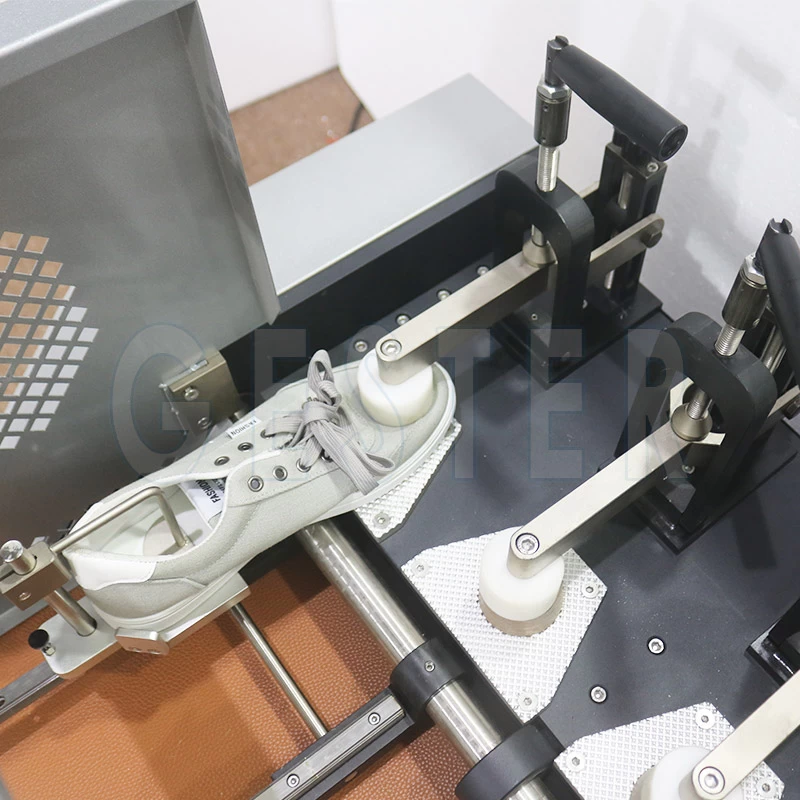

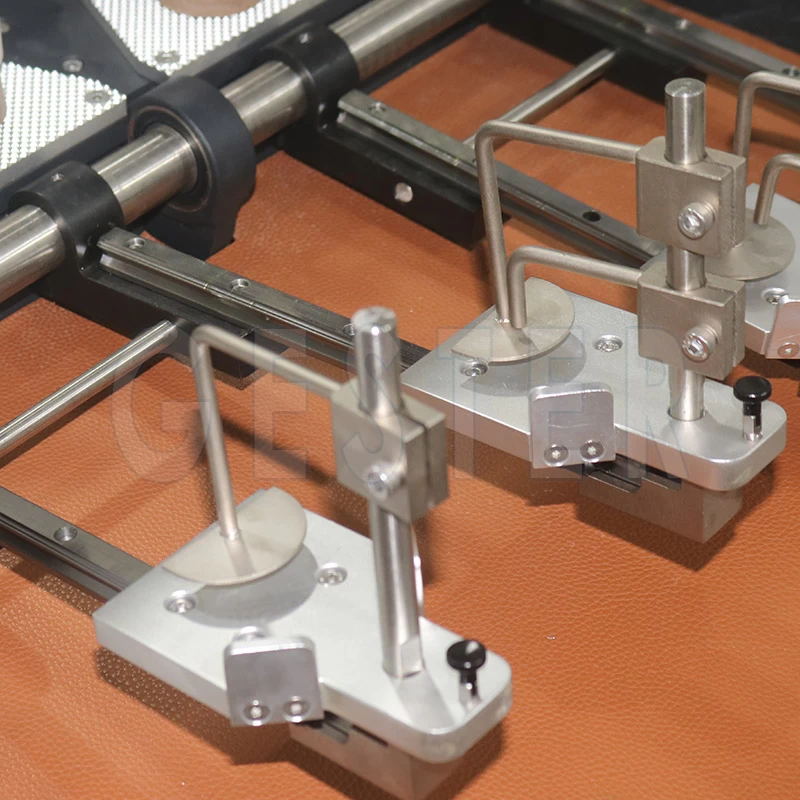

2. Heel fixture using linear slide for smooth movement with little resistance.
3. Freely set running times and machine automatically stop after test finished.
Key Specifications
Model
|
GT-KA01-2A
|
Test sample
|
Test 4 samples simultaneously
|
Bending angle
|
0~ 90° (adjustable)
|
Test speed
|
0°~50°, adjustable speed range: 60~230cpm
50°~90°, adjustable speed range: 60~140cpm
|
Counter
|
LCD display, 0-99,999,99 (8 digits)
|
Power
|
1∮AC 220V 50/60HZ 3A
|
Dimension(W×D×H)
|
95 x 76 x70cm
|
Weights
|
223kg
|
Standards
|
SATRA TM92
|
Accessories
Standards accessories
|
1set
|
Heel clamp
|
|
1set
|
Plastic pad
|
|
1set
|
Spanner
|
|
1pc
|
Power line
|
Application Industry
All the material blow can be tested on the Whole Shoes Flexing Tester
