Product Name:
Wholesale UHF/VHF Trip- Band Combiner with Low PIM -160dBc,high waterproof grade can be guaranteed the prodcuts's quality
Product Feature:
◆ 3G/4G/5G LTE Coverage
♦ Low insertion loss
♦ High isolation between each input port
♦ Widely used for in-building Soloution
♦ Indoor &Outddoor applicationn
♦ All Sepcifications can be changed as your requirements
Electrical and Technology specifications:
|
Model No.
|
MN-TC-136-870-NF
|
Frequency Range
|
VHF(136-174 MHz) + UHF(450-510 MHz) + 760-870 MHz
|
Impedance
|
50Ohm
|
PIM
|
-160dBc
|
Application
|
Indoor &Outddoor IP67
|
Average Power
|
50W
|
Isolation (dB)
|
≤20
|
Insertion loss(dB)
|
0.8 dB min
|
Return Loss
|
14 dB min
|
Connector
|
N-Female
|
Temperature
|
-30° C to +60° C
|
Services:
1. Professional skills support for RF Wholesale 136-174/450-510/760-870 MHz Trip- Band Combiner -160dBc
RF Combiner Wide Frequency Band Coverage BTS IBS DAS
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
NOTE:All the specifications can be changed as customer's requirment. Our company has a variety of products to choose

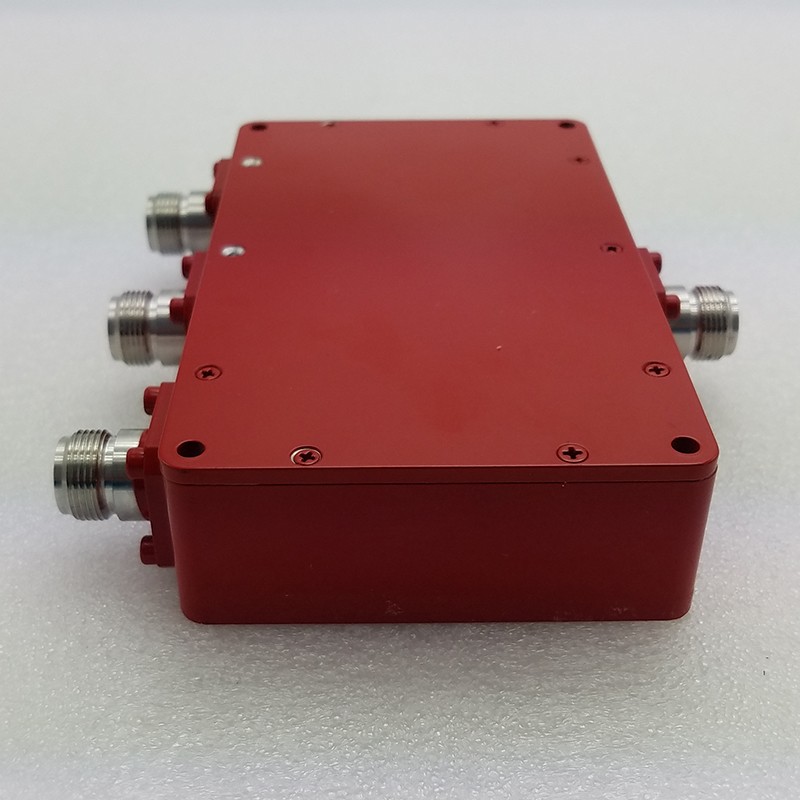

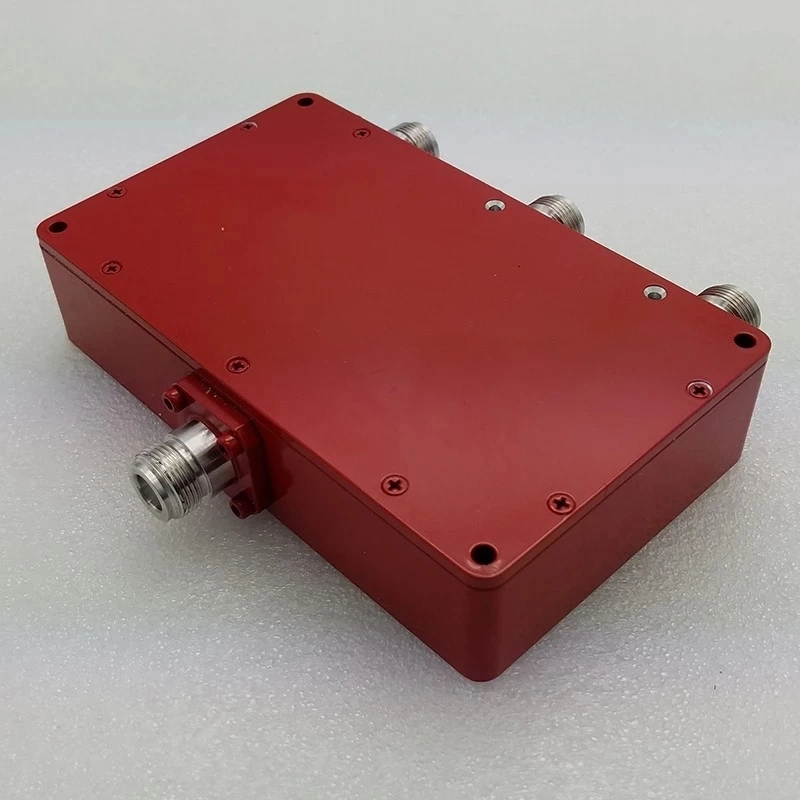

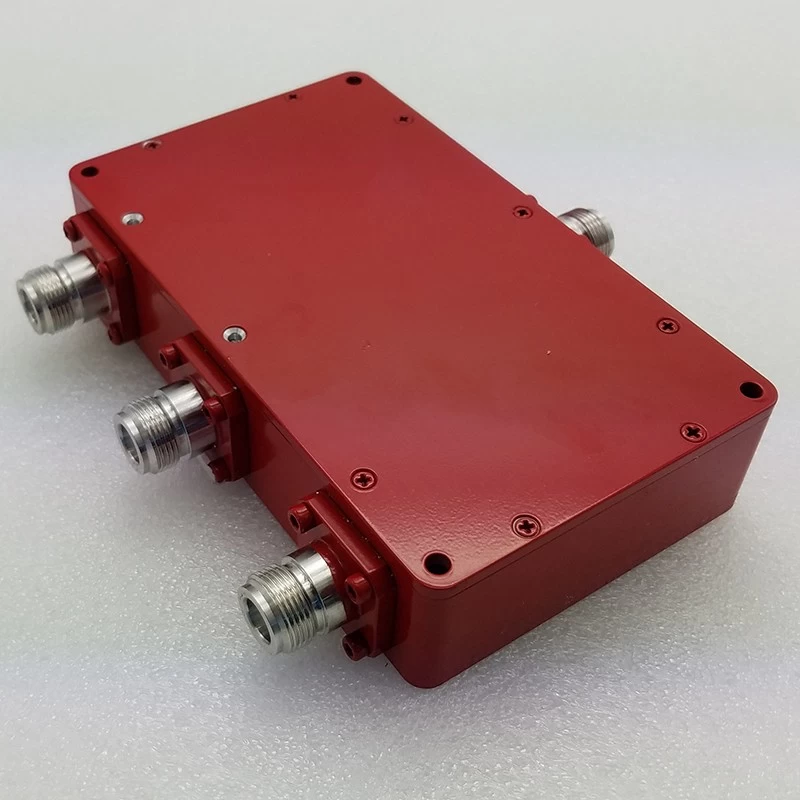

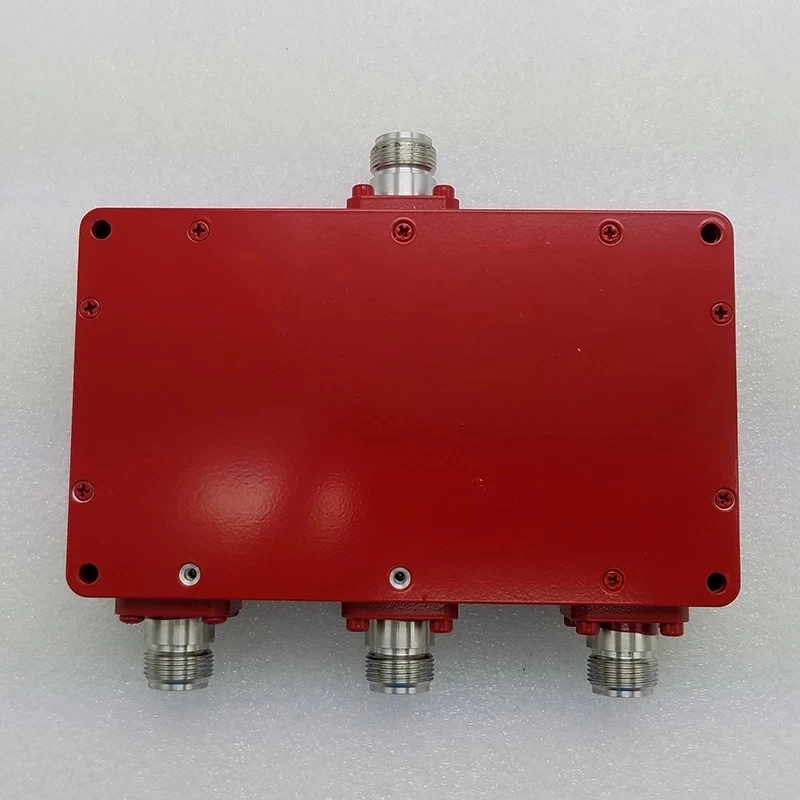

Detailed Image:
