300w 24v open frame switching power supplies
Description:
This K19-UP300S24 model is suitable for use in LED lighting, telecommunications, networking, test and measurement, IT applications, general electronics, automation and etc.
Features:
1, 300W 24v power supply with Universal AC Input;
2, 300W single output power supply 24V built-in PFC function;
3, High Efficicency, low ripple noise;
4, Short circuit/Over load/Over temp,etc protections.
|
SPECIFICATION
|
|
Item No.
|
K19-UP300S12
|
K19-UP300S24
|
K19-UP300S36
|
K19-UP300S48
|
|
OUTPUT
|
DC OUTPUT VOLTAGE
|
+12V
|
+24V
|
+36V
|
+48V
|
|
OUTPUT RATED CURRENT
|
25A
|
12.5A
|
8.3A
|
6.3A
|
|
CURRENT RANGE
|
0-25A
|
0-12.5A
|
0-8.3A
|
0-6.3A
|
|
OUTPUT POWER
|
300W
|
300W
|
298.8W
|
302.4W
|
|
RIPPLE & NOINSE
|
200mVp-p
|
240mVp-p
|
360mVp-p
|
480mVp-p
|
|
OUTPUT RANGE
|
10.8~13.2V
|
21.6~26.4V
|
32.4~39.6V
|
43.2~52.8V
|
|
OUTPUT V. TOLERANCE
|
±1%
|
|
LINE REGULATION
|
±0.5%
|
|
LOAD REGULATION
|
±0.5%
|
|
SETUP,RISE,HOLD UP TIME
|
500ms,50ms,20ms
|
|
INPUT
|
INPUT VOLTAGE RANGE
|
90-264V AC
|
|
INPUT CURRENT
|
1.5A @ 220V AC
|
|
INPUT FREQUENCY
|
47-63 Hz
|
|
EFFICIENCY
|
>88% @ 220V AC
|
|
POWER FACTOR
|
>0.99@110V;>0.95@220V
|
|
INRUSH CURRENT
|
COLD STAR 15A/115V，30A/230V
|
|
LEAKAGE CURRENT
|
<0.35mA@240V AC
|
|
PROTECTION
|
OVER LOAD
|
110~200%, TYPE:HICCUP RESET:AUTO RECOVER
|
|
OVER VOLTAGE
|
15-18V
|
28-33V
|
42-46V
|
55-60V
|
|
OVER TEMPERATURE
|
105℃ Proteciton Type:Shut down o/p voltage,Auto-recover after temperature down
|
|
ENVIROMENT
|
WORKING TEMP.&HUMIDITY
|
-20~50℃，10~90% RH，NON-CONDENSING
|
|
STORAGE TEMP.&HUMIDITY
|
-20~85℃，10~95% RH
|
|
TEMP.COEFFICIENT
|
±0.03%/℃(0~50℃)
|
|
VIBRATION
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
SAFETY& EMC
|
SAFETY STANDARDS
|
GB4943,EN60950-1
|
|
WITHSTAND VOLTAGE
|
I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
|
|
ISOLATION RESISTANCE
|
I/P-O/P, I/P-FG, O/P-FG:500VDC / 100M Ohms
|
|
EMC STANDARD
|
MEET EN55022 CLASS B，EN61000-3-2
|
|
OTHERS
|
DIMENSION
|
140*82*50mm
|
|
WEIGHT
|
0.6Kg
|
|
REMARK
|
1. ALL PARAMETERS ARE SPECIFIED AT 220VAC INPUT, RATED LOAD, 25ºC 70% RH. AMBIENT
2.TOLERANCE:INCLUDE SET UP TOLERANCE, LINE REGULATION, LOAD REGULATION.
3.RIPPLE & NOISE ARE MEASURED AT 20MHz BY USING A 12" TWISTED PAIR TERMINATED WITH A 0.1uF & 47uF CAPACITOR.
4.LINE REGULATION IS MEASURED FROM LOW LINE TO HIGH LINE AT RATED LOAD
5.LOAD REGULATION IS MEASURED FROM 0% TO 100% RATED LOAD, OTHER OUTPUT AT 60% RATED LOAD.
|

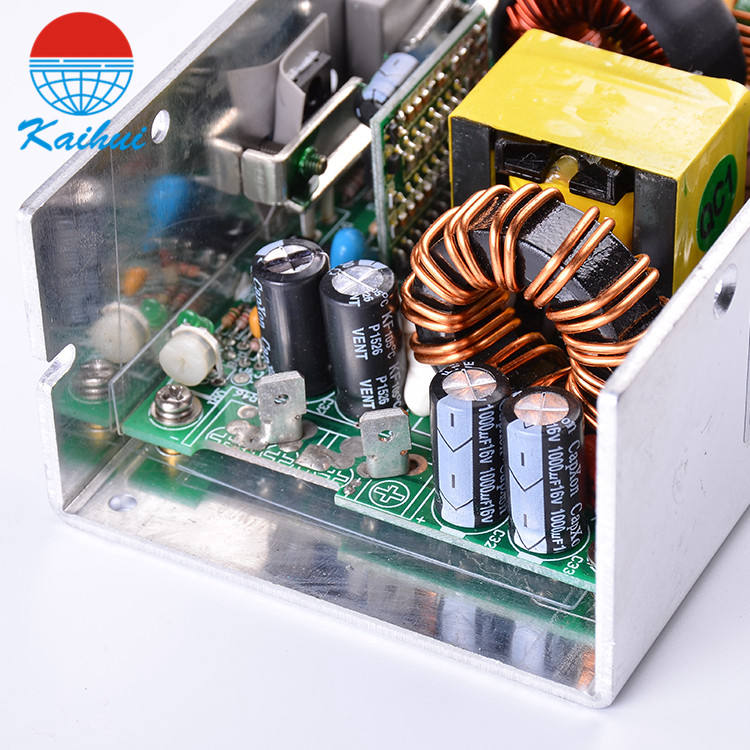

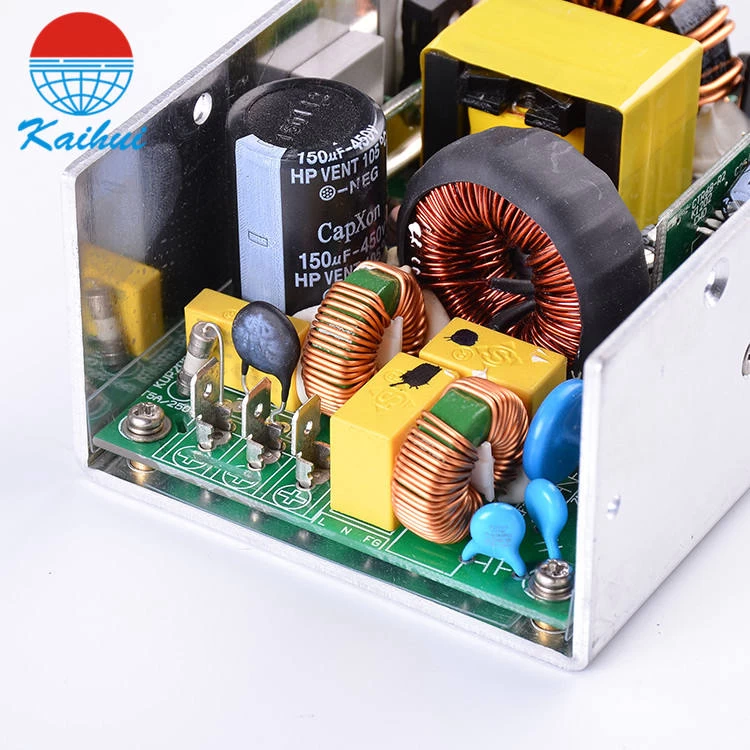

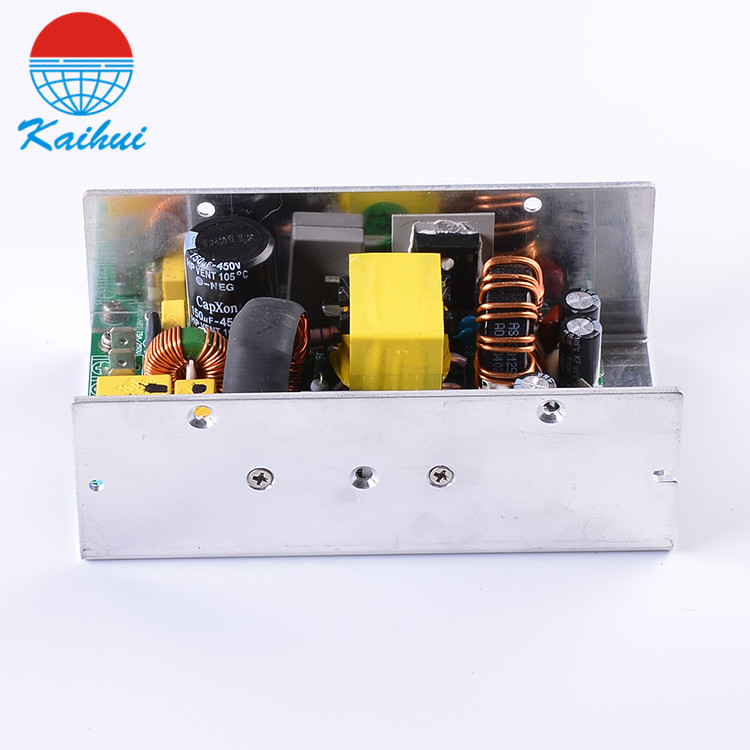

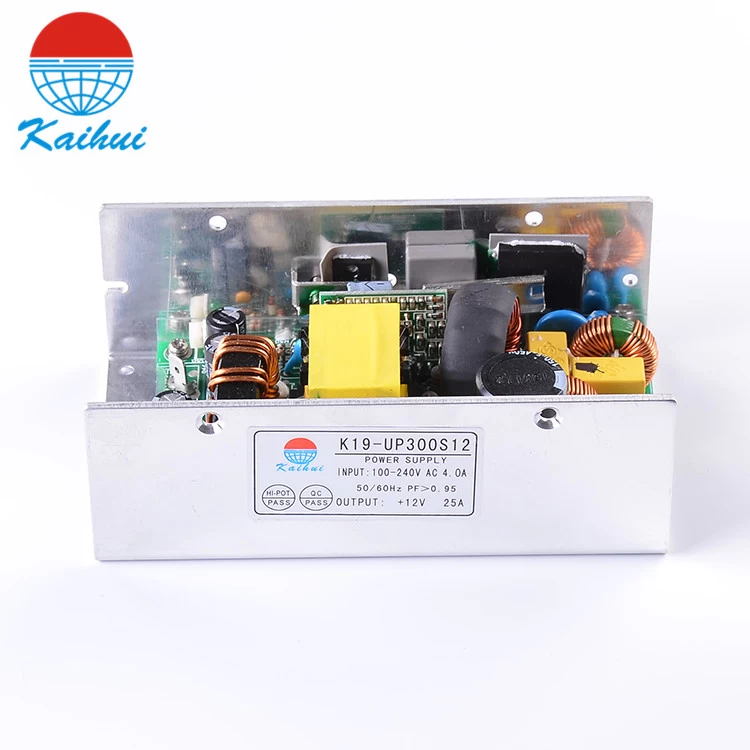

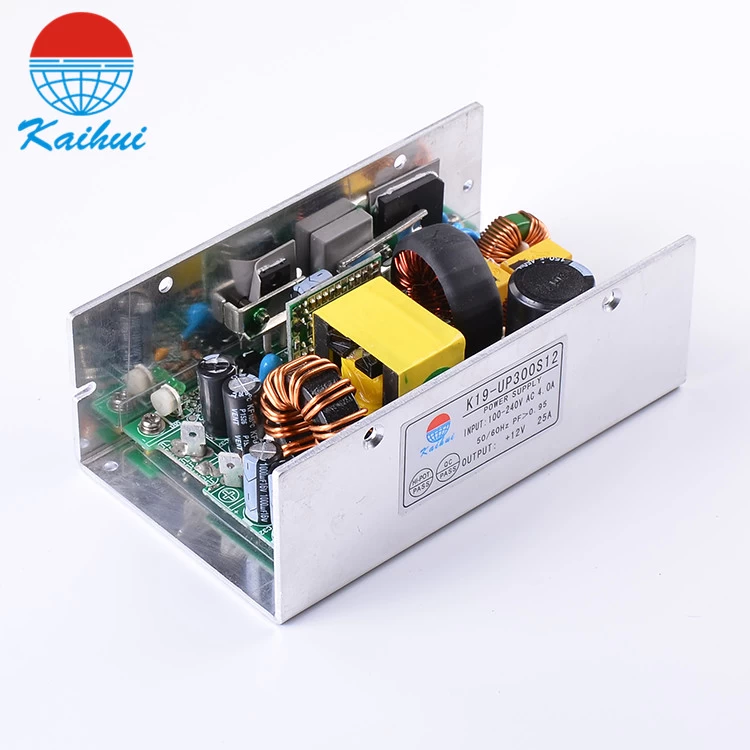

Product picture:
FAQ
Q1. Can I have a sample order for power supply?
A1: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2: Do you accept OEM/ODM for the switching power supply?
A2: Yes. we do.
Q3:How about the quality?
A3:We have the better professional and experienced engineers team and strict QA and QC system.Repair rate under 0.1%~0.2%
Q4:What is PFC?
A4:PFC stands for Power Factor Correction. The purpose of PFC is to improve the ratio of apparent power and real power. The power factor is only 0.5~0.7 in non-PFC models. In PFC models, the power factor can reach above 0.9. The calculation formulas are as below:
Apparent Power=Input Voltage x Input Current (VA)
Real Power= Input Voltage x Input Current x Power Factor (W)
