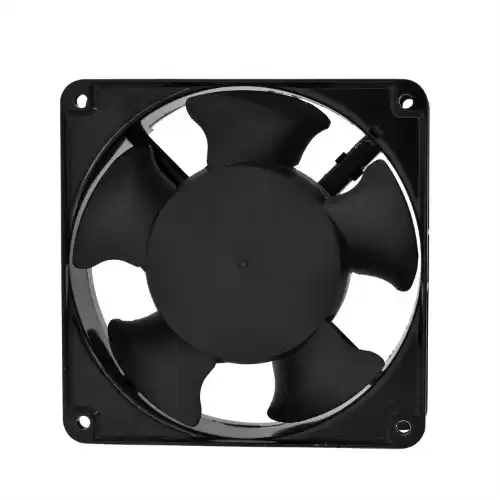

A12038 Air Cooler Refrigerator Axial Fan is energy saving with compact design, stable cooling performance, ease of use and provides good protection for the equipment.
About this item
-
Designed for projects that requires cooling or ventilation; or as a replacement fan for various products.
-

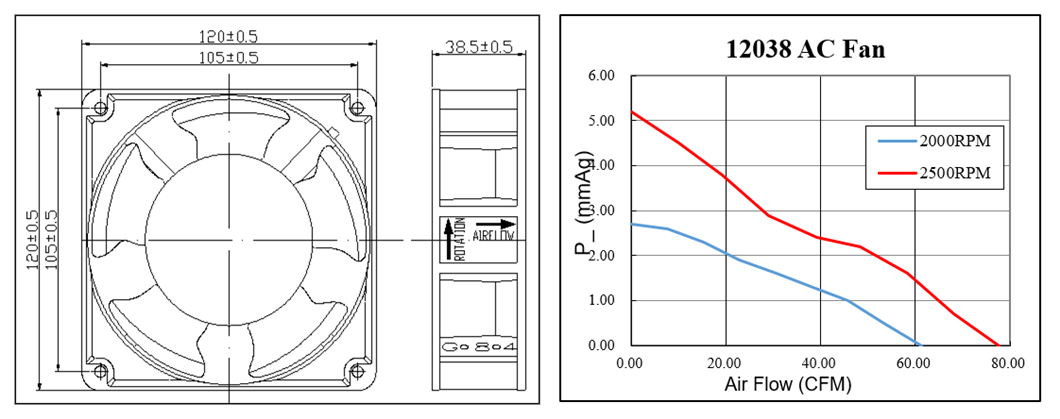

Dimension of outer the frame is 120mm(L) x 120mm(W) x 38mm(H) / The size of fan in inch is 4.72 in(L) x 4.72 in(W) x 1.49 in(H); The center to center distance beween the mountiong holes is 105.0 ± 0.5 mm / 4.13 in.
-

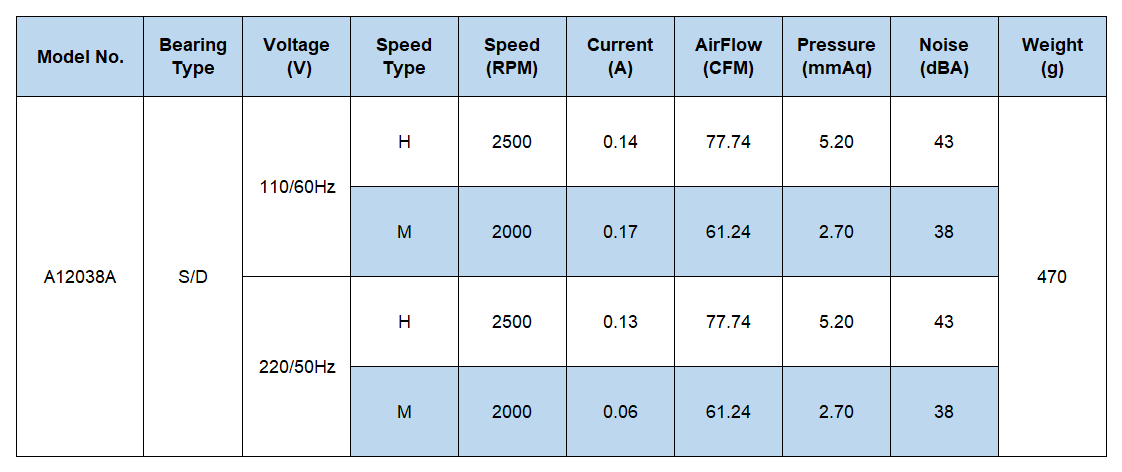

Operating Voltage Range: AC 110/60Hz; 220/50Hz | Current: 0.06 ~ 0.17 Amp | Speed: 2000 ~ 2500 RPM | Airflow: 63.95 ~ 74.98 CFM | Noise: 42 ~ 45 dBA | Pressure: 3.70 ~5.40 mmAq.
-
High Speed: This model is designed to maximize airflow and can be too loud for some applications.
-
Lead wire: (+): Red wire ; (-): Black wire. Bearing Type:Sleeve Bearing / Double Ball Bearing ; Life: working up to 50000h at 25 degrees.
-
Please Comfirm the Fan Size, Voltage, Connector and other parameters before purchase.

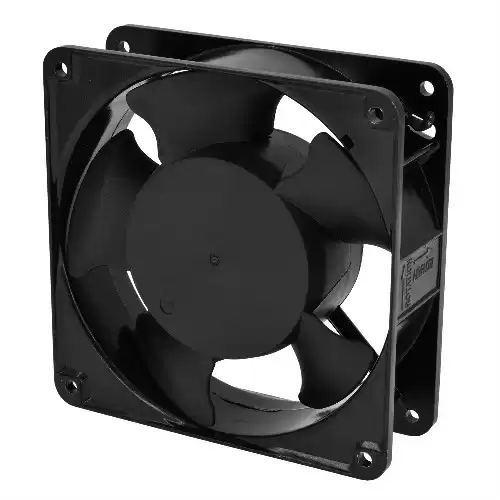

AC AXIAL FAN 120x120x38mm(4.72"x4.72"x1.49")
General Specification:
Frame: Aluminum Alloy
Impeller: PBT(Black)UL94V-0
Operating Temperature: -10ºC~70ºC
Motor Protection: Auto Restart or Polarity Protection
Insulation Resistance: 20MΩ or over with a DC500V Megger
Dielectric Withstand Voltage: AC500V 1s
Bearing Type: Sleeve Bearing or Ball bearing
·All reading are typical values at rated voltage.
·Parameters can be set according to customer requirements.
Feature
-
Integrated AC-DC converter;
-
Electronic Commutation design;
-
Motor speed control,Quiet operation;
-
Operating temperature range: -10°C to 70°C;
-
Voltage range: 110V to 220V AC, 50Hz to 60Hz;
-
UL, CE and RoHS certification available;
-
5 blades or 7 blades design improves air flow performance.
More Models
These fans are available in several sizes to accommodate diverse applications — such as those found in tight spaces or difficult to reach areas.
|
Type
|
Model
|
Size
|
Type
|
Model
|
Size
|
|
AC Axial Fan
|
A08025
|
80x80x25mm(3.15"x3.15"x0.98")
|
AC Axial Fan
|
A13538
|
135x135x38mm(5.31"x5.31"x1.49")
|
|
A09225
|
92x92x25mm(3.62"x3.62"x0.98")
|
A15050
|
150x150x50mm(5.90"x5.90"x1.97")
|
|
A11025
|
110x110x25mm(4.33"x4.33"x0.98")
|
A17051A
|
170x150x51mm(6.69"x5.90"x2.0")
|
|
A12025A
|
120x120x25mm(4.72"x4.72"x0.98")
|
A17051B
|
|
A12025B
|
A18060
|
180x180x60mm(7.08"x7.08"x2.36")
|
|
A12038A
|
120x120x38mm(4.72"x4.72"x1.49")
|
A20060
|
200x200x60mm(7.87"x7.87"x2.36")
|
|
A12038B
|
A22060
|
220x220x60mm(8.65"x8.65"x2.36")
|
Application
AC axial flow fans are usually used in white goods and other industries. The axial flow fans with the model of 120mm x 120mm x 38mm are mainly used in freezers, refrigerators, wine cabinets and electric welding machines.
-
Custom projects related to Refrigerator, Freezer, Beverage coolers, Oven , Outdoor telecom cabinet cooling systems, and more.
-
Creates cooling systems to keep home entertainment systems, computers, and other electronics running at their ideal temperature and optimal speed.
Quality Control
CHUNGFO has strict delivery inspection standard to ensure that the products quality meets customer’ requirements.
In addition, our fans are tested for quality to ensure the best possible performance. Our quality control staff is highly trained to perform stringent testing procedures.
Customers
Over the years, we have been with many well-known brands to achieve friendly cooperation.
Sincerely thank our customers for their trust and support.
Certifications
All our products are approved by CE, UL and ect, as well as in compliance with RoHS requirement, quality is reliable and guaranteed.
Long Life Cycle / Low Noise / High Efficiency;
Strict Waterproof & Dustproof Test;
CHUNGFO, the best choice for your cooling needs!
