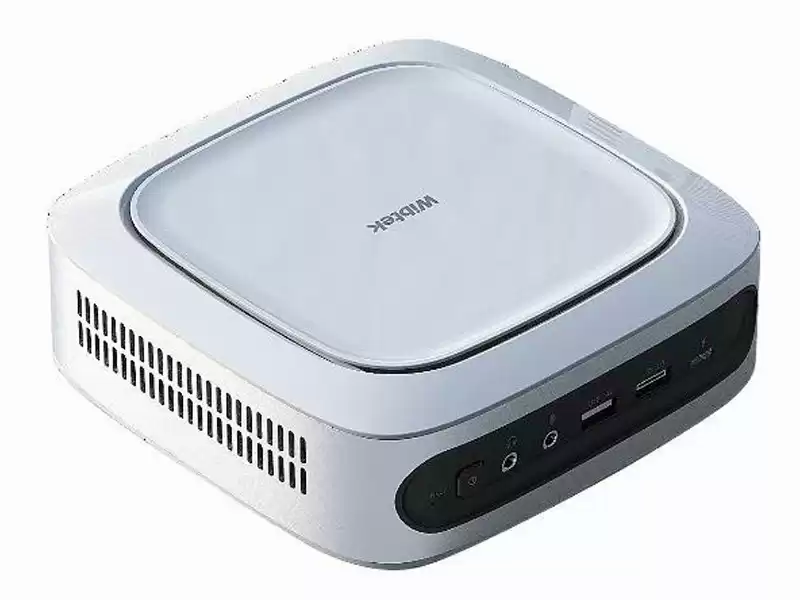

Wholesale Compact Simple Design MINI PC Intel Core i5-1235U

MIS-1235U Intel Alder lake-U platform

Complete Mini PC compatible with Intel 12th generation processors

Compact, beautiful and simple design

Supports Intel® 12th generation desktop Core processors



Wholesale Compact Simple Design MINI PC Intel Core i5-1235U

Product Introduction

This is a high-end MINI PC compact host for home entertainment, business office, cloud terminal and other industry applications.The MIS-1235U supports Intel 12th Generation Core processors, which combine powerful computing with HD graphics, advanced touch and audio capabilities to meet the needs of industry applications in a Windows operating system environment.



CPU CPU Intel Core i5-1235U, 12th Generation Core Processor
Chipset None
Heat dissipation Type Intelligent speed control fan
Memory Technical standards 8G LP DDR5 (Onboard up to 16GB)
Storage 2.5”laptop hard drive 1x 2.5“ SATA III (6Gb/s)Supports 2.5" laptop hard drive expansion interface
SSD 256G 1 x M.2 2280 H3.2MM,B+M KEY;
Graphic card Intel® UHD Graphics
Display Interface 1 × HDMI 2.0,1 ×DP 1.4
Resolution Max. 3840 x 2160 @60Hz
Audio Chip HD Audio ALC897
Interface 1 x MIC input, 1 x Audio output
Expansion Internal slot 1 x M.2 2230 support WIFI & Bluetooth
1 x M.2 2280 support SSD
Network Chip Intel I225V Gigabit NIC
Speed 10 / 100 / 1000 Mbps
Interface 2 x RJ45 (2.5G)
Front I/O Interface 1 x PWR,1 x Mic in,1 x Line_out ,1 x Thunderbolt 4.0 1 x Re-set,1 x c-mos,2 x USB3.0
Back I/O Interface 1 x Type-c (Power input),1 x DP 1.4,1 x HDMI 2.0,2 x RG45, 2 x USB3.0,2 x USB2.0
System control and other Power switch 1 x Power on/off button (with light)
LED Indicator 1 x Power light (2 in 1 with switch)
Reduction 1 x c-mos
Reset 1 x reset
Physical parameters Material Metal + plastic
Color Black
Size 155 x 155 x 58mm
Weight 0.8kg (According to configuration)
Power supply Adapter input 100 ~ 240 VAC
Adapter output Type-c 19V
Adapter interface 1 x Type-C
Output Max. power 60W
Environment Working temperature 0 ~ 40° C (32 ~ 104° F) with 0.7m / s air flow
Working humidity 95% @ 40° C (non-condensing)
Vibration-resistant standards 1.0 Grms, 5-500Hz, Reference IEC60068-2-64 Testing procedures
Watchdog Output interval Support 0~255 Second Time Out
Operating system Windows Windows 11
Linux Support
Certification EMC safety CE,CCC,RoHS



Product Features

Free and powerful expansion interface:

• 2 * LPP DDR5up to 16GB

• 1 *M.2 2280 SSD, SATA & PCIEX (adaptive)

• 1 * M.2 2230 support WIFI & Bluetooth

• 1 * 2.5” SATA HDD (Expansion)

Supports major 4K video output:

• 1 * DP 1.4, 1 x HDMI 2.0

Multi-LAN, Gigabit high-speed:

• 2 * RJ45 (2.5G)

Multi-USB:

• 4 * USB3.0,2 x USB2.0

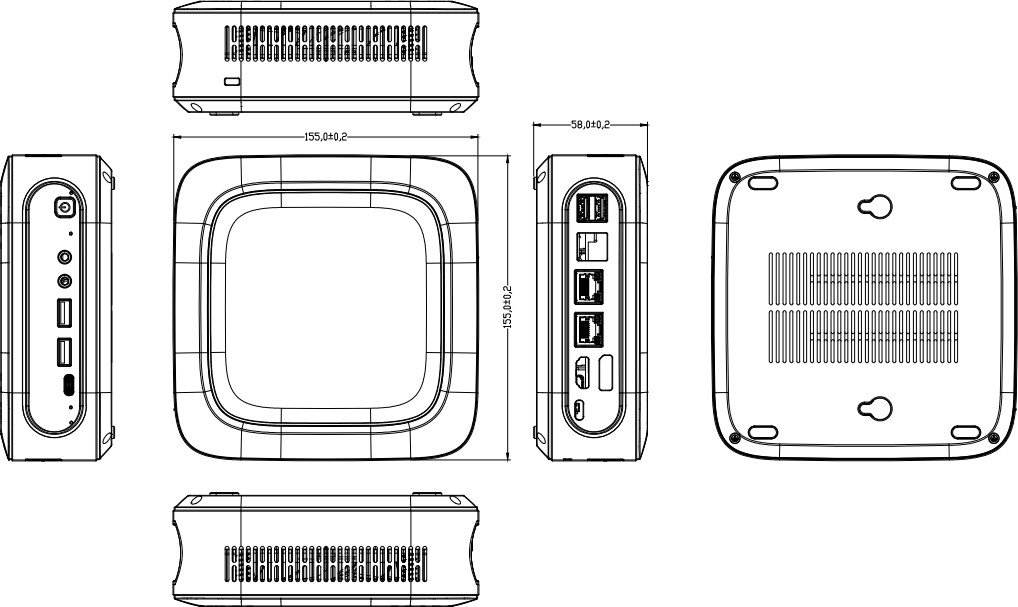

Product Installation Dimension Diagram

Model Description
MIS-1235U-8256 Windows11Quasi-system,I5-1235U,8GB RAM,256GB SSD
MIS-1235U-16512 Windows11Quasi-system,I5-1235U,16GB RAM,512GB SSD

For other configurations, please contact the appropriate sales person for the model.

All product specifications are subject to change without notice.



Our Advantages

1. As a professional manufacturer/ OEM Factory and supplier of Mini PC/ motherboard,firewall appliance over 15 years,Affinicate member of intel League.gain greatly supports from intel.And we win our customers with good quality,best service and factory price.

2.Our products are 100% original and have strict QC inspection before shipment.

3.Professional and efficient sales team to serve for you diligently.

4.Sample order is welcomed and will be delivered within 1-3 days.

6.We support Trade Assurance to ensure On-time shipment and product quality.

7.We provide OEM/ODM service according to your requirements.

8.We provide 2 years maintenance warranty for our products.



FAQ

1.Q: What's the Minimum Order Quantity (MOQ)?

A: Just 1 piece is OK.

2.Q: Are you a factory or a trading company?

A: We are one of the professional computer manufacturers located in Shenzhen, China.

3.Q: What about the after-service?

A: Two-year warranty except human error. As for the following 2 years, we can repair it for free, but charge for parts is needed. please contact us at any time when necessary. We besides our professional technicians are at your service.

4.Q: Can you provide DIY/OEM/ODM service?

A: Yes, please advise the CPU, memory, SSD or HDD, WIFI, interface ports and OS, the package box and housing (outer shell)as you wish, prices will be varied according to the quantity and specification.
