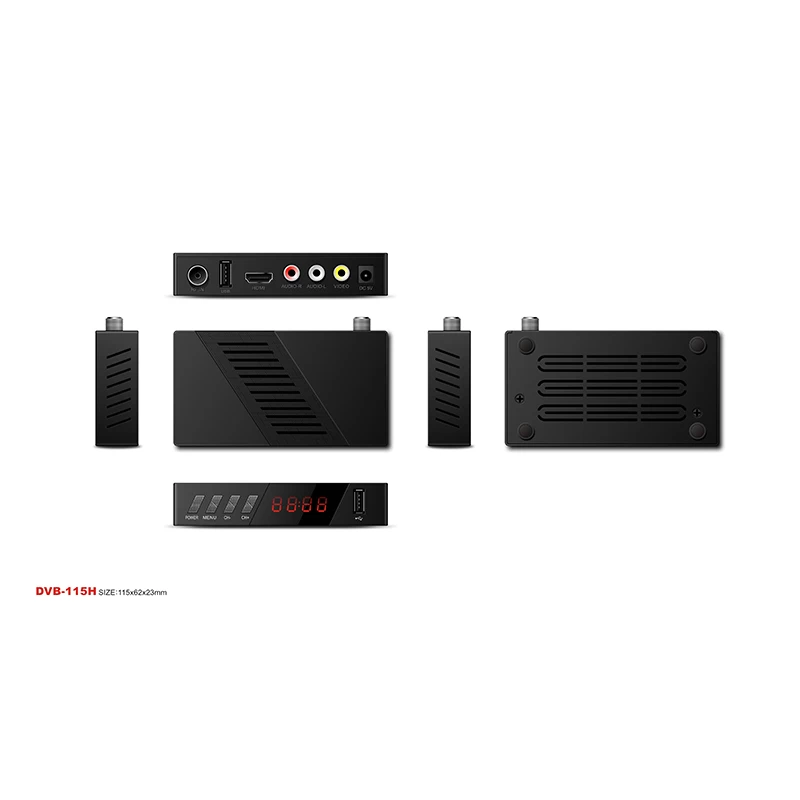

Wholesale DVB T2 H.264 HEVC Full HD USB Digital dvb t2 Set Top Box

*Fully Compliant with DVB-T2 Standard

*MPEG-2 MPEG-4/H.264 Decoding

*HDMI version 1.4, HDCP revision 1.2 ,Output:480i/480p/720p/1080i/1080p Supported

*4:3/16:9 & NSTC/PAL/Auto Switchable

*Boot up logo, radio image, watermark supported

*TV Guide/Bouquet Optional

*Auto search at background when STB boots supported

*USB PVR and Time-shift supported

*7-day EPGl, parental lock, channel management, timer, favorite group

*STB upgrade via USB, OTA and serial port supported

*NIT auto detect for channel add/delete, channel name change and LCN change at background available

*Auto/Manual/Full/NIT Search

*Channel Manage by Move, Skip, Fav., Delete and Channel Book Available

*USB Wifi Dongle for Youtube, Weather, Map and and other App

*Media Play based on mkv, avi, MP4, vob, mpg, ts, MP3 Supported



Products Specifications:

1) System

CPU GX3235S, 32-bit CK610M CPU 600MHZ
Flash 32M-bit Serial Flash
RAM 512Mb DDR2 RAM embedded
Tuner Maxliner MXL608+LNA
Video and Audio
Video Standard MPEG-2 MP@ML,MP@HL,MPEG-4 H.264/AVC
Video Mode 576i, 576p,720p, 1080i, 1080p
Audio Standard MPEG-1 layer I/II ,MP3 decoding
MPEG4 AAC and HE-AAC(AAC Plus) decoding
DD and DD+ Optional


2) Tuner and Demodulator

Type DVB-T&T2
Frequency Range VHF:174~230MHz
UHF:474~858MHz
RF Input Level -80~-20dBm
Band Width 6MHz/7MHz/8MHz
Demodulation DVB-T Mode 64QAM,16QAM,QPSK
DVB-T2 Mode 256QAM,64QAM,16QAM,QPSK
Transmission Mode OFDM
Code Rate DVB-T Mode 1/2, 2/3, 3/4, 5/6, 7/8
DVB-T2 Mode 1/2, 3/5, 2/3, 3/4, 4/5, 5/6
Guard Interval DVB-T Mode 1/4,1/8,1/16,1/32
DVB-T2 Mode 1/4,19/256,1/8,19/128,1/16,1/32, 1/128
FFT Size DVB-T Mode 2K,8K
DVB-T2 Mode 1K,2K,4K,8K,16K,32K

3) Power Supply

Input Voltage 12V1A  AC 80-260V  50~60Hz
Operating Power Consumption Max. <5W
Standby Power Consumption Max. 1W(with out LED <0.5W )

4) Front Panel

Display 4 Digital 7 Segment LED Display
Indicator Red: Standby ,Green: Run
Buttons Power, CH+, CH-
USB 1x USB2.0

5) Rear Panel

RF Input IEC169-2 Female, 75ohm
Loop Output IEC60169-2 Male 75ohm
IR Extension 1 × Earphone
AV Out 3 x RCA
SCART
S/PDIF 1 x Coaxial
HDMI 1 x HDMI
USB
Ethernet NO
DC Input 1 x Jack

6) Accessories

Battery 2 x 1.5V;AAA
User Manual A5
RCU NEC Protocol
