■ Super brightness, color uniformity and reproduction. Brightness variances within +/- 2.5%;
■ Extremely weather-proof, adapt to different kinds of environment;
■ Support automatic fault detection;
■ Refresh rate up to 4,200Hz, completely flickering-free for live videos;
■ Proprietary image processing produces sharp, brilliant images – unmatched by industry competition;
■ 6000 : 1 contrast ratio tempers screen brightness into sharp, focused images whether up close or far away;
■ 6,6000 nits guarantees the screen stays brighter longer, providing 100,000 hours of continuous use.
1) System structure

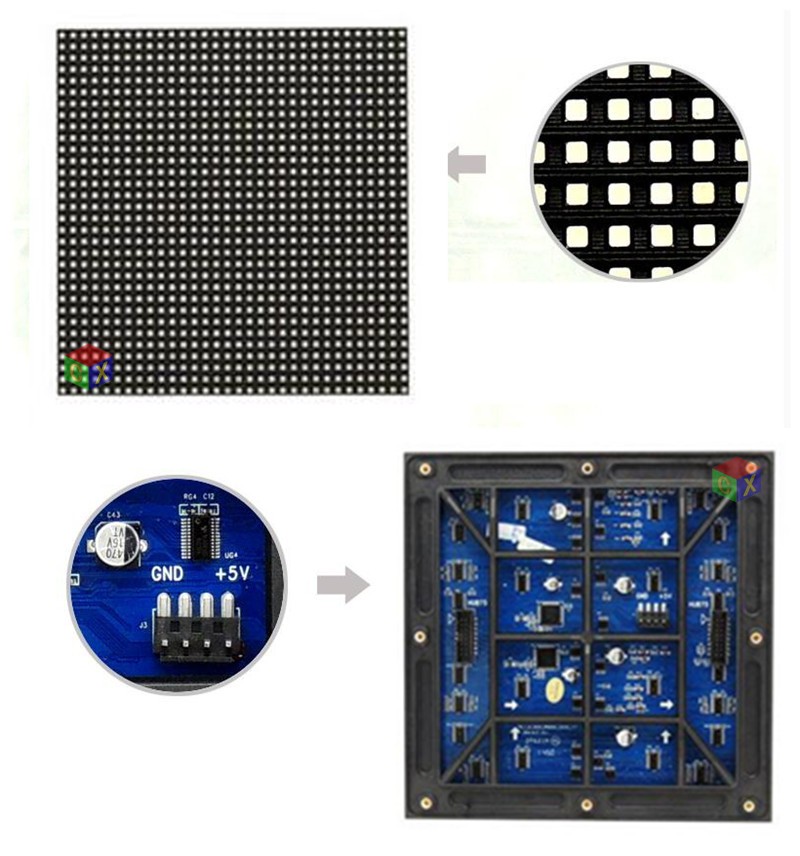

2)Led Module
|
Module Size(W * H)
|
192mm*192mm
|
Pixel Configeration
|
1R,1G,1B
|
|
Pixel Pitch
|
6mm
|
Resolution(W*H)
|
32dots*32dots
|
|
Pixel Density
|
27777 dot / m2
|
Driving Method
|
static Current
|
3)Led cabinet
|
Cabinet Size(W * H)
|
2112mm*960mm
|
Module Qty
|
55pcs
|
|
Cabinet Resolution(W * H)
|
352dots*160dots
|
Cabinet Pixel
|
4096
|
|
Weight130
|
kg/pc
|
Area
|
1.23(m2)
|
|
Avarage Power Consumption
|
200W/m2
|
Max Consumption
|
600W/m2
|
4)Led Video wall technical parameter
|
Operating Humility
|
10% ~ 90% RH
|
|
Oprating Temprature
|
-20°C ~ +50°C
|
|
Optimal Viewing Distance
|
10m-200m
|
|
Display Color
|
1,070,000,000
|
|
Gray Scale
|
65536grade
|
|
Brightness control
|
256grade
|
|
Frame Frequency
|
60HZ
|
|
Refresh Speed
|
>2000HZ
|
|
Power Supply
|
220V/50HZ
|
|
MTBF
|
≥10,000hours
|
|
Life Span (50% brightness)
|
≥100,000hours
|
|
Control Mode
|
synchronization with PC
|
|
Input Signal Format
|
VGA,DVI,RGBHV,PbPr(HDTV),Composite,S-Video,TV
|
|
Operating System
|
WINDOWS(98,2000,XP,Vista)
|
