Wholesale Low Noise Casting Iron Pool Pump

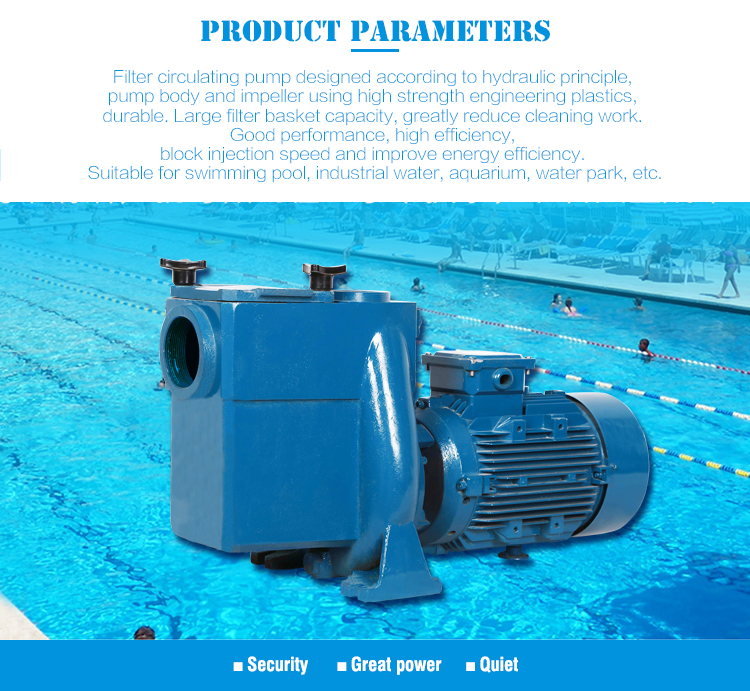

The iron pool pump, the pump body designed according to the hydraulic principle, is cast and formed with high-quality metal, and the solid one-piece structure is durable. The large capacity of the filter basket greatly reduces the cleaning work. Good performance, high efficiency, accelerated water injection (irrigation) speed and improved energy efficiency, suitable for various swimming pools, aquariums, water parks, industrial water, etc.
Product parameter：
| Model |
Rated Power
|
Rated Voltage
|
Pipe Diameter |
| （KW） |
（HP） |
（V） |
（mm） |
（inches） |
| ATS-300 |
2.2 |
3 |
380V/50hz |
65 |
2.5 |
| AST-400 |
3 |
4 |
380V/50hz |
65 |
2.5 |
| ATS-500 |
3.8 |
5 |
380V/50hz |
65 |
2.5 |
| AT-400 |
3 |
4 |
380V/50hz |
80 |
3 |
| AT-550 |
4 |
5.5 |
380V/50hz |
80 |
3 |
| AT-750 |
5..6 |
7.5 |
380V/50hz |
80 |
3 |
| AT-1000 |
7.5 |
10 |
380V/50hz |
80 |
3 |
| AT-1500 |
11 |
15 |
380V/50hz |
80 |
3 |

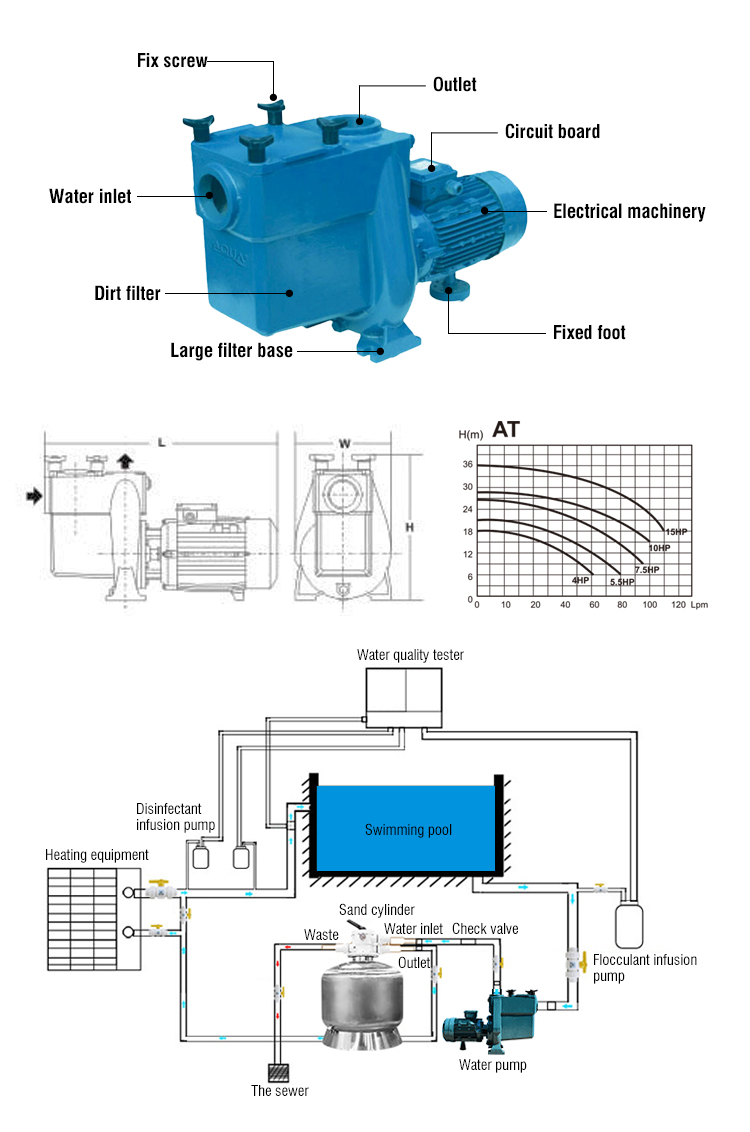

Self-priming centrifugal pool pump details：
Structure: Conjoined self-priming centrifugal pump with built-in debris filter
Use: Circulating filtration system for swimming pools
Working condition: fluid temperature up to 60℃
Ambient temperature up to 40°C
The maximum suction lift can reach 3 meters,
Maximum allowable working pressure 6 Bar
Motor: 50Hz 2900RPM 400V±10%
2.2-3.8KW Insulation class F Protection class IP54
The structure conforms to IEC34
Material: Housing, bracket, impeller and screen cover are cast iron 200
ISO185 shaft and screen are nickel chrome
Alloy steel 1.4305 EN 10088 (AISI303)
Mechanical seal is stone ground ceramic
Casting Iron Pool Pump advantage:
1) High performance, fast startup and low noise
2) Stable operation and longer life. This product combines strong performance and durability. The optimized design has the advantages of low noise, small vibration, easy installation and durability.
3) Highly prevent water leakage. Stable sealing state during long-term operation, easy maintenance and safe use
4) Automatic off-pump, sturdy one-piece structure, durable, greatly reducing cleaning work
As a professional swimming pool pump manufacturer , fenlin provides customized pool pump, with strict quality control for the products, Fenlin has a large factory in China, providing you with a wide range of choices, we guarantee to give you first-class product quality and service. Casting iron pool pump can be supplied in bulk, shipped directly from the factory, only the factory price
