100W 12V 24V PCB DUAL Switching Power Supply
Description:
KPDH100-1224 model can fulfill the requirements of general medical or industrial applications.
Features:
1,100W dual output Switching power supply 12V 24V with small size and high power;
2, 100W dual PCB power supply with AC input voltage;
3, 100W SMPS with Short circuit, overload, overvoltage protection.
|
Parameter
|
|
Item No
|
KPDH100-1224
|
|
|
CH1
|
CH2
|
|
Output
|
Output Voltage
|
+12V
|
+24V
|
|
Rated Current
|
4A
|
2.5A
|
|
Current Range
|
0.1-5A
|
0.1-4A
|
|
Rated power
|
108W
|
|
Ripple
|
100mVp-p
|
150mVp-p
|
|
Adjustable output range
|
±10%
|
------
|
|
Output Accuracy
|
±2%
|
±5%
|
|
Line Regulation
|
±1%
|
±1%
|
|
Load Regulation
|
±1%
|
±4%
|
|
Set up,Rise,Keep up time
|
500ms,50ms,20ms
|
|
Input
|
Input Voltage range
|
88~264V AC
|
|
Input current
|
1A/230V AC
|
|
Input frequency
|
47~63Hz
|
|
Efficiency
|
>87% @ 220V AC
|
|
Inrush current
|
COLD START 40A/230V
|
|
Leakage Current
|
<0.5mA/240VAC
|
|
Protection
|
Over load protection
|
105~150%
|
|
Output over voltage
|
CH1:14~18V
|
|
Other Function
|
|
|
|
Environment
|
Working Temp.,Humidity
|
-20~50℃，10~90% RH，No condensation
|
|
Storage Temp.,Humidity
|
-20~85℃，10~95% RH
|
|
Temp.,Drift
|
±0.03%/℃(0~50℃)
|
|
Vibration
|
10~500Hz, 2G 10min./1cycle, PERIOD FOR 60min. EACH AXES
|
|
Safety&EMC Standards
|
Safety standards
|
MEET TO GB4943,EN60950
|
|
Pressure
|
I/P-O/P,I/P-FG：1.5KV AC 1min.
|
|
Insulation resistance
|
I/P-O/P, I/P-FG,:500VDC / 100M Ohms
|
|
EMC standards
|
MEET EN55022 CLASS A
|
|
Others
|
Demension
|
125*56*45mm
|
|
Weight
|
0.3Kg
|
|
Note
|
1. All parameters 220VAC input, rated load, ambient temperature 25 ℃, measured under conditions of 70% humidity;
2. Accuracy: includes set up tolerance, line regulation, load regulation and so on;
3. Ripple Test: 30cm long strands connect the power supply and the load, the load side and 0.1u and 47u capacitor to 20MHz oscilloscope measured at the load end;
4. Line regulation: at rated load conditions, the input voltage changes from low to high measured;
5. Load regulation: the measured output load from 20% to 100% load change measured, other load is fixed at 60% of the load;
|

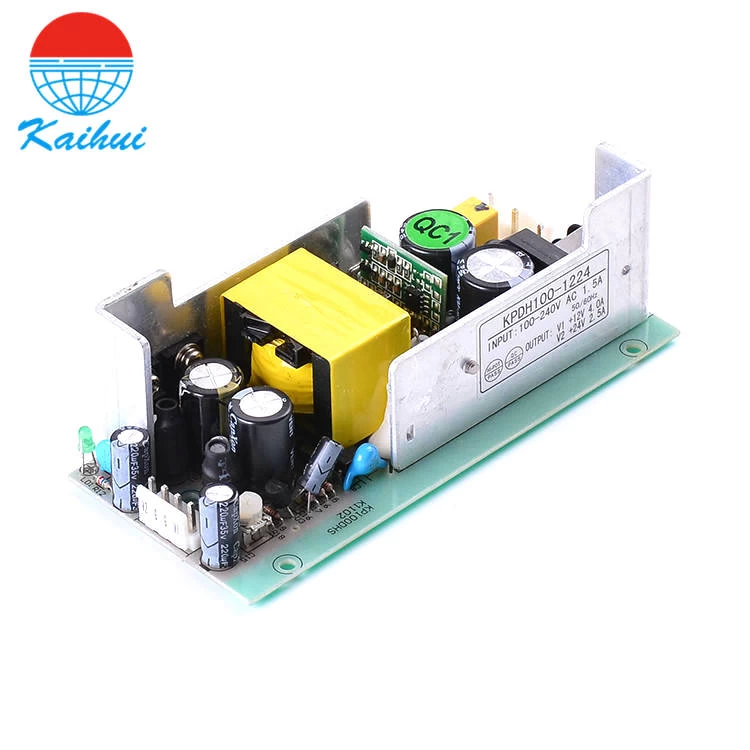

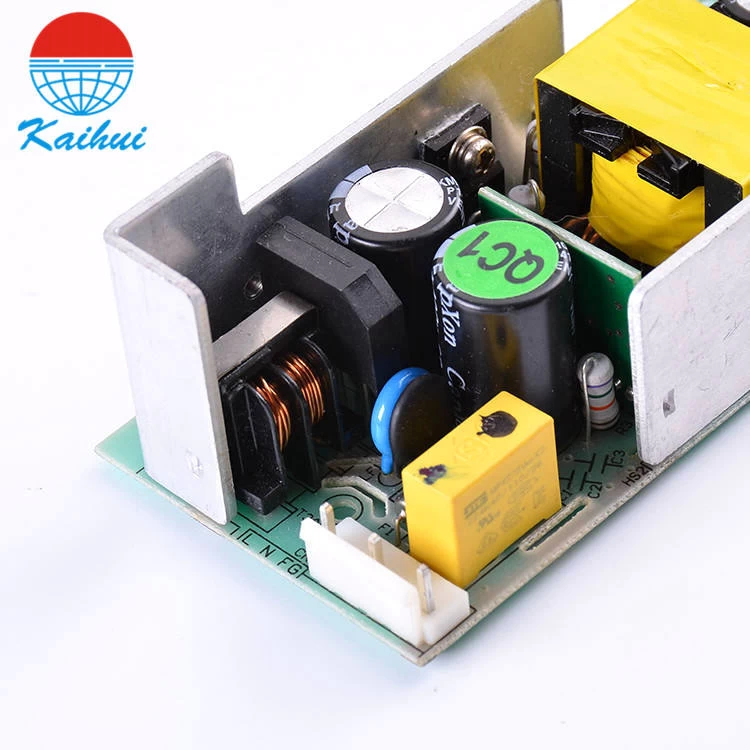

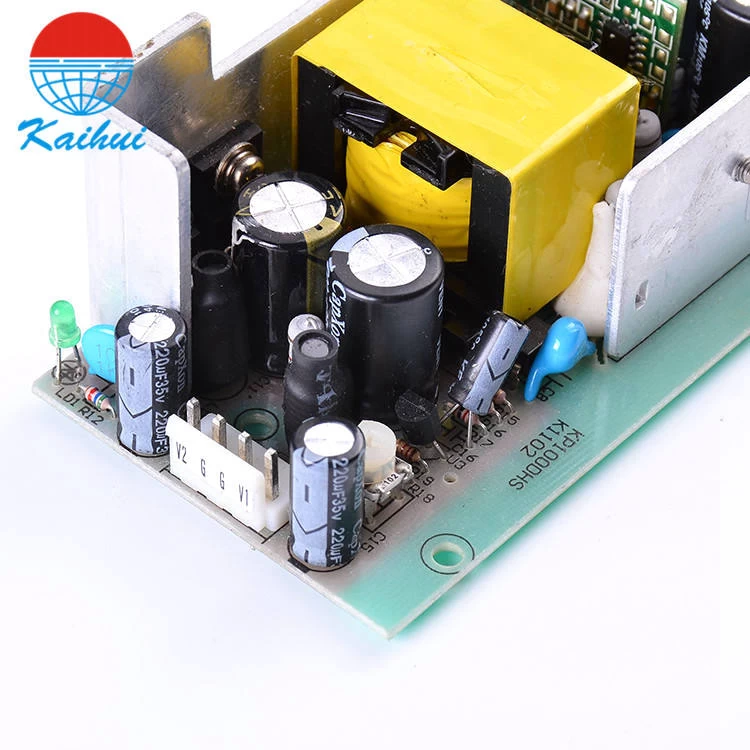

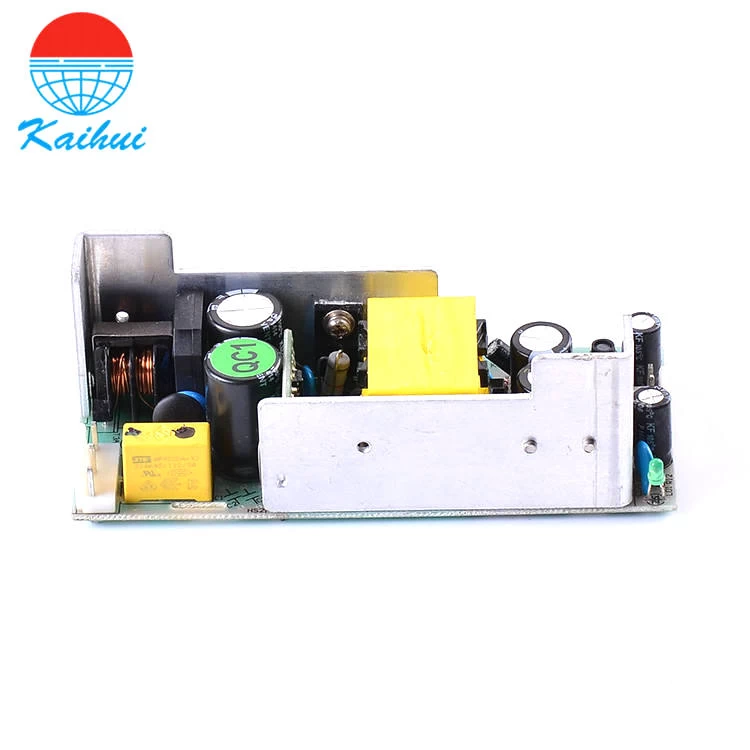

Product picture:
