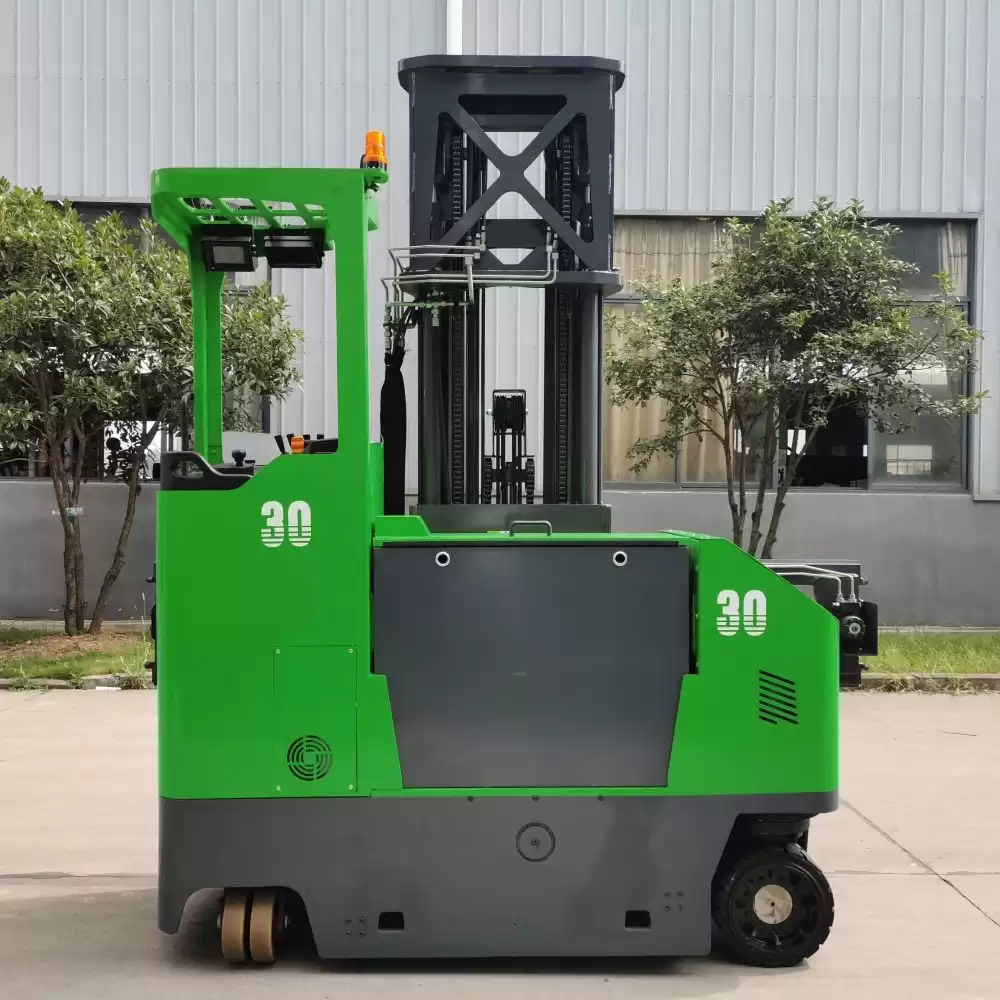

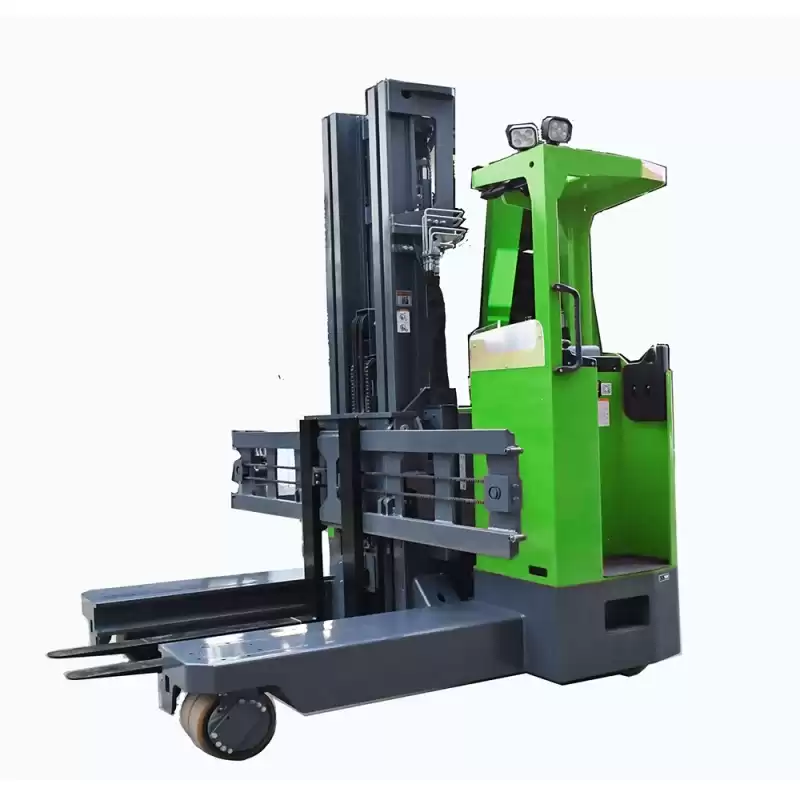

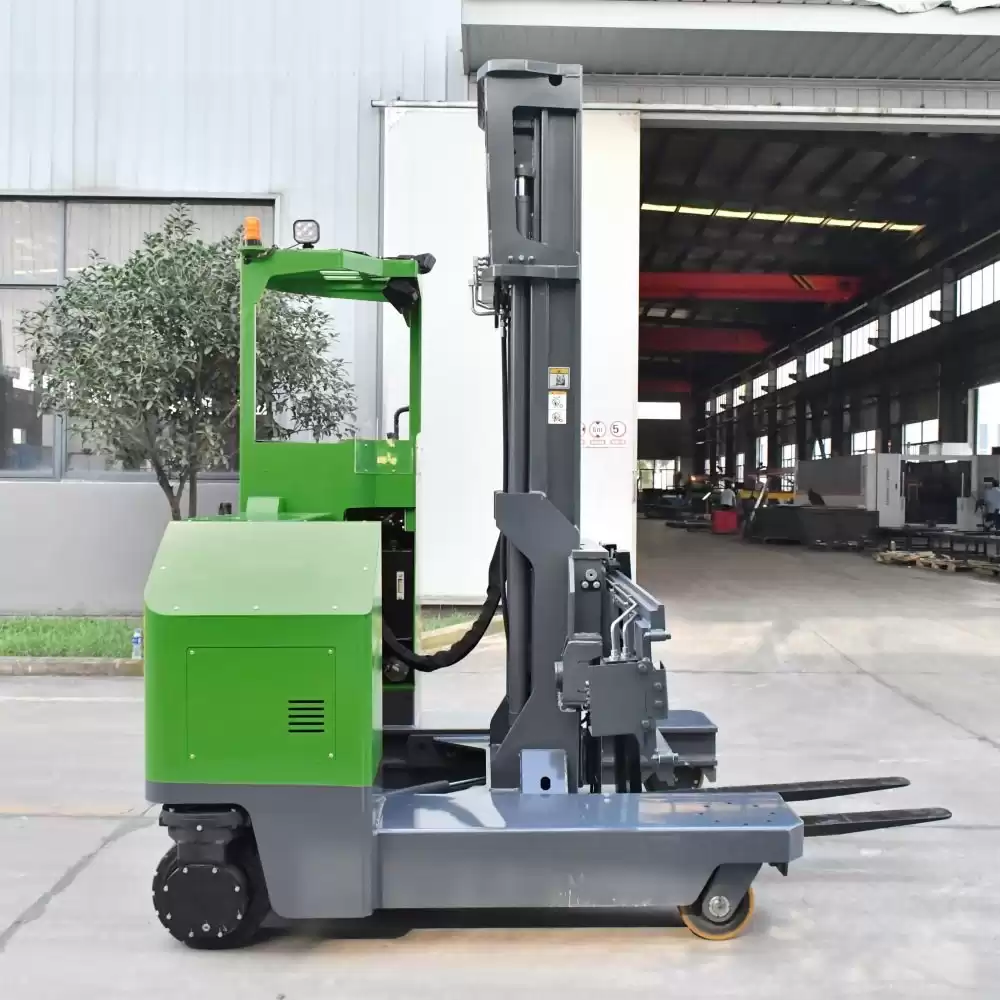

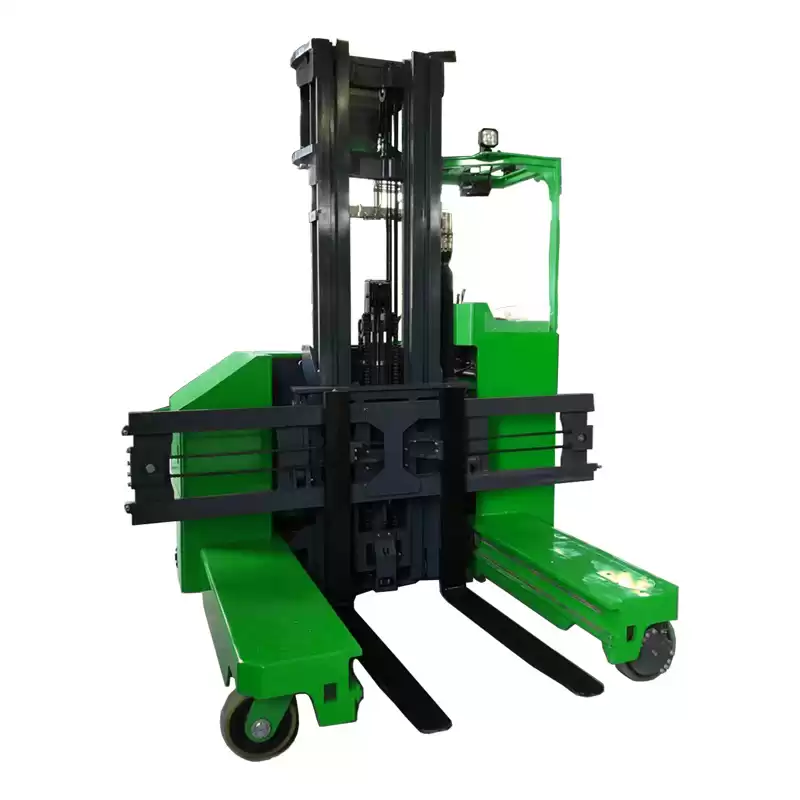

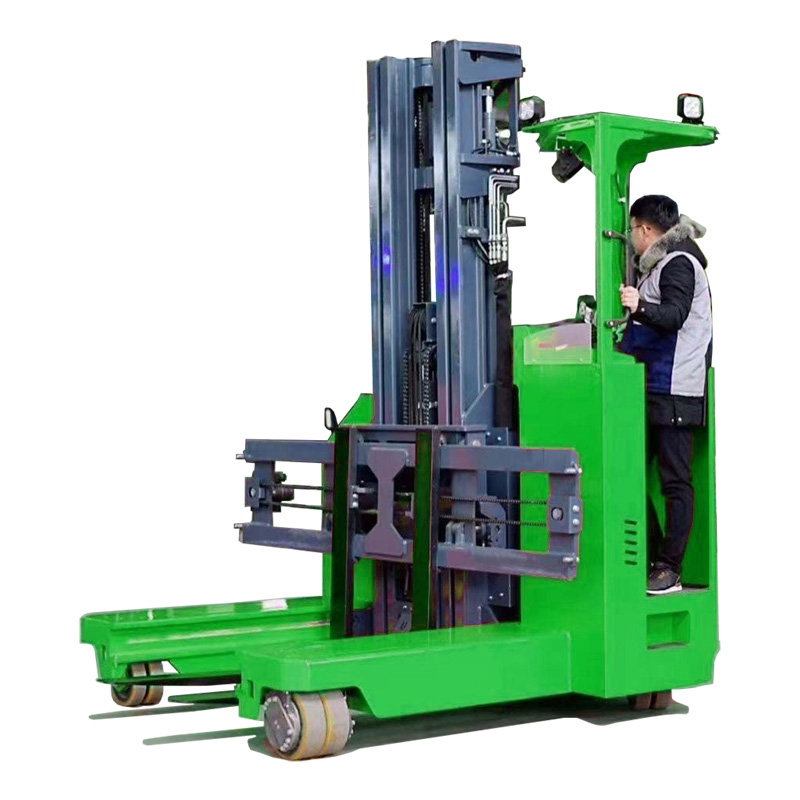

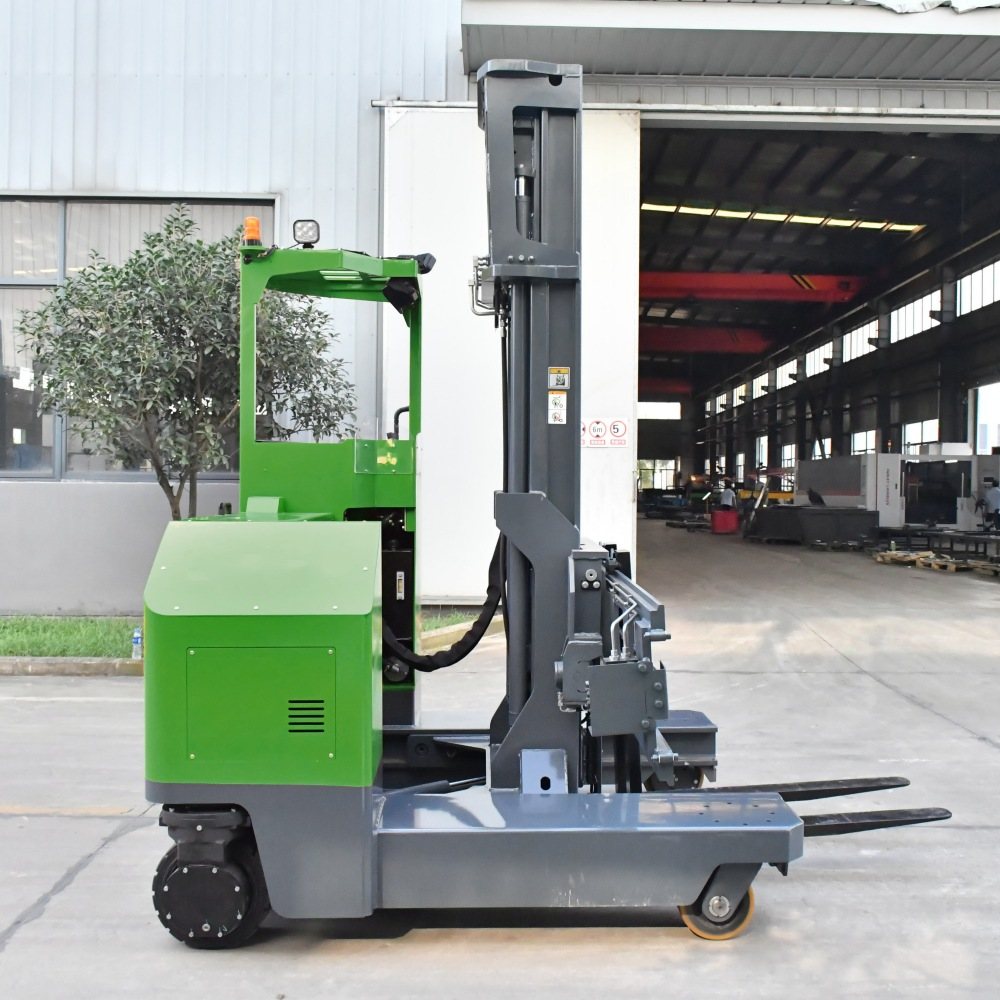

Wide Body Standing Type 4-directional Reach Truck
Wide Body Standing Type 4-directional reach truck mainly used for long material handling in narrow aisle. The main feature is that it can drive in four directions, front, rear, left, and right, and the requirements for aisle and turning radius are small. The rated load is 2.5-3.0 tons, and the lifting height is 3.0-8.0 meters,it can handle materials up to 12 meters long. It is mainly used in long material industries such as steel, profile, plate and wood.
Features:
1. Four-way driving, suitable for very narrow passages and long material handling;
2. Full AC system, electric steering, long service life and low energy consumption;
3. Imported controller, high control precision, convenient electronic control setting, high performance and low failure;
4. High-strength PU and Rubber tires, stable driving and reliable braking;
5. HD drive wheel display;
6. Large capacity battery.
7. Lithium battery is optional.
Specification:
| |
| |
Manufacturer |
|
NEOlift |
|
| Model |
|
NRQW30 |
| Power type |
|
Battery |
| Operation type |
|
Stand on operation |
| Rated capacity |
kg |
3000 |
| Load center |
mm |
600 |
| Service weight(incl. battery) |
kg |
5950 |
| Lift height |
mm |
8000 |
| Overall length |
mm |
2200 |
| Overall width |
mm |
2225/2860 |
| Fork size |
l/e/s(mm) |
1200/125/45 |
| Driving motor (S2-60min) |
kw |
5.5AC |
| Lifting motor (S3-15%) |
kw |
12.8AC |
| Battery voltage/capacity |
V/Ah |
48/500 |
| |
Application:
1.Food
2.Medical
3.Electronics
4.Hardware
5.Chemical
6.Logistics
Certificate:
Why choose NEOlift?
1.NEOlift has 20+ years experience in the field of electric material handling equipment! We can provide our customers with full range warehouse equipment based on various requirement.
2.The product range is comprehensive, the quality is safe and reliable.We have strict quality management system. We can provide customers with non-standard customized solutions according to their needs.
3.Professional and strong technical research and development team and timely and effective after-sales service.Shanghai Zon-Cho Huge Science And Technology Co., Ltd. has more than 60 professional technical R&D personnel, and each model has a professional R&D personnel responsible for it. Among them, more than 30% of the R&D personnel have a master's degree, 5 have a doctorate degree, and more than 60% of the R&D personnel have been engaged in the industry for more than 5 years.
