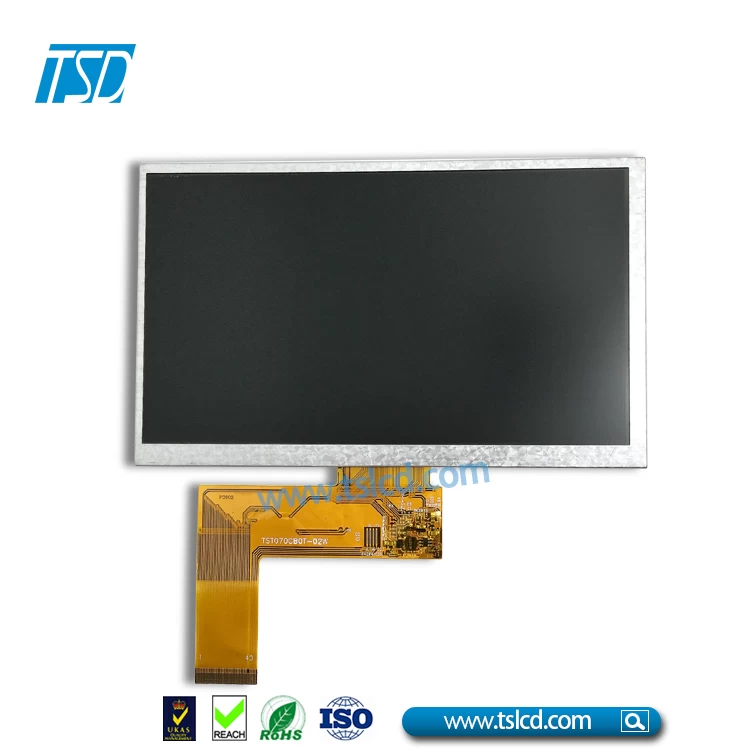

Wide operating temperature 800x480 resolution 7 inch tft lcd module for navigation
|
Specification
|
|
Part No.
|
TST070TN94-K01
|
|
Outline Dimension(mm)
|
164.9x100.0x6.7
|
|
Display Area(mm)
|
154.08x85.92
|
|
Resolution(dots)
|
WVGA, 800*RGB*480
|
|
Operating temperature(°C)
|
-30-80
|
|
Storage temperature(°C)
|
-30-85
|
|
Number of Pixel(pixels)
|
800RGB(H)xRGBx480(V)
|
|
Touch panel
|
94% transmittance
|
|
Dot Pitch
|
0.0642(W)x0.1790(H)
|
|
Pixel arrangement
|
RGB Vertical stripe
|
|
Luminance
|
350 cd/m2
|
|
Surface treatment
|
Antiglare
|
|
View direction
|
12H
|
|
Weight(g)
|
TBD
|
|
Power Consumption(w)
|
Panel
|
0.226(Typ.)
|
|
B/L system
|
1.674(Typ.)
|
|
Interface
|
TTL
|
|
Module lifetime(Hours)
|
50,000-100,000
|
