Product Name

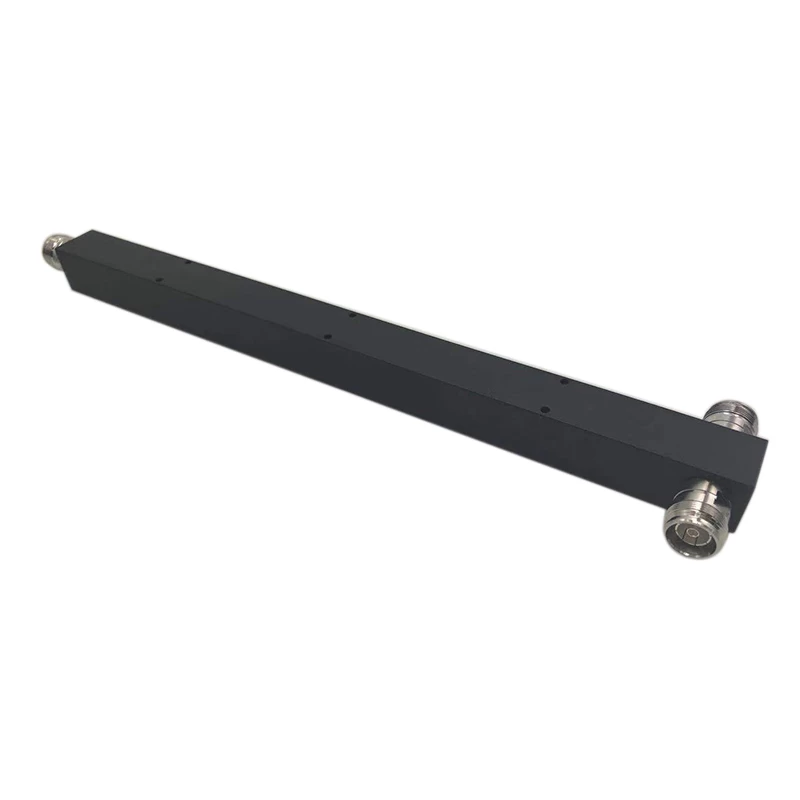

380-2700MHz 4310-F Type 2Way/3Way/4Way Cavity Power Splitter/Divider/Combiner
N Type and 7/16 Type are also available,Black or grey color
Product Features
◆ Low VSWR
◆ Low Insertion Loss
◆ Indoor Application
◆PIM-160dBc@2*43dBm
◆Widely used for In-building Solutions and Outdoor application.

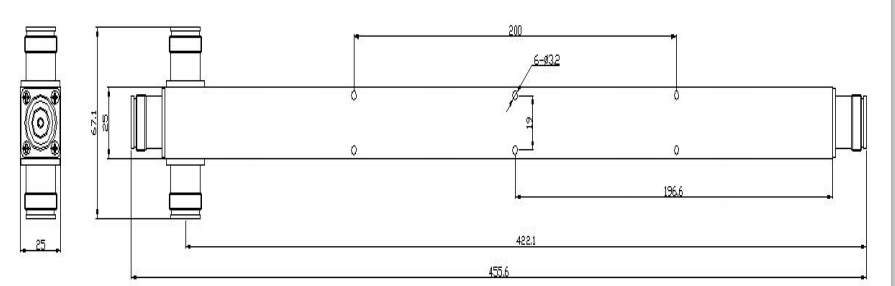

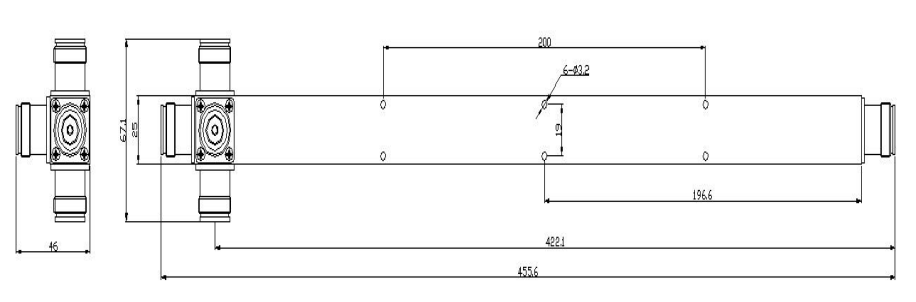

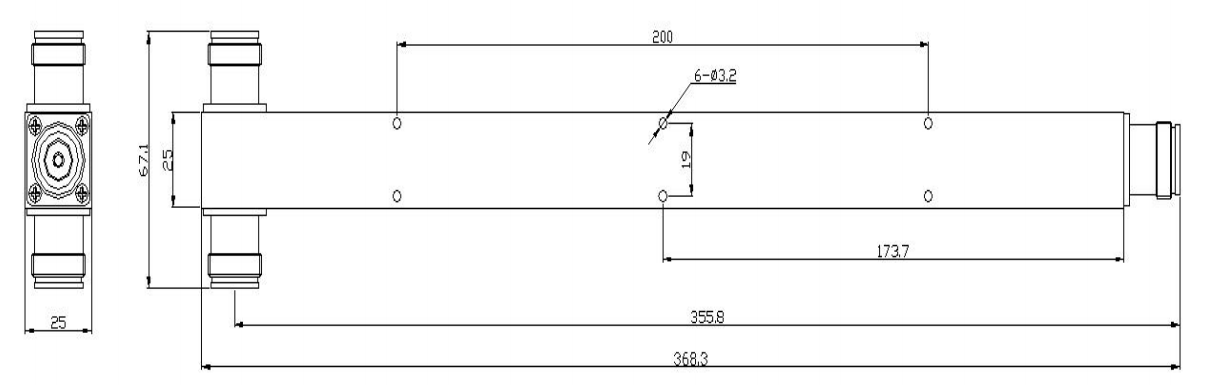

Technical &Mechanical Specifications
|
Model No.
|
MPS-327-02-4F-160
|
MPS-327-03-4F-160
|
MPS-327-04-4F-160
|
|
Freq(MHz)
|
380-2700MHz
|
|
Input
|
2-way
|
3-way
|
4-way
|
|
Split Loss(dB)
|
3.0
|
4.8
|
6.0
|
|
IL(dB)
|
≤0.4
|
≤0.6
|
≤0.6
|
|
VSWR
|
≤1.30
|
|
PIM(dBc)
|
≤-160dBc@2*43dBm
|
|
Power(W)
|
300 (average)
|
|
Impedance
|
50 ohm
|
|
Connector
|
4310-female
|
|
Color
|
Black
|
|
Temp(deg)
|
-30~+65
|
|
Application
|
Indoor or Outdoor IP65
|
|
Weight(kg)
|
0.68
|
0.73
|
0.78
|
