EC-ACS-FR01 Standalone Wiegand Fingerprint Access Control
Features:

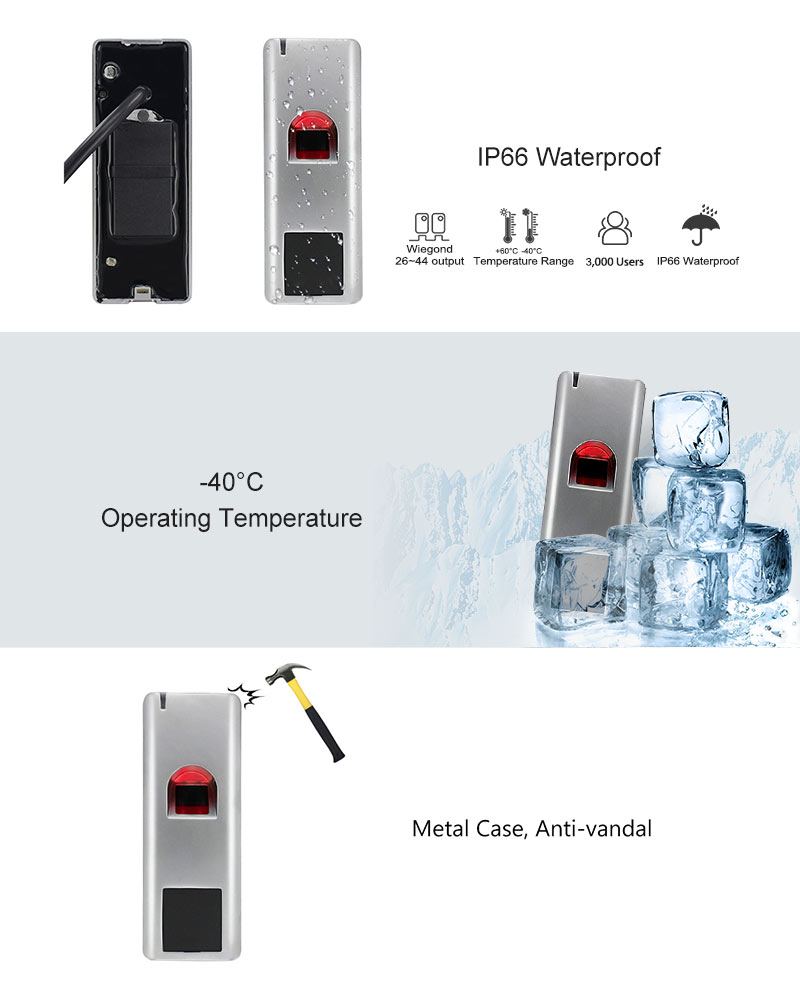

• Metal Design & Anti-Vandal
• Standalone, one relay
• 1,000 fingerprint, 2,000 card users
• Wiegand 26~44 output
• Pulse mode, toggle mode
• Multi fingerprints/cards access
• Interlock, Support Principal User
• Waterproof, up to IP66
Specification:
|
User Capacity
Fingerprint
Card
|
3000
1000
2000
|
|
Operating
Voltage
Idle Current
|
12V DC
<
45mA
|
|
Proximity Card
Reader
Radio
Technology
Read Range
|
EM
125KHz
Proximity Card
2~4 cm
|
|
Fingerprint Reader
Resolution
Identification
time
FAR
FRR
|
Optical
Fingerprint Module
500DPI
<1S
<0.001%
<0.01%
|
|

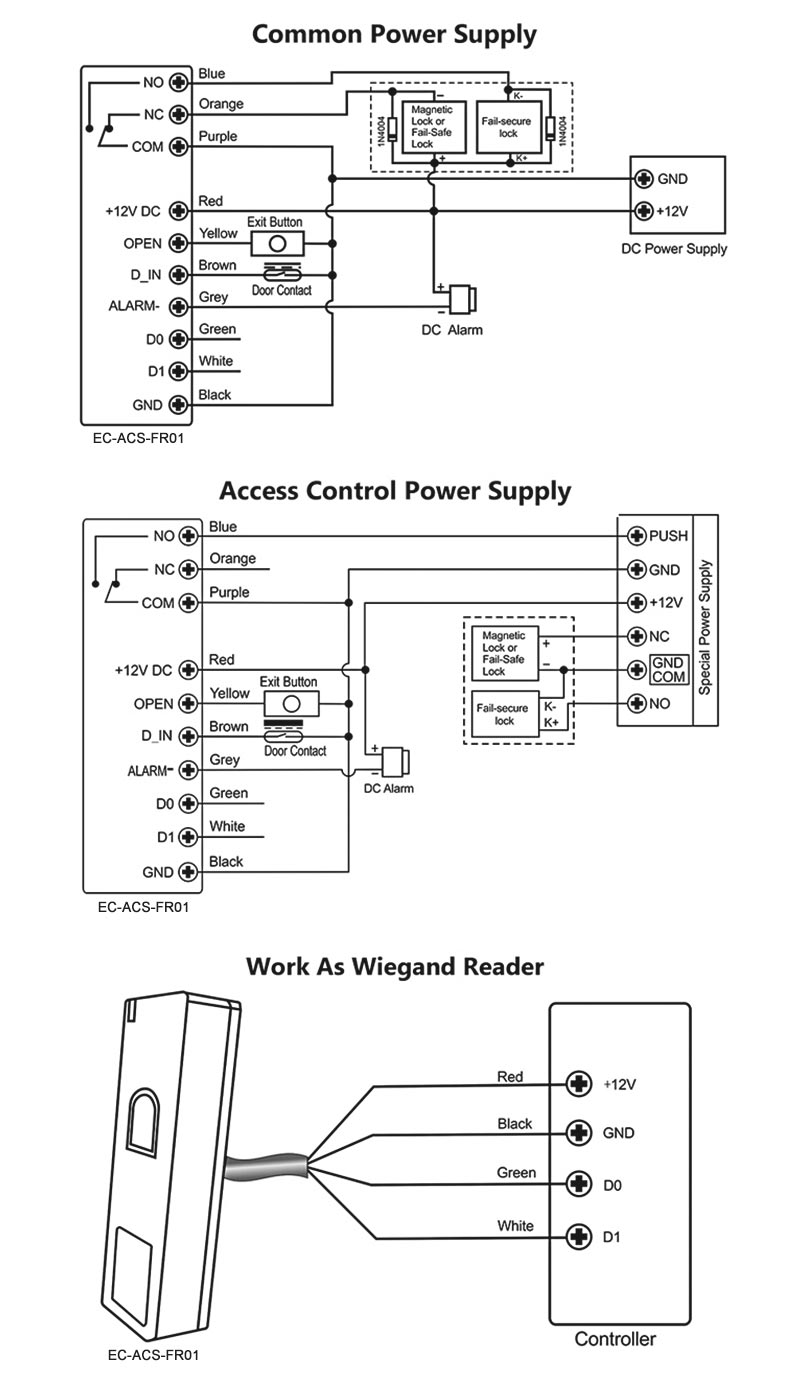

Wiring
Connections
|
Relay output,
exit button, alarm, door contact, Wiegand output
|
|
Relay
Adjustable
Relay Output Time
Lock Output
Load
|
One (NO, NC,
Common)
0~99 Seconds
(5 seconds default)
2 Amp Maximum
|
|
Wiegand
Interface
|
Wiegand
26~44bits output
|
|
Environment
Operating
Temperature
Operating
Humidity
|
Meets IP66
-30°C ~ 60°C
(-22°F ~ 140°F)--Default
-40°C ~ 60°C
(-40°F ~ 140°F)--Optional
10%RH ~ 99%RH
|
|
Physical
Color

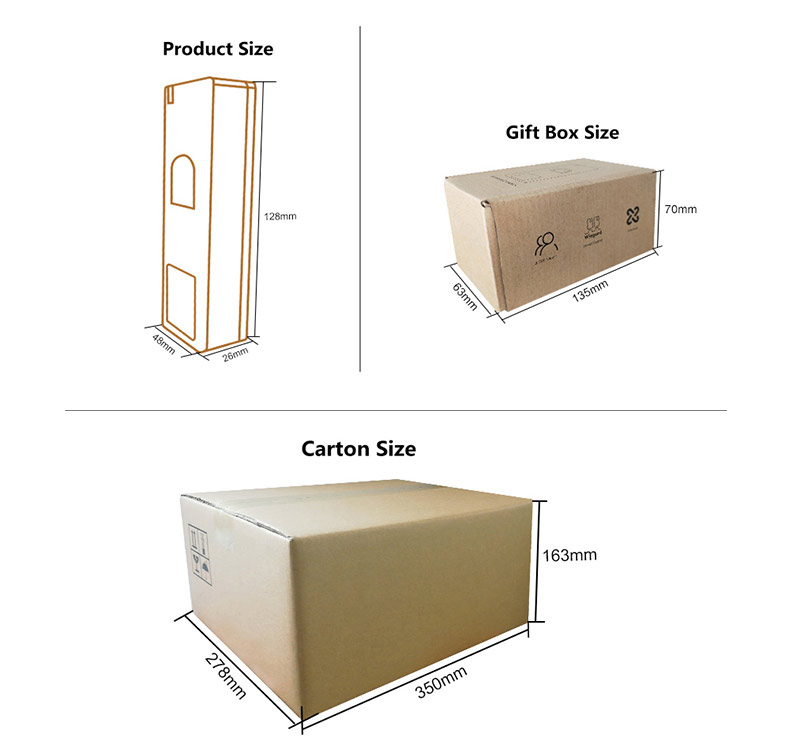

Dimensions
Unit Weight
Shipping
Weight
|
Zinc-Alloy
Silver
L128 x
W48 x H26 (mm)
400g
500g
|
