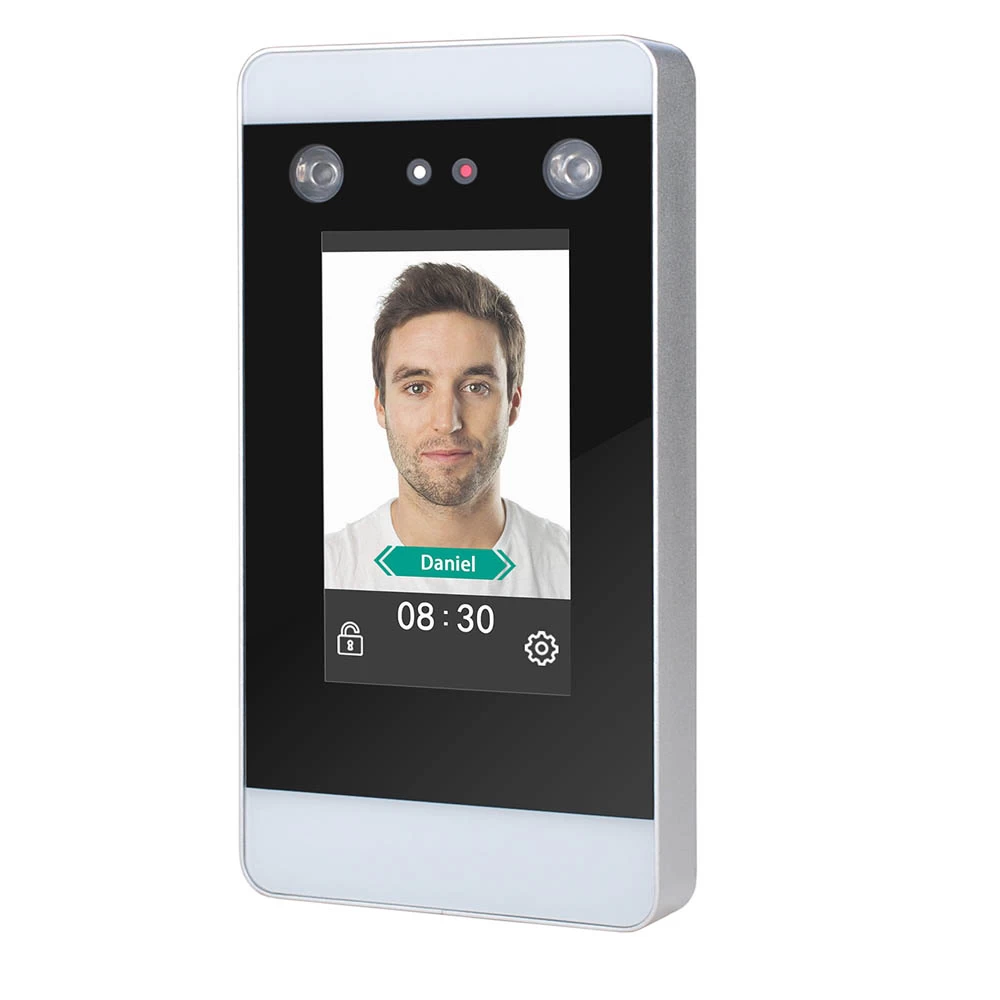

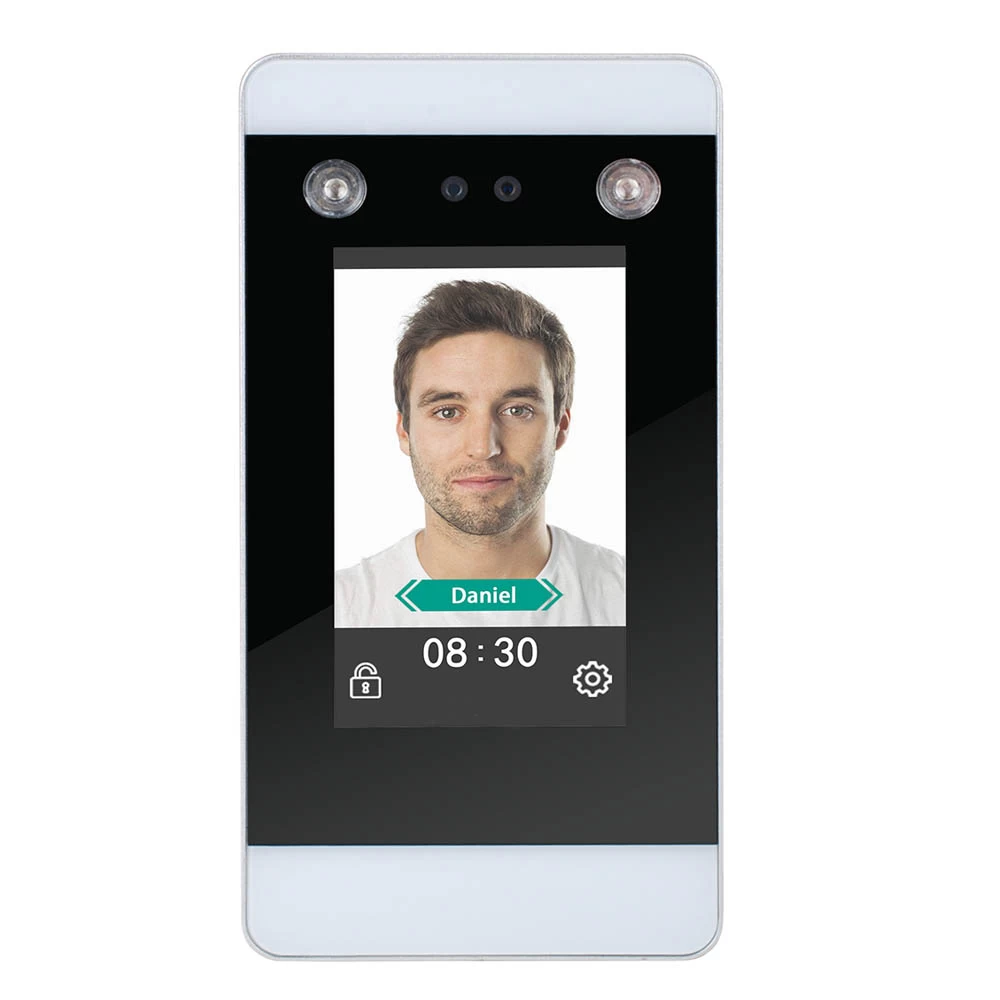

Product Name: WIFI TCP IP Dual Lens Facial Dynamic Recognition Time Attendance And Access Control Model SF-DT43
Main Description:
International leading ultra-high speed facial recognition algorithm

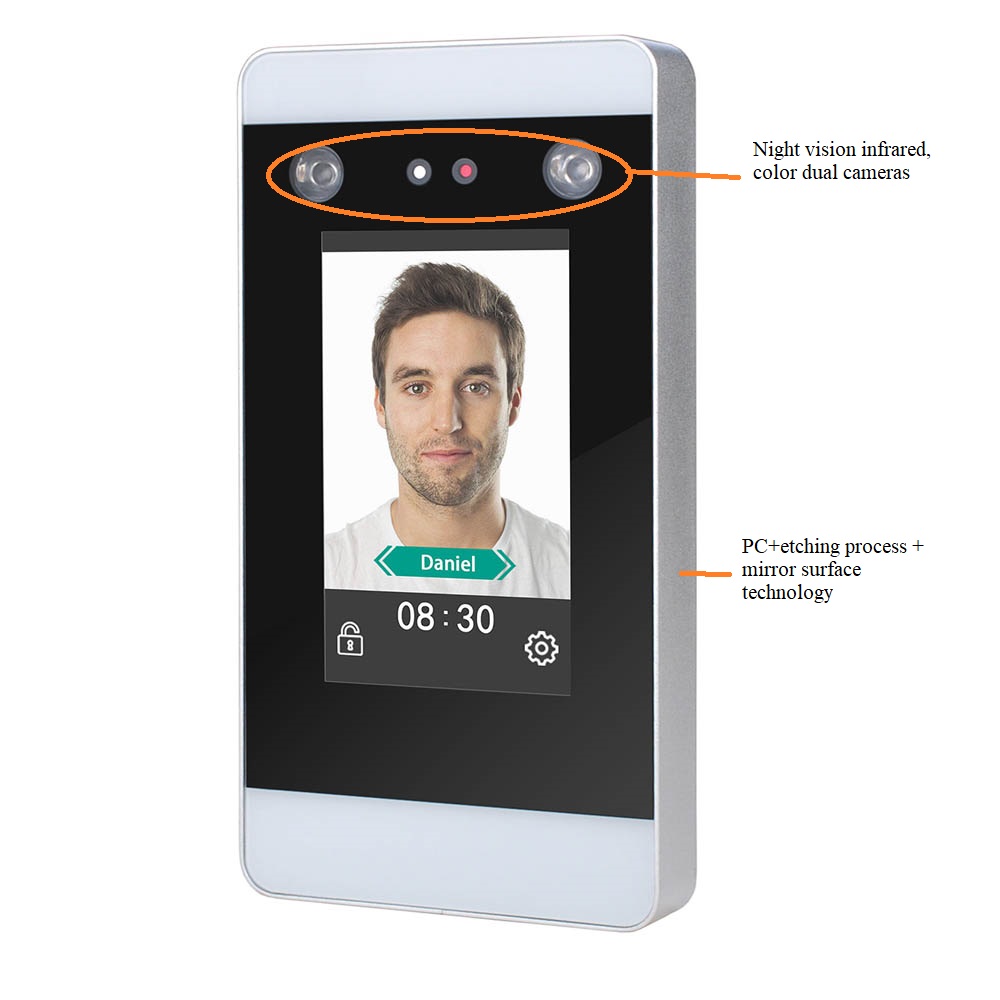

Night vision infrared, color dual cameras
The original cross-matching technology can realize in live detection, eliminate photo and model attacks
Material: PC+etching process + mirror surface technology, ergonomic design
4.3 inch touch screen
Supports cross-network connection across gateways.
Perfect balance of FAR&FRR.
Overview
SF-DT43 has multiple ports supporting cross-network connection across gateways,wiegen for access controls etc
Dynamic Facial and Time attendance Terminal Model SF-DT43 has standing type and is wall-mounted types to meet different project needs
Detailed Descriptions:
Hardware：
CPU：ARM Cortex-A7 Quad-core, 1.2G
Storage：1G DDR3 8G eMMC
OS： LINUX
Camera： Dual camera（High resolution infrared and color dual cameras）
IR LED： Yes
LCD：4.3 inch HD Touch Screen
Infrared approach receiver: Yes
Touch screen: Yes
Communication:TCP/IP，USB，U-disk, WIFI
FRR: <= 1%
FAR: <= 0.0001%
USB port: Yes
Working voltage: DC12V - 24V Wide voltage design
Ambient light: 0-50000Lux
Working temperature: 0℃－40℃
Working humidity(RH): 20% ~ 80%
Software
Face capacity: 2000, optional 5000
Storage capacity: 200000
Recognition way face、card、password
Language Chinese/English(Korean/Japanese etc.)
Self-checking function Yes
Face FAR/ FRR 0.001/0.1(%)
Recognition Speed 0.3s
Face intelligent update function Yes
Recognition ways 1:1, 1:N

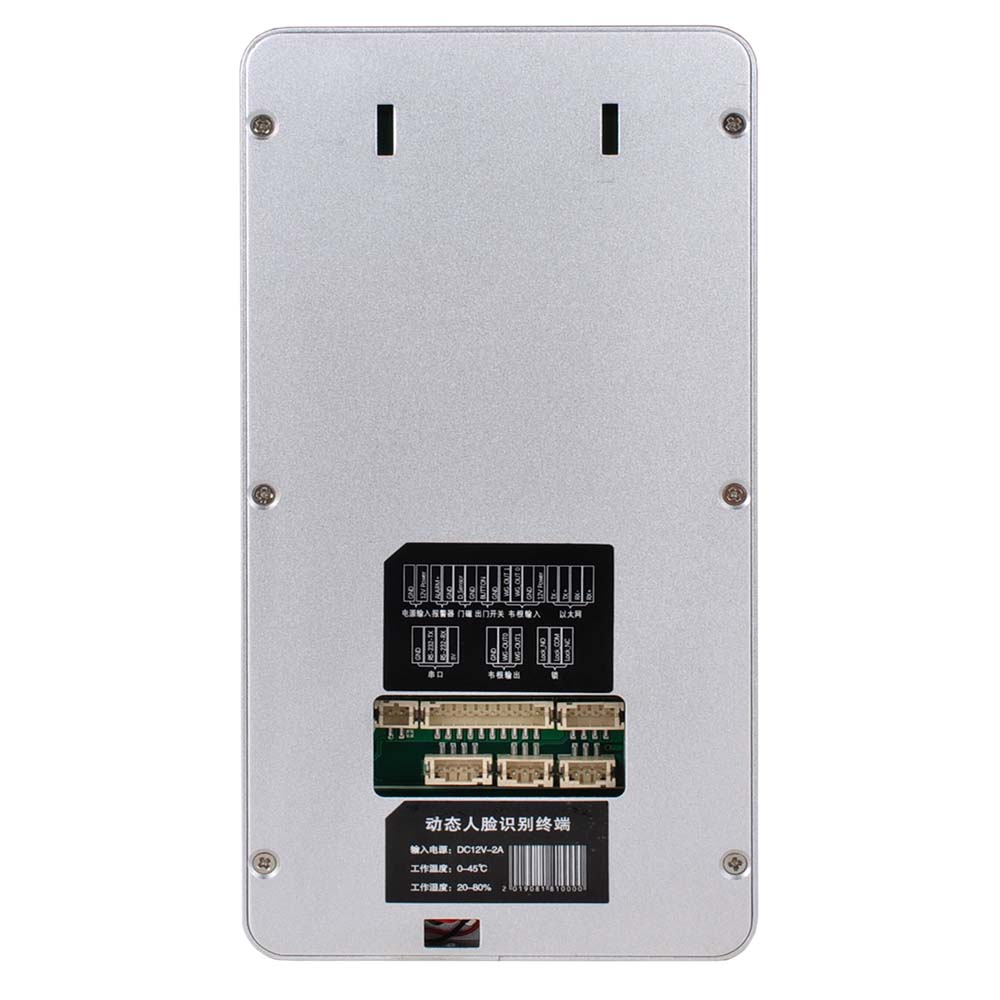

Wiegand input&output:
Door sensor(EN-MG)
Gate magnetic signal input
Alarm output
Doorbell output
Door switch signal input
Wiegand 1 group of WG26/34 input（External reader available）
1 group of WG26/34 output
Tamper alarm: Yes
Relay: Japan Fujitsu relay
Circuit : Main board overpressure protection, anti - reverse protection, anti - lightning, anti - surge, etc
