Product Name: Wifi Web Based Fingerprint Attendance Management System
Description:
MYA802 is the Cloud Based Fingerprint Time Clock designed for medium to large size businesses. It integrates color LCD, keypad, Optical Fingerprint Sensor, card reader and Wifi communication. Graphic user interface allows MYA8 to display Multi- languages for different client all over the world. Meanwhile, the stability and speed can be ensured. It can support Both C/S firmware and B/S firmware,which can satisfy different clients’ requirements better.
MYA802 is a perfect combination of appearance outside and performance inside.
Features:
．Built-in Ethernet ports, Optional Wifi Communication
．Web Based firmware customization
．SDK available for OEM customers and software developers
．Stores 3,000 templates and 60,000 transactions
．Reads Fingerprint and/or Password
．Optional integrated proximity or smart card reader
．Intuitive and stunning UI designed with the most popular and internationalized element
．Built-in USB port allows for manual data transfer when network
isn't available
．Color Display Multi Language Support
．Audio-Visual indications for acceptance and rejection of valid/invalid fingers
Specifications:
Fingerprint Capacity
|
3000 (optional 10000,30000)
|
Transaction Capacity
|
60,000
|
Hardware Platform
|
AM11
|
Fingerprint Sensor
|
Scratch-proof Optical Sensor
|
Communication port
|
TCP/IP,USB-client,USB host,wifi(optional)
|
Standard Functions
|
Fingerprint, password verification, Scheduled-bell,8 digit user ID,U disk,
Self-Service Record
|
Optional Functions
|
ID card/ MF card,simple access control,wiegand output
|
FAR
|
0.0001%
|
FRR
|
0.01%
|
Speed
|
<0.8s
|
Acceptable angle
|
360°
|
Verification mode
|
1:1,1:N
|
Display
|
2.8 inches TFT Screen
|
Power Supply
|
9V DC
|
Operating Temperature
|
0 ℃- 45 ℃
|
Operating Humidity
|
20%-80%
|
Dimension
|
L191*W139*H39(mm)
|
Net Weight
|
1.30 kg
|
Introduction:
Configuration:

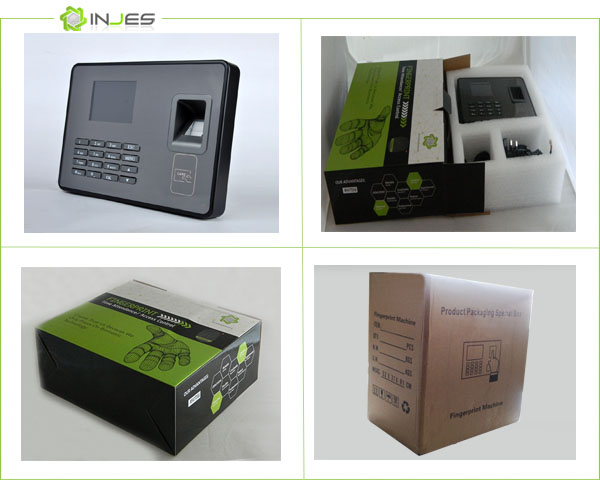

Package:
