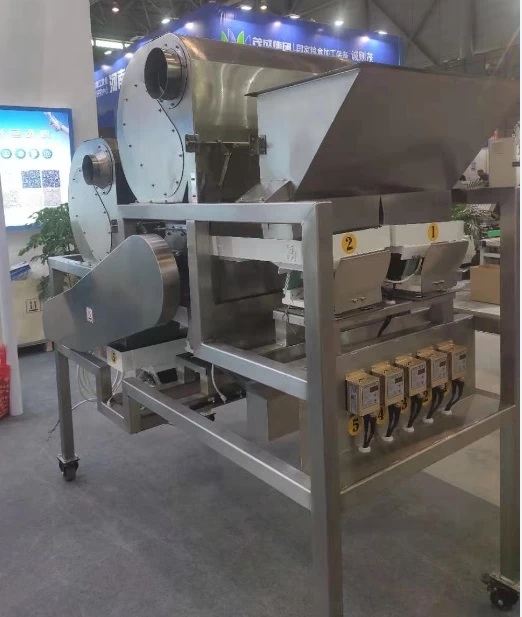

Wind sorting machine (vacuum negative
pressure gravitation separation equipment) FX series vacuum negative pressure wind
sorting machine is one of the important products of our company. This machine
can select a variety of grains (such as: seaweed products, herbal medicines,
melon seeds, peanuts, etc.) ,seeds products, and has the characteristics that
are not available in general wind screen cleaning machines.
FX series Machine is designed for the separation, cleaning and selection of the dry granular products, it is widely used in the agriculture industry, mining industry and other industrial field.
As for agriculture processing, Wind sorter is used for fine separation of heavy beans from light beans. The coffee beans and other products are fed into the air current where separation is carried out by density differences and light matter is carried up and exit via the lights outlet.
This separates dust, shells, immature beans, stones and extraneous matter from dry coffee through suitable adjustments in operating speeds and air quantities.
Application
Agro: soybean, adzuki bean, fava bean, pea, corn, grain, peanut, kernel, wheat, sorghum, seeds, etc.
Mining: activated carbon, mica, quicklime, silica, other ores, etc.
Features :
Efficiency vibrator:
Special designed vibrator can transfer materials more efficiently.
High power fan:
Powerful and suction moto fan can suck up heavier materials.
Simple and clear operation panel:
Simple control box surface with the fewer switches and buttons, you can learn how to control it in ten minutes.
Unique structural design:
Special structural design can effectively guide the air flow, and reduce the dust emission.
Broad applications:
Widely used in food processing industry, salvage of waste material and so on.
Technical data :
|
Model
|
FX2
|
|
Capacity(kg/h)
|
80-150
|
|
Voltage(V)
|
AC380V/50Hz
|
|
Power (KW)
|
≤3.3 kw
|
|
Weight(Kg)
|
500(±5)
|
|
Wind Sorting accuracy
|
80%
|
|
Dimension(L×W×H)(mm)
|
1980*905*1980
|
Applications :
