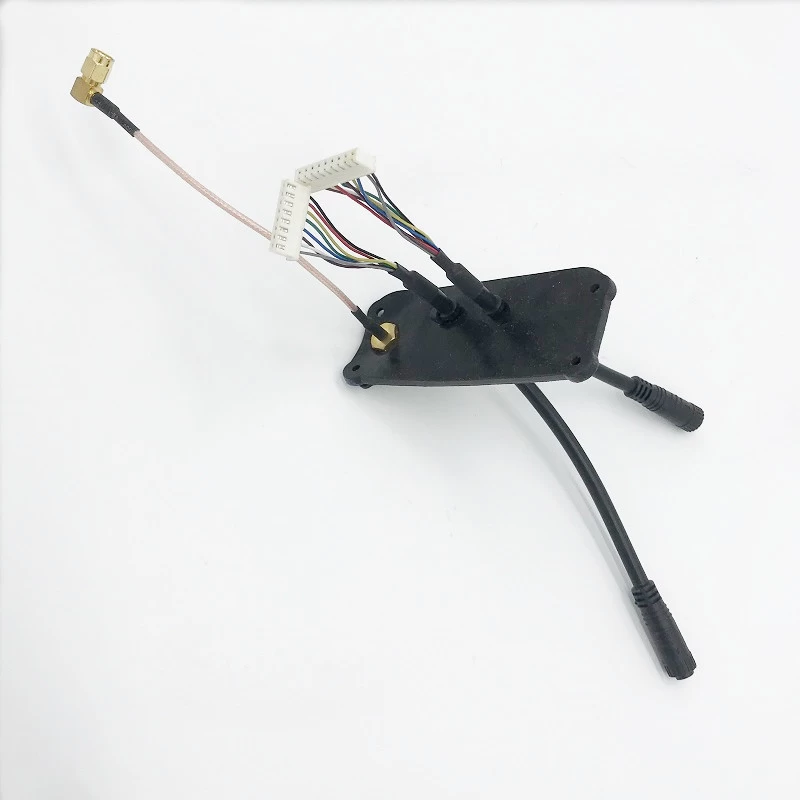

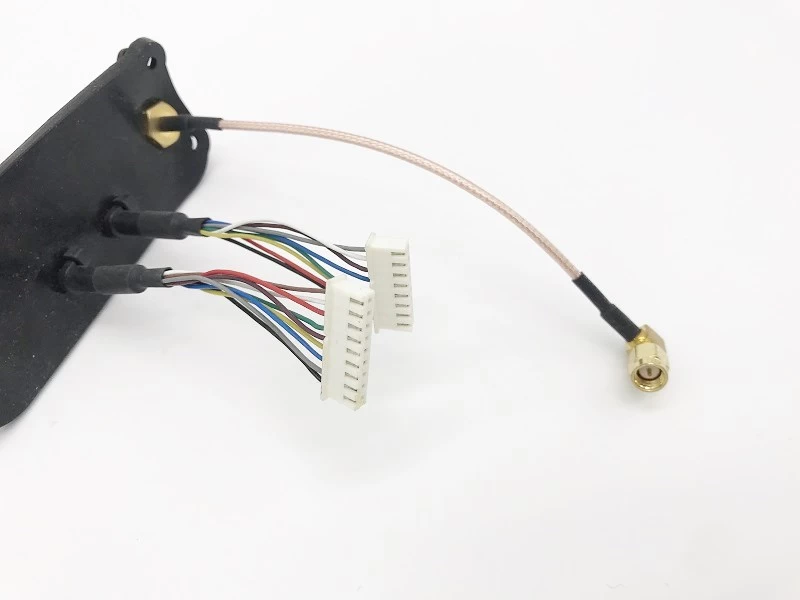

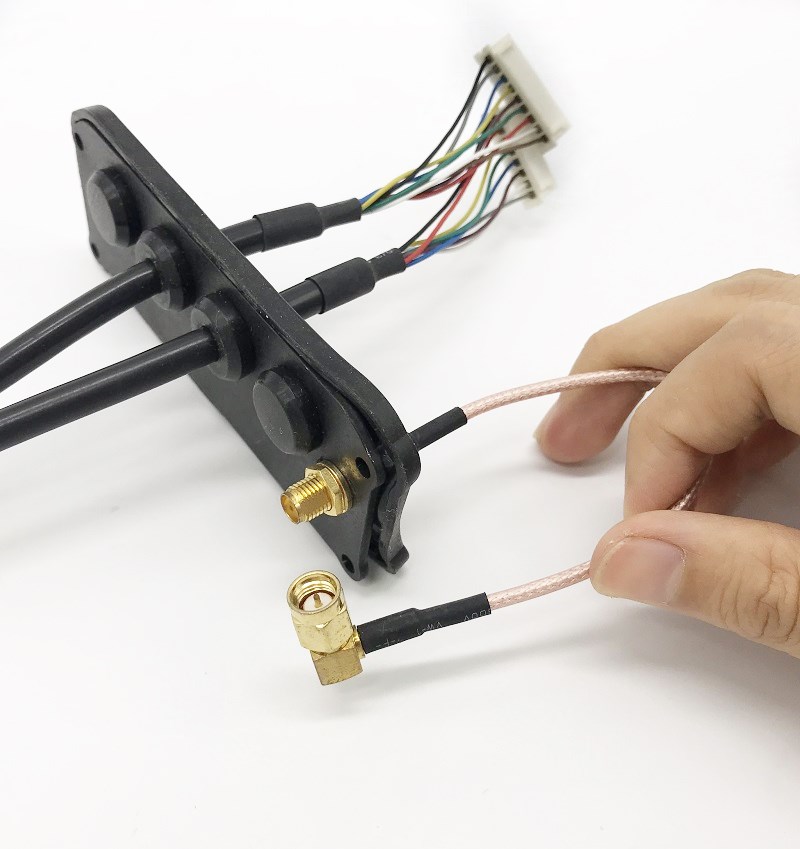

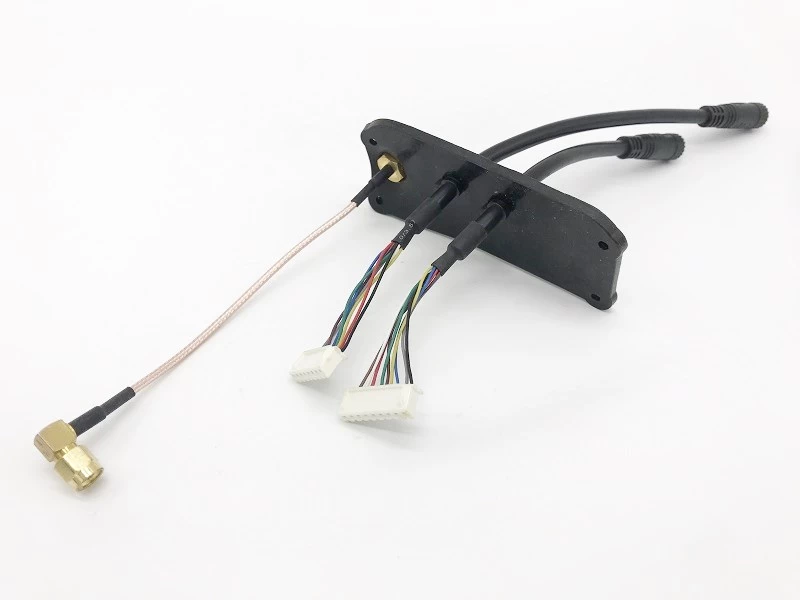

This cable assembly we made for the industrial devices is composed of semi rigid cable and 2.0mm pitch JST connector wire harness with waterproof circular 8 pin connector on the end , as you can see the cables are fixed and passed through the silicone board, which is waterproofed the grade can up to IP65.
KEHAN is open for a wide range OEM wire harness assembly manufacturing, welcome to contact us!
|
Product Name
|
Electric Vehicle Wiring Harness Assembly with RF Cable and Connector
|
|
Cable
|
UL 2725 *8 cores jacket cable
|
|
Length
|
15cm or customized
|
|
Connector 1
|
JST PHR-8
|
|
Connector 2
|

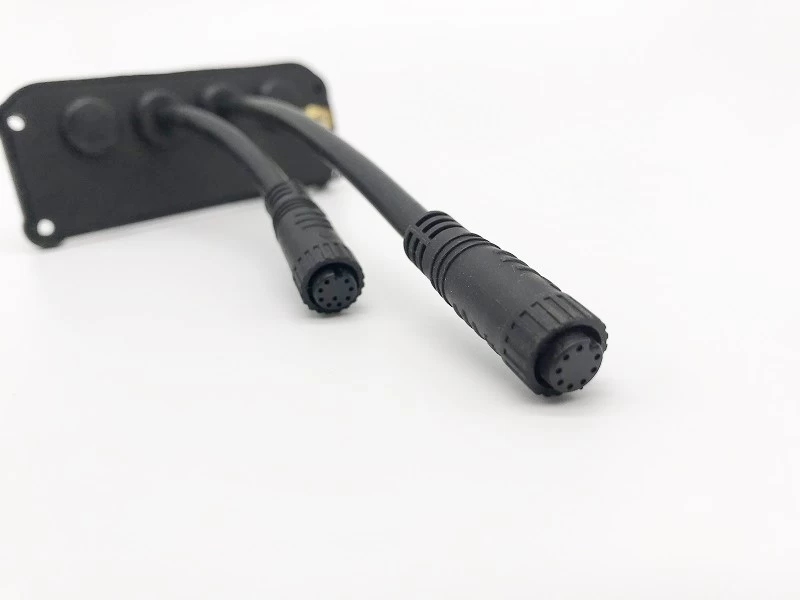

Waterproof connector female 8pin
|
|
Connector 3
|
RF connector
|
|
Other
|
plastic PVC board
|
|
RoHS compliant
|
Yes
|
|
Can do other harnesses customized?
|
Yes
|
|
Application
|
Electrombile, Electric motor car, scooter and other electrical motor vehicle
|
