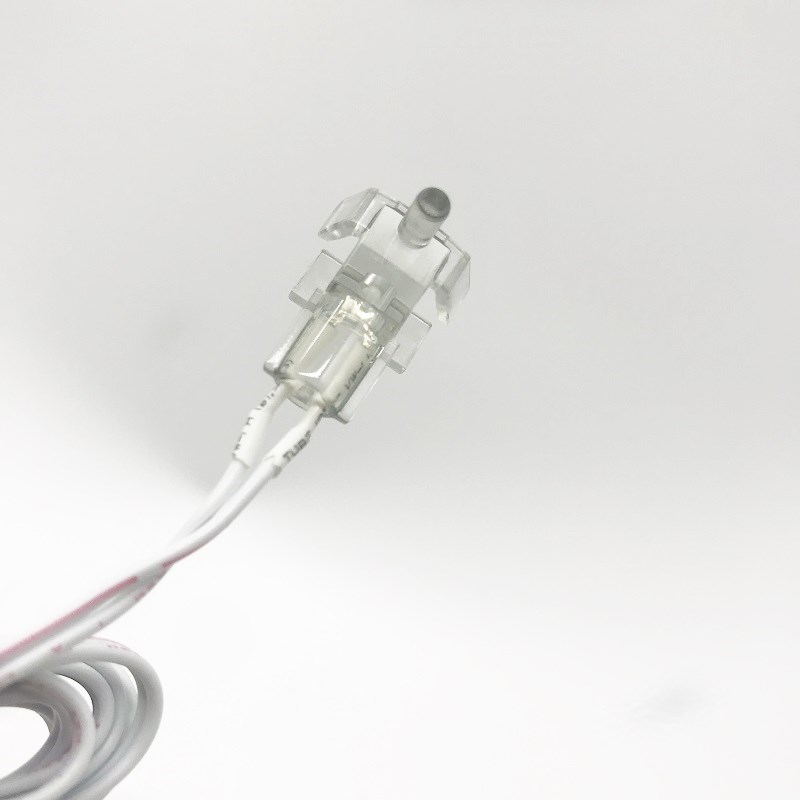

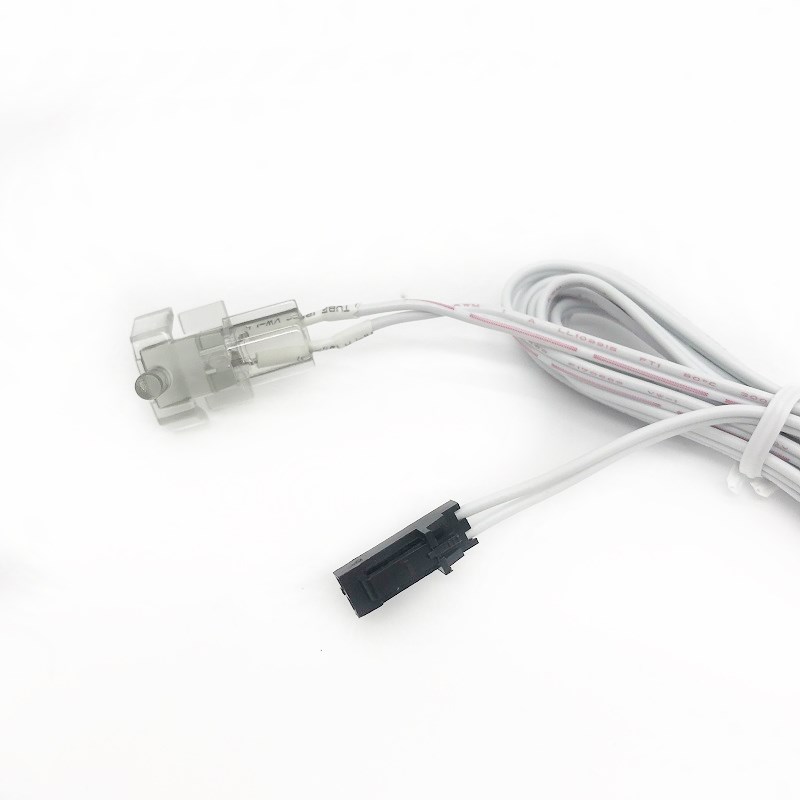

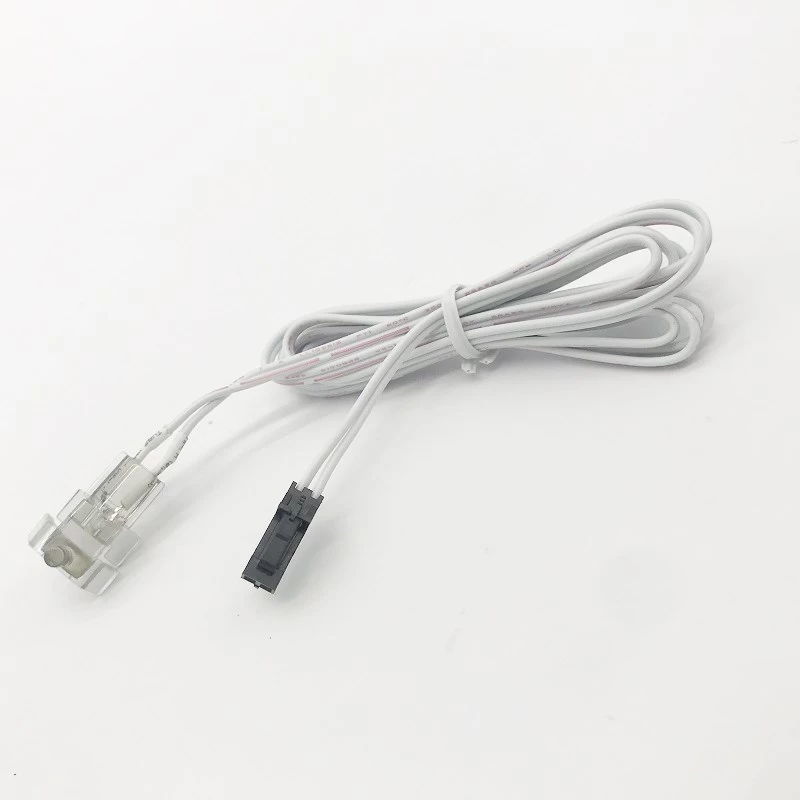

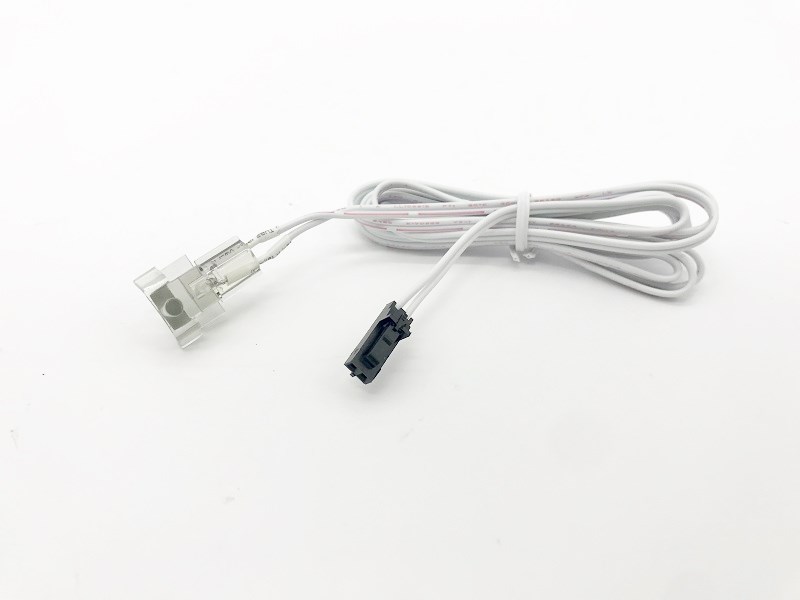

This customized wire harness is built for water heater, with UL2468 2wires paralleled cable welding a LED bulb light and shrouded 2 pin connector on the other end. The bulb is in the transparent housing in which filled with AB glue.
| Product Name | LED Light Wire Harness 2 pin Connector Cable Assembly |
| Cable | UL 2468 #26AWG paralleled cable white with red printed |
| Connector 1 | A2541HF 2P Shrouded Connector |
| Connector 2 | PC transparent Housing |
| LED light |
φ3.0 (red light) |
| Heat Shrink Tube | φ2.0*15mm white |
| Other | AB glue, DP-405(Adhesive) |
| RoHS compliant | Yes |
| Can do other customized harnesses? | Yes |
