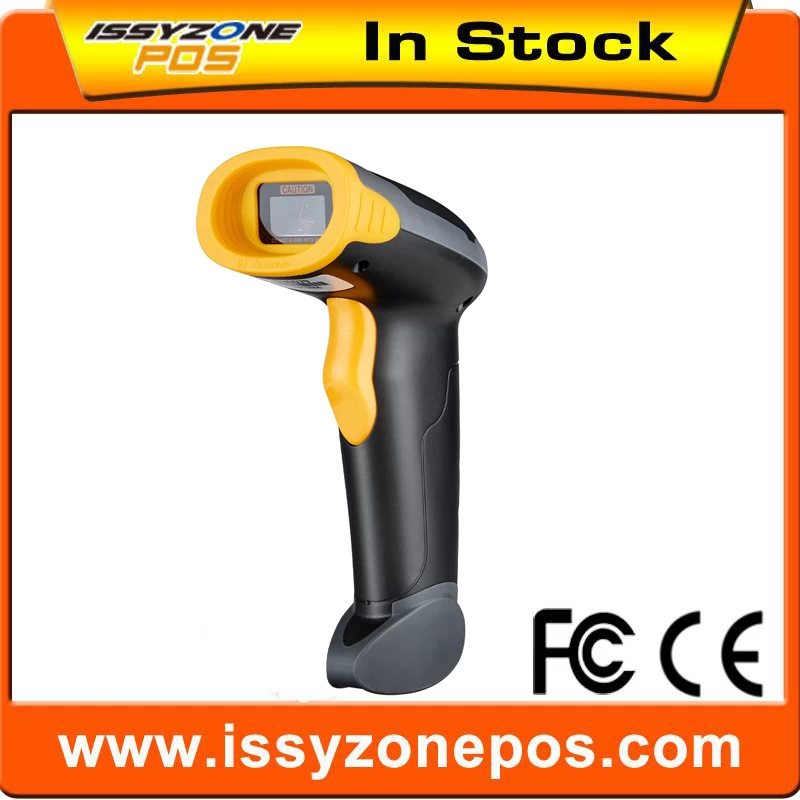

Wired&Wireless 433MHz 1D barcode scanner LED Class II System

qr reader
1.Trial order acceptable
2.High quality, reasonable
3.Reasonable Price

Facebook Twitter Pinterest LinkedIn 分享

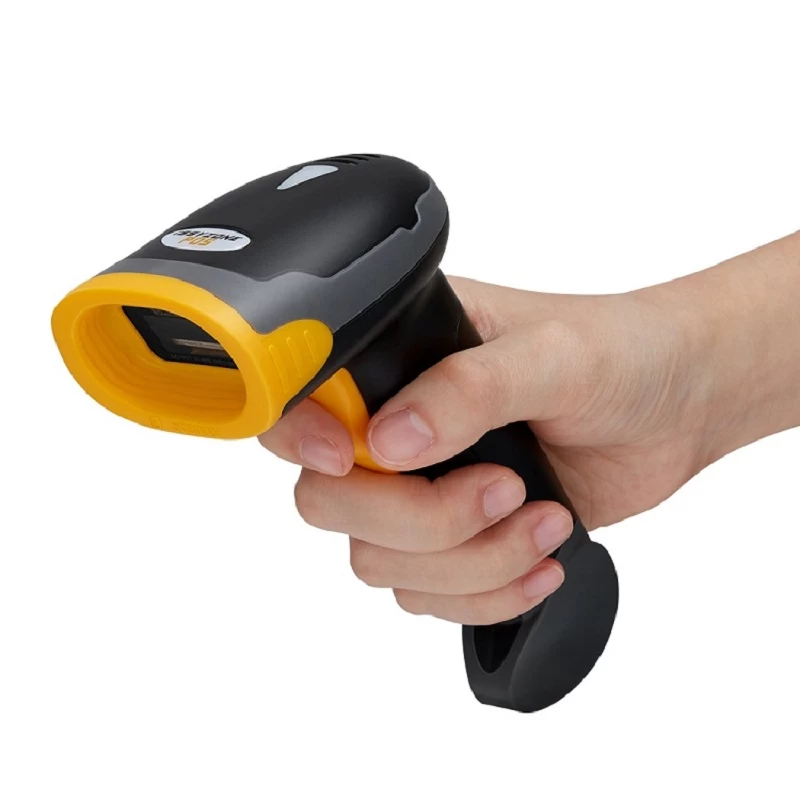

Features ●Ergonomic design brings comfortable user experience.
●Virtually all 1D bar codes can be read.
●The advanced decoder chip enables quick and accurate barcode decode.
●In case of no signal or weak signal, the data will be saved in the scanner and uploaded to the computer when the signal is restored automatically.
●Ultra-low power consumption enables long working hours in one charging period.
●USB cable and 433MHz wireless transmission are supported.
●Remote firmware updating is available to better meet specific application needs of customers.
Performance Parameters
Interface USB, 433MHz
Light Source 650nm
Optical System LED Class II
Ambient Light Immunity 0-10000LUX
Processor ARM32-bit
Decoding Capability 1D UPC-A, UPC-E, EAN-8, EAN-13, ISSN, ISBN, Code 128,  GS1-128, ISBT 128,  Code 39, Code 93,  Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, Standard 2 of 5(IATA), Codabar(NW-7), Plessey, MSI Plessey, RSS, China Post, etc.
Depth of Field EAN-13(13mil) 10~320mm
Code 39(3mil) 60~ 100mm
Code 39(4mil) 50~120mm
Code 39(5mil) 40~130mm
Code 39(20mil) 10~430mm
Code 39(40mil) 110~600mm
Scan Method 52±4 scans/s
Scan Method Manual, Continuous
Scan Mode Buzzer, Indicator light (LED)
Print Contrast ≥30%
Scan Angle Test Conditions: CODE39, 10mil/0.25mm, PCS90%
Skew±50°,  Pitch±65°,  Roll±35°
Field of View 10mm~600mm
Resolution ≥4mil/0.1mm(PCS90%, CODE 39)
Physical Parameters
Material ABS
Color Black
Size L*W*H:179mm*83mm*98mm
Weight 185g(without cable)
Cable Length 1.5m
Working Voltage DC 5V
Current 80mA
Charger Input:  AC240-110V
Output:  5V 1A
Receiver DC 5V, 120mA
Environment Parameters
Operating Temperature 0~50 ºC / 32~122 ºF
Storage Temperature 0~50 ºC / 32~122 ºF
Operating Humidity 5~95% (non-condensing)
