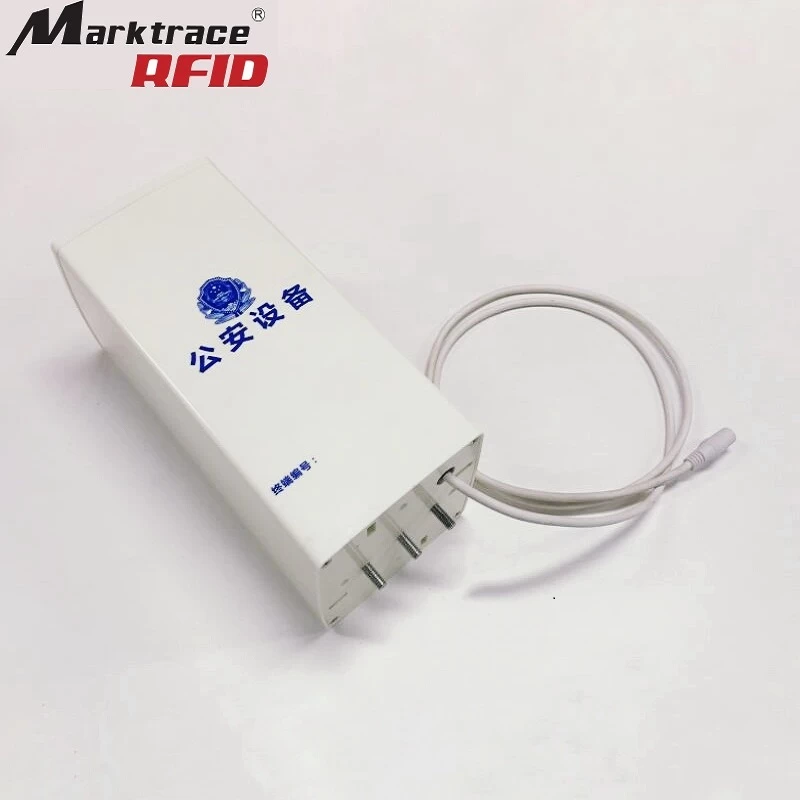

Wireless 2.4Ghz Active RFID Long Distance Reader for Attendance System
Wireless 2.4Ghz Active RFID Long Distance Reader for Attendance System
Integrated designed, antenna built-in, easy
for installation
Reading signal sensitivity is adjustable
Max reading range of 2.4G is above 400m
Support 2G/3G/4G, Ethernet(optional)
communication interface
Long Distance RFID Reader Specification
Physical Features
Model no.: MR7901P
Material: ABS，creamy-white
Dimension: 105*105*230mm
Weight : 840g(not including bracket）
IP grade: Bracket

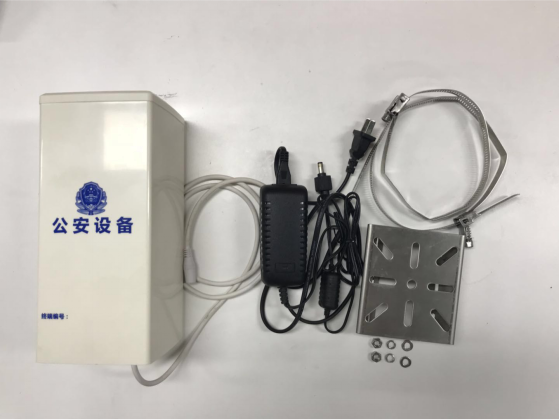

for fastening, waterproof in outdoors, anti-typhoon designed
2.4G RF features
Modulation: GFSK
Communication
rate: 1Mbit/s
Work frequency: 2440MHz
CPU: Above 100M
of basic frequency
Max received
sensitivity: -90dbm
Antenna gain: <12dbi
Other communication interface
2G/4G: Standard
wireless communication interface
Bluetooth: Support
low-consumption Bluetooth 4.0
RJ45(Optional): 10M/100M
adaptive；
Electric features
Work current: <300mA
Power: <3W
Rated Voltage: DC
8-13V
Environment
features
IP grade: IP65
Work temp.: -30℃ to +80℃
Storage temp.: -40℃ to +80℃
Our Advantage
1.0-300m reading range
2.Water proof & Dustproof
3.Easy usage for people tracking
4.Microwave RFID card reader reaches strong penetrability
5.Dual polarization antenna design,ensure RF signal more stable and powerful
6.Long Communication distance and anti-collision performance
7.Strong security,stability and fast read speed reading
Application

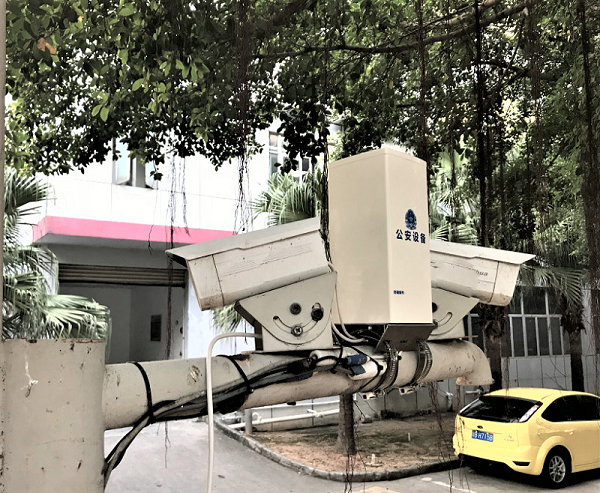

1.Vehicle Tracking Outdoors 2. School Security Attendance 3.Smart City
