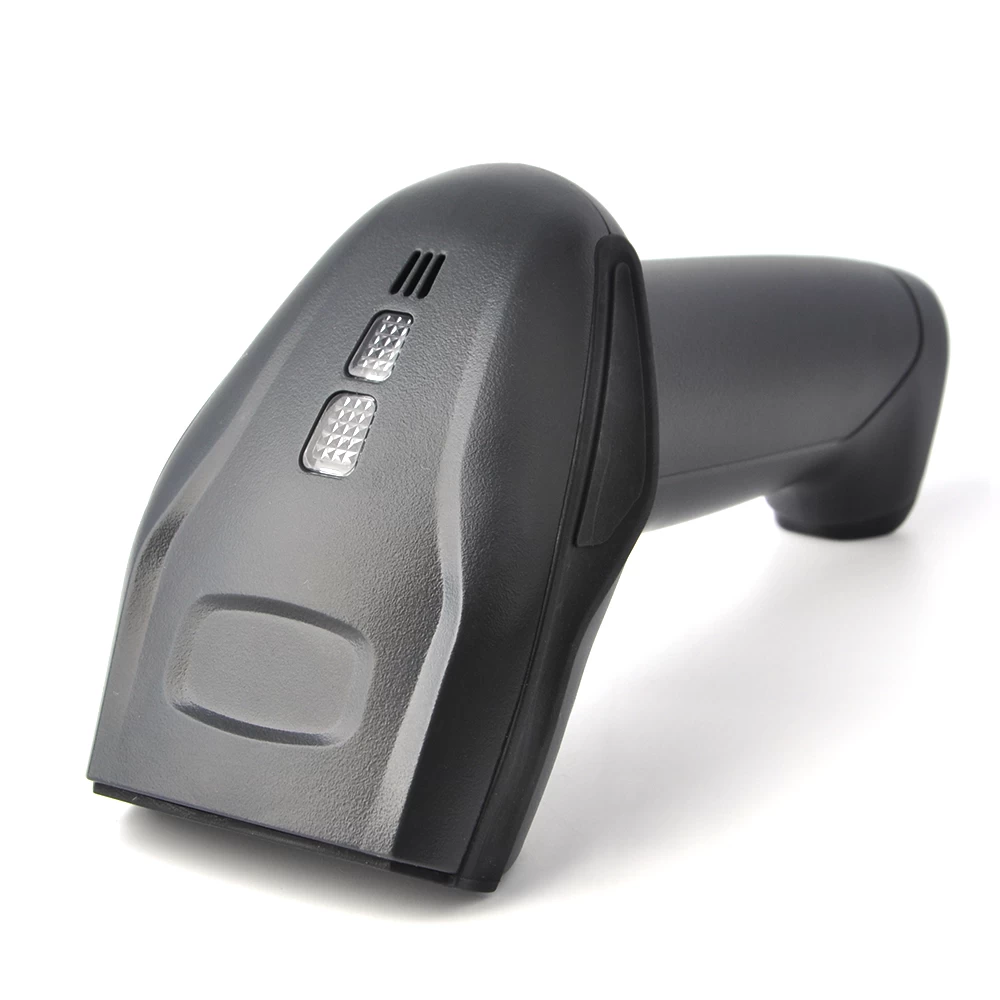

Wireless Barcode Scanners With Memory 120 Scans/Sec USB Interface IPBS001CCD

Technical Parameters

Model

IPBS001CCD

Input Voltage

5V DC, ±0.25V

DC Current

25mA(operating);  95mA(Max peak);  250mA(charging)

Light Source

650nm visible Laser diode (1D)

Laser Safety Level

China GB Class II, EN60825-1

Decoding speed

150 times/second

AngleTolerance

Skew ±60°;    Pitch ±65°;    Roll ±42°

Resolution

4mil

Wireless Contact Radius Limit

300 meters

1D Code Types

UPC-A, UPC-E,EAN-8, EAN-13, EAN-ISBN/ISSN, Code 39, Code 39(Full ASCII), Industrial 2 of 5,Interleave 2 of 5, Matrix 2 of 5,Codabar, Code 128,Code 93,Code 11 MSI/Plessey, UK/Plessey, UCC/EAN 128, China Post Code,GS1 Data Bar (formerly RSS) etc.

Alert Mode

Indicator and Buzzer

Interfaces

USB, RS232, PS2

Trigger mode

Manual, Consecutive Scanning

Mode setting

Set by scanning functional barcodes or by cradle keys

Temperature

-18°C ~55°C (working); -40°C ~60°C (storage)

Humidity

5%~90% (Non-condensing)

Shield Materials

ABS+PC

Shock proof

withstand multiple drops from 1.8m to concrete surface

Dust & Water proof

IP52

Battery Performance

it can work 45hrs consecutively or can last 1 week at normal working time after a 4hrs power charge (full)

Weight

350g

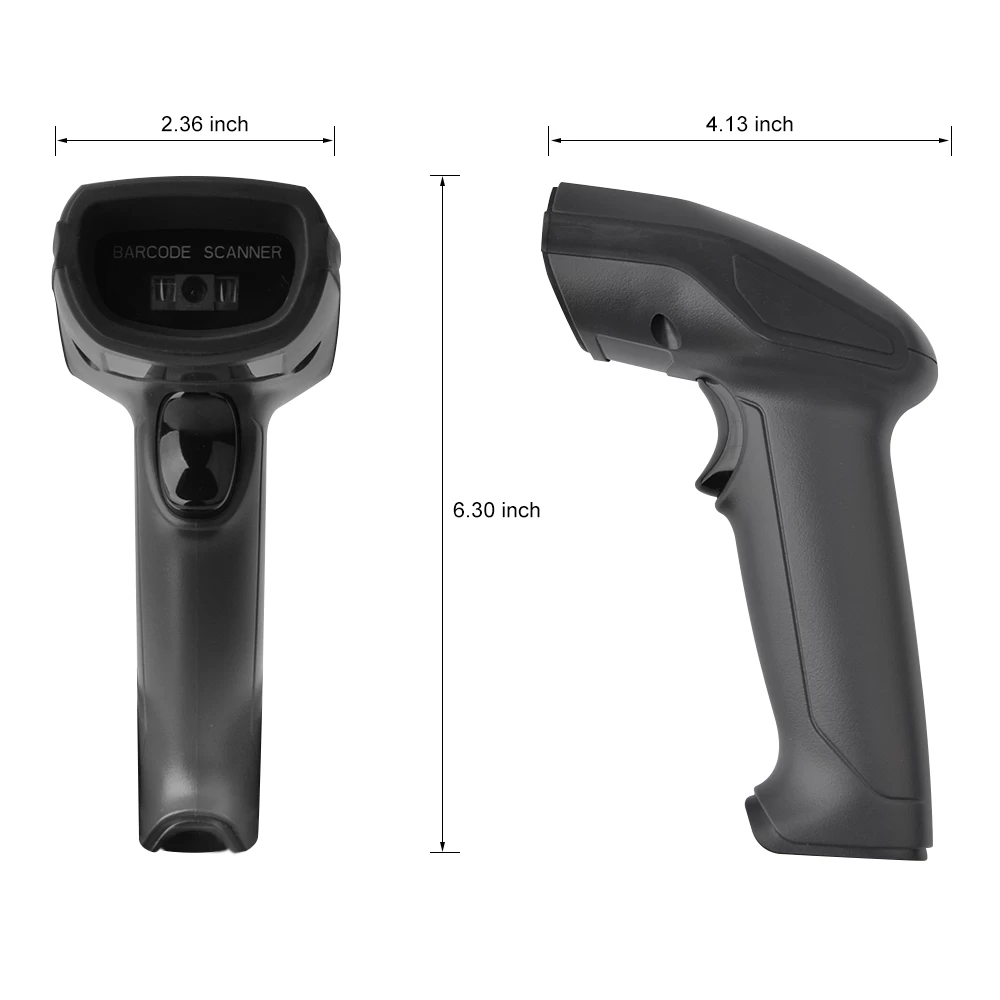

Size

L115mm*W130mm*H180mm
