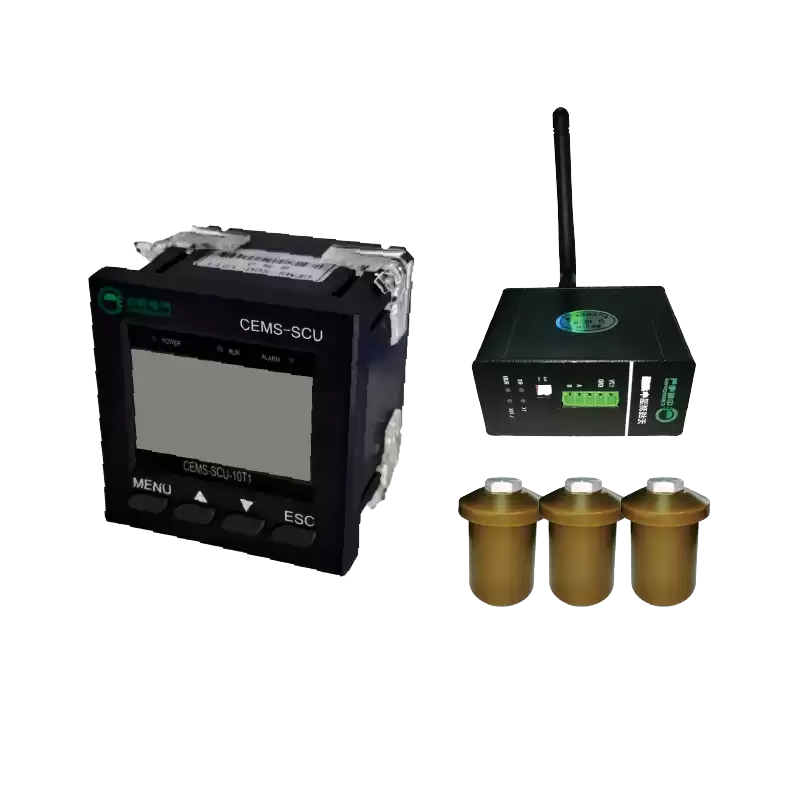

Wireless Temperature Monitoring System CESM-60 Series

The CESM-60 Series Wireless Temperature Monitoring System provides real-time monitoring of cable plug temperatures in high-voltage switchgears. Widely used in railways and national power grids, it features wireless communication, easy installation, and low maintenance. The system detects temperature anomalies early, enhancing safety and preventing equipment failures.

Facebook Twitter Pinterest LinkedIn 分享

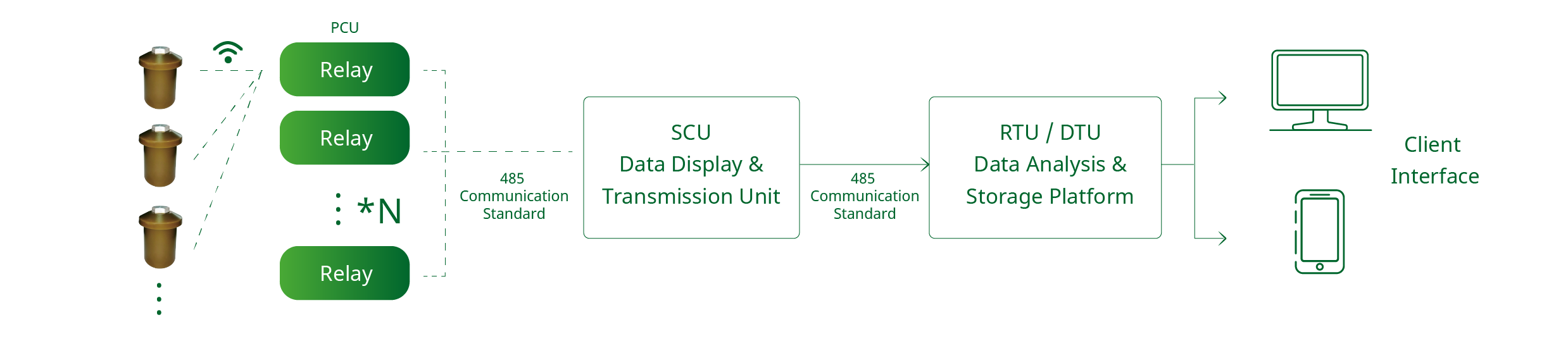

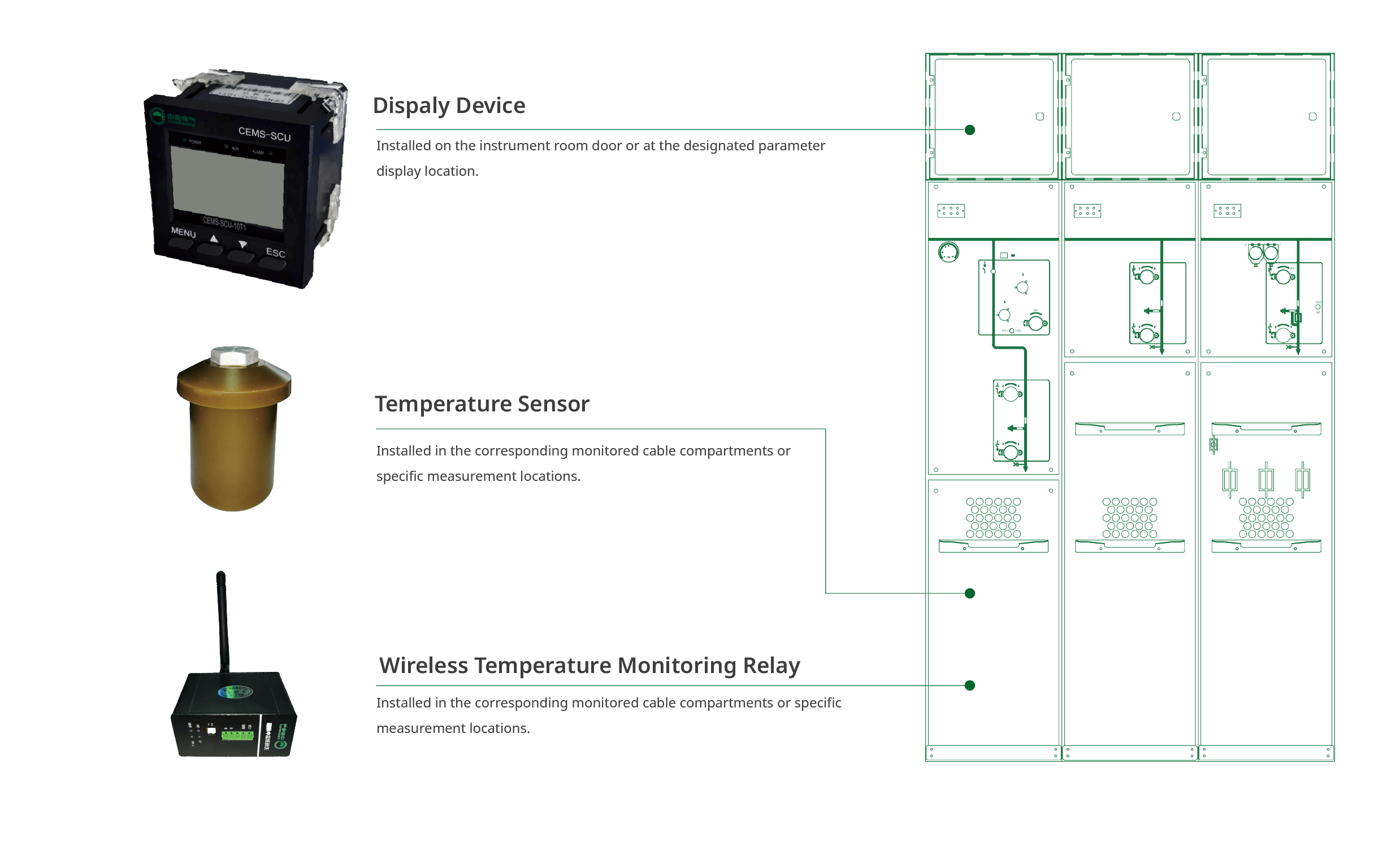

  • System Overview





















  • CESM-60 Wireless Temperature Monitoring System Features



  • # Flexible Connectivity

    Supports RTU, DTU, and RS485 interfaces with MODBUS-RTU protocol.
  • # App Access

    Offers real-time data and customizable alarm settings.
  • # Maintenance-Free

    Self-powered sensors eliminate the need for battery replacements.











  • Specifications

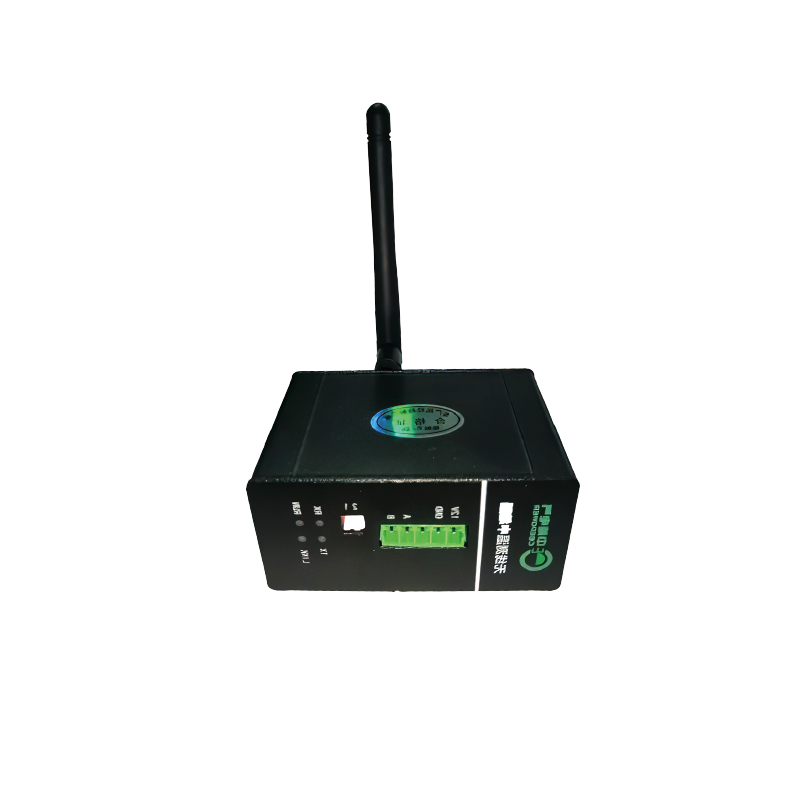

Wireless Temperature Monitoring Relay
Operating Environment Indoor
Power Supply DC12V
Installation Method Magnetic Adsorption
Service Life ≥10 Years
Weight 0.6kg
Communication Interface with Host Computer RS485 MODBUS Protocol
Number of Sensors Connected 3/6/9
Machine Power Consumption <2W
Environmental Conditions Operating Temperature -25℃ - +55℃
Storage Temperature -40℃ - +80℃
Relative Humidity 5% - 95%, No Condensation

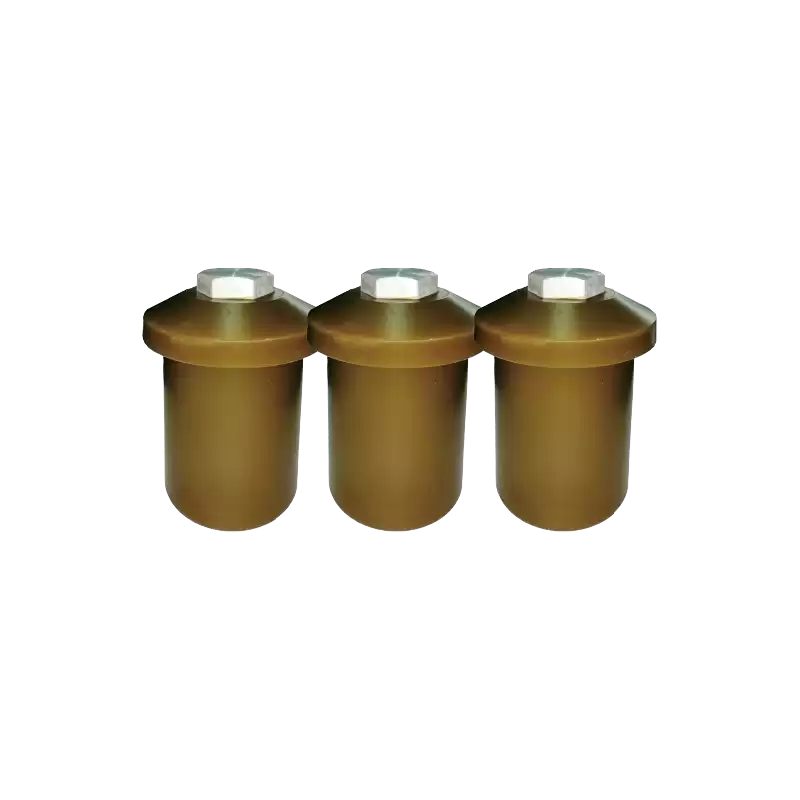

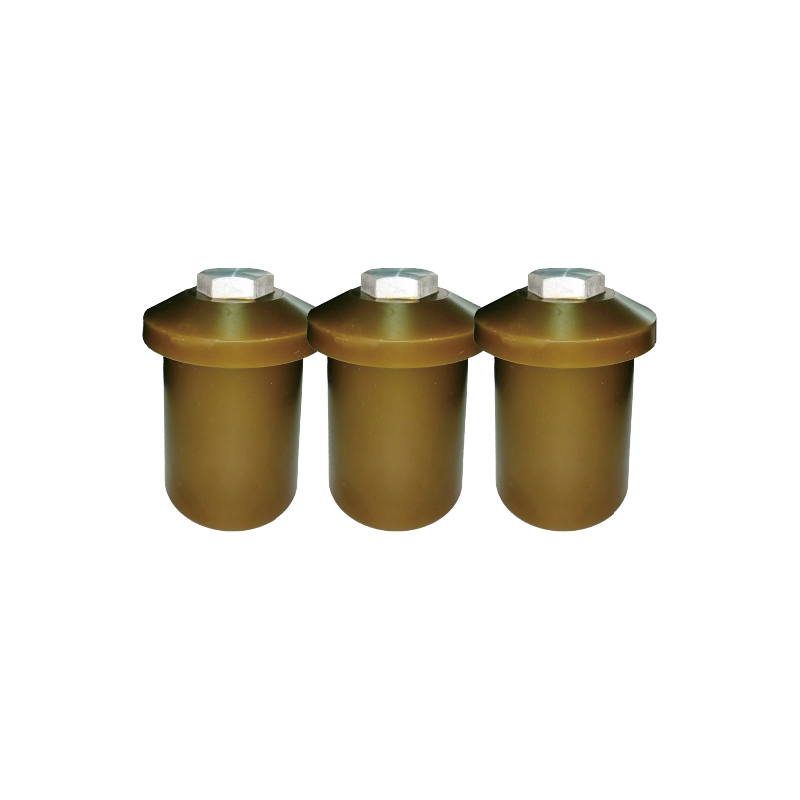

Temperature Sensor


Installation Method Plug-Type
Temperature Measurement Range -25℃ - +125℃
Temperature Measurement Accuracy ±1°C
Periodic Transmission Interval 1-3 minutes
RF Standard 2.4G(Zigbee)
Standby Current <1μA

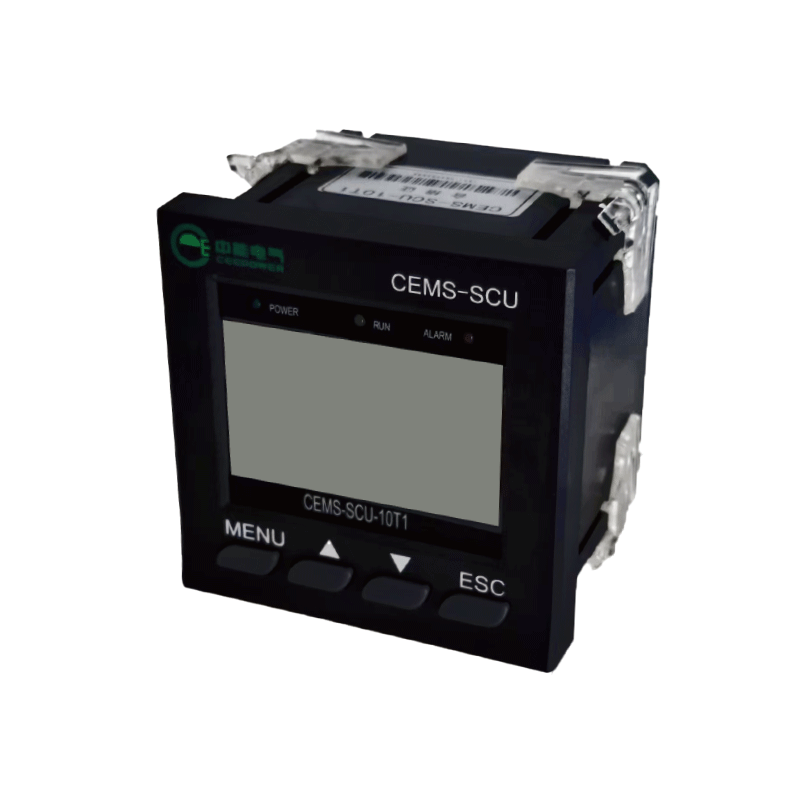

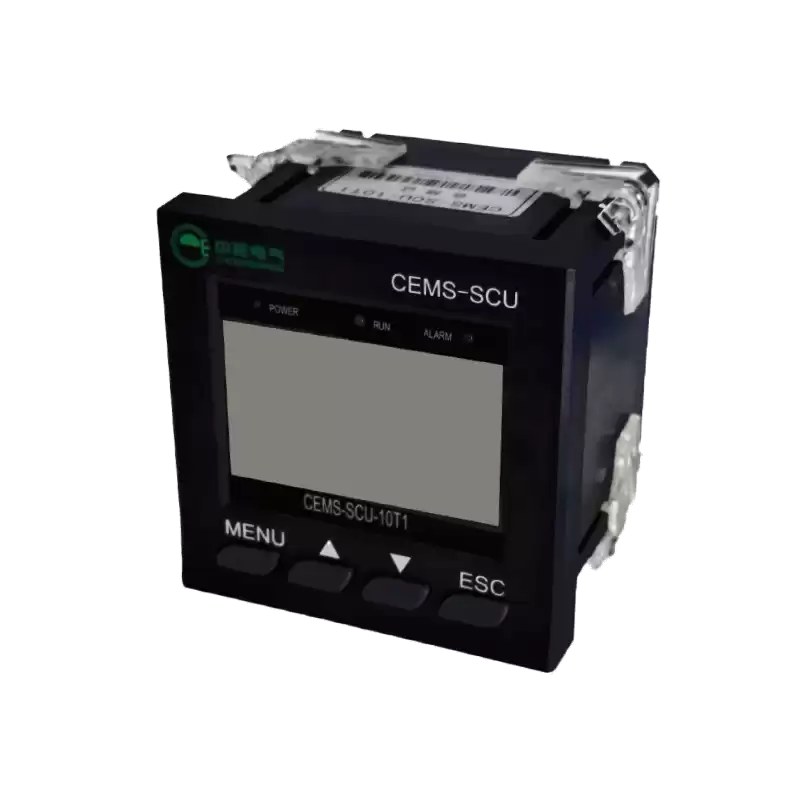

Display Device


Operating Environment Indoor
Installation Method Panel Mounting
Power Supply AC/DC 110–220V
Operating Temperature -25℃ - +65℃
Operating Humidity 5% - 95% RH
Number of Integrated Monitoring Devices ≤4
Communication Interface RS-485 MODBUS Protocol
Service Life ≥10 Years
Weight 0.3kg













  • Application Scenarios



Electrical Substations



Power Transmission and Distribution Systems



Railway Electrical Systems



Industrial Plants



Smart Grid Operations
