Features
-
Devotion condensing atmospheric boilers are constructed with internationally tried and tested three-pass all wet back structure. The hearth is set on lower part of the boiler. Two groups of flue tubes are symmetrically arranged to realize heating evenly, which ensure long service life.
-
The big combustion room designed for low Nox emission can increase heating surface so as to reduce NOx emission.
-
Corrugated furnace c/w threaded flue tubes remarkably improve heat transfer and efficiency.
-
Turbolators inside the flue tube can intensify heat transfer and easy for internal clean-up.
-
Economizer designed specially by Devotion can improve heat efficiency by 4-6% in contrast to regular boiler.
-
C/w Devotion intelligent control system can realize automatic, centralized and remote control.
-
Available with Devotion IOL system enable the boiler being operated more efficiently, economically and safely.

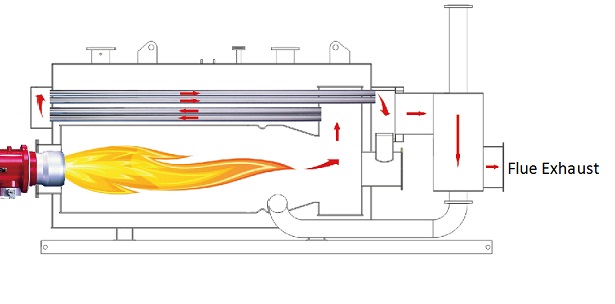

Condensing Atmopheric Hot Water Boilers Structure

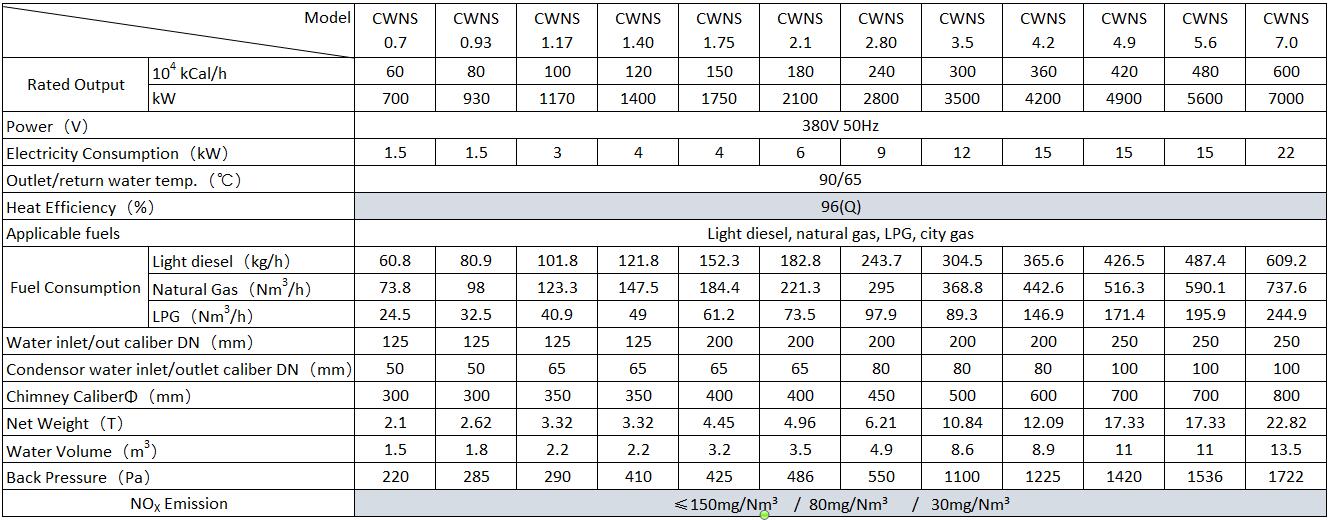

Condensing Atmopheric Hot Water Boilers Technical Data

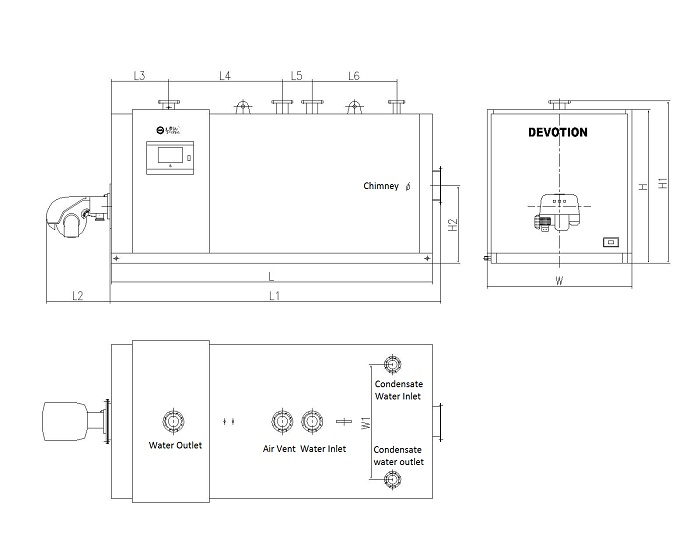

Condensing Atmopheric Hot Water Boilers Installation Diagram

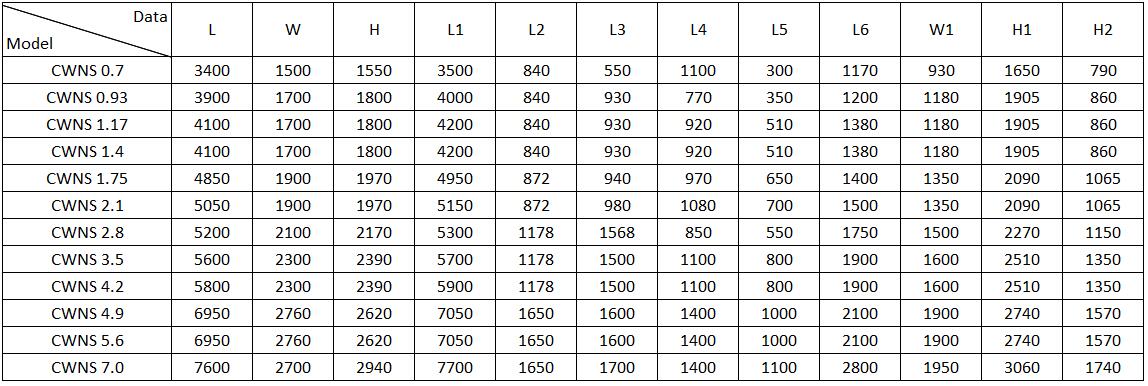

Condensing Atmopheric Hot Water Boilers Installation Dimension

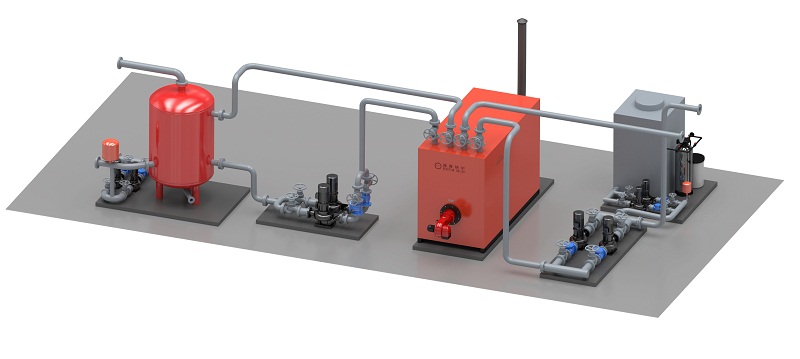

Condensing Atmopheric Hot Water Boilers System
