Wood And Coal Heating Continuous Tea Leaf Dryer Machine 6CHL-CM

DL-6CHL-CM wood and coal heating chain plate type tea leaf dryer can use for all most kinds tea, such as green tea, black tea, oolong tea and so on.

  • Efficiency170-240 kg/h
  • Hot air stove modelFP-150
  • Drying time8-90 min
  • Drying plate layer8
  • Drying plate size1000×125 mm
  • Drying area40 m2
  • Voltage380/50 V/Hz
  • Dimension7500×2430×2400
Facebook Twitter Pinterest LinkedIn 分享

Description:
1. Using hot air as the medium to make continuous contact with the wet material, so that the water contained in the wet material can be diffused, vaporized and evaporated to remove the heat, thereby achieving the drying purpose;
2. Adopting CNC punching technology, the mesh is flat, the air permeability is good, the structure is firm, the stratified air enters, the hot air penetrates strongly, the water vapor transmission speed is fast, the water does not accumulate in the tank, and the efficiency is high;
3, using the latest hot gas recovery technology, mechanical heating fast, heat loss is small;
4, the whole machine is strong, the appearance is generous, the lines are tough, the new ultra-low hopper design, stable and practical, easy to dump, high work efficiency; at the same time with high-quality parts, new microcomputer automatic control, easy to operate, stable quality It saves time and effort, and is the ideal machine for drying your materials.

Application:
Wood and coal heating belt type continuois tea leaf drying machine can use for all most kind tea, such as green tea, black tea, oolong tea, CTC tea and other tea.

Parameter:

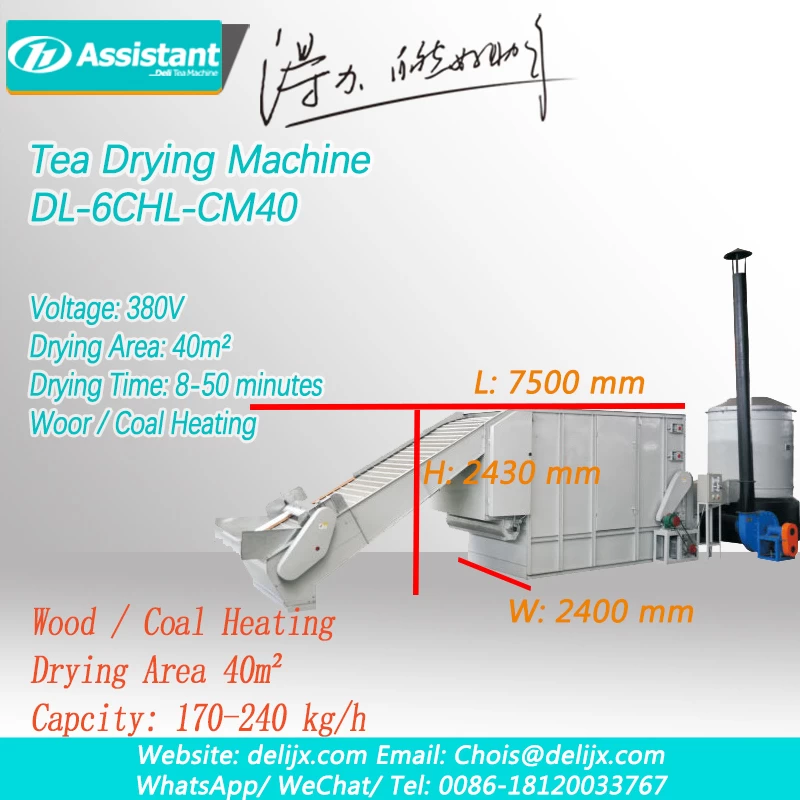

DL-6CHL-CM wood and coal heating chain plate continuous tea leaf drying machine specification:

Model DL-6CHL-CM16 DL-6CHL-CM20 DL-6CHL-CM30 DL-6CHL-CM40
Size 5160×2180×2000 mm 5560×2180×2100 mm 7500×2180×2400 7500×2430×2400
Voltage 380/50 V/Hz 380/50 V/Hz 380/50 V/Hz 380/50 V/Hz
Drying area 16 m2 20 m2 30 m2 40 m2
Drying plate size 1000×125 mm 1000×125 mm 1000×125 mm 1000×125 mm
Drying plate layer 6 6 8 8
Drying time 8-50 min 8-50 min 8-90 min 8-90 min
Hot air stove model FP-100 FP-100 FP-120 FP-150
Drive motor Power 1.5 KW 1.5 KW 1.5 KW 2.5 KW
Speed 1400 rpm 1400 rpm 1400 rpm 1400 rpm
Voltage 380 V 380 V 380 V 380 V
Blower motor Power 5.5 KW 5.5 KW 5.5 KW 5.5 KW
Speed 1400 rpm 1400 rpm 1400 rpm 1400 rpm
Voltage 380 V 380 V 380 V 380 V
Air inlet motor Power 1.5  KW 1.5  KW 1.5  KW 2.5 KW
Speed 1400 rpm 1400 rpm 1400 rpm 1400 rpm
Voltage 380 V 380 V 380 V 380 V
Production efficiency 95-105 kg/h 110-130 kg/h 140-200 kg/h 170-240 kg/h
The above data is based on fresh tea leaf water content of 75-80%.

Parameter of combustion furnace:
Specification for matching hot blast stove, induced draft fan and blower:
Model FP-100 FP-120 FP-150
1kg wood = 3000 calorie
1kg coal = 6500 calorie
FP-150 can be split into two
Dimension 1000×1300×2200 mm 1200×1600×2580 mm 1500×1900×3300 mm
Wood consumption 120-140 kg/h 170-190 kg/h 210-240 kg/h
Coal consumption 60-70 kg/h 80-90 kg/h 110-120 kg/h
Blower motor Power 5.5 KW 5.5 KW 7.5 kw
Speed 1400 rpm 1400 rpm 1400 rpm
Voltage 380 V 380 V 380 V
Air inlet motor Power 1.5 KW 1.5 KW 2.5 KW
Speed 1400 rpm 1400 rpm 1400 rpm
Voltage 380 V 380 V 380 V

Details:

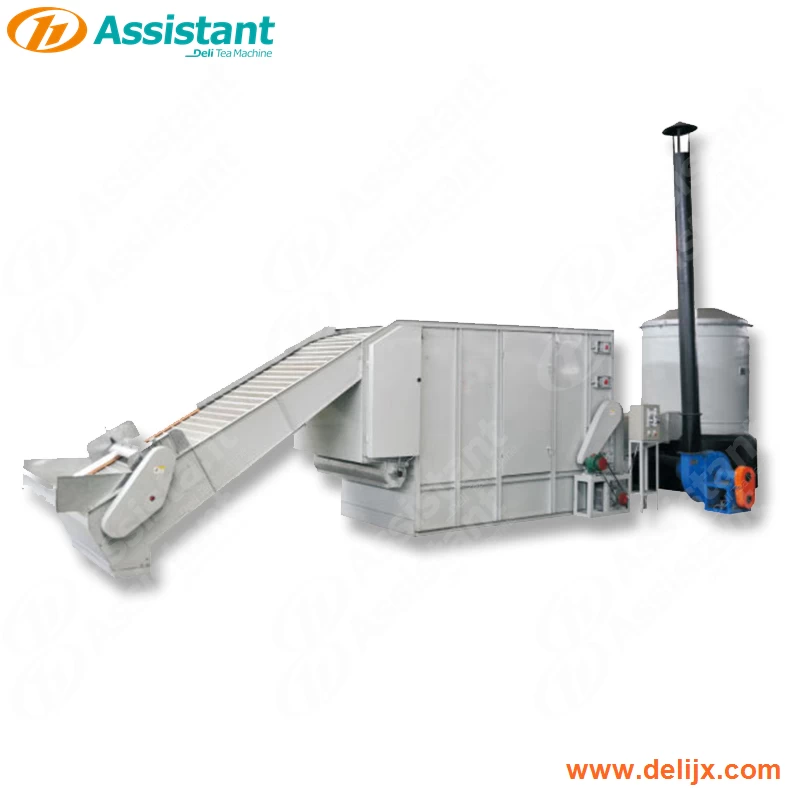

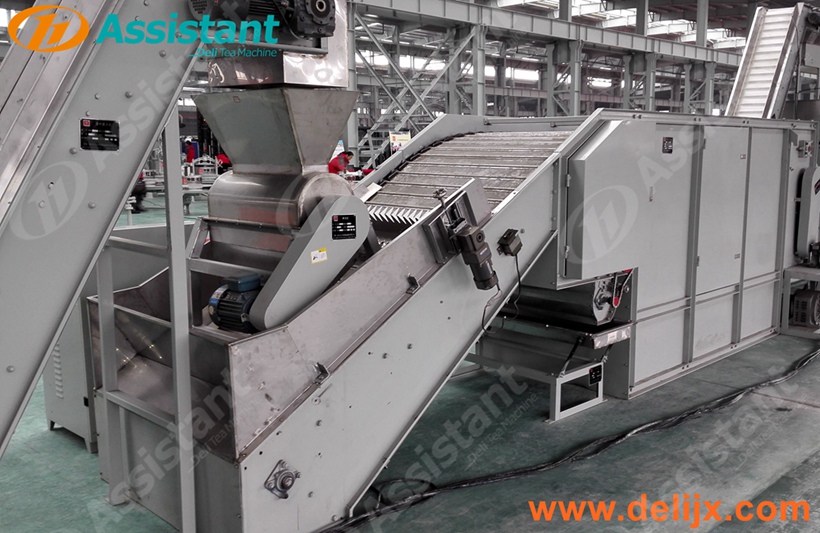

Wood And Coal Heating Continuous Tea Leaf Dryer Machine 6CHL-CM

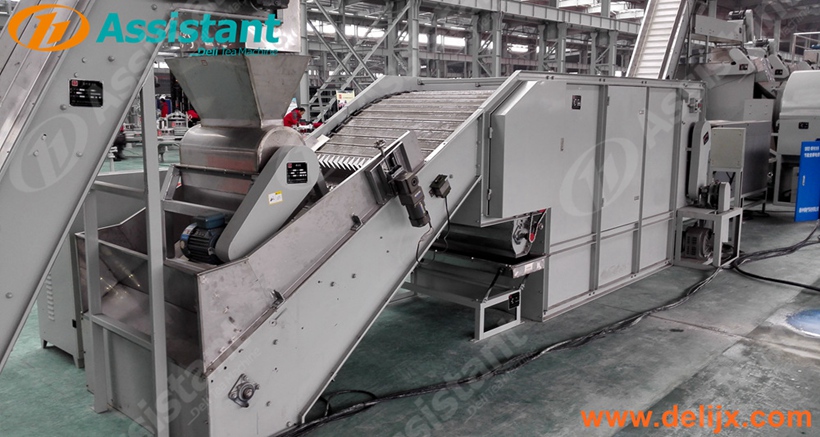

 Wood And Coal Heating Continuous Tea Leaf Dryer Machine 6CHL-CM
 Wood And Coal Heating Continuous Tea Leaf Dryer Machine 6CHL-CM

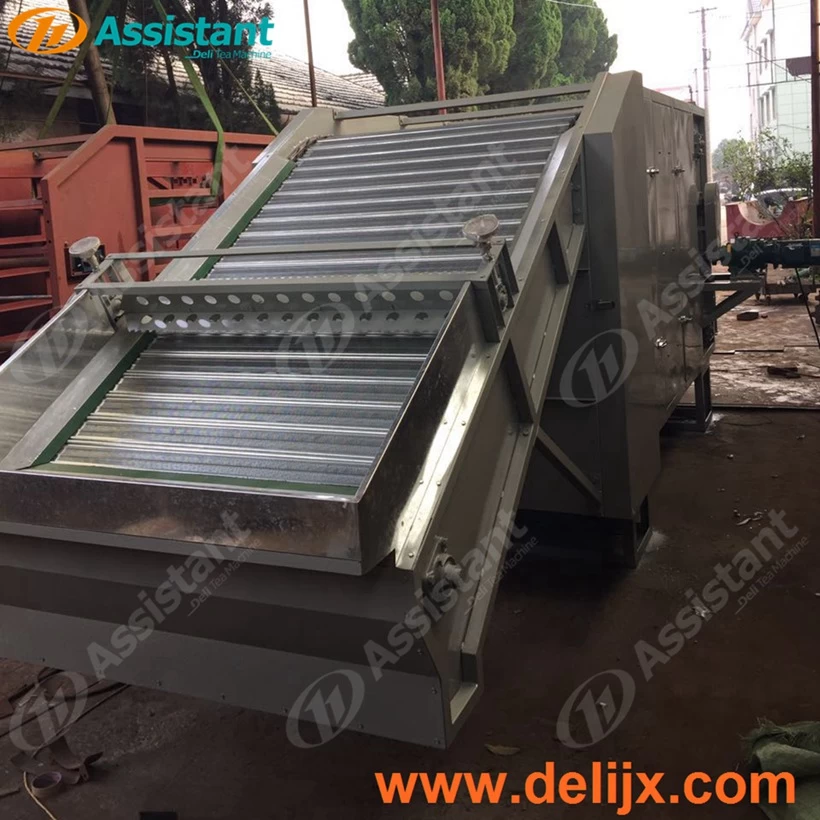

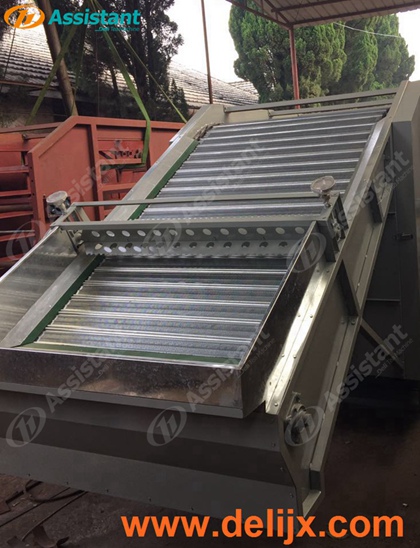

Tea leaf feeder board

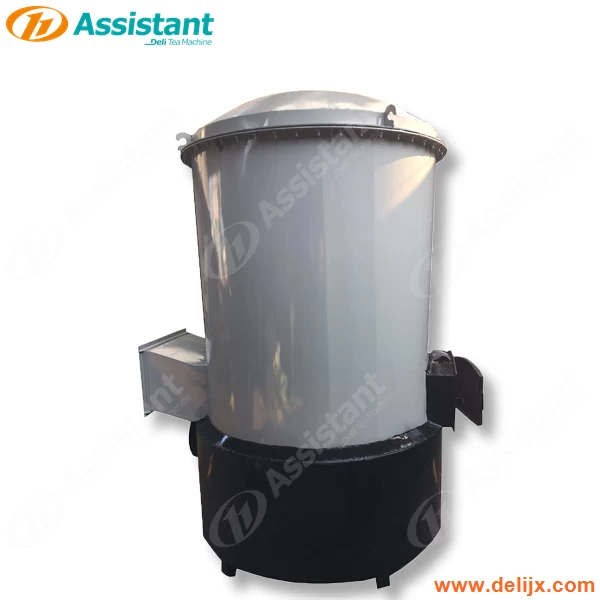

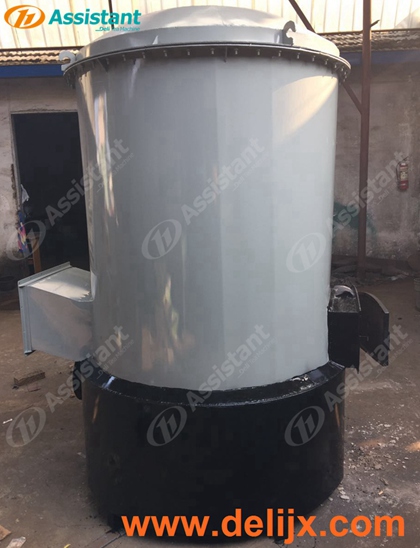

 Hot air stove

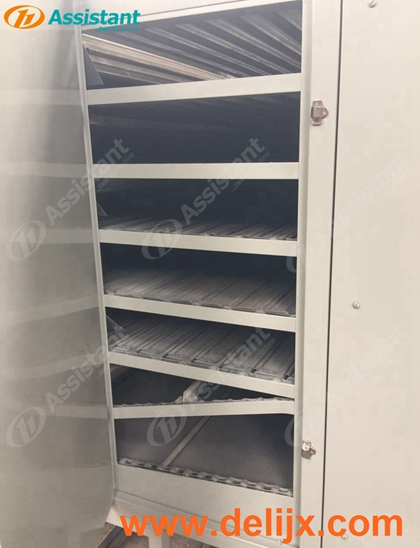

 Inner chain plate structure

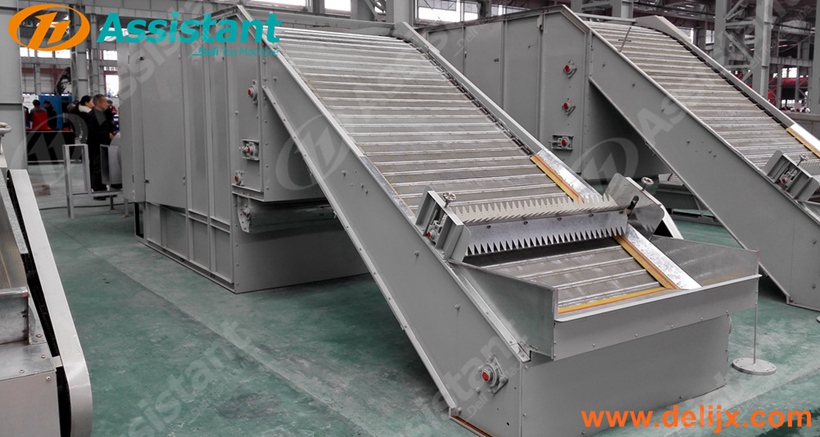

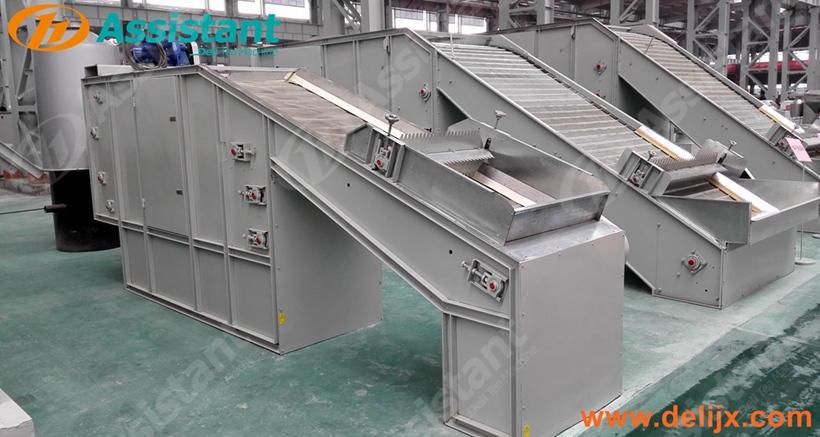

DL-6CHL-CM wood and coal heating chain plate tea dryer photos:

Wood And Coal Heating Chain Plate Type Tea Dryer Machine China Manufacturer 6CHL-CM
Wood And Coal Heating Chain Plate Type Tea Dryer Machine China Manufacturer 6CHL-CM
Wood And Coal Heating Chain Plate Type Tea Dryer Machine China Manufacturer 6CHL-CM
Wood And Coal Heating Chain Plate Type Tea Dryer Machine China Manufacturer 6CHL-CM
