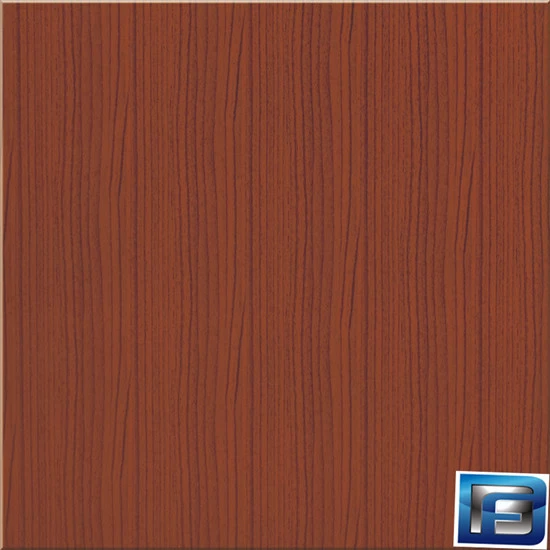

Wooden grain coated aluminum coils are widely applied to ACP,
aluminum ceiling, roofing, fireproof roller shutter, doors, wall panel , facade cladding, etc.
1. Specification for coated aluminum coils
01)Material: aluminum alloy A1100, A3003, A3005, A3105
02)Aluminum thickness:0.04-1.20mm
03)Max coil width: 1600mm(standard 1240mm)
04)Coil ID: 405mm,505mm, Coil OD: 1000-1400mm
05) Coil standard weight: 2500kgs/coil
06) Coating: PE or PVDF coating
07) Surface treatment: anti-scratch, glossy, matte
08) Color: wooden grain, marble stone, plain color,3D, HD, metallic, patterned, etc.
09) Dried and baked: oven baked at 450 degree F
10) Coating thickness: double coating-25 micron, single coating-18 micron
11) Coating hardness: (pencil hardness) 2H
12) Coating adhesive: no lower than first grade
13) Impact resistance: no cracking and peeling(50kg/cm, ASTMD-2794:1993)
14)Flexibility(T-bend):2T or by your option
15) MEK resistance: more than 100
16)Outer packing: wooden plate, covering with craft paper and film, Eye to Sky or wall to Sky packing.
2. Applications
Interior applications: ACP skin, door skin, wall cladding, ceilings, kitchen cabinet, balconies, shutters...
Exterior applications: roller shutters, gutters, wall cladding, facades, roofing, canopies, tunnels, column covers , renovations...
Advertisement and market applications: display platforms, signboards, fascia, shop fronts...
