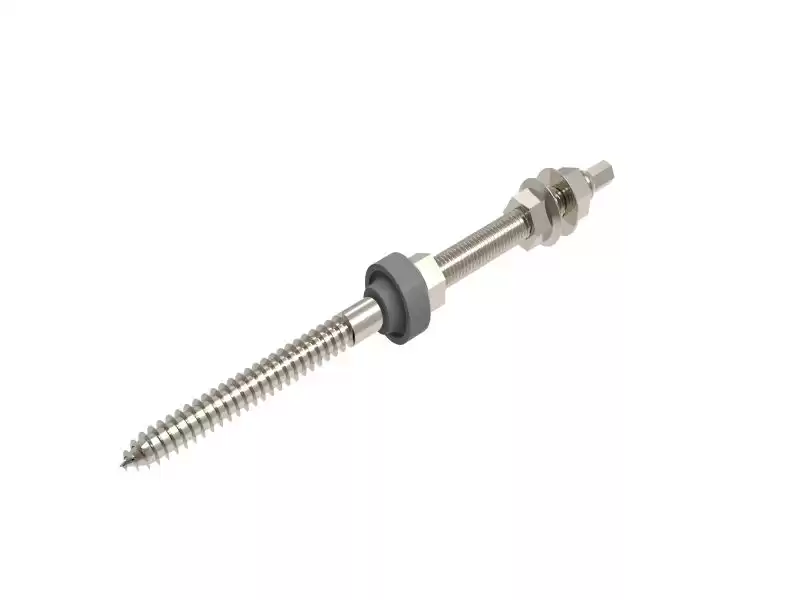

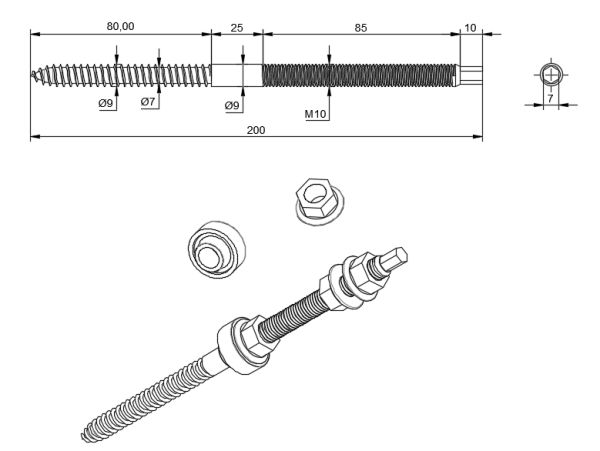

Product Name: Hanger Bolt for Solar Panels Mounting Wood Purlin
It is important for the solar energy system to be securely fixed to the roof of all installations– and every roof has its own specific requirements.
XHFSolar's Hanger Bolt for Solar Panels Mounting Wood Purlin is applied to install solar panels on both wooden and steel purlin for trapezoidal / zinc / corrugate sandwich metal roofs. Each type can be applied with L feet and plate. It can fix the rails and roof mounting by adjusting distance between the brackets.
1. Easy and fast to install.
2. SUS 304 Material with corrosion resistant surface treatment
3. Eeffective waterproofing by EPDM rubber.

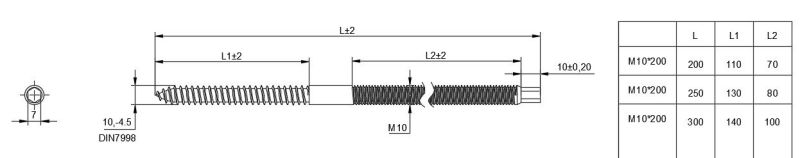

4. 150-300mm long are available.

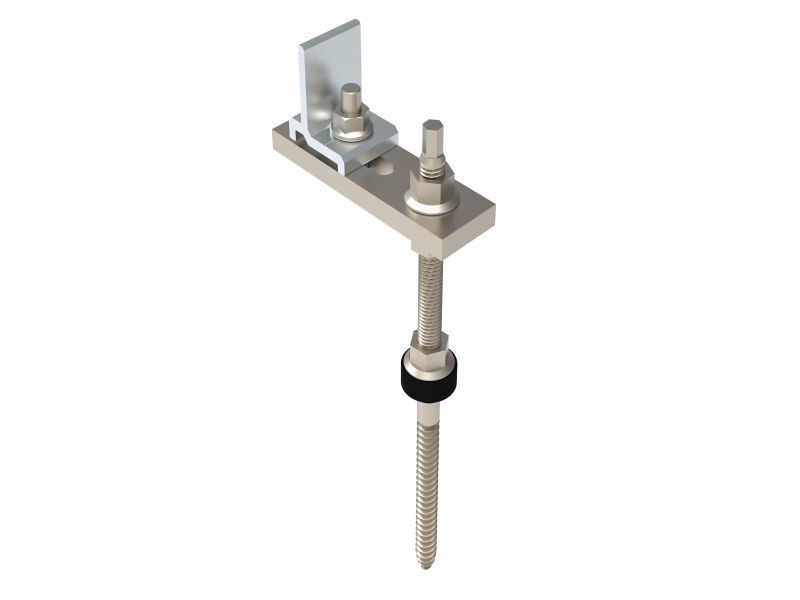

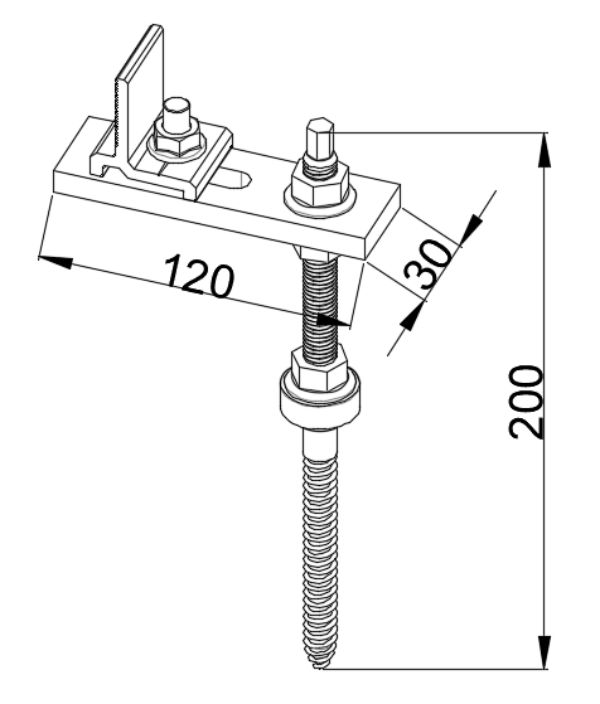

Type 1:

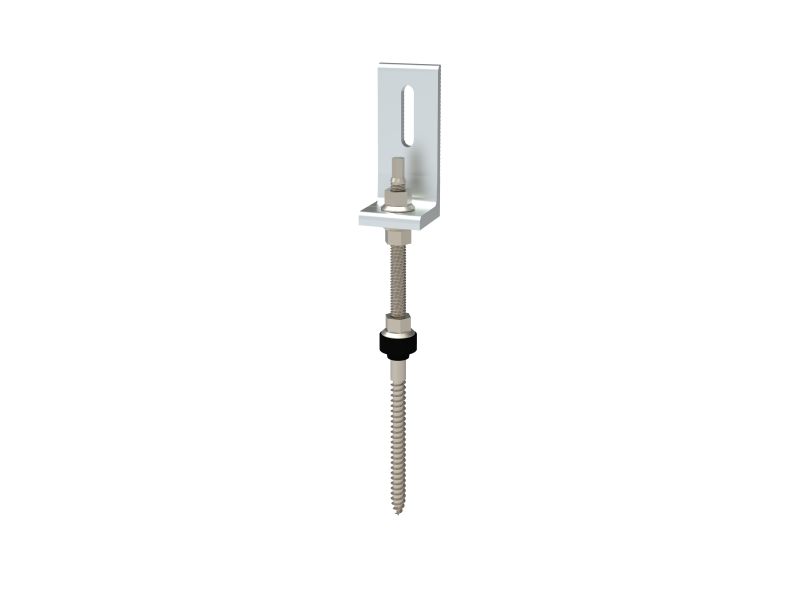

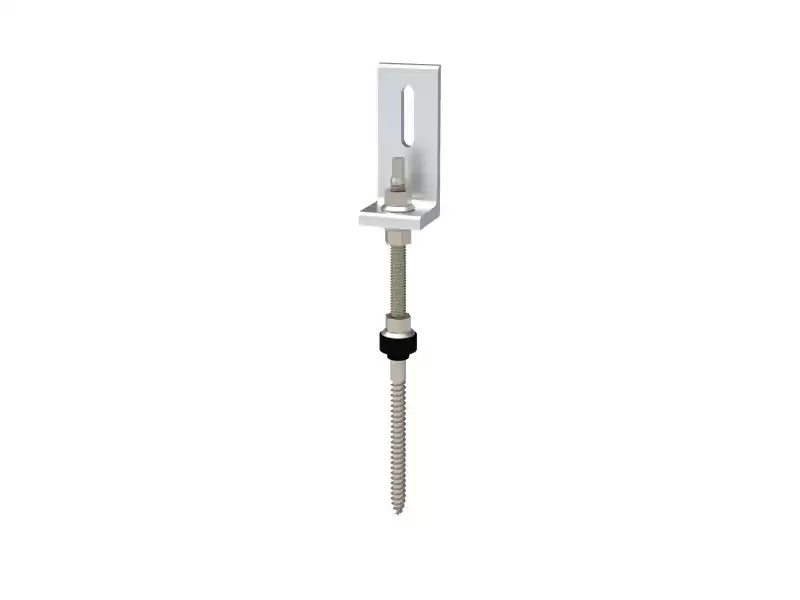

Type 2:
Xiamen Xhfsolar Industrial Co., Ltd. ("Xhfsolar") is one of the few large factories in Xiamen, Fujian Province, which was established around 2010. The factory covers an area of about 50,000 square meters, with an annual output of about 8GW.
We're a high tech enterprise specializing in design, development, production and sales for solar mounting. With more than 10 years of industry experience and experienced engineer team, Xhfsolar provides roof mounting solution, ground mounting solution, agricultural mounting solution and solar carport etc.. Besides, we also have advantages in floating mounting, vehicle bracket, aluminum alloy frame, fence. In particular, the annual production capacity of ground screws can reach 800,000pcs.
Our products conform to international standards and pass EN standards. In addition, we have passed strict international quality certification such AS JISC8955, ISO9001 quality management system, AS/NZS 1170, TUV, UL, CE and CPP. Our products are sold to more than 100 countries including Japan, Europe, the United States, North America, and southeast Asia, and have been well received by our customers due to our high quality and low costs.
Price
|
Because we are a factory with a large production scale, our price will be more competitive than other suppliers
|
Quality
|
At present, we have qualified the AS/NZS 1170, TUV, UL, CE, CPP and other international certifications , and we will strictly follow the requirements in the production process. What's more we can provide the production schedule to you so that you can understand the production schedule
|
Market
|
Up to now, we have exported to Africa, the Middle East, Southeast Asia, the United States, Japan and European markets
|
Delivery time
|
7-30 days
|
Payment term
|
Flexible
|
Tech support
|
OEM,OGM
|
After Service
|
10 years warranty+ 25 long service
|
