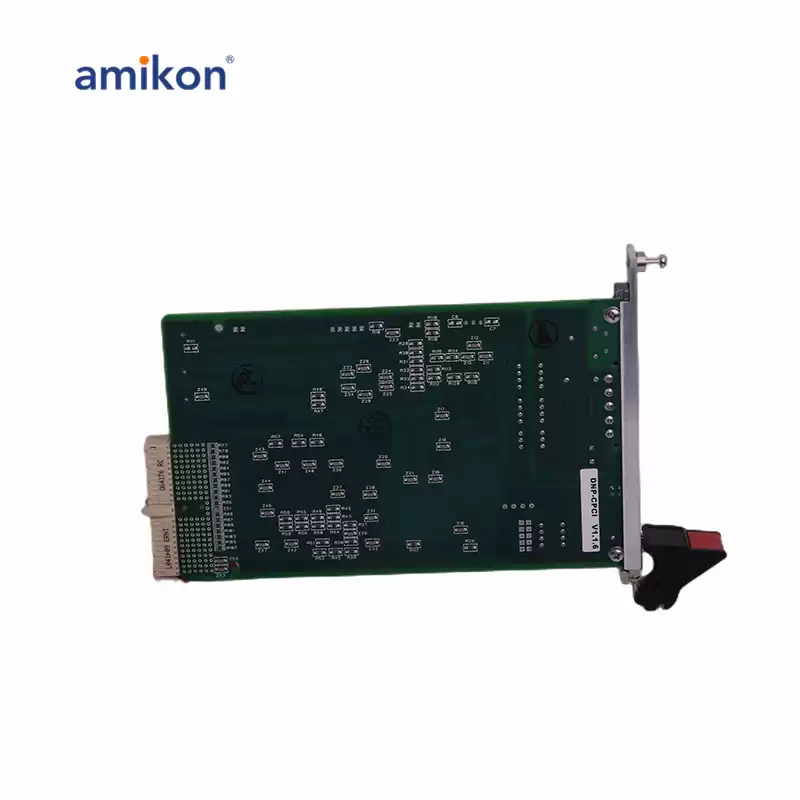

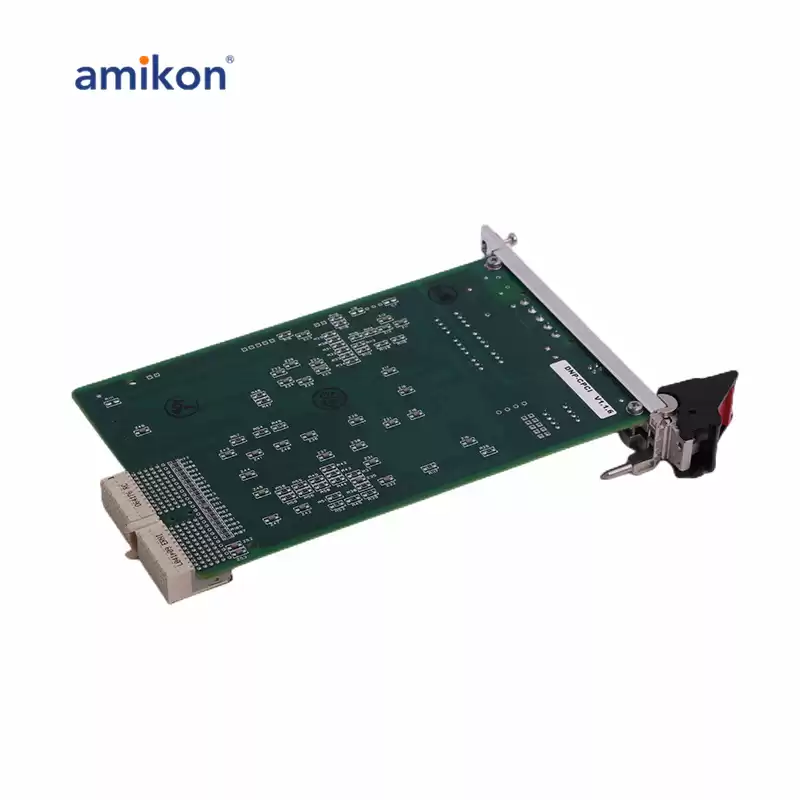

Woodhead 5136-DNP-PCI Interface Card

Contact me to get the best price：

 sales7@amikon.cn      86-18965423501   86-18965423501   AMKPLC

Products Detail:

The Molex / Woodhead / SST 5136-DNP-PCI Interface Card enables a PCI bus computer to connect to a DeviceNet network, with the full DeviceNet protocol managed directly by the card’s hardware for efficient, simultaneous client and server operations. Supporting standard baud rates of 125, 250, and 500 Kbaud, this two-channel, 3U size, single-slot plugin module reduces cabinet space requirements by 50% compared to traditional four-channel, 6U size cards. As a DeviceNet Master, it supports Sync and Freeze commands, and it is compatible with RSLogix 5000 Add-on-Profile (AOP) for streamlined configuration and integration.

Description:
5136DNPPCI
DISCONTINUED BY MANUFACTURER
PCB INTERFACE CARD
33 MHZ
32 BIT PCI INTERFACE
40 MHZ AM186EM MICROPROCESSOR W/ 256K RAM
256K SHARED RAM
OPTICALLY ISOLATED CAN INTERFACE
DEVICENET COMPATIBLE NETWORK STATUS BICOLOR INDICATOR
FACTORY WARRANTY MAY NOT APPLY.

Specifications
Part :5136-DNP-PCI
Category:Drives
Subcategory:Control/Interface Board
Weight:0.82 lbs
