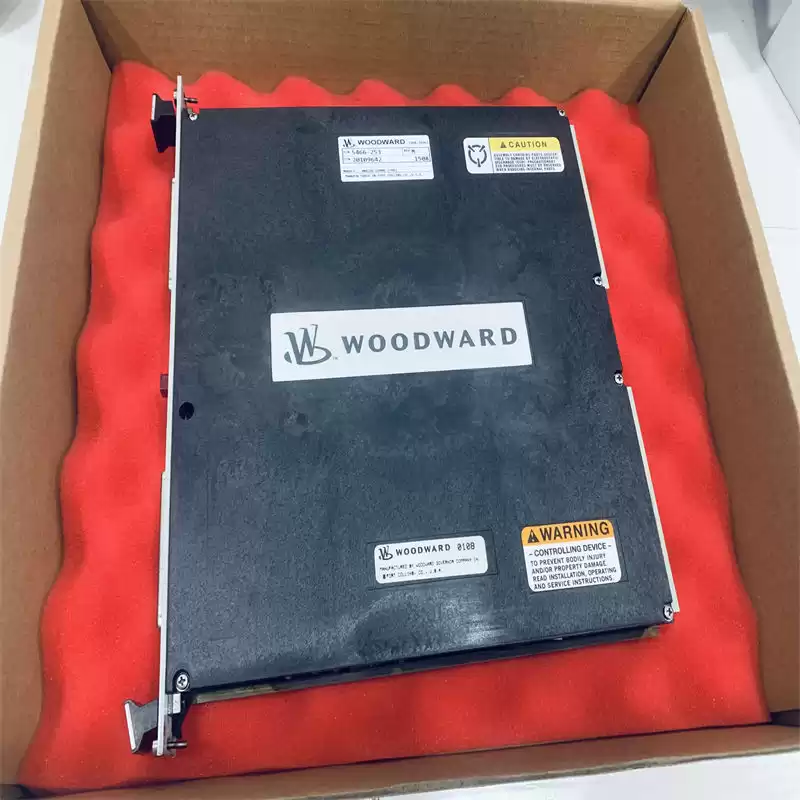

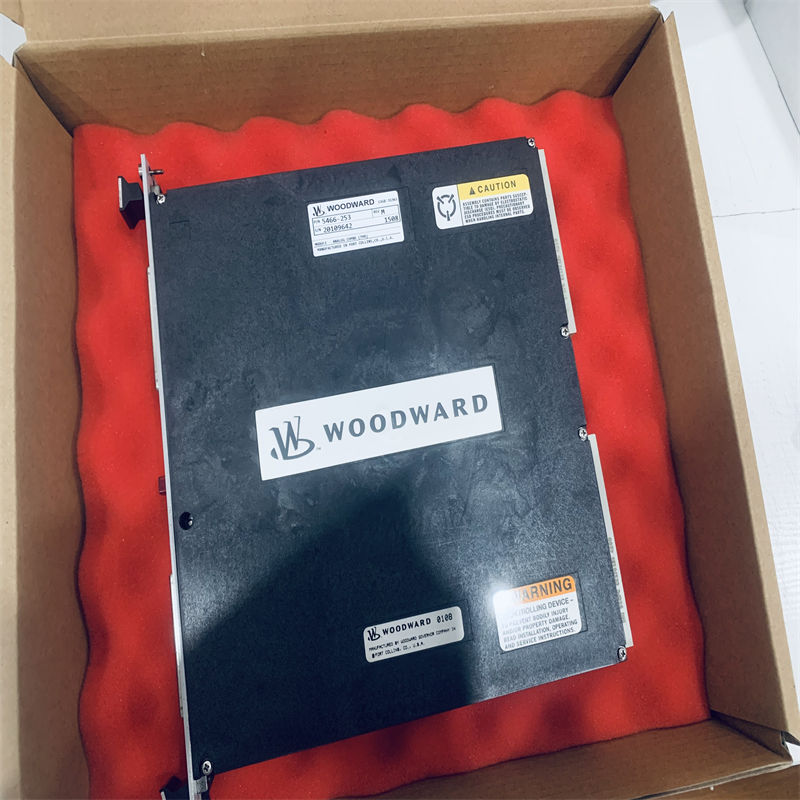

The Woodward 5464-643 Discrete Input Module is a component designed for industrial control and monitoring. It provides a means to monitor the status of digital input signals and transmit that information to a control system or data acquisition system.
Here are some key features and specifications of the Woodward 5464-643 Discrete Input Module:
1. Input Channels: The module offers 48 discrete input channels. These channels are used to monitor the status of digital signals, typically representing the on/off or open/closed states of external devices or sensors.
2. Input Types: The module is compatible with a variety of input types, including voltage or contact closures. This allows it to interface with different types of devices and sensors.
3. Logic Levels: The module supports different logic levels for interpreting the input signals, such as TTL (Transistor-Transistor Logic) or CMOS (Complementary Metal-Oxide-Semiconductor). The module may also have configurable voltage thresholds for detecting the input signal states.
4. Signal Filtering: The module may include signal filtering capabilities to reduce noise and remove spurious input signals, ensuring reliable and accurate monitoring of the discrete inputs.
5. Communication Interface: The module is typically designed to interface with the control system or data acquisition system through a standardized communication protocol, such as Modbus or Profibus. This enables seamless integration and data transmission between the module and the receiving system.
