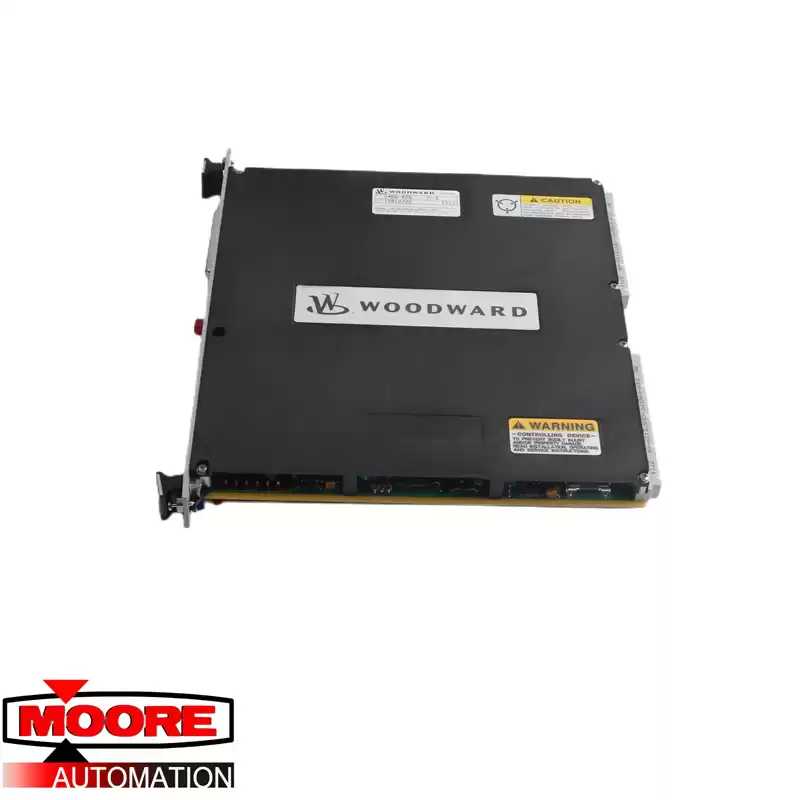

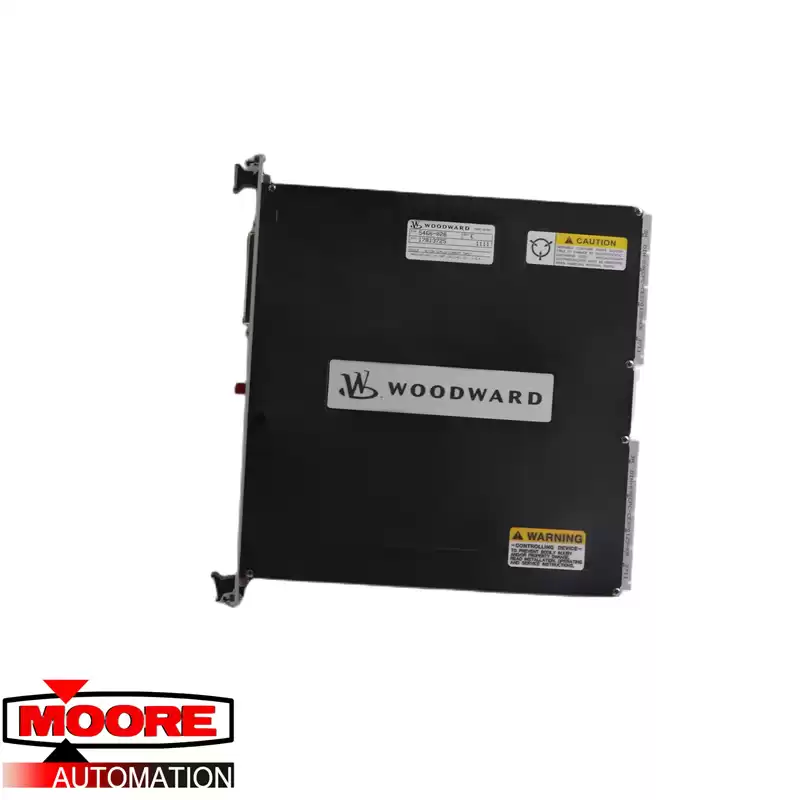

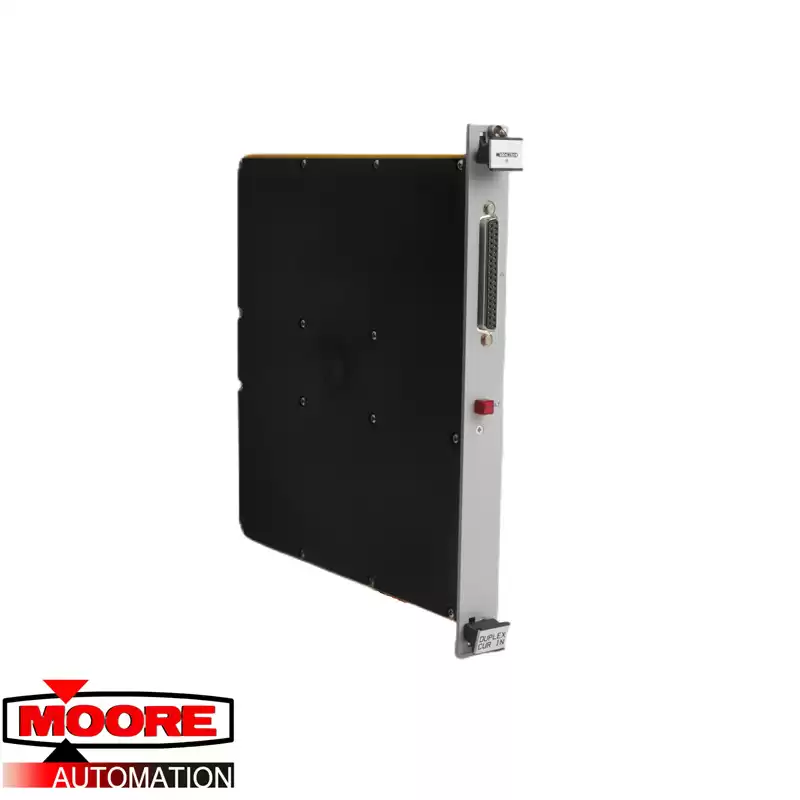

Product Description
This module is used to monitor and control two independent solenoid current
inputs for low or high current failed trips. The module uses discrete and analog
components, to minimize the time to detect and output signals, when an event
occurs. This module is used primarily for GE LM (Land & Marine) gas turbines
and is usually used in conjunction with a Dual Overspeed Module. The Dual
Solenoid Monitor module is used to directly interface with the gas turbine fuel
inlet solenoid valves. This module requires external solenoid driver components
to interface to the fuel valve solenoid. The drivers are mounted external from the
module for heat dissipation purposes. The components for each channel are
completely independent of each other, so that a chip or component failure will
only affect one channel and not both. The module has test features to allow each
channel to be tested. This module will plug directly into any slot of a MicroNet
rack, but it has no interface to the data or address busses of the MicroNet. The
only interface to the MicroNet back plane is for power supply inputs. The module
has 2 potentiometers for factory adjustments. The potentiometers are for
adjusting the under current trip points for the solenoid currents.
