Woodward 8200-1301 505D Digital Governor Turbine Control

8200-1301 AC/DC (88–132 Vac or 90–150 Vdc) Standard Compliance

  • Shipping PortXiamen
Facebook Twitter Pinterest LinkedIn 分享

 » Description
 Manufacture  Woodward
 Model  8200-1301
 Product ID  8200-1301
 Catalog  505 Digital Control
 Description  Woodward 8200-1301 505D Digital Governor Turbine Control
  Origin  United States (US)
 Dimension  280mm*250mm*125mm
 Weight  6.280kg



8200-1301

The 8200-1301 is a Woodward 505 digital speed controller designed for use with split frames or single actuators. It is one of three versions in the series, the other two being the 8200-1300 and 8200-1302. The 8200-1301 is primarily designed for general AC/DC position control (88-264V AC or 90-150V DC). electricity. . It is programmed in the field and uses menu-driven software to control machine drives and generator applications. This cruise control can be configured as part of a Distributed Control System (DCS) or designed as a standalone device.
The 8200-1301 has several normal operating modes: Includes configuration mode, execution mode, and service mode. In configuration mode, the hardware is I/O locked and all outputs are disabled. Setup mode is typically only used during initial setup of the device. The operating mode allows normal operation from start to stop. Service mode allows adjustments and adjustments to be made while the device is turned off or during normal operation.

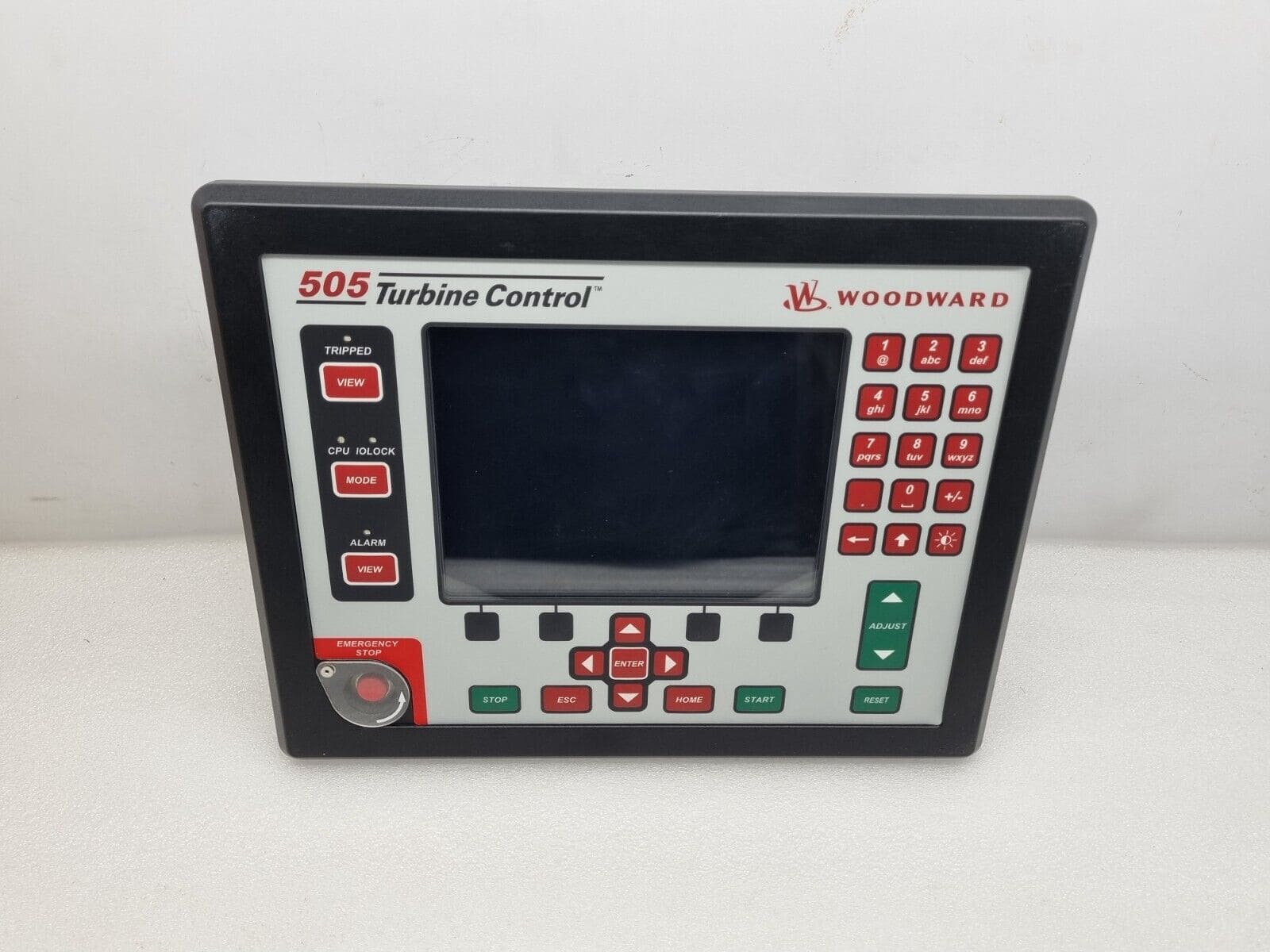

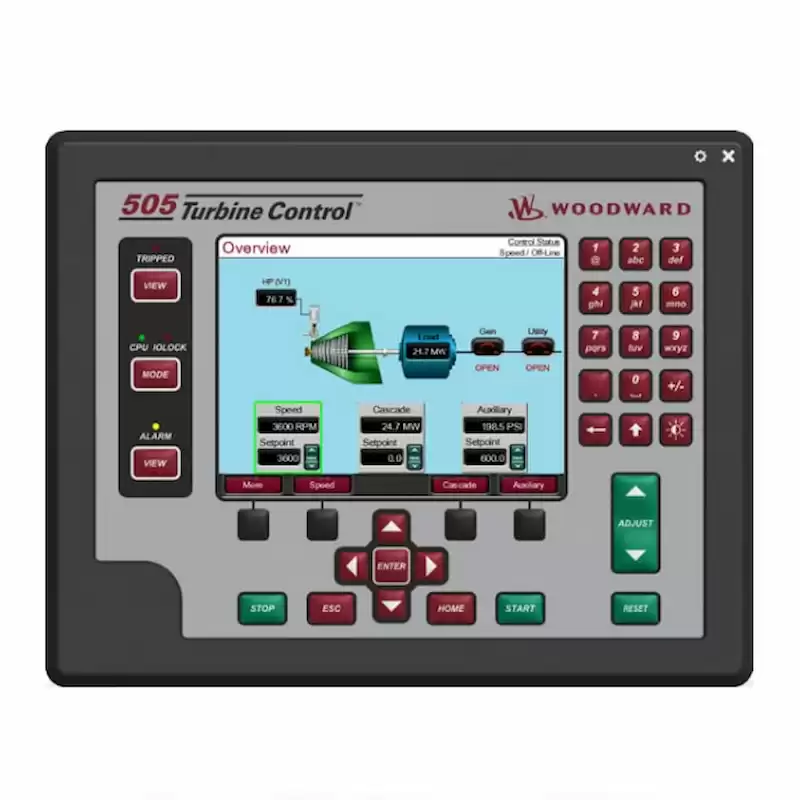

The front panel of the 8200-1301 is designed to provide multiple levels of access to turbine setup, operation, adjustment and configuration. All turbine control functions can be performed from the front panel. It contains logic algorithms to control, stop, start and protect the turbine using multiple input buttons.
