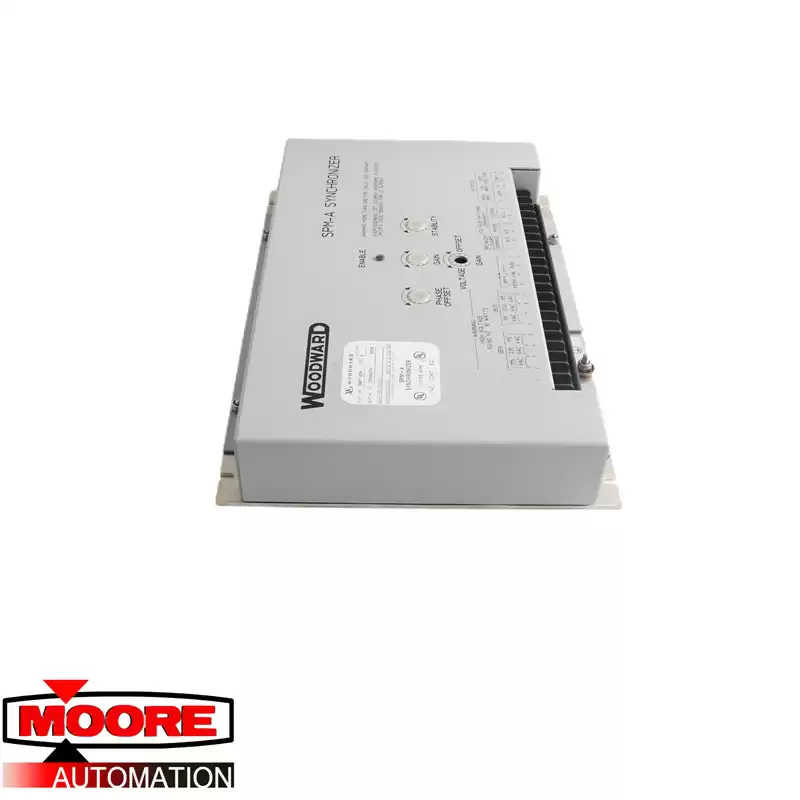

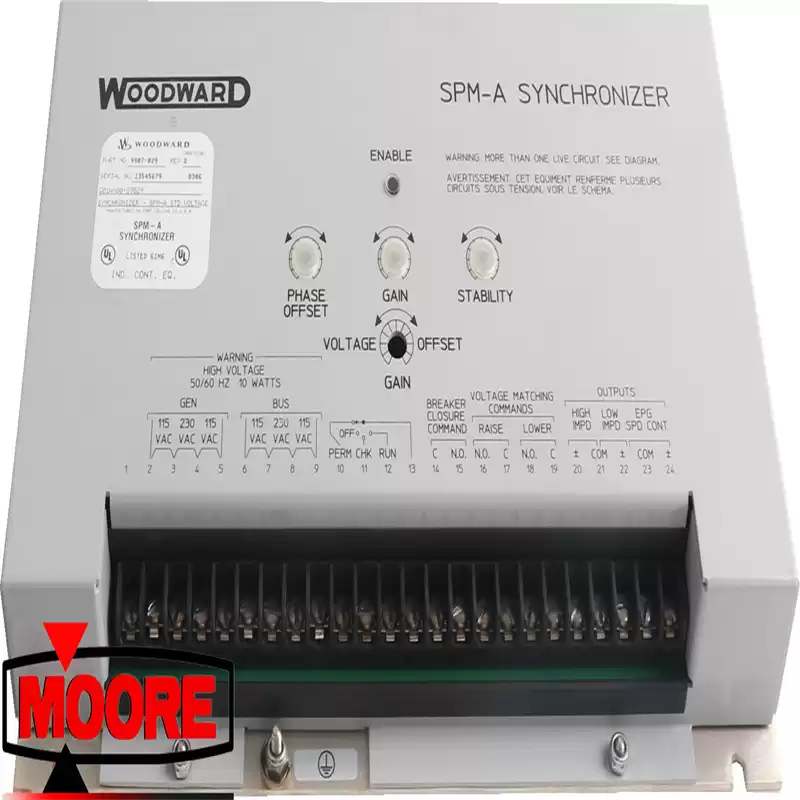

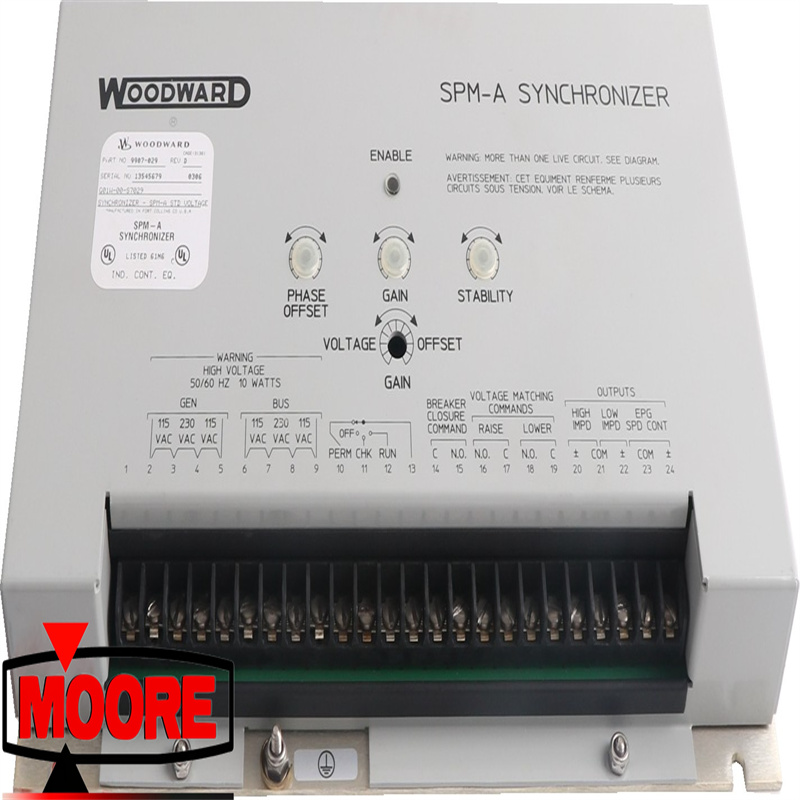

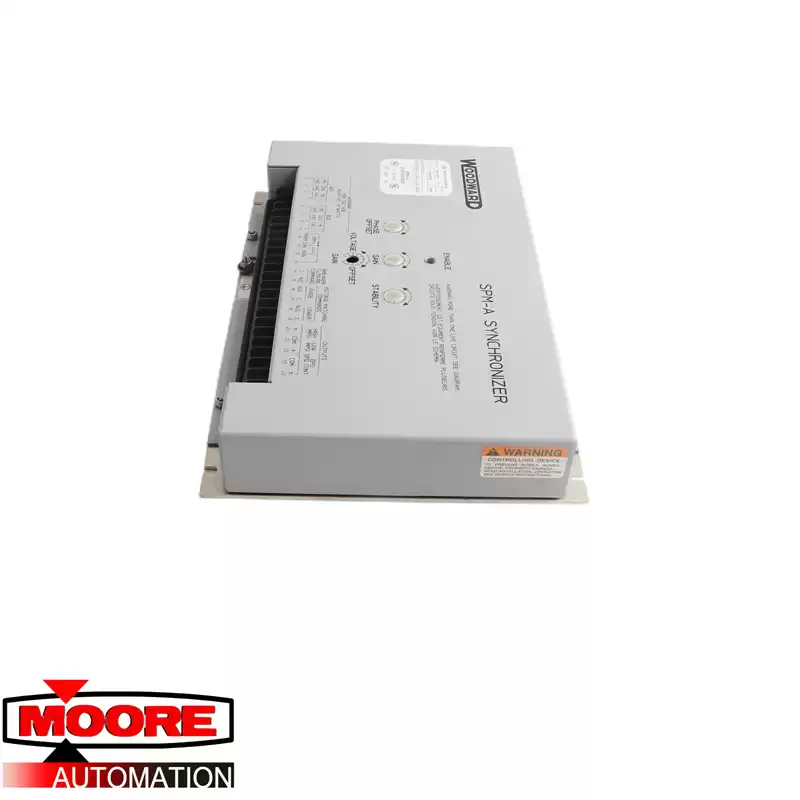

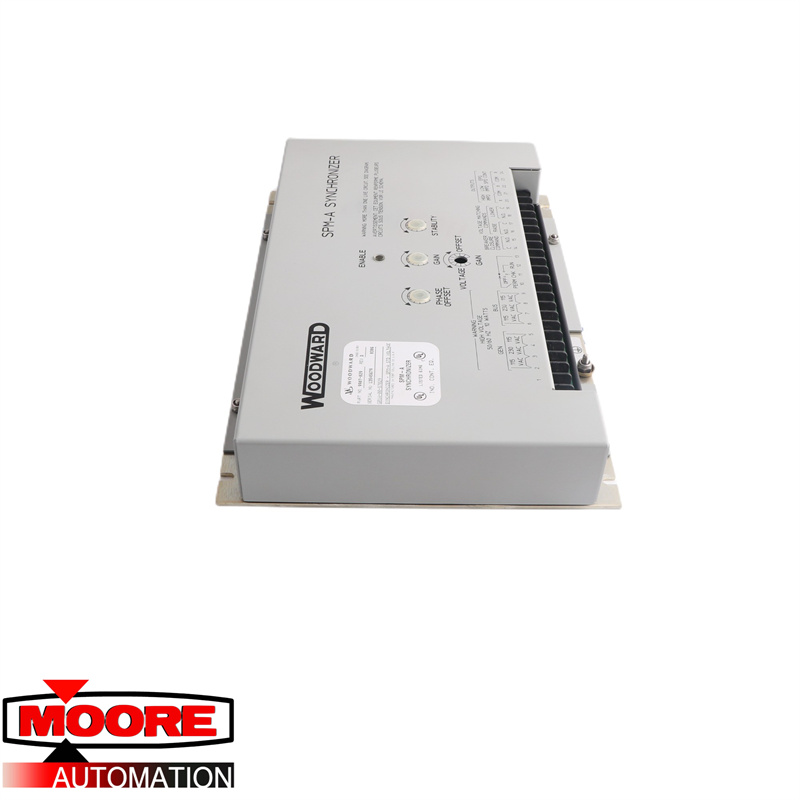

Product Description
Both synchronizers versions have three output options: high impedance, low
impedance, and EPG. Select the high impedance output for single-unit
synchronization when the engine is controlled by a Woodward 2301 control.
Select the low impedance output for single-unit synchronization when the engine
is controlled by a Woodward 2301A, 2500, or Electrically Powered Governor
(EPG) control through a Generator Load Sensor. Use the EPG output when
using a Woodward EPG control without load sensing. Both units have the
following features:
120 or 208/240 Vac input
10 degree phase window
1/8, 1/4, 1/2, or 1 second dwell time (internally switch selectable, factory set
for 1/2 second)
