Woodward 9907-205 Hand Held Programmer
The 9907-205 Hand Held Programmer is a hand-held terminal, powered by the ProAct™ Digital Speed Control. The terminal connects to the RS-422 D connector port on the control. Firmly seat the connector on the terminal into J1. Control boxes are equipped with a cover which must be removed to access the J1 receptacle and the two other terminal strips.
When power is applied to the terminal by plugging it into the control, it performs a power-up self-test. Upon successful completion of the self-test, the screen will remain blank. Press the ID key to display the part number and revision level of the software in the control. Refer to this number and revision level in any correspondence with Woodward.

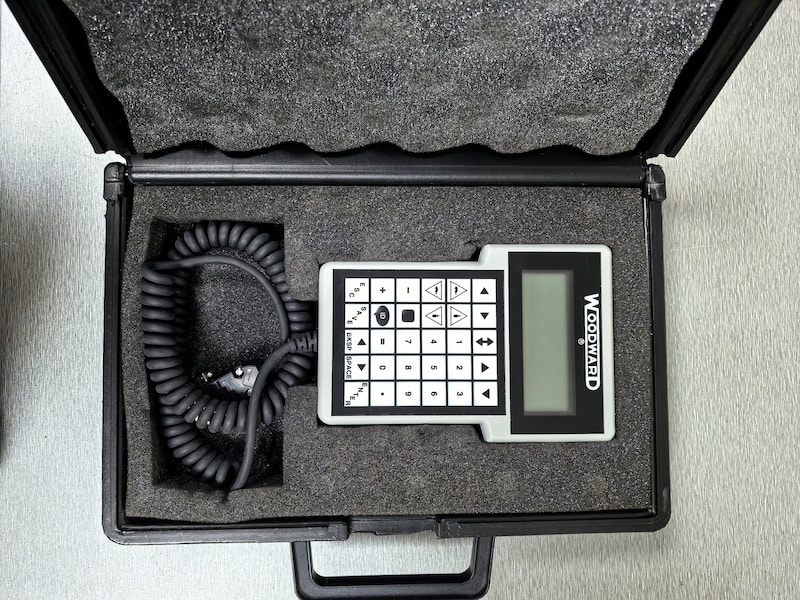

The programmer screen is a four line, back-lighted LCD display. The display permits the user to look at two separate functions or menu items at the same time. Use the“up/down arrow”key to toggle between the two displayed items. The first letter of the active menu will blink.
Changes recorded in the menus may be lost should the ProAct control be powered down. Push the SAVE key to permanently record changes before leaving a menu.
Technical Specifications
| Manufacturer |
Woodward |
| Part Number |
9907-205 |
| Ordering Information |
9907-205 |
| Product Catalog |
ProAct™ Digital Speed Control |
| Description |
Hand Held Programmer |
| Voltage |
24 Vdc |
| Current |
1 A |
| Dimensions |
163 mm x 109 mm x 27 mm |
| Weight |
0.8 kg |
