About product :
|

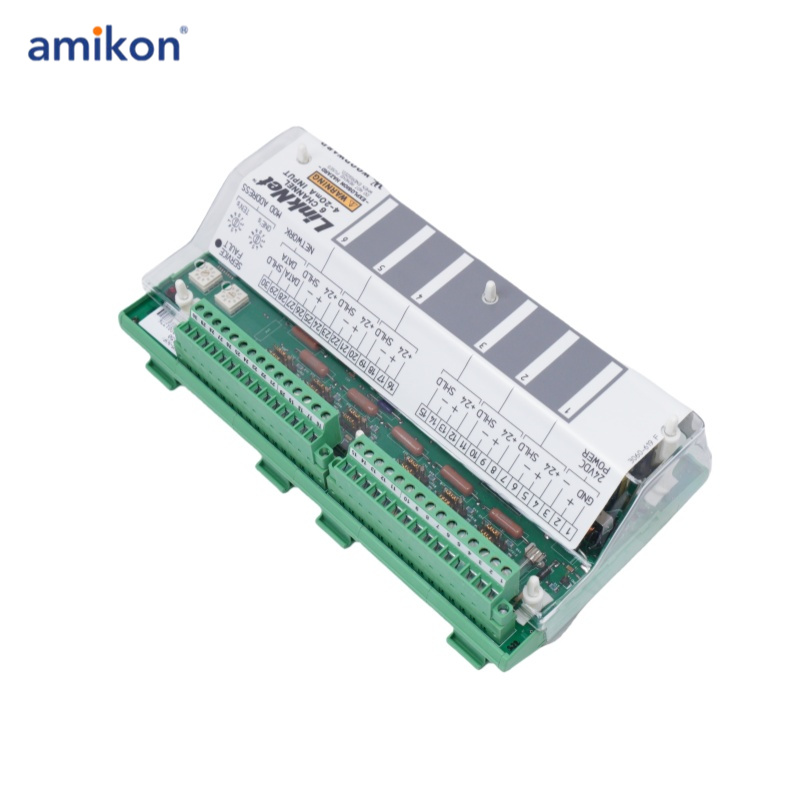

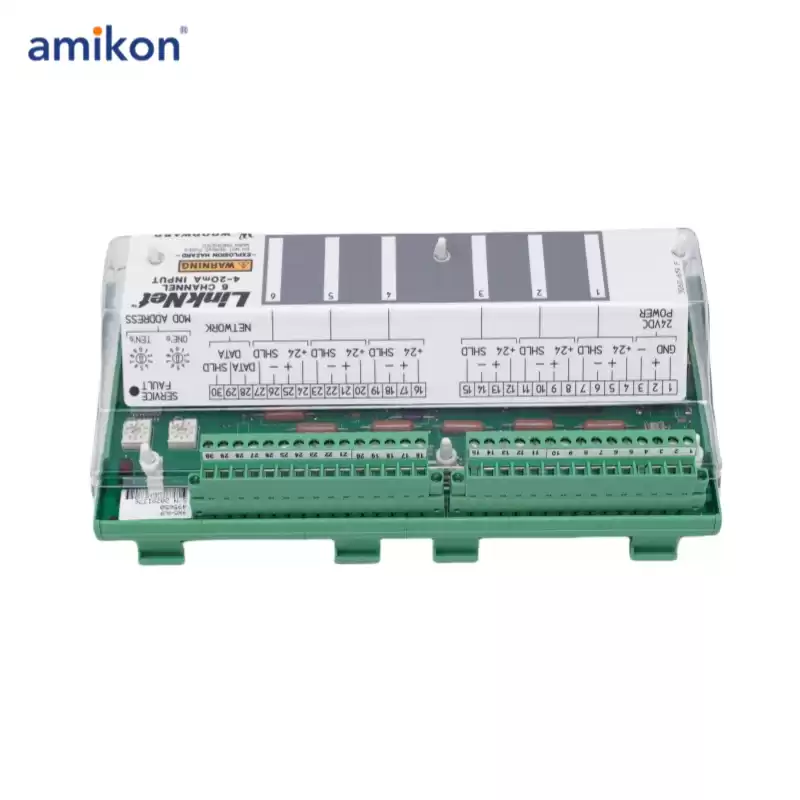

Woodward Analog Input Module 9905-969
|
|
9905-969 is a Linknet 6 Channel Analog Input Module (4-20mA) manufactured and designed by Woodward. The NetCon control system can use low-cost, simple-to-implement distributed I/O capabilities thanks to the LINKnet distributed I/O network. LINKnet I/O modules are ideally suited for non-turbine control tasks like sequencing and monitoring even though they are slower and less potent than NetCon I/O modules.
|
Description:
SPECIFICATIONS:
Part Number: 9905-969
Manufacturer: Woodward
Dimensions: 14W x 11H x 4D
Display Type: 2 line x 24 characters
Accuracy: 1 % at 25 °C
Power Supply Input: (18 to 32) V (dc)
Network to I/O channel: 277 V (ac)
Power supply input to network: 277 V (ac)
Power supply input to I/O channel: 500 V
Humidity Standards: 20 and 55 °C at 95% for 48hrs
Input Voltage: +24 Vdc at 1 A
Keypad/Display: 30 Multi-function Keypad
Temperature Range: (–40 to +55) °C
Weight: 9.11 lbs
