About product:
|

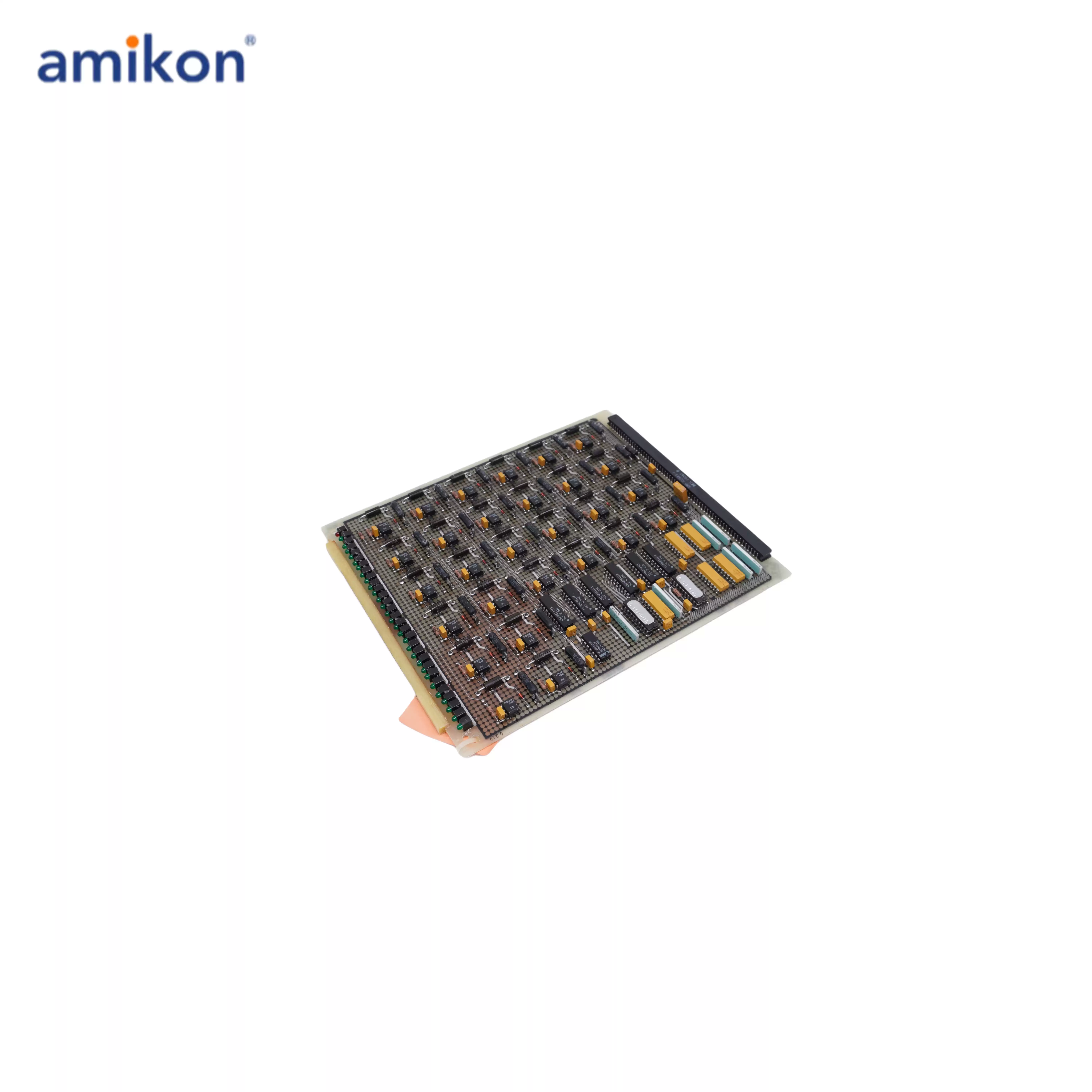

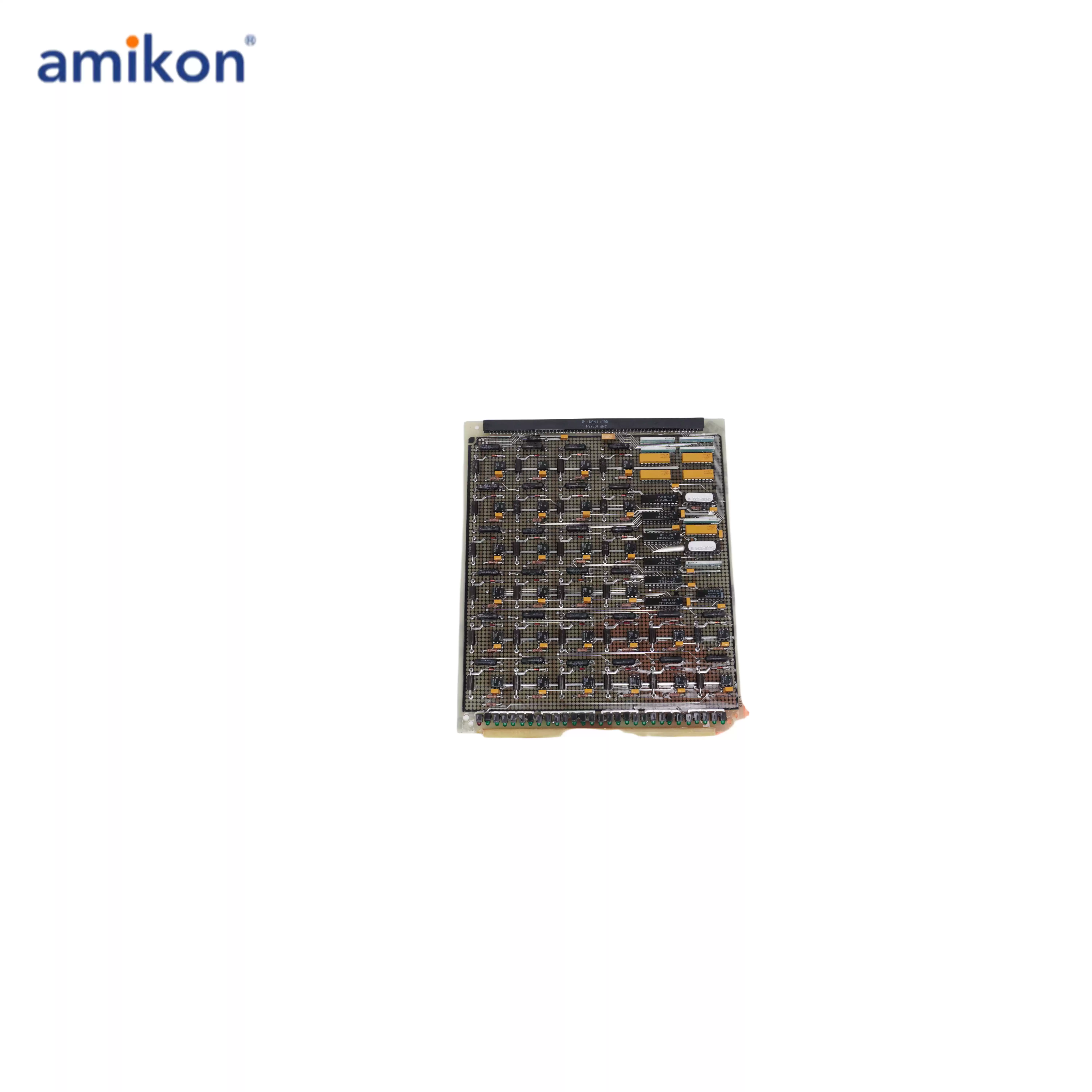

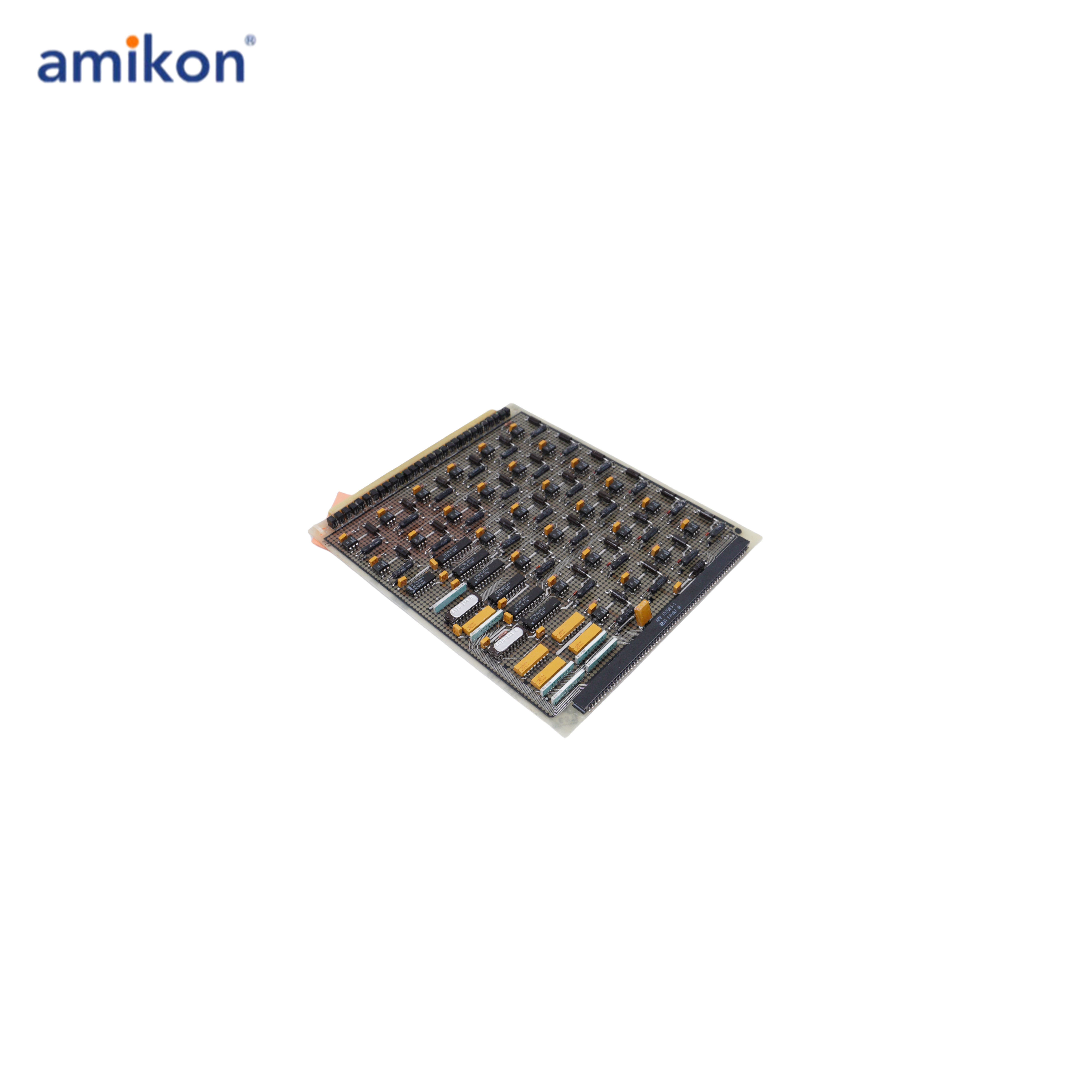

WOODWARD Discrete Input Module 5462-757
|
|
The Woodward Discrete Input Module 5462-757 is a high-performance industrial device designed to process discrete (on/off) input signals in control systems. It provides reliable and precise monitoring of digital inputs, allowing for efficient control of machinery and automation processes. The module is built to withstand harsh environmental conditions, ensuring long-lasting durability and stable operation in demanding industrial applications.
|
SPECIFICATIONS:
Part Number: 5462-757
Manufacturer: Woodward
Product type: Discrete Input Module
Number of Channels: 48
Input Type: Optically isolated discrete input
Input Current: 3 mA
Contact Power: 0.3 A
Availability: In Stock
Country of Manufacture: United States (USA)
Product Attributes:
1.This module receives discrete signals from 48 individual switches or relay contacts and transmits them to the CPU. The MicroNet control circuitry is optically isolated from the inputs. On the 24 Vdc Discrete Input/Output FTM, the module system provides isolated +24 Vdc power for these external contacts.
2.An external contact wetting power supply is required for the Discrete Input (With LEDs) FTM. There are no potentiometers for tuning and no calibration is required. Without requiring any adjustments, a module can be replaced with another 48 Ch DI Module of the same part number.
Installation:
1.The modules are inserted into card guides in the control's chassis and connected to the motherboard. Two screws, one at the top and one at the bottom of the front panel, hold the modules in place.
2.There are also two handles at the top and bottom of the module that, when toggled (pushed outward), move the modules out just far enough for the boards to disengage the motherboard connectors.
3.Each 48 Ch DI Module is connected to two 24 Vdc Discrete Input/Output FTMs or Discrete Input (With LEDs) FTMs via two low density discrete cables. The FTMs provide access to all I/Os on the module, and the channels are labeled sequentially to correspond to their software locations (for example., discrete input 1 on the FTM will be discrete input 1 in the application software). The FTM connected to J1 handles channels 1-24, while the FTM connected to J2 handles channels 25-48.
